◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51139 - ELF300(MEXICO) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#51934) — 15 parça

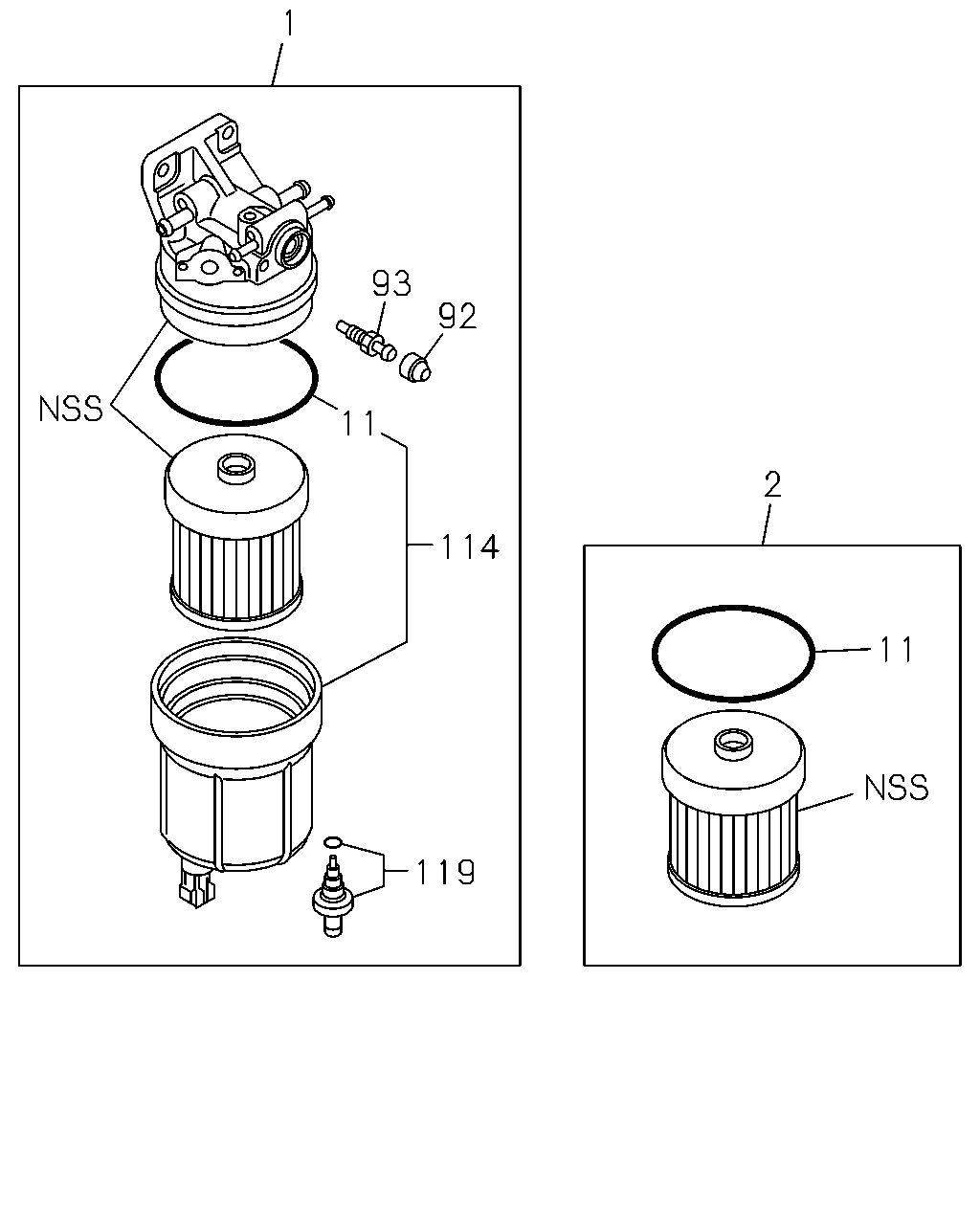

çizim 58451
1 93 92 11 2 114 11 119
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL 8-98060-050-1 01 1 0707-1002
1 FILTER ASM; FUEL 8-98162-903-3 01 1 1003-
2 ELEMENT KIT; FUEL FILTER 8-98037-011-0 01 1 0707-1002
2 ELEMENT KIT; FUEL FILTER 8-98162-897-0 01 1 1003-1112
2 ELEMENT KIT; FUEL FILTER 8-98203-599-0 01 1 1201-
2 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		1-87610-093-0 01 1 1201-
11 GASKET; CASE TO BODY,FUEL FILTER 8-98037-015-0 01 1 0707-1112
11 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1201-
92 CAP; FUEL FILTER 8-98034-314-0 01 1 0707-
93 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 0707-
114 CASE ASM; FUEL FILTER 8-98039-987-1 01 1 0707-
119 PLUG; DRAIN,FUEL FILTER 8-98037-095-0 01 1 0707-
çizim 58808
88 72 40
BalonParca AdiParca NoAdetTipApplied Date
40 BRACKET; FUEL FILTER 8-98064-108-0 01 1 0707-
72 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-110-0 01 1 0707-
88 BOLT; BRKT,FUEL FILTER
M10X30 FLANGE 		0-28051-030-0 02 1 0707-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
