Isuzu WW
▶
TRUCKS
▶
ELF
▶
51139 - ELF300(MEXICO)
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#51931) — 45 parça
◀
[036A] NO.2 (33 parça)
[036A] NO.3 (7 parça)
[036A] NO.1 (5 parça)
▶

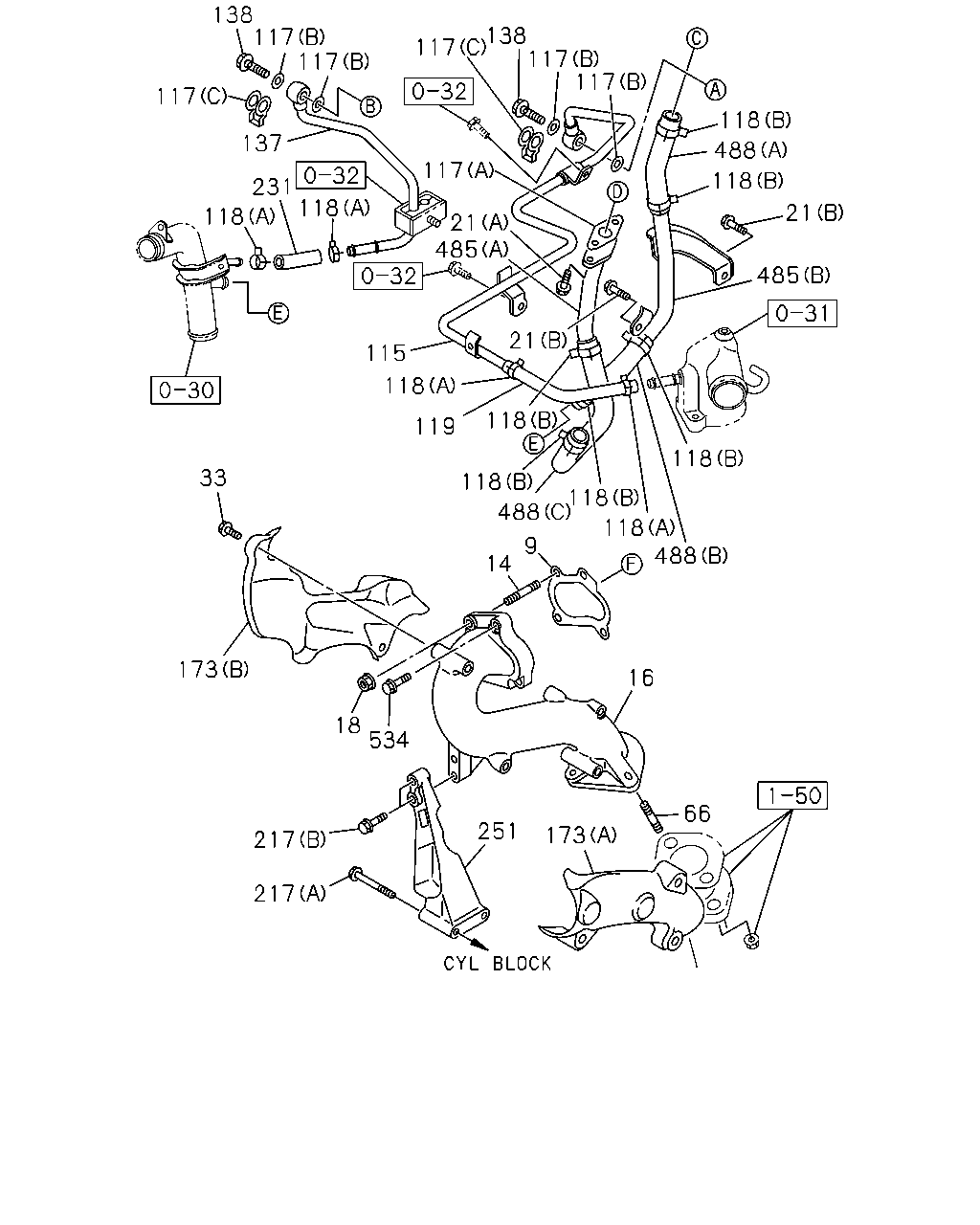

138
117
117
138
117
117
117
117
118
137
488
117
118
231
118
21
118
21
485
485
21
115
118
118
119
118
33
118
118
488
118
488
9
14
173
16
18
534
66
251
173
217
217
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98015-116-3
01
1
0707-
14
STUD; TURBOCHARGER TO EXH PIPE
M8X25 L=36
8-97378-062-0
02
1
0707-
16
ADAPTER; EXH PIPE
8-98012-735-4
01
1
0707-
18
NUT; EXH PIPE
M8 FLANGE
8-97161-607-0
02
1
0707-
21
BOLT; PIPE
(B) M8X16 FLANGE
0-28050-816-0
02
1
0707-
21
BOLT; PIPE
(A) M6X20 HEX SOCKET
0-58330-620-0
02
1
0707-0809
21
BOLT; PIPE
(A) M6X20 FLANGE
0-28650-620-0
02
1
0810-
33
BOLT; HEAT PROTECTOR
M8X12 FLANGE
0-28050-812-0
06
1
0707-
66
STUD; EXH PIPE
M10X25 L=45
0-43211-025-0
03
1
0707-
115
PIPE; WATER,TURBOCHARGER OUT
8-98025-752-0
01
1
0707-0802
115
PIPE; WATER,TURBOCHARGER OUT
8-98113-709-0
01
1
0803-
117
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97262-117-0
01
1
0707-
117
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2
9-09571-412-0
04
1
0707-0904
117
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.6
8-97331-137-1
02
1
0905-
118
CLIP; WATER HOSE
(A) ID=12.8
8-94367-943-0
04
1
0707-
118
CLIP; WATER HOSE
(B) ID=22
8-94382-401-0
06
1
0707-1003
118
CLIP; WATER HOSE
(B) ID=22
8-97359-141-0
06
1
1004-
119
HOSE; WATER,TURBOCHARGER
8-98022-074-0
01
1
0707-0802
119
HOSE; WATER,TURBOCHARGER
8-98113-336-0
01
1
0803-
137
PIPE; WATER,TURBOCHARGER IN
8-97381-650-0
01
1
0707-
138
BOLT; EYE,WATER PIPE
M12X24 EYE-BOLT
1-09675-081-0
02
1
0707-
173
PROTECTOR; HEAT,FUEL PIPE
(A)
8-98032-023-1
01
1
0707-
173
PROTECTOR; HEAT,FUEL PIPE
(B)
8-98032-024-3
01
1
0707-
217
BOLT; BRKT
(A) M10X70 FLANGE
0-28051-070-0
02
1
0707-
217
BOLT; BRKT
(B) M10X30 FLANGE
8-98032-158-0
02
1
0707-
231
HOSE; RUBBER,TURBOCHARGER OUT
8-98030-402-0
01
1
0707-
251
BRACKET; ADAPTER
8-98009-098-1
01
1
0707-
485
PIPE; WATER EGR
(A)
8-97381-651-0
01
1
0707-
485
PIPE; WATER EGR
(B)
8-97381-652-0
01
1
0707-
488
HOSE; RUBBER
(B) L=110 SERVICED BY L=3000
0-03566-300-0
01
1
0707-
488
HOSE; RUBBER
(A) L=120 SERVICED BY L=3000
0-03666-300-0
01
1
0707-
488
HOSE; RUBBER
(C)
8-98015-118-0
01
1
0707-
534
BOLT; TURBOCHARGER TO EXH PIPE
M8X35 FLANGE
8-98053-224-0
02
1
0707-

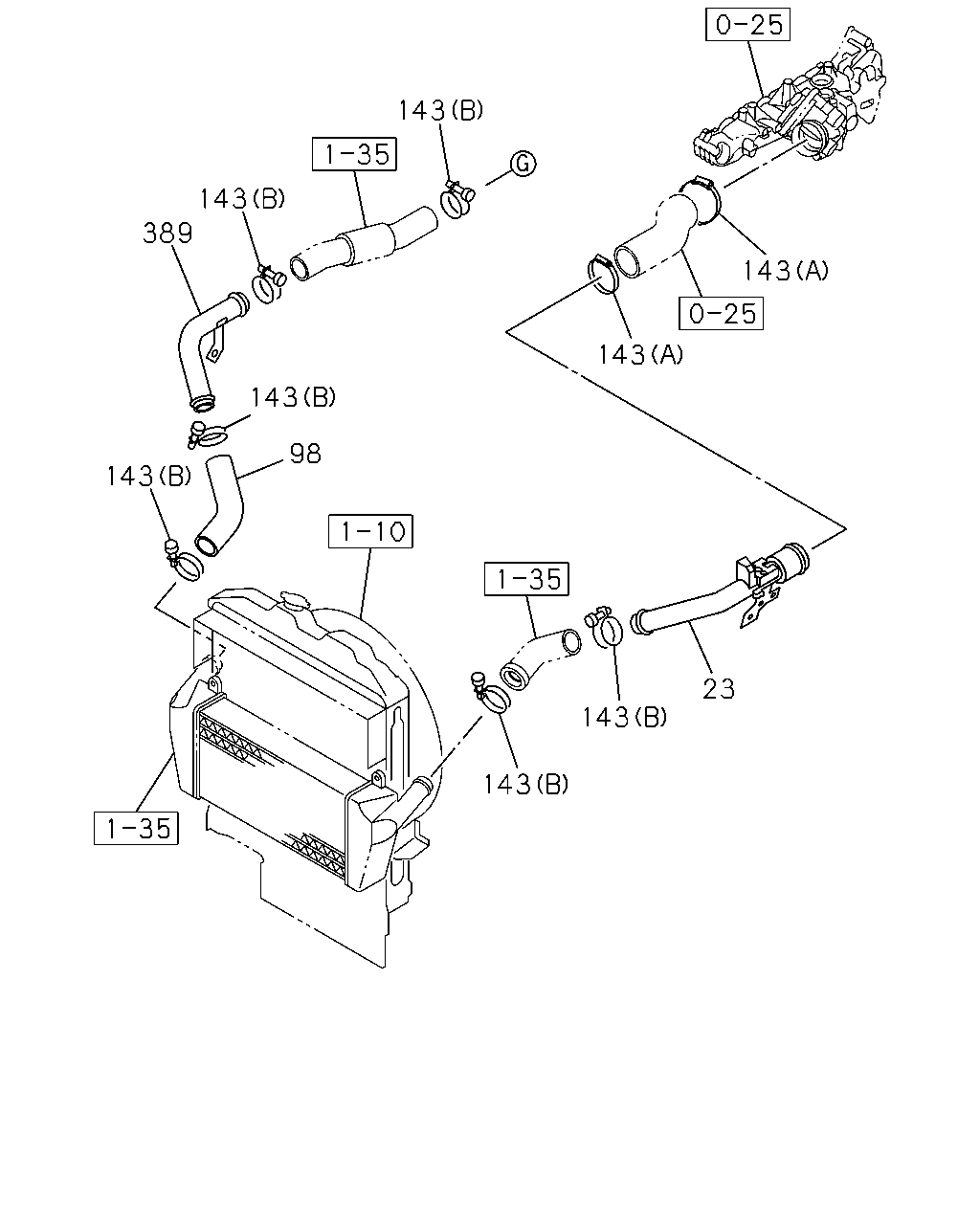

143
143
389
143
143
143
98
143
23
143
143
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
PIPE; INTAKE,TURBOCHARGER
8-98048-021-2
01
1
0707-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
8-98040-182-2
01
1
0707-
143
CLIP; HOSE,TURBOCHARGER OUTLET
(A) ID=68-85
1-09707-202-0
02
1
0707-0810
143
CLIP; HOSE,TURBOCHARGER OUTLET
(A) ID=65-85
8-98133-350-0
02
1
0811-
143
CLIP; HOSE,TURBOCHARGER OUTLET
(B) ID=50-65
1-09707-204-0
06
1
0707-0810
143
CLIP; HOSE,TURBOCHARGER OUTLET
(B) ID=45-65
8-98133-348-0
06
1
0811-
389
PIPE; INL,TURBOCHARGER TO CAC
8-98048-096-0
01
1
0707-

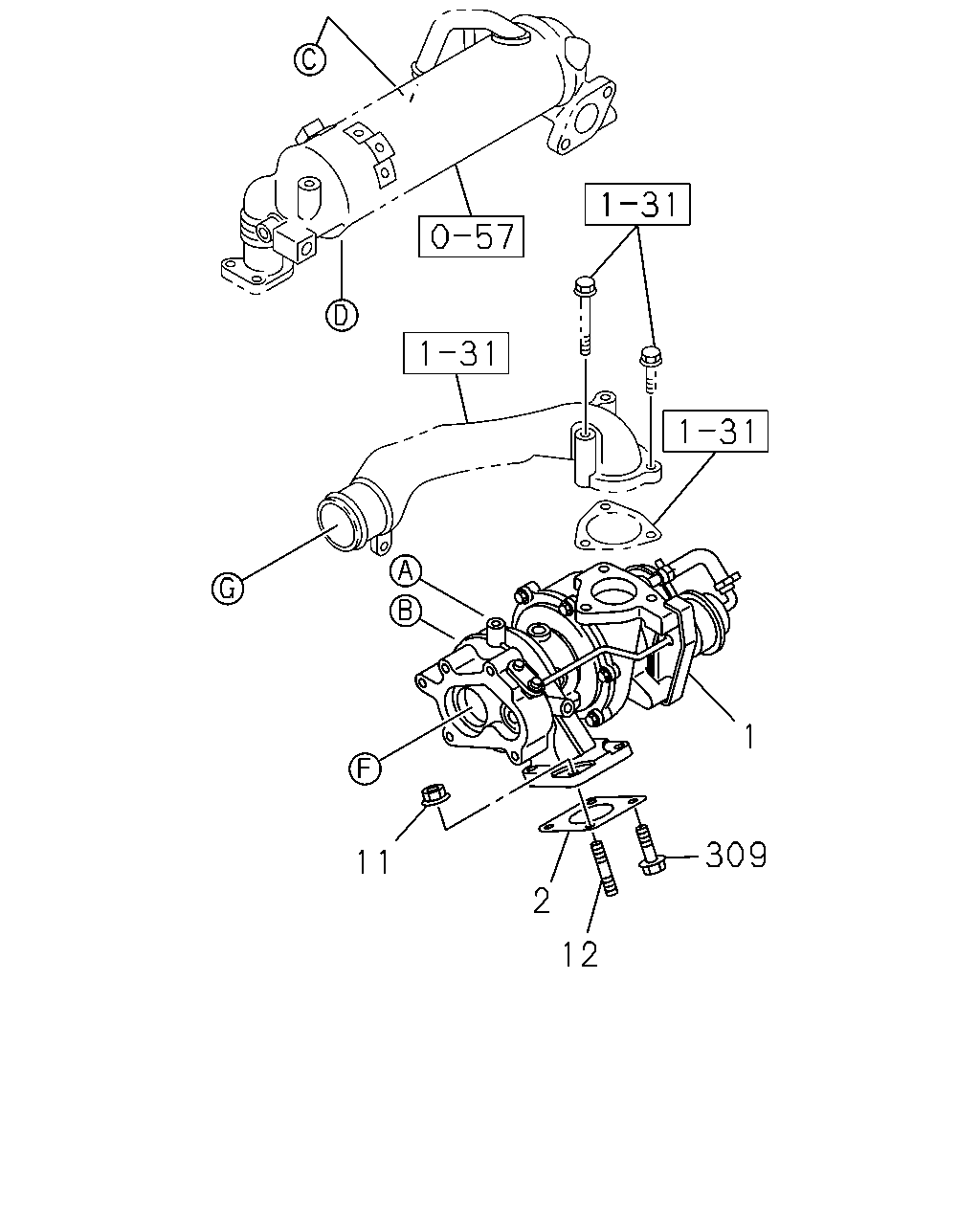

1
309
11
2
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-98054-011-1
01
1
0707-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94433-605-0
01
1
0707-
11
NUT; TURBOCHARGER
M8 FLANGE
8-97161-607-0
02
1
0707-
12
STUD; TURBOCHARGER
M8X25 L=36
8-97378-062-0
02
1
0707-
309
BOLT; TURBOCHARGER
M8X28 FLANGE
8-98043-528-0
02
1
0707-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
