◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51139 - ELF300(MEXICO) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#51924) — 15 parça

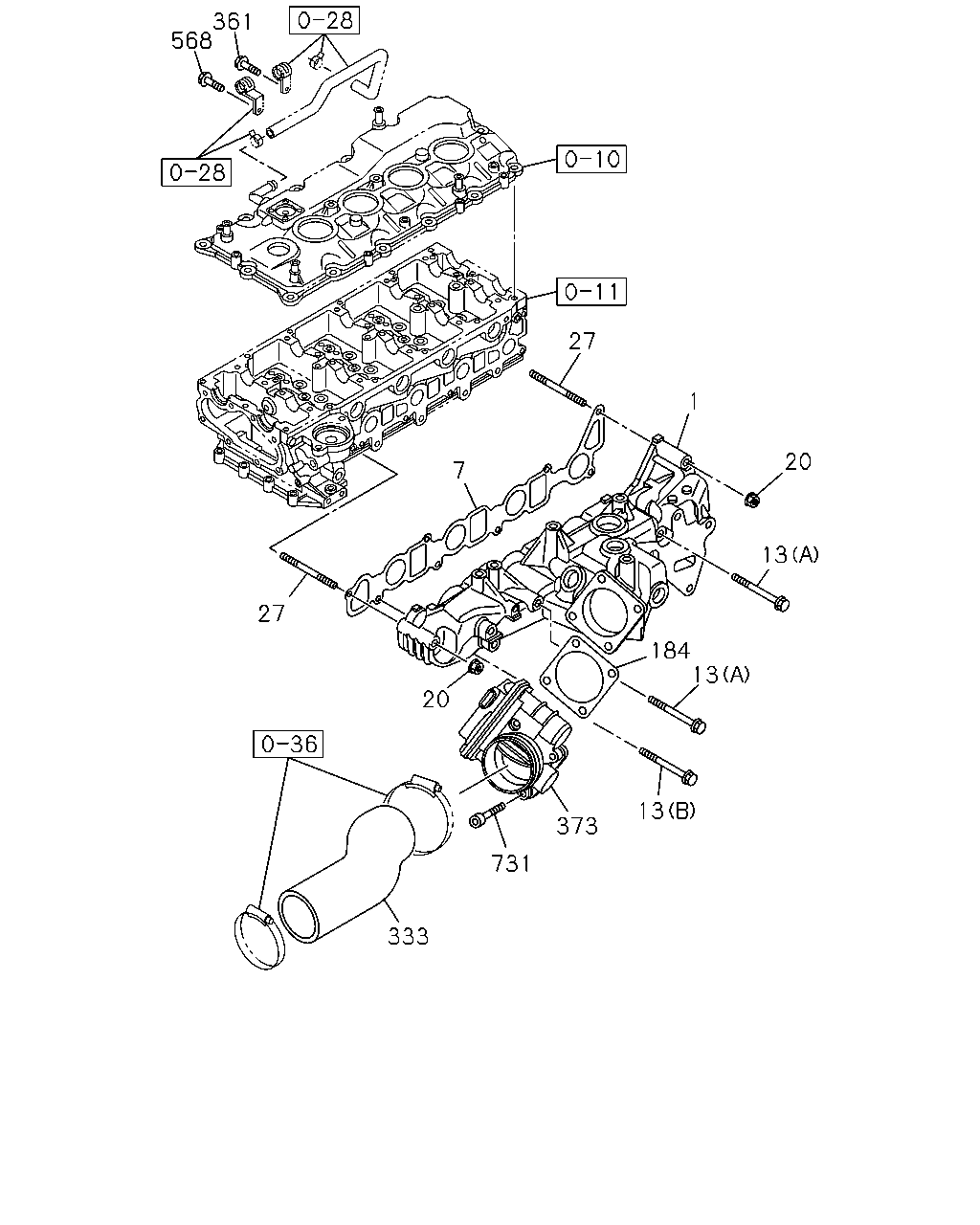

çizim 57071
361 568 27 1 20 7 13 27 184 13 20 13 373 731 333
BalonParca AdiParca NoAdetTipApplied Date
1 MANIFOLD; INL 8-98024-411-1 01 1 0707-
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97312-067-1 01 1 0707-0902
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98063-396-0 01 1 0903-1211
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98212-999-0 01 1 1212-
13 BOLT; INL MANIF
(A) M8X110 FLANGE 		0-28055-811-0 02 1 0707-
13 BOLT; INL MANIF
(B) M8X70 12-POINT HEAD 		8-97101-065-0 04 1 0707-
20 NUT; INL MANIF
M8 FLANGE 		0-91180-208-0 02 1 0707-
27 STUD; INL MANIF
M8X71 L=83 		8-98017-063-0 02 1 0707-
184 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97366-784-1 01 1 0707-0902
184 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98096-968-0 01 1 0903-
333 HOSE; RUBBER,INL PIPE 8-98056-469-0 01 1 0707-
361 BOLT; CLIP
M6X10 FLANGE 		0-28050-610-0 01 1 0707-
373 THROTTLE ASM; INT 8-98040-003-4 01 1 0707-
568 BOLT; PIPE
M8X12 HEX SOCKET 		0-58330-812-0 01 1 0707-
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET 		0-58330-650-0 04 1 0707-
