Isuzu WW
▶
TRUCKS
▶
ELF
▶
51139 - ELF300(MEXICO)
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶
0-22 — ENGINE MOUNTING
(#51923) — 23 parça
◀

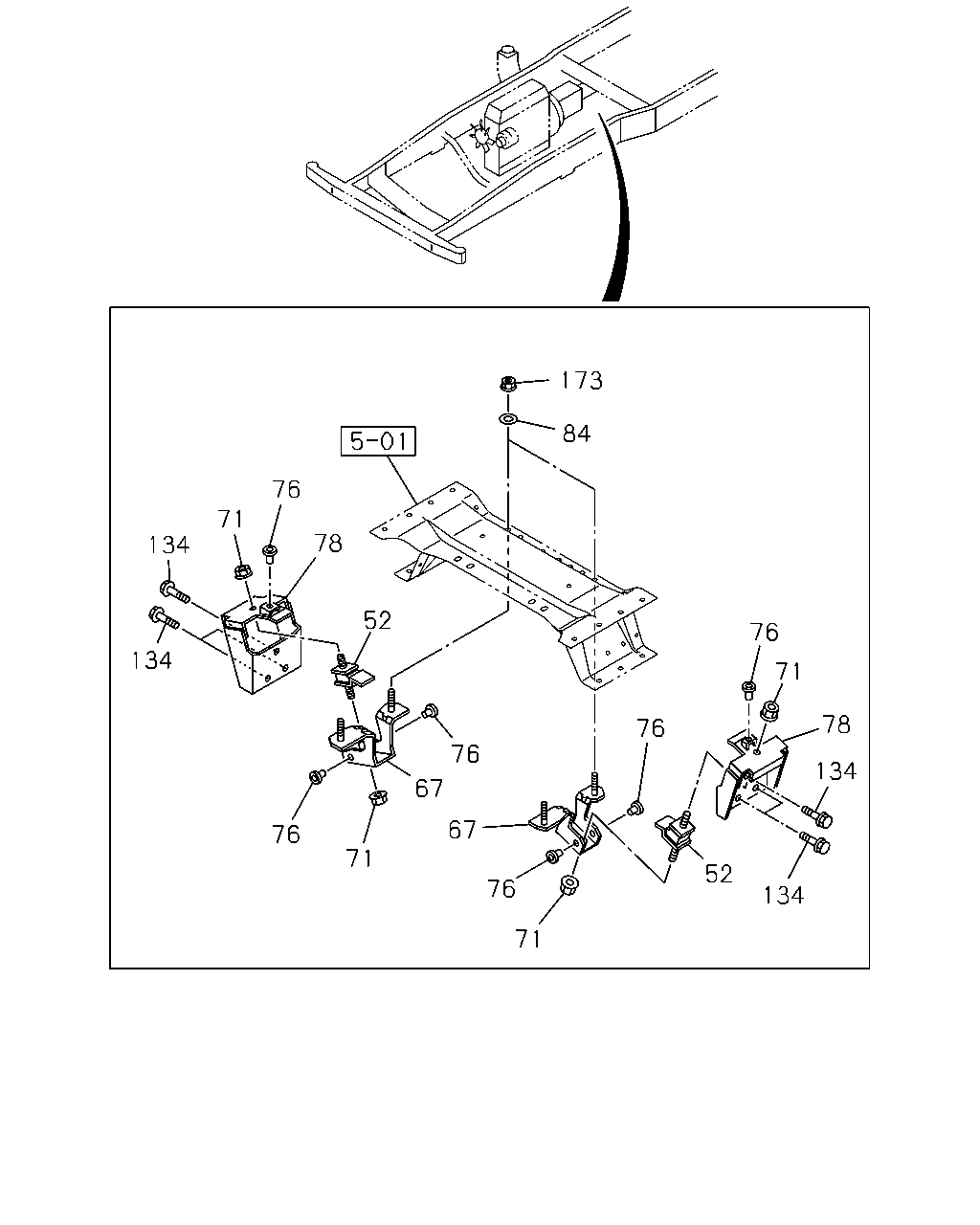

[022A] REAR SIDE (10 parça)
[022A] FRONT SIDE (13 parça)
▶
173
84
76
71
78
134
52
76
134
71
78
76
76
134
67
67
76
71
52
76
134
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
RUBBER; CUSHION,ENG MTG,RR
8-94111-903-1
02
1
0707-
67
BRACKET; SUPPORT,ENG MTG,RR
8-97371-919-1
01
1
0707-
67
BRACKET; SUPPORT,ENG MTG,RR
8-97325-569-1
01
1
0707-
71
NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE
0-91180-110-0
04
1
0707-
76
STOPPER; ENG MTG RUBBER
8-94111-904-0
06
1
0707-
78
BRACKET; ENG MTG,RR
8-97325-560-1
01
1
0707-
78
BRACKET; ENG MTG,RR
8-97325-561-1
01
1
0707-
84
WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32
0-91614-810-0
04
1
0707-
134
BOLT; SUPPORT BRKT
M12X25 FLANGE
0-28751-225-0
06
1
0707-
173
NUT; ENG MTG RR TO FRAME
M10 FLANGE
0-91180-110-0
04
1
0707-
20
20
20
20
20
2
2
20
20
22
17
2
1
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
8-98043-001-0
01
1
0707-
1
RUBBER; ENG FOOT,FRT
8-98043-000-0
01
1
0707-
2
FOOT; ENG
8-97381-513-1
01
1
0707-
2
FOOT; ENG
8-97381-514-2
01
1
0707-
17
COVER; CUSHION RUBBER,FRT
8-97229-825-0
01
1
0707-
17
COVER; CUSHION RUBBER,FRT
8-97383-796-0
01
1
0707-
20
BOLT; ENG FOOT
(C) M10X70 FLANGE
0-28051-070-0
01
1
0707-
20
BOLT; ENG FOOT
(D) M10X20 FLANGE
0-28651-020-0
01
1
0707-
20
BOLT; ENG FOOT
(E) M10X25 FLANGE
0-28651-025-0
02
1
0707-
20
BOLT; ENG FOOT
(A) M10X30 FLANGE
0-28651-030-0
03
1
0707-
20
BOLT; ENG FOOT
(B) M10X35 FLANGE
0-28651-035-0
01
1
0707-
22
NUT; CUSHION RUBBER TO BRKT
(A) M12 FLANGE
0-91180-112-0
02
1
0707-
22
NUT; CUSHION RUBBER TO BRKT
(B) M12 FLANGE
8-98046-987-0
02
1
0707-
