1 |

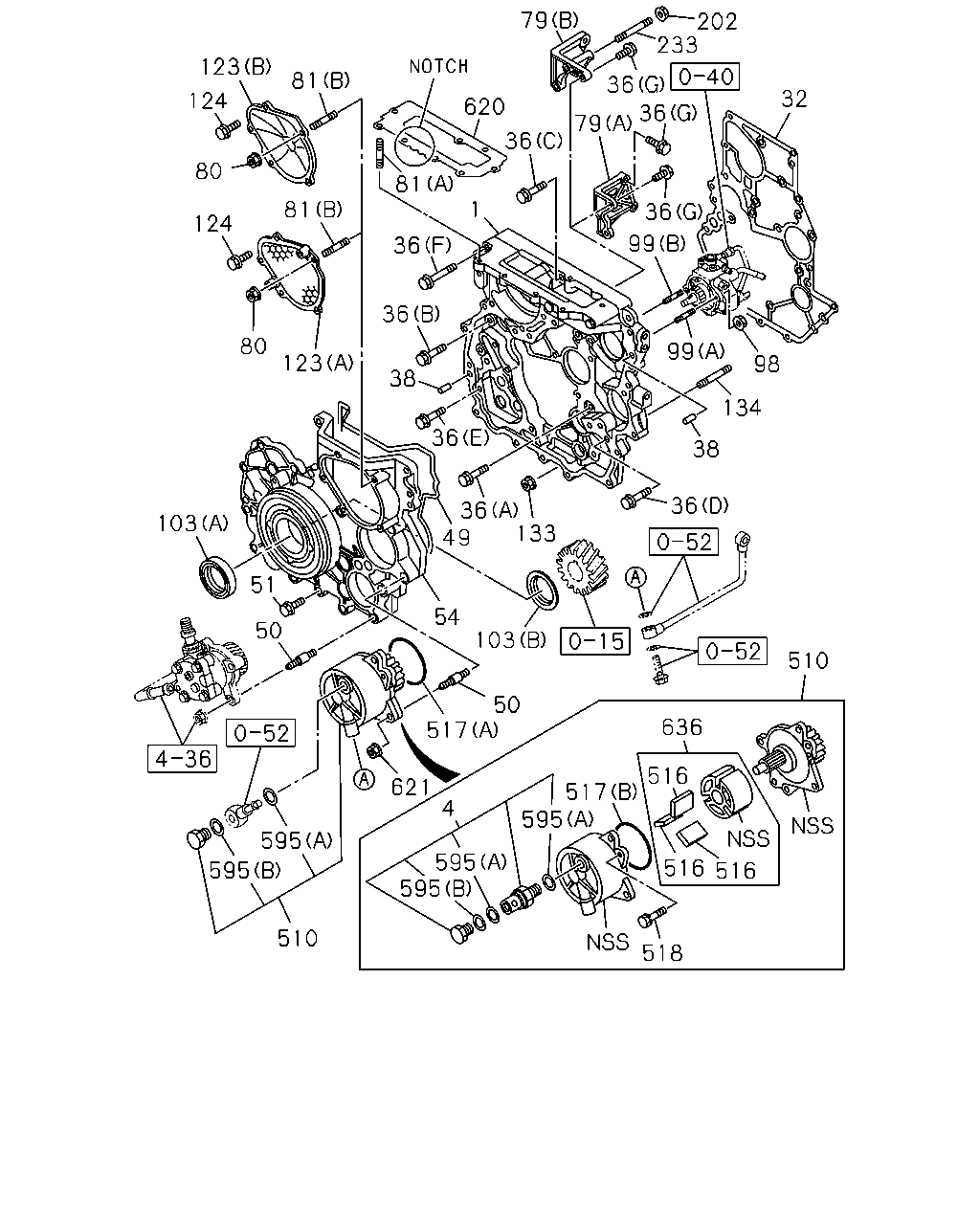

CASE; TIMING GEAR
|
8-97945-261-2 |
01 |
1 |
0707-1310 |
| |
1 |
CASE; TIMING GEAR
|
8-98074-747-1 |
01 |
1 |
1311- |
| |
4 |
VALVE ASM; CHECK
|
8-98049-521-0 |
01 |
1 |
0707- |
| |
32 |
GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
|
8-97312-221-2 |
01 |
1 |
0707- |
| |
36 |
BOLT; GEAR CASE
(A)
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0707- |
| |
36 |
BOLT; GEAR CASE
(B)
M8X20 FLANGE
|
0-28050-820-0 |
12 |
1 |
0707- |
| |
36 |
BOLT; GEAR CASE
(C)
M8X35 FLANGE
|
0-28050-835-0 |
01 |
1 |
0707- |
| |
36 |
BOLT; GEAR CASE
(D)
M8X45 FLANGE
|
0-28050-845-0 |
02 |
1 |
0707- |
| |
36 |
BOLT; GEAR CASE
(F)
M8X60 FLANGE
|
0-28050-860-0 |
01 |
1 |
0707- |
| |
36 |
BOLT; GEAR CASE
(E)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0707- |
| |
36 |
BOLT; GEAR CASE
(G)
M8X30 FLANGE
|
0-28650-830-0 |
03 |
1 |
0707- |
| |
38 |
PIN; GEAR CASE COVER
OD=10 L=20
|
8-97135-423-0 |
02 |
1 |
0707- |
| |
49 |
GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE).
|
8-97945-298-0 |
01 |
1 |
0707- |
| |
50 |
STUD
M8X27,M8X14 L=64.5
|
8-97354-808-2 |
06 |
1 |
0707- |
| |
51 |
BOLT; GEAR CASE COVER
|
8-97354-697-1 |
14 |
1 |
0707- |
| |
54 |
COVER; GEAR CASE
|
8-98012-960-2 |
01 |
1 |
0707-1007 |
| |
54 |
COVER; GEAR CASE
|
8-98165-119-1 |
01 |
1 |
1008-1405 |
| |
54 |
COVER; GEAR CASE
|
8-98253-700-1 |
01 |
1 |
1406- |
| |
79 |
BRACKET; GEAR CASE COVER
(A)
|
8-97370-390-2 |
01 |
1 |
0707-1310 |
| |
79 |
BRACKET; GEAR CASE COVER
(B)
|
8-98107-106-0 |
01 |
1 |
1311- |
| |
80 |
NUT; COVER
M6 FLANGE
|
0-91180-206-0 |
02 |
1 |
0707- |
| |
81 |
STUD; GEAR CASE COVER FIX
(B)
M6X16 L=25
|
0-41010-616-0 |
02 |
1 |
0707- |
| |
81 |
STUD; GEAR CASE COVER FIX
(A)
M8X30 L=48
|
0-49140-830-0 |
02 |
1 |
0707- |
| |
98 |
NUT; STUD,INJ PUMP
M8 FLANGE
|
0-91180-208-0 |
02 |
1 |
0707- |
| |
99 |
STUD; INJ PUMP
(A)
M8X30 L=41
|
8-97369-449-0 |
01 |
1 |
0707-1310 |
| |
99 |
STUD; INJ PUMP
(A)
M8X30 L=41
|
8-97369-449-0 |
02 |
1 |
1311- |
| |
99 |
STUD; INJ PUMP
(B)
M8X45 L=56
|
8-97369-450-0 |
01 |
1 |
0707-1310 |
| |
103 |
SEAL; OIL,CR/SHF,FRT
(A)
ALSO INCLUDED IN GASKET SET(ENGINE).
|
8-97382-606-0 |
01 |
1 |
0707-1007 |
| |
103 |
SEAL; OIL,CR/SHF,FRT
(A)
ALSO INCLUDED IN GASKET SET(ENGINE).
|
8-98158-110-0 |
01 |
1 |
1008- |
| |
103 |
SEAL; OIL,CR/SHF,FRT
(B)
|
8-97386-601-0 |
01 |
1 |
0707-1007 |
| |
123 |
COVER; TIMING,LWR
(A)
|
8-97371-720-1 |
01 |
1 |
0707-1006 |
| |
123 |
COVER; TIMING,LWR
(B)
|
8-98158-145-0 |
01 |
1 |
1007- |
| |
124 |
BOLT; TIMING COVER
M6X16 FLANGE
|
0-28050-616-0 |
03 |
1 |
0707- |
| |
133 |
NUT; TIMING GEAR CASE
M8 FLANGE
|
0-91180-208-0 |
02 |
1 |
0707- |
| |
134 |
STUD; TIMING GEAR CASE
M8X20 L=32
|
0-41010-820-0 |
02 |
1 |
0707- |
| |
202 |
NUT; BRKT
M8 FLANGE
|
0-91180-208-0 |
01 |
1 |
1311- |
| |
233 |
STUD; BRKT
M8X71 L=83
|
8-98017-063-0 |
01 |
1 |
1311- |
| |
510 |
PUMP ASM; VACUUM
|
8-98005-250-0 |
01 |
1 |
0707-1005 |
| |
510 |
PUMP ASM; VACUUM
|
8-98162-748-0 |
01 |
1 |
1006-1311 |
| |
510 |
PUMP ASM; VACUUM
|
8-98251-764-0 |
01 |
1 |
1312- |
| |
516 |
VANE; VAC PUMP
|
8-98051-275-0 |
03 |
1 |
0707- |
| |
517 |
GASKET; VAC PUMP
(B)
|
8-98049-522-0 |
01 |
1 |
0707-1311 |
| |
517 |
GASKET; VAC PUMP
(B)
|
8-98251-769-0 |
01 |
1 |
1312- |
| |
517 |
GASKET; VAC PUMP
(A)
ALSO INCLUDED IN GASKET SET(ENGINE).
|
9-09566-271-0 |
01 |
1 |
0707- |
| |
518 |
BOLT; VAC PUMP
|
8-98049-523-0 |
03 |
1 |
0707- |
| |
595 |
GASKET; VLV
(B)
ID=12
|
8-98018-518-0 |
01 |
1 |
0707- |
| |
595 |
GASKET; VLV
(A)
ID=18
|
8-98018-519-0 |
02 |
1 |
0707- |
| |
620 |
GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
T=1.40 1-NOTCH
|
8-97328-828-2 |
01 |
1 |
0707- |
| |
620 |
GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
T=1.45 2-NOTCH
|
8-97331-631-2 |
01 |
1 |
0707- |
| |
620 |
GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
T=1.50 3-NOTCH
|
8-97331-632-2 |
01 |
1 |
0707- |
| |
621 |
NUT; VAC PUMP
M8 FLANGE
|
0-91180-208-0 |
03 |
1 |
0707- |
| |
636 |
ROTOR & VANE ASM; VAC PUMP
|
8-98049-520-0 |
01 |
1 |
0707- |
