Isuzu WW
▶
TRUCKS
▶
ELF
▶
51139 - ELF300(MEXICO)
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

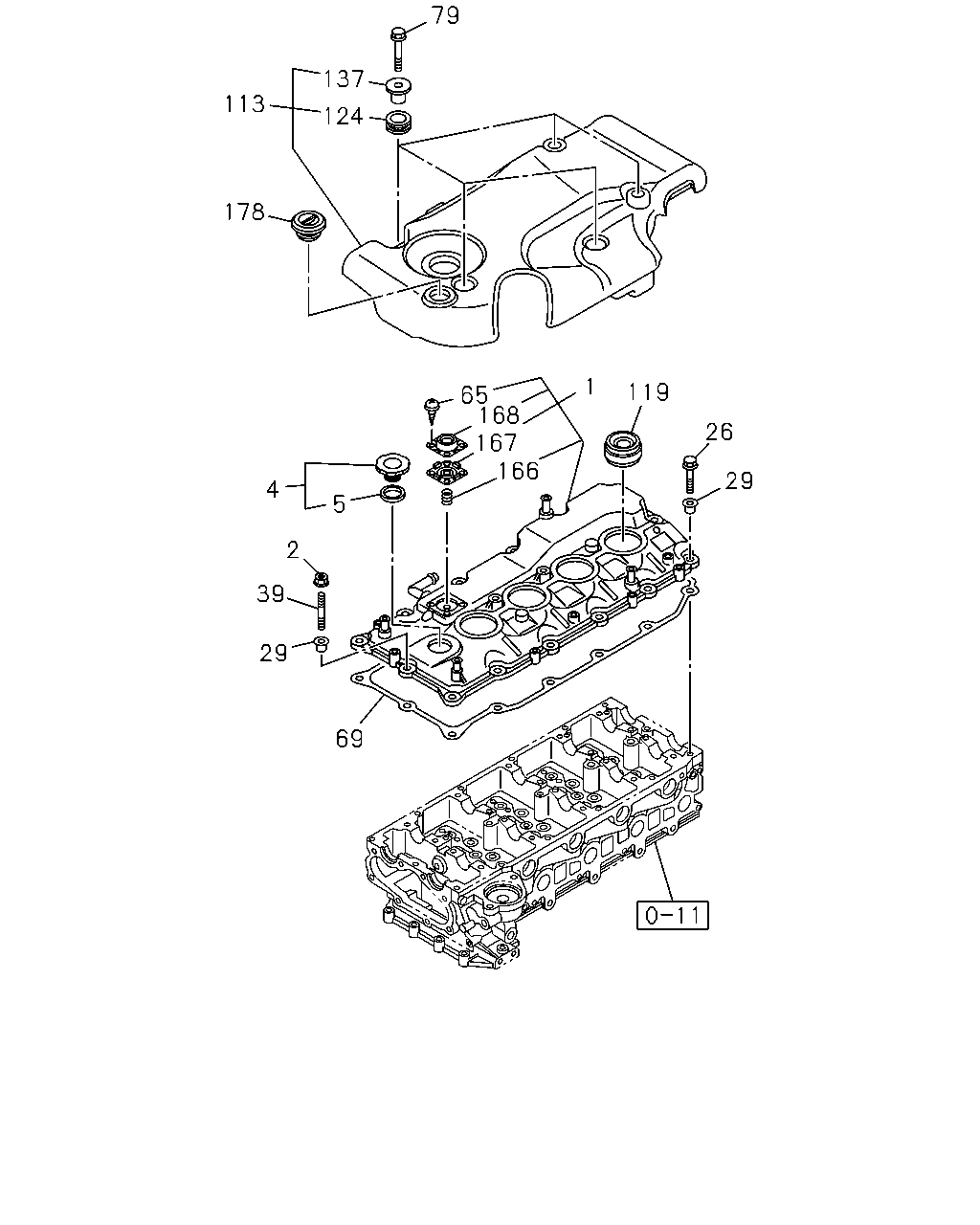

0-10 — CYLINDER HEAD COVER
(#51916) — 28 parça
79
137
124
113
178
4
5
65
168
167
1
119
26
29
166
2
39
29
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
8-98051-197-1
01
1
0707-1204
1
COVER; CYL HD
8-98209-078-0
01
1
1205-1205
1
COVER; CYL HD
8-98051-197-1
01
1
1205-1305
1
COVER; CYL HD
8-98226-103-0
01
1
1306-1505
1
COVER; CYL HD
8-98051-197-1
01
1
1506-
2
NUT; COVER,HD
M6 FLANGE
0-91180-206-0
01
1
0707-
4
CAP; OIL FILLER
8-94133-207-5
01
1
0707-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40
8-94123-623-1
01
1
0707-
26
BOLT; CYL HD COVER
M6X30 FLANGE
0-28650-630-0
13
1
0707-
29
RUBBER; MTG,HD COVER
8-97381-524-0
14
1
0707-1408
29
RUBBER; MTG,HD COVER
8-97168-200-1
14
1
1409-
39
STUD; COVER,HD
M6X30 L=38
8-97372-795-0
01
1
0707-
65
SCREW; ADAPTER
M5X10 W/LK WASHER
8-97366-592-0
04
1
0707-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97945-338-0
01
1
0707-
79
BOLT; COVER
M8X20 FLANGE
0-28050-820-0
05
1
0707-
113
COVER; CYL HEAD COVER
8-98039-090-4
01
1
0707-1104
113
COVER; CYL HEAD COVER
8-98158-904-1
01
1
1105-
119
COVER; SEAL,NOZZLE
8-98037-543-0
04
1
0707-
124
RUBBER; MTG,COVER
8-98036-119-0
05
1
0707-
137
BUSHING; MTG RUBBER,COVER
8-98036-120-0
05
1
0707-
166
SPRING; VENTILATOR
8-97365-998-0
01
1
0707-1204
166
SPRING; VENTILATOR
8-98209-384-0
01
1
1205-1205
166
SPRING; VENTILATOR
8-97365-998-0
01
1
1205-
167
DIAPHRAGM; VENTILATOR
8-98003-164-0
01
1
0707-1305
167
DIAPHRAGM; VENTILATOR
8-98226-101-0
01
1
1306-1505
167
DIAPHRAGM; VENTILATOR
8-98003-164-0
01
1
1506-
168
COVER; VENTILATOR
8-97365-992-0
01
1
0707-
178
CAP; COVER
8-98036-117-0
01
1
0707-0907
