9-01 — TOOLS (#51913) — 28 parça

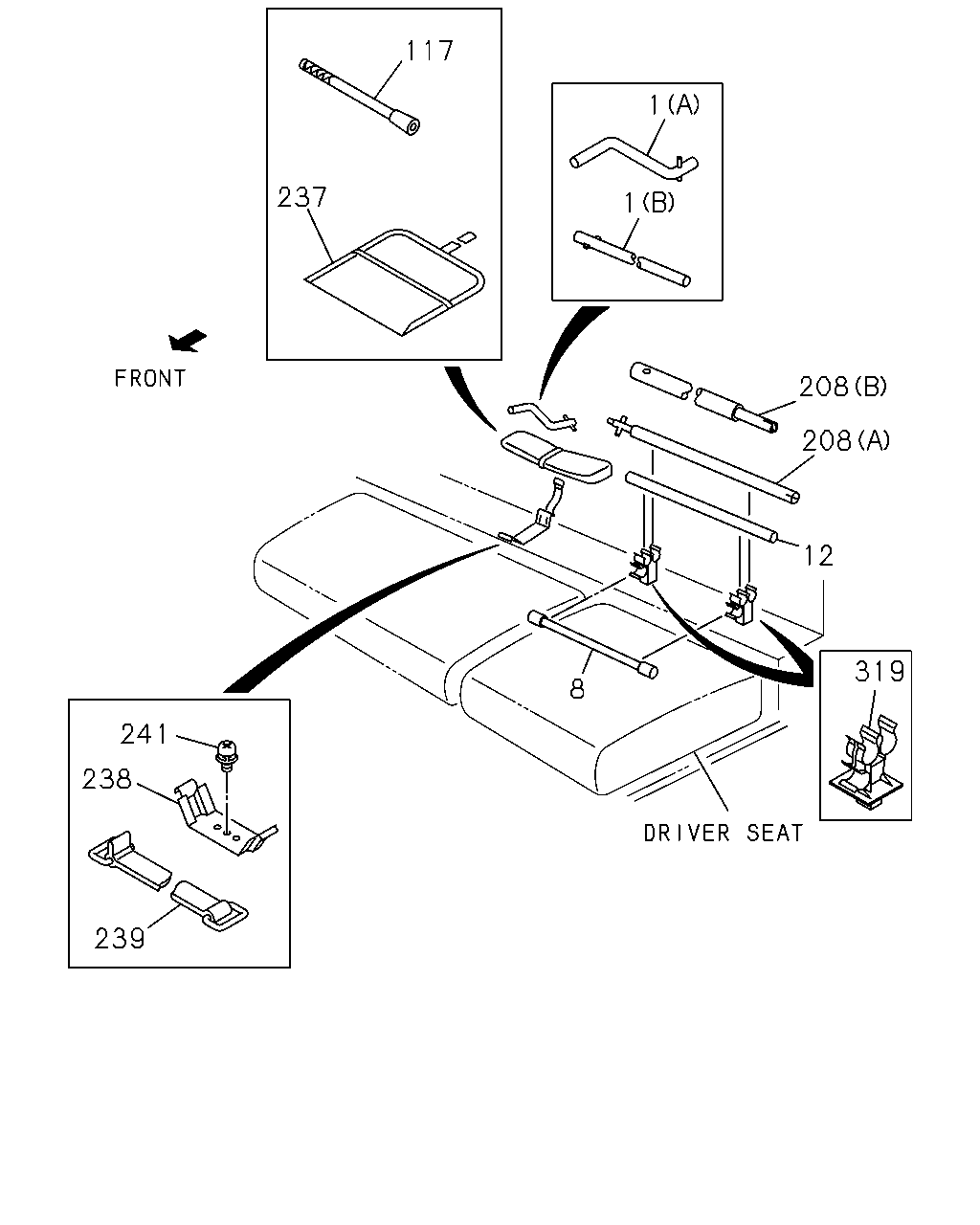

çizim 56953
117 1 237 1 208 208 12 319 8 241 238 239
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER<P10> (B) L=280 		1-85515-007-0 01 1 0511-1108 ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1109- ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER<P10> (A) 		8-97218-985-0 01 1 0507-0604 ● ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER<P10> (A) 		8-97218-985-0 01 1 0605- ● ● ●
8 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 0507-0604 ● ● ●
8 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 0605- ● ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
EXC. SPARE WHEEL CARRIER<P10> OD=25 L=590 		8-97332-988-0 01 1 0507-0510 ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0511-0604 ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0605-1001 ● ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 1002-1407 ● ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1408- ● ● ● ●
117 WRENCH; VALVE CAP
SPARE WHEEL CARRIER<P10> 		9-85163-906-1 01 1 0507-0510 ● ● ●
208 HANDLE; JACK
SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 0511-1108 ●
208 HANDLE; JACK
SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1109- ●
208 HANDLE; JACK
SPARE WHEEL CARRIER<P10> (A) L=642 		8-97217-800-0 01 1 0507-0604 ● ●
208 HANDLE; JACK
SPARE WHEEL CARRIER<P10> (A) L=642 		8-97217-800-0 01 1 0605-1108 ● ● ●
208 HANDLE; JACK
SPARE WHEEL CARRIER<P10> (A) L=642 		8-98181-477-0 01 1 1109- ● ● ●
237 BAG; TOOL 8-97130-903-0 01 1 0507-0604 ● ● ●
237 BAG; TOOL 8-97130-903-1 01 1 0605- ● ● ● ●
238 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0507-0604 ● ● ●
238 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0605- ● ● ● ●
239 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0507-0604 ● ● ●
239 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0605- ● ● ● ●
241 SCREW; TOOL BAG SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0507-0604 ● ● ●
241 SCREW; TOOL BAG SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0605-0612 ● ● ● ●
241 SCREW; TOOL BAG SUPPORT
M6X16 		0-38050-616-0 01 1 0701- ● ● ● ●
319 CLIP; TOOL BAR 8-97853-077-2 02 1 0507-0604 ● ● ●
319 CLIP; TOOL BAR 8-97853-077-2 02 1 0605- ● ● ● ●
