◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51047 - ELF400/450(MEXICO) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#51912) — 63 parça

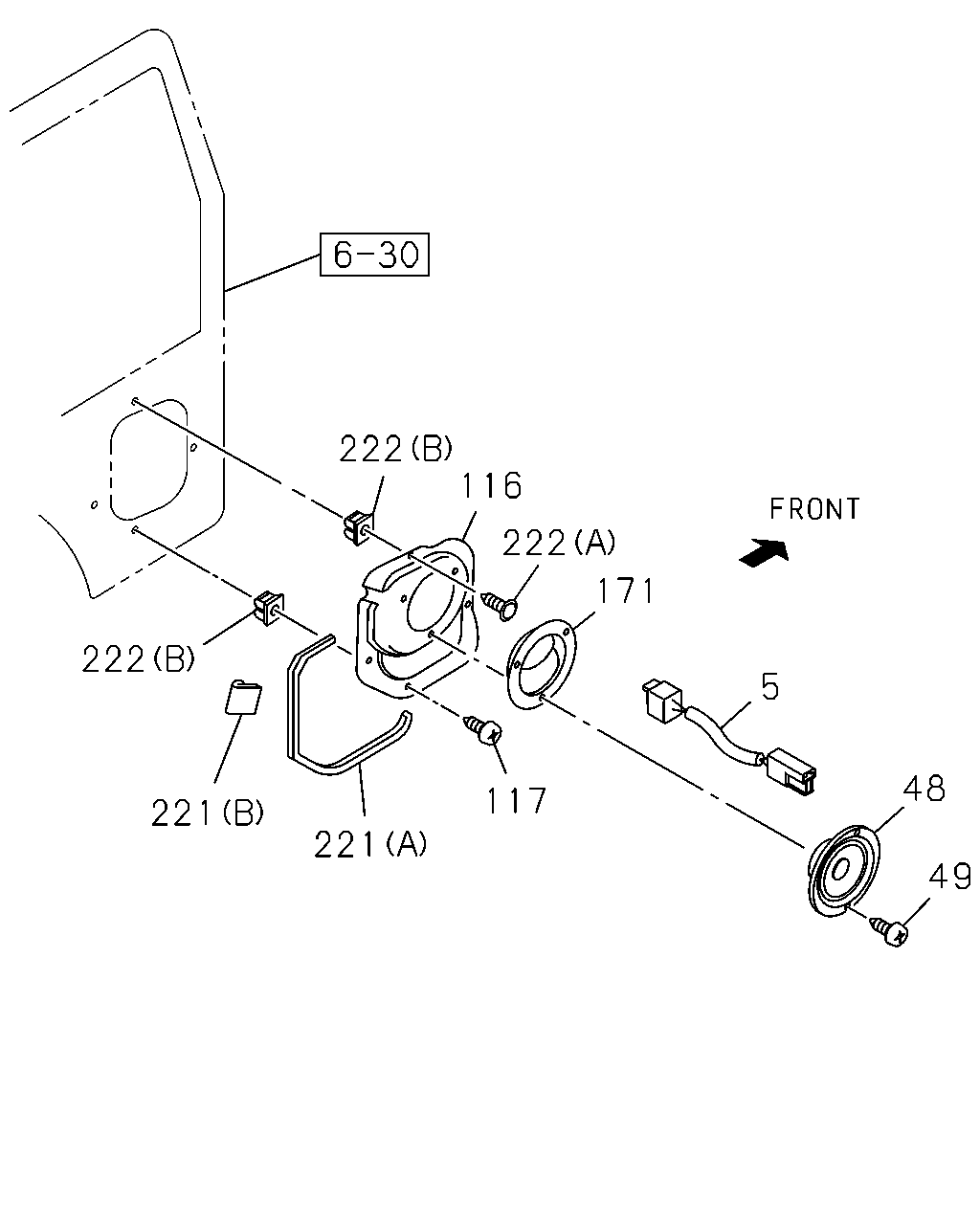

çizim 57203
222 116 222 171 222 5 48 117 221 221 49
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 HARNESS; EXT
SPEAKER OPTION 2 SPEAKER<7FK> 		8-97131-327-0 02 1 0507-0604 ● ● ●
5 HARNESS; EXT
SPEAKER OPTION 2 SPEAKER<7FK> 		8-97131-327-0 02 1 0605- ● ● ● ●
48 SPEAKER; AUDIO
SPEAKER OPTION 2 SPEAKER<7FK> 		8-97317-000-0 02 1 0507-0604 ● ● ●
48 SPEAKER; AUDIO
SPEAKER OPTION 2 SPEAKER<7FK> 		8-97317-000-0 02 1 0605-0805 ● ● ● ●
48 SPEAKER; AUDIO
SPEAKER OPTION 2 SPEAKER<7FK> 		8-97317-001-1 02 1 0806- ● ● ● ●
49 SCREW; SPEAKER
SPEAKER OPTION 2 SPEAKER<7FK> M5X14 		8-94279-325-0 06 1 0507-0604 ● ● ●
49 SCREW; SPEAKER
SPEAKER OPTION 2 SPEAKER<7FK> M5X14 		8-94279-325-0 06 1 0605-0612 ● ● ● ●
49 SCREW; SPEAKER
SPEAKER OPTION 2 SPEAKER<7FK> M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 0701- ● ● ● ●
116 PANEL; SPEAKER,FRT DOOR 8-97852-325-3 01 1 0507-0604 ● ● ●
116 PANEL; SPEAKER,FRT DOOR 8-97852-325-3 01 1 0605- ● ● ● ●
116 PANEL; SPEAKER,FRT DOOR 8-97852-324-3 01 1 0507-0604 ● ● ●
116 PANEL; SPEAKER,FRT DOOR 8-97852-324-3 01 1 0605- ● ● ● ●
117 SCREW; SPEAKER PANEL
M5X14 		8-94279-325-0 06 1 0507-0604 ● ● ●
117 SCREW; SPEAKER PANEL
M5X14 		8-94279-325-0 06 1 0605-0612 ● ● ● ●
117 SCREW; SPEAKER PANEL
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 0701- ● ● ● ●
171 COVER; SPEAKER
SPEAKER OPTION 2 SPEAKER<7FK> 		8-97852-331-4 02 1 0507-0604 ● ● ●
171 COVER; SPEAKER
SPEAKER OPTION 2 SPEAKER<7FK> 		8-97852-331-4 02 1 0605- ● ● ● ●
221 SEAL; SPEAKER PANEL
(A) 		8-97852-327-5 02 1 0507-0604 ● ● ●
221 SEAL; SPEAKER PANEL
(A) 		8-97852-327-5 02 1 0605- ● ● ● ●
221 SEAL; SPEAKER PANEL
(B) 		8-97852-601-2 02 1 0507-0604 ● ● ●
221 SEAL; SPEAKER PANEL
(B) 		8-97852-601-2 02 1 0605- ● ● ● ●
222 GROMMET; SCREW,SPEAKER PANEL
(A) FASTENER 		1-09987-144-0 02 1 0507-0604 ● ● ●
222 GROMMET; SCREW,SPEAKER PANEL
(A) FASTENER 		1-09987-144-0 02 1 0605- ● ● ● ●
222 GROMMET; SCREW,SPEAKER PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0507-0604 ● ● ●
222 GROMMET; SCREW,SPEAKER PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0605- ● ● ● ●

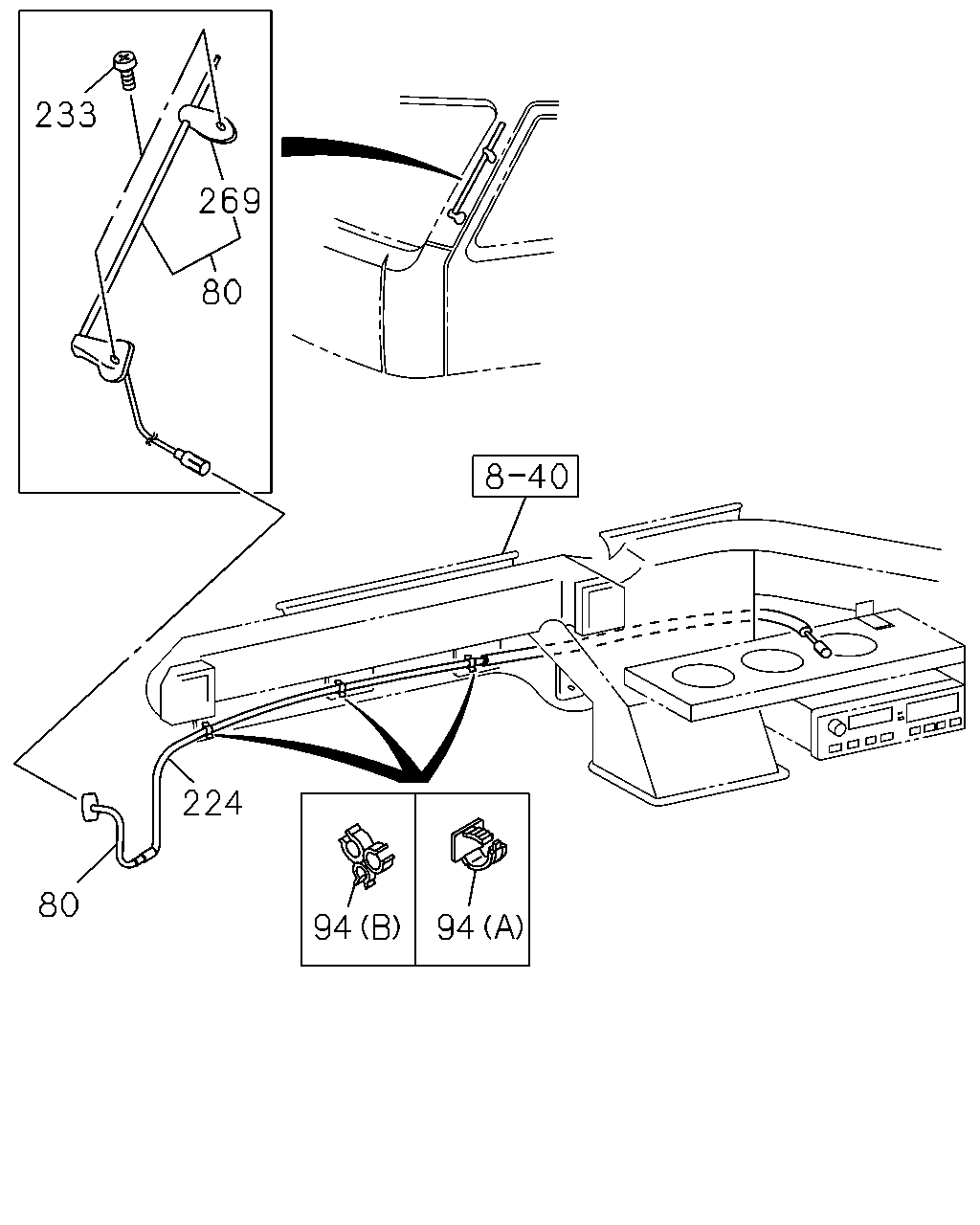

çizim 57253
233 269 80 224 80 94 94
BalonParca AdiParca NoAdetTipApplied Date A B C D
80 ANTENNA 8-97211-565-0 01 1 0507-0604 ● ● ●
80 ANTENNA 8-97211-565-0 01 1 0605- ● ● ● ●
94 CLIP; ANTENNA FEEDER
(A) 		1-09987-155-2 01 1 0507-0604 ● ● ●
94 CLIP; ANTENNA FEEDER
(A) 		1-09987-155-3 01 1 0605- ● ● ● ●
94 CLIP; ANTENNA FEEDER
(B) ID=7 		5-09707-053-0 03 1 0507-0604 ● ● ●
94 CLIP; ANTENNA FEEDER
(B) ID=7 		5-09707-053-0 03 1 0605- ● ● ● ●
224 CABLE; EXT,FEEDER 8-97213-766-0 01 1 0507-0604 ● ● ●
224 CABLE; EXT,FEEDER 8-97213-766-0 01 1 0605- ● ● ● ●
233 SCREW
LOWER M6X20 		8-97120-686-0 01 1 0507-0604 ● ● ●
233 SCREW
LOWER M6X20 		8-97120-686-0 01 1 0605- ● ● ● ●
233 SCREW
UPPER M6X16 		8-97123-696-0 01 1 0507-0604 ● ● ●
233 SCREW
UPPER M6X16 		8-97123-696-0 01 1 0605- ● ● ● ●
269 SUPPORT KIT; ANTENNA 8-97219-080-0 01 1 0507-0604 ● ● ●
269 SUPPORT KIT; ANTENNA 8-97219-080-0 01 1 0605- ● ● ● ●

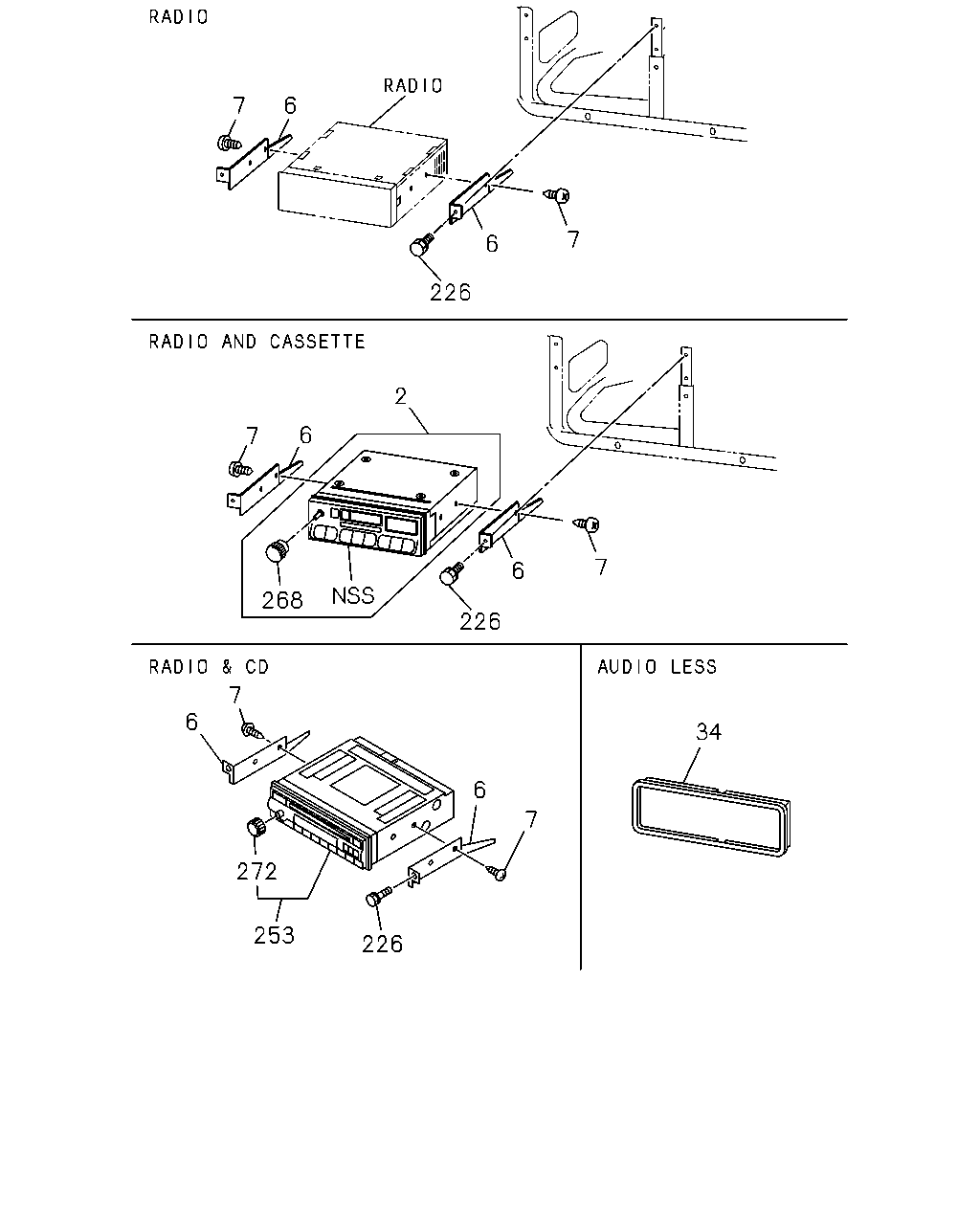

çizim 57255
6 7 7 6 226 2 6 7 7 6 268 226 7 6 34 6 7 272 253 226
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 RADIO & CASSETTE DECK ASM
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97379-458-0 01 1 0507-0604 ● ● ●
2 RADIO & CASSETTE DECK ASM
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97379-458-0 01 1 0605-0606 ● ● ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97853-615-2 01 1 0507-0604 ● ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97853-615-2 01 1 0605-0606 ● ● ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 		8-97853-615-2 01 1 0607- ● ● ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97853-614-2 01 1 0507-0604 ● ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97853-614-2 01 1 0605-0606 ● ● ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 		8-97853-614-2 01 1 0607- ● ● ● ●
7 SCREW; RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0507-0604 ● ● ●
7 SCREW; RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0605-0605 ● ● ● ●
7 SCREW; RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0605-0606 ● ● ● ●
7 SCREW; RADIO
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0607-0612 ● ● ● ●
7 SCREW; RADIO
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 0701- ● ● ● ●
34 COVER; RADIO HOLE
EXC. RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97856-203-3 01 1 0507-0604 ● ● ●
34 COVER; RADIO HOLE
EXC. RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97856-203-3 01 1 0605-0606 ● ● ● ●
34 COVER; RADIO HOLE
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 		8-97856-203-3 01 1 0607- ● ● ● ●
226 BOLT; BRKT
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0507-0604 ● ● ●
226 BOLT; BRKT
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0605-0606 ● ● ● ●
226 BOLT; BRKT
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0607-1210 ● ● ● ●
226 BOLT; BRKT
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ● ● ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) 		8-98035-624-0 01 1 0607- ● ● ● ●
268 KNOB; VOL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97368-416-0 01 1 0507-0604 ● ● ●
268 KNOB; VOL
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97368-416-0 01 1 0605-0606 ● ● ● ●
272 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) 		8-97352-829-0 01 1 0607- ● ● ● ●
