8-80 — WINDSHIELD WIPER AND WASHER (#51911) — 112 parça

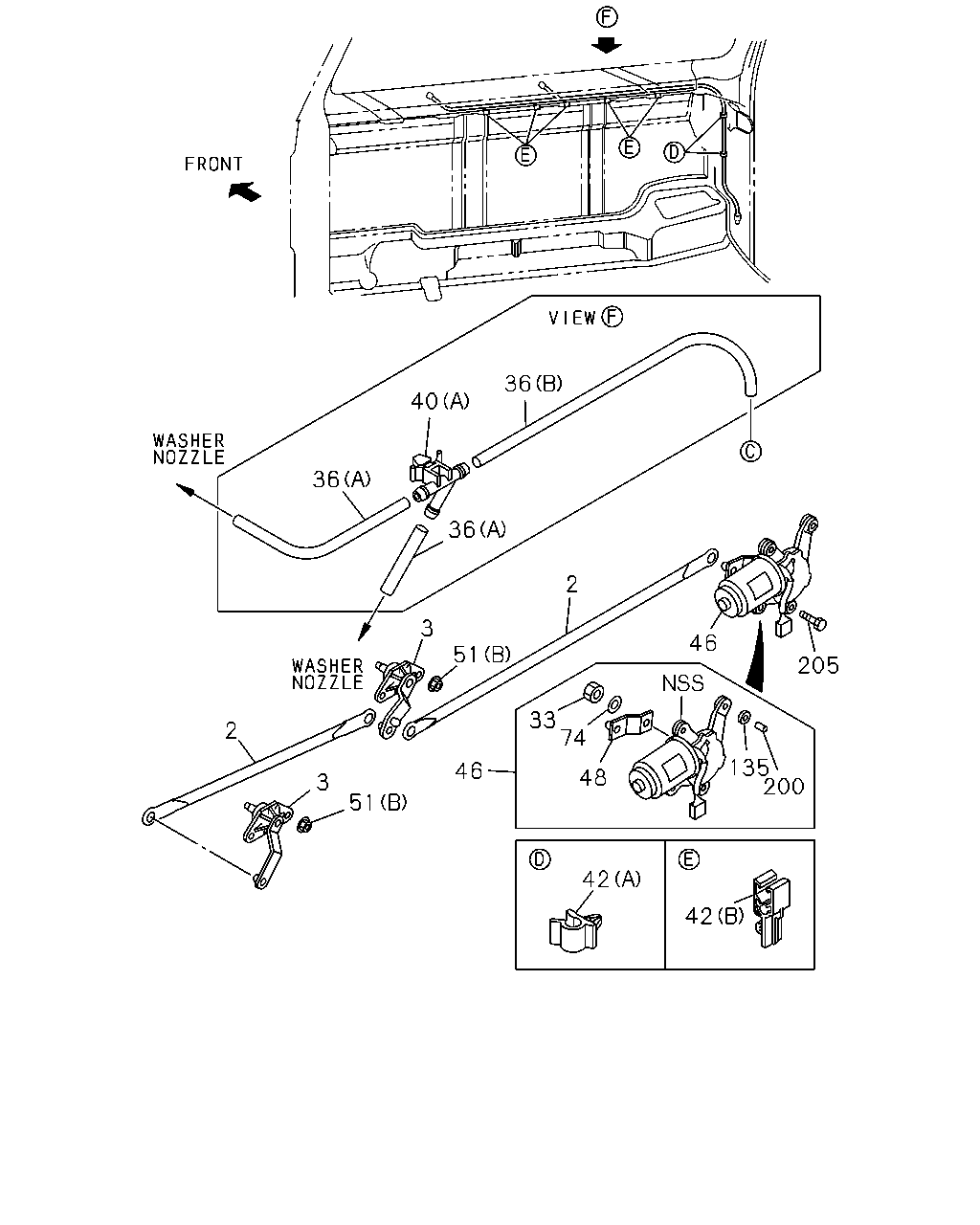

çizim 56941
36 40 36 36 2 3 46 51 205 33 74 2 135 200 46 48 3 51 42 42
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 LINK; FRT WIPER
L=791 W/CAP 		8-97855-154-0 01 1 0507-0604 ● ● ●
2 LINK; FRT WIPER
L=791 W/CAP 		8-97855-154-0 01 1 0605- ● ● ● ●
2 LINK; FRT WIPER 8-97855-152-0 01 1 0507-0604 ● ● ●
2 LINK; FRT WIPER 8-97855-152-0 01 1 0605- ● ● ● ●
3 PIVOT ASM; FRT WIPER 8-98003-074-0 01 1 0507-0604 ● ● ●
3 PIVOT ASM; FRT WIPER 8-98003-074-0 01 1 0605-1103 ● ● ● ●
3 PIVOT ASM; FRT WIPER 8-97855-148-2 01 1 1104- ● ● ● ●
3 PIVOT ASM; FRT WIPER 8-97855-147-1 01 1 0507-0604 ● ● ●
3 PIVOT ASM; FRT WIPER 8-97855-147-1 01 1 0605- ● ● ● ●
33 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 0507-0604 ● ● ●
33 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 0605- ● ● ● ●
36 HOSE; WASHER
(A) L=320,L=1100 SERVICED BY L=10000 		8-94389-303-0 01 1 0507-0604 ● ● ●
36 HOSE; WASHER
(A) L=320,L=1100 SERVICED BY L=10000 		8-94389-303-0 01 1 0605- ● ● ● ●
36 HOSE; WASHER
(C) 		8-97216-112-0 02 1 0507-0604 ● ● ●
36 HOSE; WASHER
(C) 		8-97216-112-0 02 1 0605- ● ● ● ●
36 HOSE; WASHER
(B) L=810 SERVICED BY L=10000 		9-09914-906-0 01 1 0507-0604 ● ● ●
36 HOSE; WASHER
(B) L=810 SERVICED BY L=10000 		9-09914-906-0 01 1 0605- ● ● ● ●
40 JOINT; WASHER HOSE
(B) 		5-83363-006-0 01 1 0507-0604 ● ● ●
40 JOINT; WASHER HOSE
(B) 		5-83363-006-0 01 1 0605- ● ● ● ●
40 JOINT; WASHER HOSE
(C) 		8-97216-115-0 02 1 0507-0604 ● ● ●
40 JOINT; WASHER HOSE
(C) 		8-97216-115-0 02 1 0605- ● ● ● ●
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 0507-0604 ● ● ●
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 0605- ● ● ● ●
42 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 0507-0604 ● ● ●
42 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 0605- ● ● ● ●
42 CLIP; WASHER HOSE
(B) 		8-94279-819-0 07 1 0507-0604 ● ● ●
42 CLIP; WASHER HOSE
(B) 		8-94279-819-0 07 1 0605- ● ● ● ●
42 CLIP; WASHER HOSE
(C) 		8-97216-114-0 02 1 0507-0604 ● ● ●
42 CLIP; WASHER HOSE
(C) 		8-97216-114-0 02 1 0605- ● ● ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-97361-375-1 01 1 0507-0604 ● ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-97361-375-2 01 1 0605- ● ● ● ●
48 ARM; WIPER MOTOR 8-97218-924-0 01 1 0507-0604 ● ● ●
48 ARM; WIPER MOTOR 8-97218-924-0 01 1 0605- ● ● ● ●
51 NUT; WIPER MOTOR LINK
(B) M8 FLANGE 		5-09440-005-0 04 1 0507-0604 ● ● ●
51 NUT; WIPER MOTOR LINK
(B) M8 FLANGE 		5-09440-005-0 04 1 0605-0611 ● ● ● ●
51 NUT; WIPER MOTOR LINK
(B) M8 FLANGE 		8-97581-233-0 04 1 0612- ● ● ● ●
51 NUT; WIPER MOTOR LINK
(A) 		8-97135-435-0 02 1 0507-0604 ● ● ●
51 NUT; WIPER MOTOR LINK
(A) 		8-97135-435-0 02 1 0605- ● ● ● ●
74 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 0507-0604 ● ● ●
74 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 0605- ● ● ● ●
135 RUBBER; CUSHION,WIPER MOTOR 8-97855-159-0 03 1 0507-0604 ● ● ●
135 RUBBER; CUSHION,WIPER MOTOR 8-97855-159-0 03 1 0605- ● ● ● ●
200 COLLAR; WIPER MOTOR 8-97855-160-0 03 1 0507-0604 ● ● ●
200 COLLAR; WIPER MOTOR 8-97855-160-0 03 1 0605- ● ● ● ●
205 BOLT; WIPER MOTOR
M6X28 W/PL WASHER 		8-94148-420-0 03 1 0507-0604 ● ● ●
205 BOLT; WIPER MOTOR
M6X28 W/PL WASHER 		8-94148-420-0 03 1 0605- ● ● ● ●

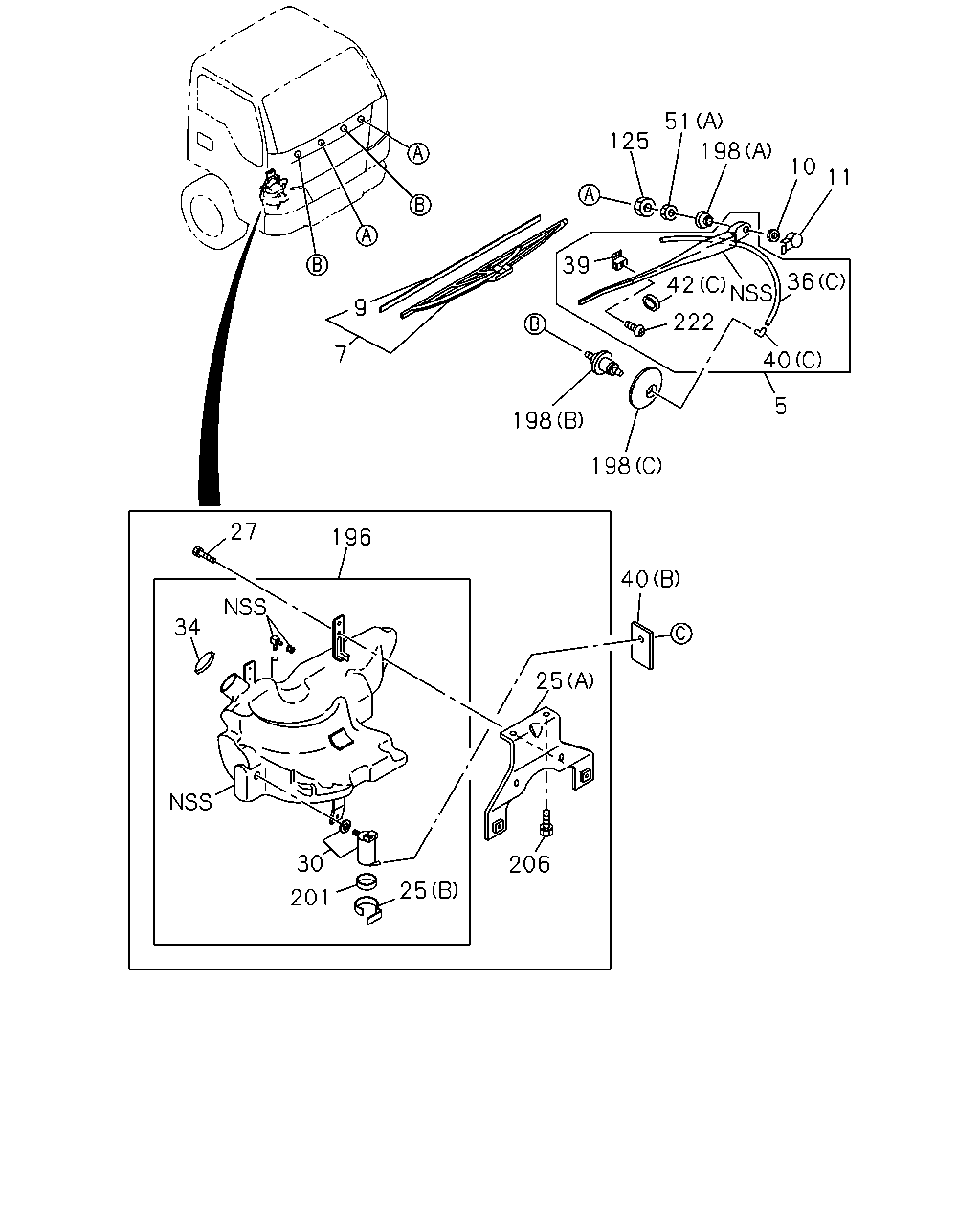

çizim 56963
51 125 198 10 11 39 36 42 9 222 7 40 5 198 198 27 196 40 34 25 30 206 25 201
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 ARM; WIPER 8-97223-546-1 02 1 0507-0604 ● ● ●
5 ARM; WIPER 8-97223-546-1 02 1 0605- ● ● ● ●
7 BLADE; WIPER
L=500 		8-97134-561-2 02 1 0507-0604 ● ● ●
7 BLADE; WIPER
L=500 		8-97134-561-2 02 1 0605- ● ● ● ●
7 BLADE; WIPER
BEST VALUE PARTS 		5-87610-034-0 02 1 0507-0604 ● ● ●
7 BLADE; WIPER
BEST VALUE PARTS 		5-87610-034-0 02 1 0605- ● ● ● ●
9 RUBBER; FRT WIPER BLADE 8-97804-040-1 02 1 0507-0604 ● ● ●
9 RUBBER; FRT WIPER BLADE 8-97804-040-1 02 1 0605- ● ● ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M8 		9-09110-408-0 02 1 0507-0512 ● ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M8 		0-91110-508-0 02 1 0601-0604 ● ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M8 		0-91110-508-0 02 1 0605- ● ● ● ●
11 COVER; WIPER ARM
BLACK 		8-94282-851-0 02 1 0507-0604 ● ● ●
11 COVER; WIPER ARM
BLACK 		8-94282-851-0 02 1 0605- ● ● ● ●
25 BRACKET; WASHER TANK
(A) 		8-97855-067-0 01 1 0507-0604 ● ● ●
25 BRACKET; WASHER TANK
(A) 		8-97855-067-0 01 1 0605- ● ● ● ●
25 BRACKET; WASHER TANK
(B) 		8-97855-226-0 01 1 0507-0604 ● ● ●
25 BRACKET; WASHER TANK
(B) 		8-97855-226-0 01 1 0605- ● ● ● ●
27 BOLT; WASHER TANK
M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 0507-0604 ● ● ●
27 BOLT; WASHER TANK
M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 0605- ● ● ● ●
30 MOTOR ASM; FRT WASHER TANK 8-97855-138-0 01 1 0507-0604 ● ● ●
30 MOTOR ASM; FRT WASHER TANK 8-97855-138-0 01 1 0605- ● ● ● ●
34 CAP; WASHER TANK 8-97855-140-0 01 1 0507-0604 ● ● ●
34 CAP; WASHER TANK 8-97855-140-0 01 1 0605- ● ● ● ●
36 HOSE; WASHER
(A) L=320,L=1100 SERVICED BY L=10000 		8-94389-303-0 01 1 0507-0604 ● ● ●
36 HOSE; WASHER
(A) L=320,L=1100 SERVICED BY L=10000 		8-94389-303-0 01 1 0605- ● ● ● ●
36 HOSE; WASHER
(C) 		8-97216-112-0 02 1 0507-0604 ● ● ●
36 HOSE; WASHER
(C) 		8-97216-112-0 02 1 0605- ● ● ● ●
36 HOSE; WASHER
(B) L=810 SERVICED BY L=10000 		9-09914-906-0 01 1 0507-0604 ● ● ●
36 HOSE; WASHER
(B) L=810 SERVICED BY L=10000 		9-09914-906-0 01 1 0605- ● ● ● ●
39 NOZZLE; WINDSHIELD WASHER 8-97216-108-1 02 1 0507-0604 ● ● ●
39 NOZZLE; WINDSHIELD WASHER 8-97216-108-1 02 1 0605- ● ● ● ●
40 JOINT; WASHER HOSE
(B) 		5-83363-006-0 01 1 0507-0604 ● ● ●
40 JOINT; WASHER HOSE
(B) 		5-83363-006-0 01 1 0605- ● ● ● ●
40 JOINT; WASHER HOSE
(C) 		8-97216-115-0 02 1 0507-0604 ● ● ●
40 JOINT; WASHER HOSE
(C) 		8-97216-115-0 02 1 0605- ● ● ● ●
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 0507-0604 ● ● ●
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 0605- ● ● ● ●
42 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 0507-0604 ● ● ●
42 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 0605- ● ● ● ●
42 CLIP; WASHER HOSE
(B) 		8-94279-819-0 07 1 0507-0604 ● ● ●
42 CLIP; WASHER HOSE
(B) 		8-94279-819-0 07 1 0605- ● ● ● ●
42 CLIP; WASHER HOSE
(C) 		8-97216-114-0 02 1 0507-0604 ● ● ●
42 CLIP; WASHER HOSE
(C) 		8-97216-114-0 02 1 0605- ● ● ● ●
51 NUT; WIPER MOTOR LINK
(B) M8 FLANGE 		5-09440-005-0 04 1 0507-0604 ● ● ●
51 NUT; WIPER MOTOR LINK
(B) M8 FLANGE 		5-09440-005-0 04 1 0605-0611 ● ● ● ●
51 NUT; WIPER MOTOR LINK
(B) M8 FLANGE 		8-97581-233-0 04 1 0612- ● ● ● ●
51 NUT; WIPER MOTOR LINK
(A) 		8-97135-435-0 02 1 0507-0604 ● ● ●
51 NUT; WIPER MOTOR LINK
(A) 		8-97135-435-0 02 1 0605- ● ● ● ●
125 SPACER; WIPER PIVOT 8-97135-434-0 02 1 0507-0604 ● ● ●
125 SPACER; WIPER PIVOT 8-97135-434-0 02 1 0605- ● ● ● ●
196 TANK; WASHER 8-97855-065-6 01 1 0507-0604 ● ● ●
196 TANK; WASHER 8-97855-065-6 01 1 0605- ● ● ● ●
198 COVER; PIVOT,WIPER
(A) 		8-97359-329-0 02 1 0507-0604 ● ● ●
198 COVER; PIVOT,WIPER
(A) 		8-97359-329-0 02 1 0605- ● ● ● ●
198 COVER; PIVOT,WIPER
(B) 		8-97855-134-1 02 1 0507-0604 ● ● ●
198 COVER; PIVOT,WIPER
(B) 		8-97855-134-1 02 1 0605- ● ● ● ●
198 COVER; PIVOT,WIPER
(C) 		8-97855-135-0 02 1 0507-0604 ● ● ●
198 COVER; PIVOT,WIPER
(C) 		8-97855-135-0 02 1 0605- ● ● ● ●
201 LINING; WIPER MOTOR 8-97352-826-0 01 1 0507-0604 ● ● ●
201 LINING; WIPER MOTOR 8-97352-826-0 01 1 0605- ● ● ● ●
206 BOLT; BRKT,WASHER TANK
M6X16 FLANGE 		0-28680-616-0 02 1 0507-0512 ● ● ●
206 BOLT; BRKT,WASHER TANK
M6X16 FLANGE 		0-28650-616-0 02 1 0601-0604 ● ● ●
206 BOLT; BRKT,WASHER TANK
M6X16 FLANGE 		0-28650-616-0 02 1 0605- ● ● ● ●
222 SCREW; WASHER NOZZLE 8-97216-113-0 04 1 0507-0508 ● ● ●
222 SCREW; WASHER NOZZLE 8-97216-113-0 02 1 0509-0604 ● ● ●
222 SCREW; WASHER NOZZLE 8-97216-113-0 02 1 0605- ● ● ● ●
