8-75 — CONDENSER (#51910) — 49 parça

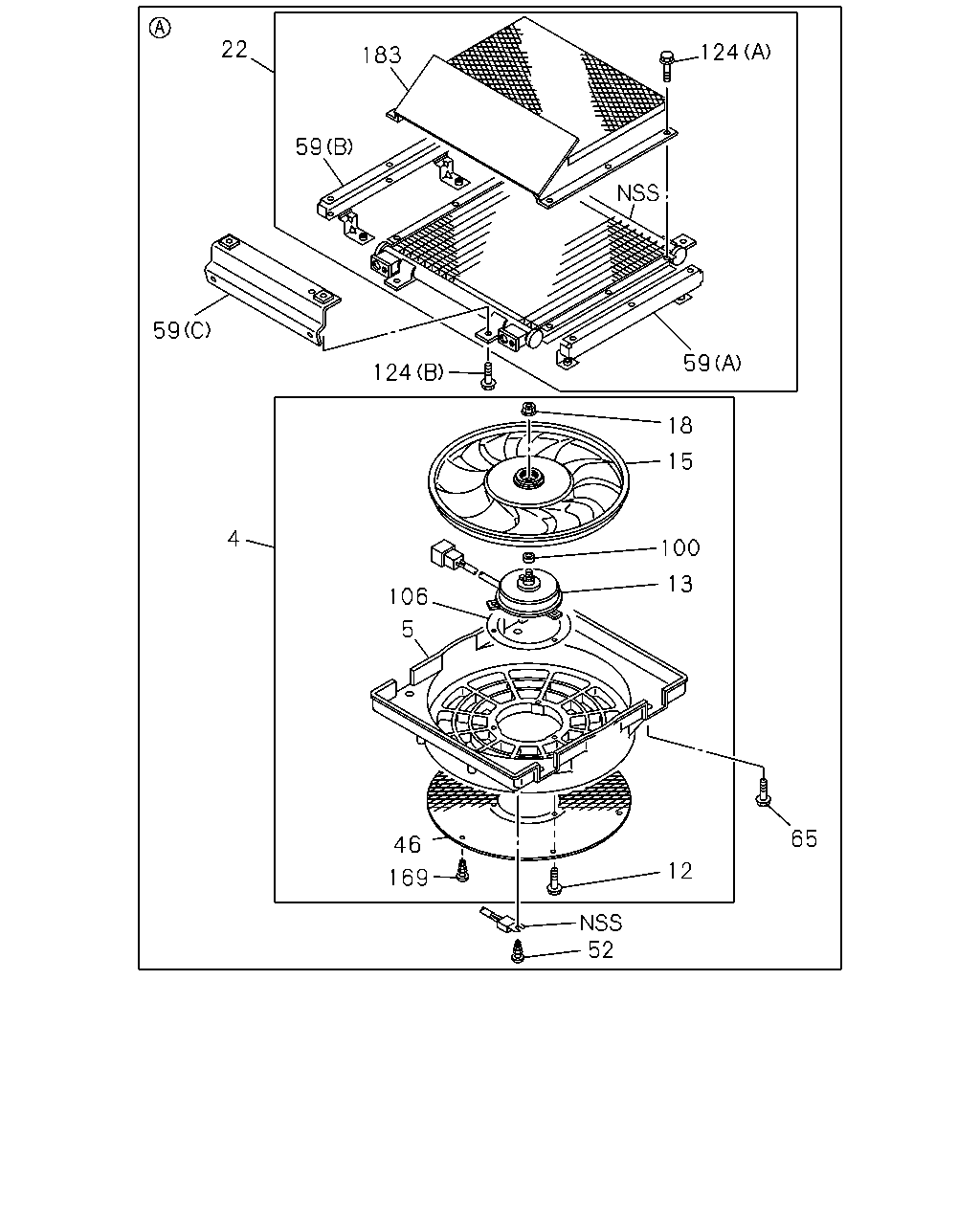

çizim 56964
22 124 183 59 59 59 124 18 15 4 100 13 106 5 65 46 12 169 52
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONT(C60) 		8-97383-808-0 01 1 0507-0604 ● ● ●
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONT(C60) 		8-97383-808-0 01 1 0605- ● ● ● ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		8-97375-198-0 01 1 0507-0604 ● ● ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		8-97375-198-0 01 1 0605- ● ● ● ●
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		8-97117-796-0 03 1 0507-0604 ● ● ●
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		8-97117-796-0 03 1 0605- ● ● ● ●
13 MOTOR; FAN
AIR CONDITIONER MANUAL CONT(C60) 		8-98004-374-0 01 1 0507-0604 ● ● ●
13 MOTOR; FAN
AIR CONDITIONER MANUAL CONT(C60) 		8-98004-374-0 01 1 0605- ● ● ● ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		1-83561-158-0 01 1 0507-0604 ● ● ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		1-83561-158-0 01 1 0605- ● ● ● ●
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONT(C60) 		1-83578-004-0 01 1 0507-0604 ● ● ●
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONT(C60) 		1-83578-004-0 01 1 0605- ● ● ● ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97261-824-2 01 1 0507-0604 ● ● ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97261-824-2 01 1 0605- ● ● ● ●
46 BRACKET; SHROUD
AIR CONDITIONER MANUAL CONT(C60) 		1-83539-344-0 01 1 0507-0604 ● ● ●
46 BRACKET; SHROUD
AIR CONDITIONER MANUAL CONT(C60) 		1-83539-344-0 01 1 0605- ● ● ● ●
52 SCREW; CLIP,CABLE
AIR CONDITIONER MANUAL CONT(C60) 		8-94248-807-0 01 1 0507-0604 ● ● ●
52 SCREW; CLIP,CABLE
AIR CONDITIONER MANUAL CONT(C60) 		8-94248-807-0 01 1 0605- ● ● ● ●
59 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97174-716-0 01 1 0507-0604 ● ● ●
59 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97174-716-0 01 1 0605- ● ● ● ●
59 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97255-564-0 01 1 0507-0604 ● ● ●
59 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97255-564-0 01 1 0605- ● ● ● ●
59 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97255-565-0 01 1 0507-0604 ● ● ●
59 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97255-565-0 01 1 0605- ● ● ● ●
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE 		0-28050-612-0 04 1 0507-0604 ● ● ●
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE 		0-28050-612-0 04 1 0605- ● ● ● ●
100 COLLAR; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		1-83539-349-0 01 1 0507-0604 ● ● ●
100 COLLAR; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		1-83539-349-0 01 1 0605- ● ● ● ●
106 BRACKET; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		1-83539-345-0 01 1 0507-0604 ● ● ●
106 BRACKET; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		1-83539-345-0 01 1 0605- ● ● ● ●
124 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0507-0604 ● ● ●
124 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0605- ● ● ● ●
124 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97114-209-0 06 1 0507-0604 ● ● ●
124 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97114-209-0 06 1 0605- ● ● ● ●
169 SCREW; SHROUD
AIR CONDITIONER MANUAL CONT(C60) 		8-94248-807-0 06 1 0507-0604 ● ● ●
169 SCREW; SHROUD
AIR CONDITIONER MANUAL CONT(C60) 		8-94248-807-0 06 1 0605- ● ● ● ●
183 GUIDE; AIR
AIR CONDITIONER MANUAL CONT(C60) 		8-97255-566-0 01 1 0507-0604 ● ● ●
183 GUIDE; AIR
AIR CONDITIONER MANUAL CONT(C60) 		8-97255-566-0 01 1 0605- ● ● ● ●
çizim 100622
35 5 30 35 30 30
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		8-97375-198-0 01 1 0507-0604 ● ● ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		8-97375-198-0 01 1 0605- ● ● ● ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) M10X30 FLANGE 		0-28681-030-0 06 1 0507-0512 ● ● ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) M10X30 FLANGE 		0-28651-030-0 06 1 0601-0604 ● ● ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) M10X30 FLANGE 		0-28651-030-0 06 1 0605- ● ● ● ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) M8 FLANGE 		0-91180-108-0 02 1 0603-0604 ● ● ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) M8 FLANGE 		0-91180-108-0 02 1 0605- ● ● ● ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) M10 FLANGE 		0-91150-110-0 02 1 0507-0602 ● ● ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) M10 FLANGE 		0-91180-110-0 02 1 0603-0604 ● ● ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) M10 FLANGE 		0-91180-110-0 02 1 0605- ● ● ● ●
