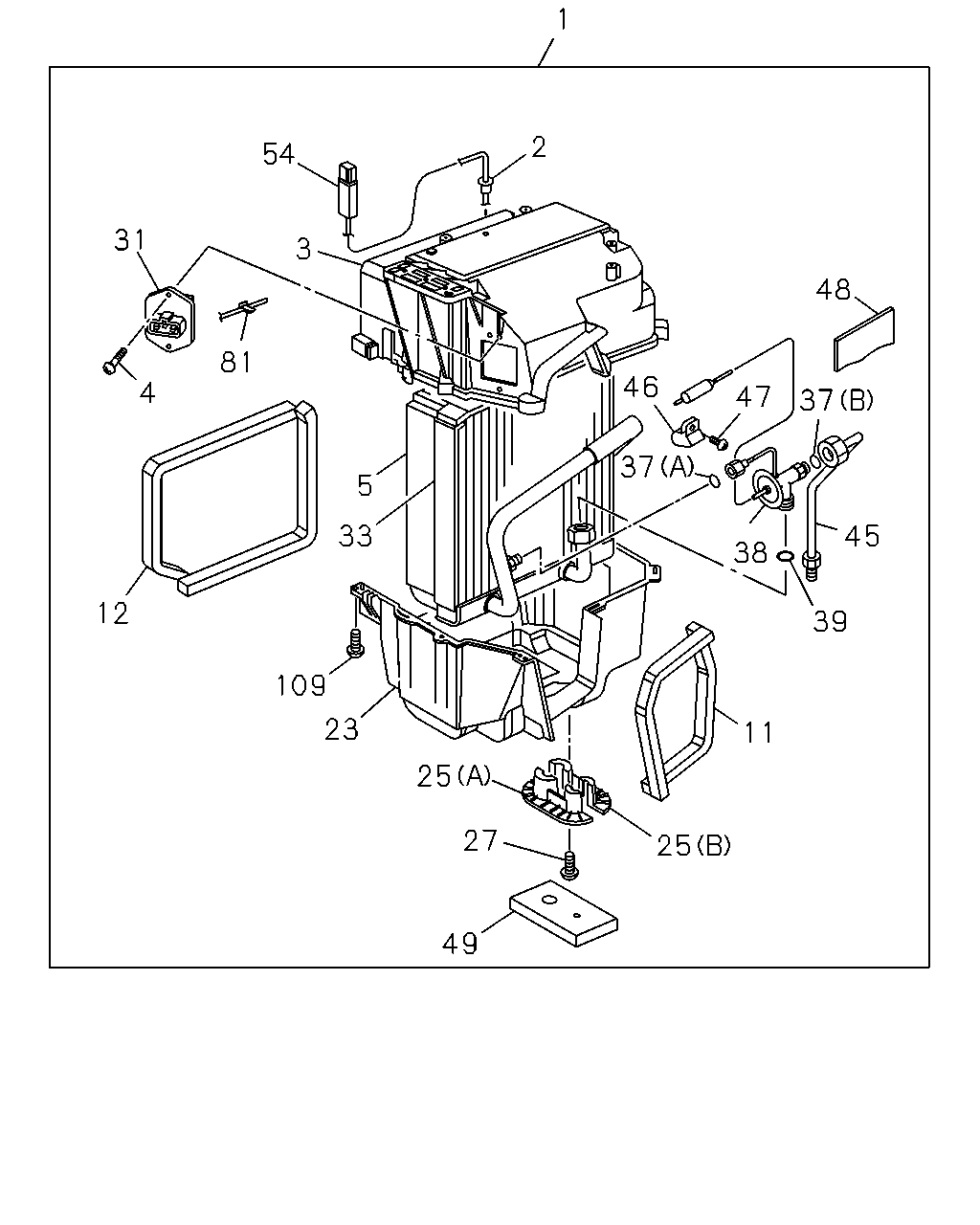

8-74 — EVAPORATOR (#51909) — 72 parça

44 48 47 37 46 33 37 38 45 5 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97205-564-0	01	1	0507-0604	●	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97205-564-0	01	1	0605-	●	●	●	●
33	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-2	01	1	0507-0604	●	●	●
33	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-2	01	1	0605-	●	●	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) ID=4.5	8-94248-212-0	01	1	0507-0604	●	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) ID=4.5	8-94248-212-0	01	1	0605-	●	●	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6.07	8-94461-902-0	01	1	0507-0604	●	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6.07	8-94461-902-0	01	1	0605-	●	●	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97112-753-0	01	1	0507-0604	●	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97112-753-0	01	1	0605-	●	●	●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	0507-0604	●	●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	0605-	●	●	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97191-213-0	01	1	0507-0604	●	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97191-213-0	01	1	0605-	●	●	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97205-565-0	01	1	0507-0604	●	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97205-565-0	01	1	0605-	●	●	●	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	1-83574-214-0	01	1	0507-0604	●	●	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	1-83574-214-0	01	1	0605-	●	●	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	0507-0604	●	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	0605-	●	●	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	0507-0604	●	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	0605-	●	●	●	●

1 2 54 31 3 48 81 46 4 47 37 37 5 33 45 38 12 39 109 23 11 25 27 25 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97368-983-0	01	1	0507-0604	●	●	●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97368-983-0	01	1	0605-	●	●	●	●
2	GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94380-565-0	01	1	0507-0604	●	●	●
2	GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94380-565-0	01	1	0605-	●	●	●	●
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60)	8-97102-597-0	01	1	0507-0604	●	●	●
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60)	8-97102-597-0	01	1	0605-	●	●	●	●
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	02	1	0507-0604	●	●	●
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	02	1	0605-	●	●	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97205-564-0	01	1	0507-0604	●	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97205-564-0	01	1	0605-	●	●	●	●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60)	8-97114-549-0	01	1	0507-0604	●	●	●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60)	8-97114-549-0	01	1	0605-	●	●	●	●
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97188-565-0	01	1	0507-0604	●	●	●
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97188-565-0	01	1	0605-	●	●	●	●
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60)	8-97102-598-1	01	1	0507-0604	●	●	●
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60)	8-97102-598-1	01	1	0605-	●	●	●	●
25	COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-281-0	01	1	0507-0604	●	●	●
25	COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-281-0	01	1	0605-	●	●	●	●
25	COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-282-0	01	1	0507-0604	●	●	●
25	COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-282-0	01	1	0605-	●	●	●	●
27	SCREW; COVER AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	01	1	0507-0604	●	●	●
27	SCREW; COVER AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	01	1	0605-	●	●	●	●
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97357-912-0	01	1	0507-0604	●	●	●
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97357-912-0	01	1	0605-	●	●	●	●
33	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-2	01	1	0507-0604	●	●	●
33	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-2	01	1	0605-	●	●	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) ID=4.5	8-94248-212-0	01	1	0507-0604	●	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) ID=4.5	8-94248-212-0	01	1	0605-	●	●	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6.07	8-94461-902-0	01	1	0507-0604	●	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) ID=6.07	8-94461-902-0	01	1	0605-	●	●	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97112-753-0	01	1	0507-0604	●	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97112-753-0	01	1	0605-	●	●	●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	0507-0604	●	●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	0605-	●	●	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97205-565-0	01	1	0507-0604	●	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97205-565-0	01	1	0605-	●	●	●	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	1-83574-214-0	01	1	0507-0604	●	●	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	1-83574-214-0	01	1	0605-	●	●	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	0507-0604	●	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	0605-	●	●	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	0507-0604	●	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	0605-	●	●	●	●
49	GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	0507-0604	●	●	●
49	GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	0605-	●	●	●	●
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97087-577-0	01	1	0507-0604	●	●	●
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97087-577-0	01	1	0605-	●	●	●	●
81	CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	0507-0604	●	●	●
81	CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	0605-	●	●	●	●
109	BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	05	1	0507-0604	●	●	●
109	BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	05	1	0605-	●	●	●	●
