Isuzu WW
▶
TRUCKS
▶
ELF
▶
51047 - ELF400/450(MEXICO)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-73 - BLOWER UNIT
▶

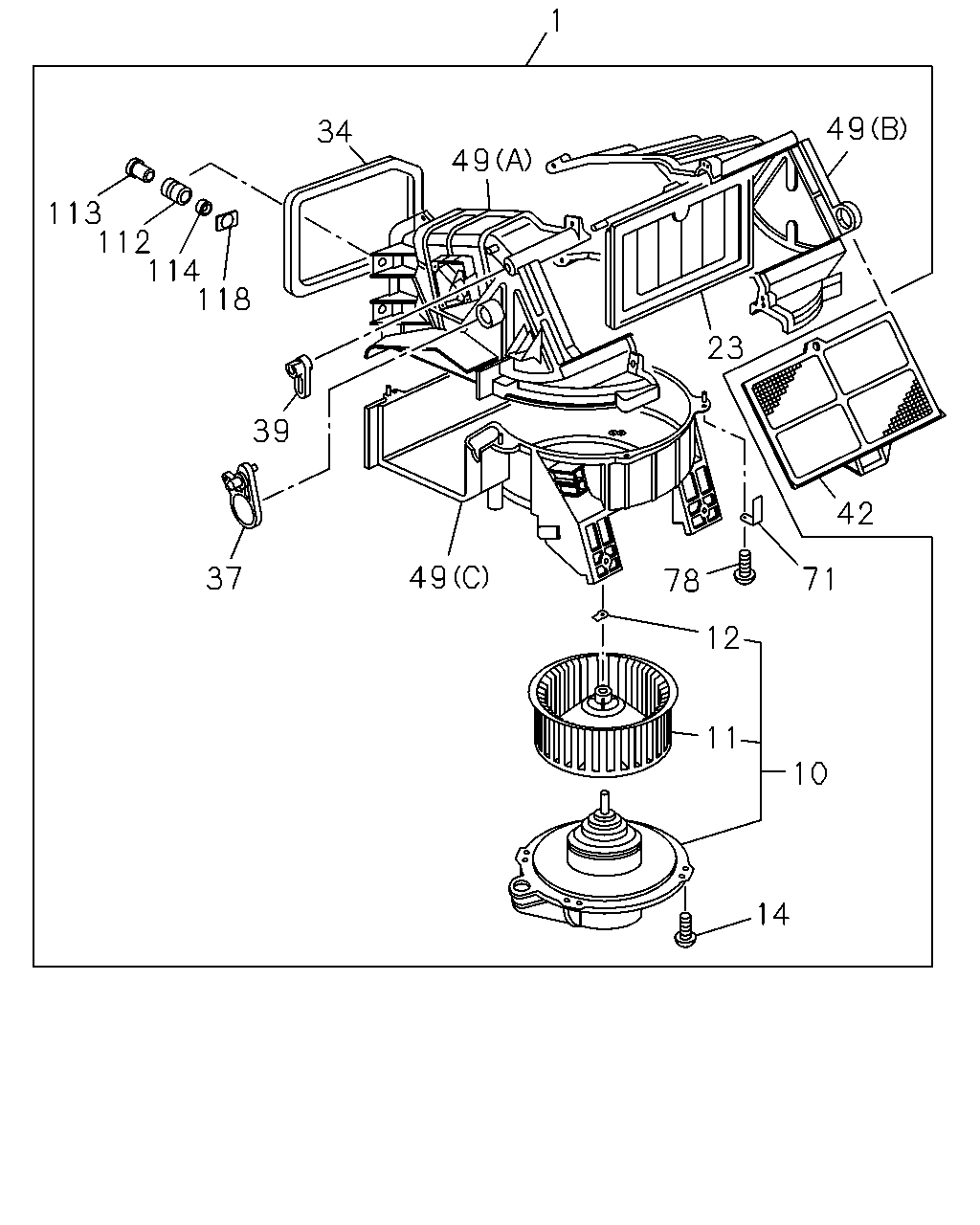

8-73 — BLOWER UNIT
(#51908) — 38 parça
Tümü
A - NPC7SC
B - NPC7SF
C - NPC7SK
D - NPC7SS
1
49
34
49
113
112
114
118
23
39
42
49
37
71
78
12
11
10
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
BLOWER ASM
8-97288-167-0
01
1
0507-0604
●
●
●
1
BLOWER ASM
8-97288-167-0
01
1
0605-
●
●
●
●
10
MOTOR ASM; FAN,BLOWER UNIT
8-97211-953-0
01
1
0507-0604
●
●
●
10
MOTOR ASM; FAN,BLOWER UNIT
8-97211-953-0
01
1
0605-
●
●
●
●
11
IMPELLER; FAN MOTOR
8-97096-067-0
01
1
0507-0604
●
●
●
11
IMPELLER; FAN MOTOR
8-97096-067-0
01
1
0605-
●
●
●
●
12
RING; SNAP,FAN MOTOR
8-94243-962-0
01
1
0507-0604
●
●
●
12
RING; SNAP,FAN MOTOR
8-94243-962-0
01
1
0605-
●
●
●
●
14
SCREW; COVER TO CASE
M5X20
9-09829-324-1
04
1
0507-0604
●
●
●
14
SCREW; COVER TO CASE
M5X20
9-09829-324-1
04
1
0605-
●
●
●
●
23
SHUTTER; BLOWER UNIT
8-97096-640-3
01
1
0507-0604
●
●
●
23
SHUTTER; BLOWER UNIT
8-97096-640-3
01
1
0605-
●
●
●
●
34
LINING; BLOWER UNIT
8-97085-612-1
01
1
0507-0604
●
●
●
34
LINING; BLOWER UNIT
8-97085-612-1
01
1
0605-
●
●
●
●
37
LEVER; MODE LEVER
8-97101-667-1
01
1
0507-0604
●
●
●
37
LEVER; MODE LEVER
8-97101-667-1
01
1
0605-
●
●
●
●
39
LEVER; SHUTTER,BLOWER UNIT
8-97101-666-1
01
1
0507-0604
●
●
●
39
LEVER; SHUTTER,BLOWER UNIT
8-97101-666-1
01
1
0605-
●
●
●
●
42
FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60)
8-97288-163-0
01
1
0507-0604
●
●
●
42
FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60)
8-97288-163-0
02
1
0605-
●
●
●
●
49
CASE; BLOWER UNIT
(A)
8-97101-647-3
01
1
0507-0604
●
●
●
49
CASE; BLOWER UNIT
(A)
8-97101-647-3
01
1
0605-
●
●
●
●
49
CASE; BLOWER UNIT
(B)
8-97101-648-1
01
1
0507-0604
●
●
●
49
CASE; BLOWER UNIT
(B)
8-97101-648-1
01
1
0605-
●
●
●
●
49
CASE; BLOWER UNIT
(C)
8-97101-649-0
01
1
0507-0604
●
●
●
49
CASE; BLOWER UNIT
(C)
8-97101-649-0
01
1
0605-
●
●
●
●
71
CLIP; HARNESS
8-94158-260-0
01
1
0507-0604
●
●
●
71
CLIP; HARNESS
8-94158-260-0
01
1
0605-
●
●
●
●
78
SCREW; CASE TO CASE
M4X16
8-94324-850-0
08
1
0507-0604
●
●
●
78
SCREW; CASE TO CASE
M4X16
8-94324-850-0
08
1
0605-
●
●
●
●
112
ISOLATOR; CASE
8-97096-641-0
02
1
0507-0604
●
●
●
112
ISOLATOR; CASE
8-97096-641-0
02
1
0605-
●
●
●
●
113
BUSHING; ISOLATOR
8-97096-642-0
02
1
0507-0604
●
●
●
113
BUSHING; ISOLATOR
8-97096-642-0
02
1
0605-
●
●
●
●
114
NUT; ISOLATOR
M8 FLANGE
5-09440-005-0
02
1
0507-0604
●
●
●
114
NUT; ISOLATOR
M8 FLANGE
5-09440-005-0
02
1
0605-
●
●
●
●
118
BRACKET; BUSHING
8-97107-979-0
01
1
0507-0604
●
●
●
118
BRACKET; BUSHING
8-97107-979-0
01
1
0605-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
