8-65 — CONTROL LEVER; HEATER AND AIR CON (#51906) — 27 parça

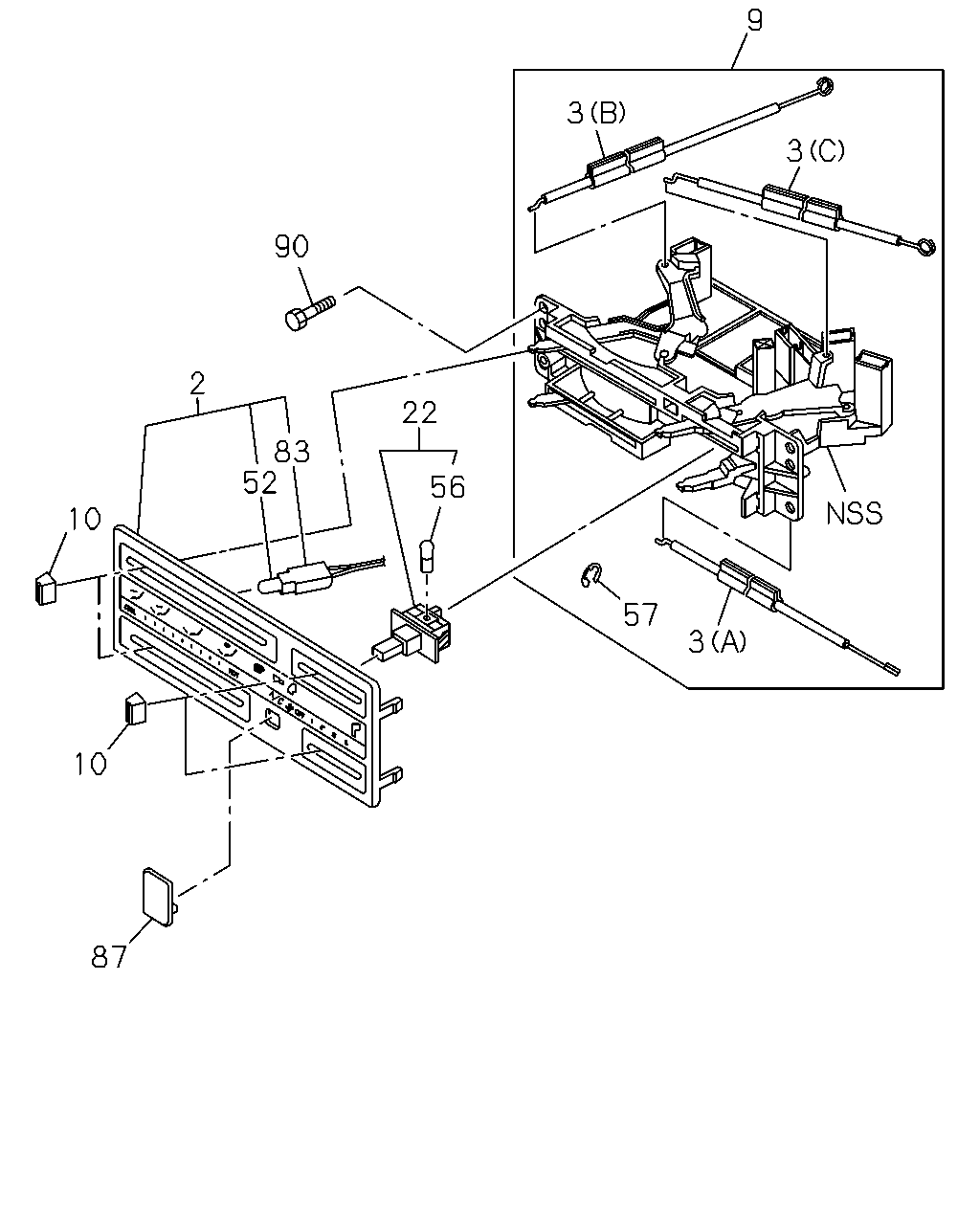

çizim 56939
9 3 3 90 2 22 83 52 56 10 57 3 10 87
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 PANEL ASM; CONT,ILLUMINATION 8-97048-330-1 01 1 0507-0604 ● ● ●
2 PANEL ASM; CONT,ILLUMINATION 8-97048-330-1 01 1 0605- ● ● ● ●
3 CABLE; HTR CONT LVR
(A) MIX 		8-97101-660-2 01 1 0507-0604 ● ● ●
3 CABLE; HTR CONT LVR
(A) MIX 		8-97101-660-2 01 1 0605- ● ● ● ●
3 CABLE; HTR CONT LVR
(B) MODE 		8-97101-674-2 01 1 0507-0604 ● ● ●
3 CABLE; HTR CONT LVR
(B) MODE 		8-97101-674-2 01 1 0605- ● ● ● ●
3 CABLE; HTR CONT LVR
(C) FRESH 		8-97102-659-3 01 1 0507-0604 ● ● ●
3 CABLE; HTR CONT LVR
(C) FRESH 		8-97102-659-3 01 1 0605- ● ● ● ●
9 LEVER ASM; HTR & A/C CONT 8-97073-344-1 01 1 0507-0604 ● ● ●
9 LEVER ASM; HTR & A/C CONT 8-97073-344-1 01 1 0605- ● ● ● ●
10 KNOB; CONT LEVER 8-97114-430-0 04 1 0507-0604 ● ● ●
10 KNOB; CONT LEVER 8-97114-430-0 04 1 0605- ● ● ● ●
22 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-97117-963-0 01 1 0507-0604 ● ● ●
22 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-97117-963-0 02 1 0605- ● ● ● ●
52 BULB; PANEL ILLUMINATION
14V 140MA 		8-97100-290-0 01 1 0507-0604 ● ● ●
52 BULB; PANEL ILLUMINATION
14V 140MA 		8-97100-290-0 01 1 0605- ● ● ● ●
56 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) 14V 60MA 		8-94337-134-0 01 1 0507-0604 ● ● ●
56 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) 14V 60MA 		8-94337-134-0 01 1 0605- ● ● ● ●
57 RING; SNAP,HTR CONT LVR 8-97311-509-0 01 1 0507-0604 ● ● ●
57 RING; SNAP,HTR CONT LVR 8-97311-509-0 01 1 0605- ● ● ● ●
83 HARNESS; CONT PANEL 8-97308-566-0 01 1 0507-0604 ● ● ●
83 HARNESS; CONT PANEL 8-97308-566-0 01 1 0605- ● ● ● ●
87 CAP; A/C SWITCH
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97065-448-2 01 1 0507-0604 ● ● ●
87 CAP; A/C SWITCH
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97065-448-2 01 1 0605- ● ● ● ●
90 BOLT; CONT PANEL
M6X16 W/LK&PL WASHER 		8-94139-963-0 03 1 0507-0604 ● ● ●
90 BOLT; CONT PANEL
M6X16 W/LK&PL WASHER 		8-94139-963-0 03 1 0605-1210 ● ● ● ●
90 BOLT; CONT PANEL
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 03 1 1211- ● ● ● ●
