8-60 — HEATER UNIT; FRONT (#51905) — 68 parça

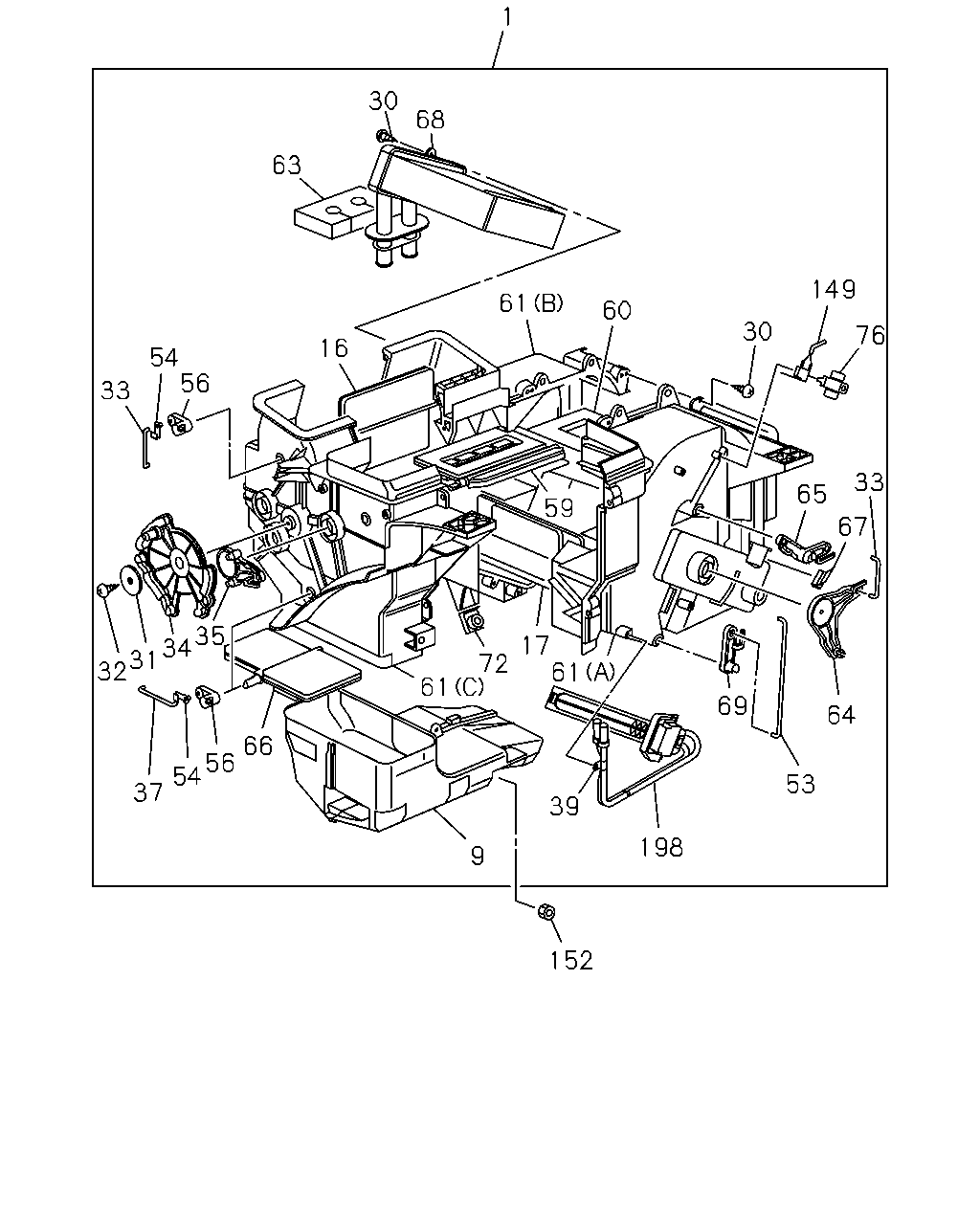

çizim 100623
1 30 68 63 61 149 60 30 76 16 54 56 33 33 65 59 67 35 34 31 32 17 61 72 61 69 64 66 56 54 37 53 39 198 9 152
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEATER UNIT 8-97188-840-5 01 1 0507-0604 ● ● ●
1 HEATER UNIT 8-97188-840-5 01 1 0605-1408 ● ● ● ●
1 HEATER UNIT 8-98238-501-0 01 1 1409- ● ● ● ●
9 DUCT; HTR UNIT 8-97101-638-0 01 1 0507-0604 ● ● ●
9 DUCT; HTR UNIT 8-97101-638-0 01 1 0605- ● ● ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-97101-642-0 01 1 0507-0604 ● ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-97101-642-0 01 1 0605- ● ● ● ●
17 SHUTTER; HTR UNIT,CENTER 8-97101-640-0 01 1 0507-0604 ● ● ●
17 SHUTTER; HTR UNIT,CENTER 8-97101-640-0 01 1 0605- ● ● ● ●
30 SCREW; HTR UNIT
M4X16 		8-94324-850-0 15 1 0507-0604 ● ● ●
30 SCREW; HTR UNIT
M4X16 		8-94324-850-0 15 1 0605- ● ● ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0507-0604 ● ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0605- ● ● ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0507-0604 ● ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0605-1408 ● ● ● ●
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1409- ● ● ● ●
33 ROD; SHUTTER LEVER 8-97087-566-0 02 1 0507-0604 ● ● ●
33 ROD; SHUTTER LEVER 8-97087-566-0 02 1 0605- ● ● ● ●
34 LEVER; SHUTTER,HTR UNIT 8-97101-669-0 01 1 0507-0604 ● ● ●
34 LEVER; SHUTTER,HTR UNIT 8-97101-669-0 01 1 0605- ● ● ● ●
35 LEVER; SHUTTER,HTR UNIT 8-97101-673-0 03 1 0507-0604 ● ● ●
35 LEVER; SHUTTER,HTR UNIT 8-97101-673-0 03 1 0605- ● ● ● ●
37 ROD; LEVER 8-97101-677-2 02 1 0507-0604 ● ● ●
37 ROD; LEVER 8-97101-677-2 02 1 0605- ● ● ● ●
39 CLIP; HTR UNIT 8-97096-145-0 02 1 0507-0604 ● ● ●
39 CLIP; HTR UNIT 8-97096-145-0 02 1 0605- ● ● ● ●
53 ROD; SHUTTER LEVER 8-97087-567-1 01 1 0507-0604 ● ● ●
53 ROD; SHUTTER LEVER 8-97087-567-1 01 1 0605- ● ● ● ●
54 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 0507-0604 ● ● ●
54 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 0605- ● ● ● ●
56 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 0507-0604 ● ● ●
56 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 0605- ● ● ● ●
59 SHUTTER; HTR UNIT,SIDE 8-97101-641-0 01 1 0507-0604 ● ● ●
59 SHUTTER; HTR UNIT,SIDE 8-97101-641-0 01 1 0605- ● ● ● ●
60 DOOR; MIX,HTR UNIT 8-97087-556-1 01 1 0507-0604 ● ● ●
60 DOOR; MIX,HTR UNIT 8-97087-556-1 01 1 0605- ● ● ● ●
61 CASE; HTR UNIT
(B) 		8-97101-635-4 01 1 0507-0604 ● ● ●
61 CASE; HTR UNIT
(B) 		8-97101-635-4 01 1 0605- ● ● ● ●
61 CASE; HTR UNIT
(C) 		8-97101-636-4 01 1 0507-0604 ● ● ●
61 CASE; HTR UNIT
(C) 		8-97101-636-4 01 1 0605- ● ● ● ●
61 CASE; HTR UNIT
(A) 		8-97142-810-0 01 1 0507-0604 ● ● ●
61 CASE; HTR UNIT
(A) 		8-97142-810-0 01 1 0605- ● ● ● ●
63 LINING; HTR UNIT 8-97131-580-0 01 1 0507-0604 ● ● ●
63 LINING; HTR UNIT 8-97131-580-0 01 1 0605-1408 ● ● ● ●
63 LINING; HTR UNIT 8-97131-323-0 01 1 1409- ● ● ● ●
64 LEVER; MIX,DOOR 8-97101-670-1 01 1 0507-0604 ● ● ●
64 LEVER; MIX,DOOR 8-97101-670-1 01 1 0605- ● ● ● ●
65 LEVER; MIX,DOOR 8-97200-276-0 01 1 0507-0604 ● ● ●
65 LEVER; MIX,DOOR 8-97200-276-0 01 1 0605- ● ● ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 8-97101-643-0 01 1 0507-0604 ● ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 8-97101-643-0 01 1 0605- ● ● ● ●
67 CLIP; HTR UNIT 8-94337-654-0 02 1 0507-0604 ● ● ●
67 CLIP; HTR UNIT 8-94337-654-0 02 1 0605- ● ● ● ●
68 CORE; HTR UNIT 8-97240-941-0 01 1 0507-0604 ● ● ●
68 CORE; HTR UNIT 8-97240-941-0 01 1 0605-1408 ● ● ● ●
68 CORE; HTR UNIT 8-98238-504-0 01 1 1409- ● ● ● ●
69 LEVER; SHUTTER,HTR UNIT 8-97101-671-0 01 1 0507-0604 ● ● ●
69 LEVER; SHUTTER,HTR UNIT 8-97101-671-0 01 1 0605- ● ● ● ●
72 NUT; CASE,HTR UNIT 8-97085-613-0 01 1 0507-0604 ● ● ●
72 NUT; CASE,HTR UNIT 8-97085-613-0 01 1 0605- ● ● ● ●
76 BRACKET; HTR UNIT 8-97045-869-0 01 1 0507-0604 ● ● ●
76 BRACKET; HTR UNIT 8-97045-869-0 01 1 0605- ● ● ● ●
149 SWITCH ASM; HTR UNIT 8-97087-582-0 01 1 0507-0604 ● ● ●
149 SWITCH ASM; HTR UNIT 8-97087-582-0 01 1 0605- ● ● ● ●
152 NUT; HTR UNIT 8-97085-613-0 01 1 0507-0604 ● ● ●
152 NUT; HTR UNIT 8-97085-613-0 01 1 0605- ● ● ● ●
198 HEATER; ELEC 8-97045-868-1 01 1 0507-0604 ● ● ●
198 HEATER; ELEC 8-97045-868-1 01 1 0605- ● ● ● ●
