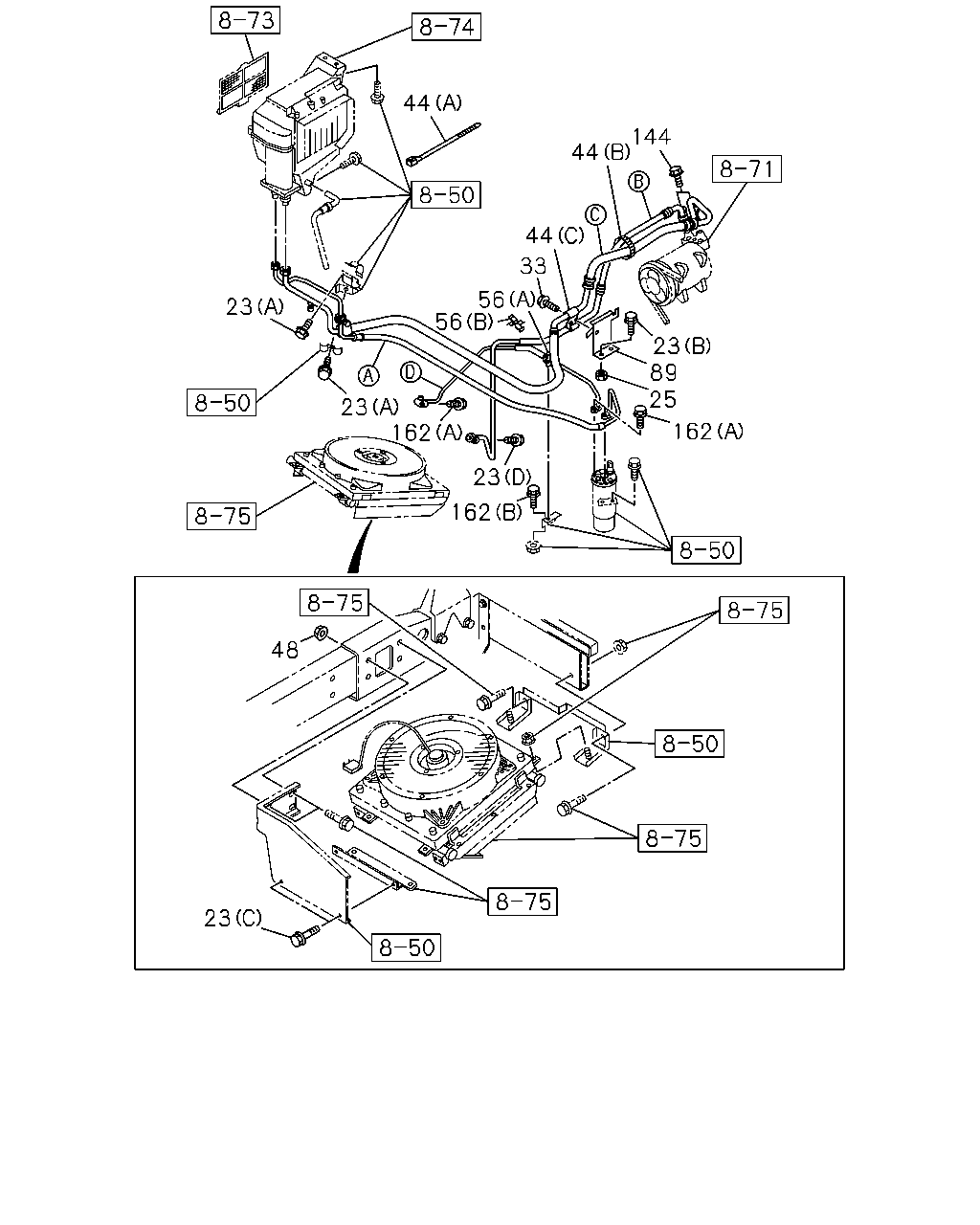

8-52 — PIPING; AIR CONDITIONING (#51904) — 68 parça

50 148 147 168 50 67 66 67 67 67 66 148 147 118 112 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97161-776-0	02	1	0507-0604	●	●	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97161-776-0	02	1	0605-	●	●	●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-97376-696-2	01	1	0507-0604	●	●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-97376-696-2	01	1	0605-	●	●	●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97386-638-2	01	1	0507-0604	●	●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-97386-638-2	01	1	0605-	●	●	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=15.5	8-97161-777-0	02	1	0507-0604	●	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=15.5	8-97161-777-0	02	1	0605-	●	●	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) ID=18.3	8-97161-778-0	01	1	0507-0604	●	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) ID=18.3	8-97161-778-0	01	1	0605-	●	●	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=21.3	8-97223-125-0	01	1	0507-0604	●	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=21.3	8-97223-125-0	01	1	0605-	●	●	●	●
112	PIPE; RECEIVER TANK TO A/C UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97261-827-0	01	1	0507-0604	●	●	●
112	PIPE; RECEIVER TANK TO A/C UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97261-827-0	01	1	0605-	●	●	●	●
118	GASKET; RECEIVER TANK TO EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97161-776-0	02	1	0507-0604	●	●	●
118	GASKET; RECEIVER TANK TO EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97161-776-0	02	1	0605-	●	●	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H	8-97083-101-0	01	1	0507-0604	●	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H	8-97083-101-0	01	1	0605-	●	●	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK L	8-97083-102-0	01	1	0507-0604	●	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK L	8-97083-102-0	01	1	0605-	●	●	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97083-100-0	01	1	0507-0604	●	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97083-100-0	01	1	0605-	●	●	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97083-892-0	01	1	0507-0604	●	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97083-892-0	01	1	0605-	●	●	●	●
168	HOSE; FLEX,TANK TO EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97371-488-3	01	1	0507-	●	●	●	●

44 144 44 44 33 56 56 23 23 89 25 23 162 162 23 162 48 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (D) M6X20 FLANGE	0-28680-620-0	01	1	0507-0512	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (D) M6X20 FLANGE	0-28650-620-0	01	1	0601-0604	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (D) M6X20 FLANGE	0-28650-620-0	01	1	0605-	●	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 FLANGE	0-28680-620-0	02	1	0507-0512	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 FLANGE	0-28650-620-0	02	1	0601-0604	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 FLANGE	0-28650-620-0	02	1	0605-	●	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (B) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-0604	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (B) M8X25 FLANGE	0-28650-825-0	01	1	0605-	●	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (C) M8X32 W/PL WASHER	8-97035-378-0	02	1	0507-0604	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) (C) M8X32 W/PL WASHER	8-97035-378-0	02	1	0605-	●	●	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91180-108-0	02	1	0603-0604	●	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91180-108-0	02	1	0605-	●	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) M6X20 FLANGE	0-28680-620-0	01	1	0507-0512	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) M6X20 FLANGE	0-28650-620-0	01	1	0601-0604	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) M6X20 FLANGE	0-28650-620-0	01	1	0605-	●	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28050-612-0	02	1	0601-0604	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28050-612-0	02	1	0605-	●	●	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) L=140	5-09707-031-1	06	1	0507-0604	●	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) L=140	5-09707-031-1	06	1	0605-	●	●	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) L=350	8-94152-256-1	01	1	0507-0604	●	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) L=350	8-94152-256-1	01	1	0605-	●	●	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C)	8-97358-649-0	01	1	0507-0604	●	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C)	8-97358-649-0	01	1	0605-	●	●	●	●
48	NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) M10 FLANGE	0-91150-110-0	02	1	0507-0602	●	●	●
48	NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) M10 FLANGE	0-91180-110-0	02	1	0603-0604	●	●	●
48	NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) M10 FLANGE	0-91180-110-0	02	1	0605-	●	●	●	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) ID=11.8 & 7.5	1-09709-182-0	01	1	0507-0604	●	●	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) ID=11.8 & 7.5	1-09709-182-0	01	1	0605-	●	●	●	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (A) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	01	1	0507-0604	●	●	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (A) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	01	1	0605-	●	●	●	●
89	BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97371-874-0	01	1	0507-0604	●	●	●
89	BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97371-874-0	01	1	0605-	●	●	●	●
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●	●	●
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28650-825-0	02	1	0601-0604	●	●	●
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28650-825-0	02	1	0605-	●	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 FLANGE	0-28680-625-0	03	1	0507-0512	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 FLANGE	0-28650-625-0	03	1	0601-0604	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 FLANGE	0-28650-625-0	03	1	0605-	●	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-0604	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) M8X25 FLANGE	0-28650-825-0	01	1	0605-	●	●	●	●
