◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51047 - ELF400/450(MEXICO) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#51903) — 97 parça

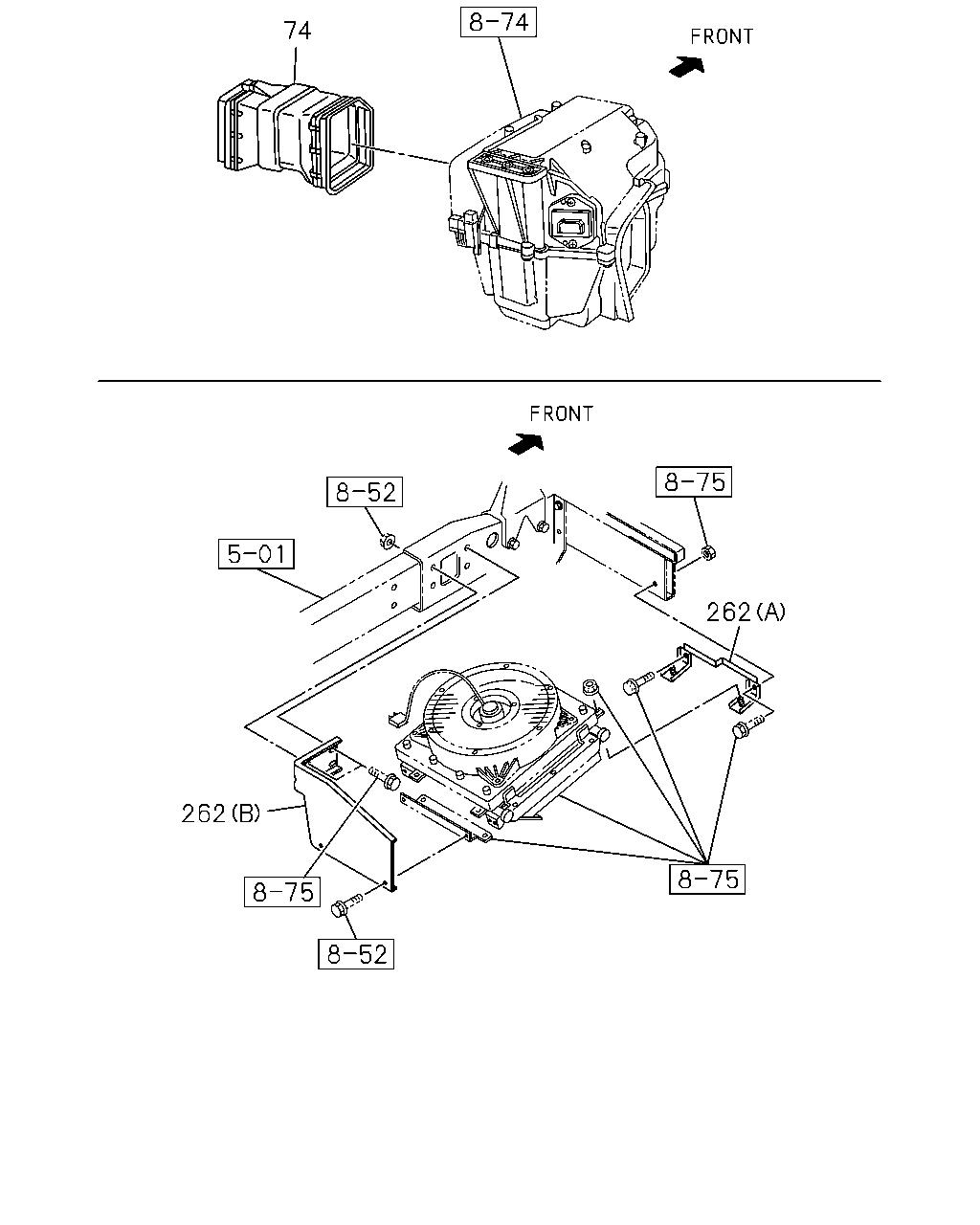

çizim 56874
74 262 262
BalonParca AdiParca NoAdetTipApplied Date A B C D
74 DUCT; EVAP TO HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-97262-806-0 01 1 0507-0604 ● ● ●
74 DUCT; EVAP TO HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-97262-806-0 01 1 0605- ● ● ● ●
262 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97371-051-3 01 1 0507-0604 ● ● ●
262 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97371-051-3 01 1 0605- ● ● ● ●
262 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97376-127-1 01 1 0507-0604 ● ● ●
262 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97376-127-1 01 1 0605- ● ● ● ●

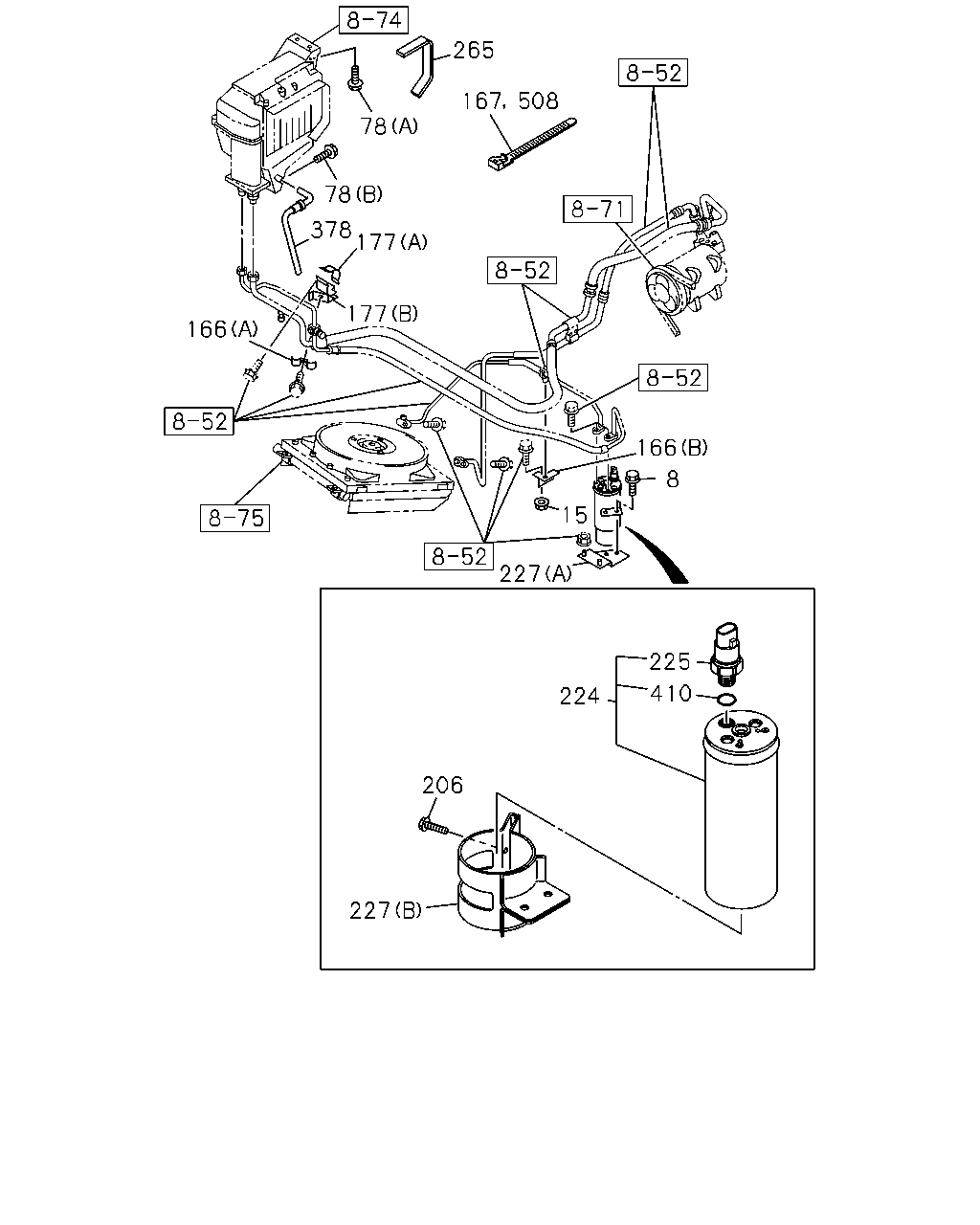

çizim 57226
265 508 167 78 78 378 177 177 166 166 8 15 227 225 410 224 206 227
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE 		0-28080-612-0 02 1 0507-0512 ● ● ●
8 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE 		0-28050-612-0 02 1 0601-0604 ● ● ●
8 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE 		0-28050-612-0 02 1 0605- ● ● ● ●
8 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X16 FLANGE 		0-28080-616-0 01 1 0507-0512 ● ● ●
8 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X16 FLANGE 		0-28050-616-0 01 1 0601-0604 ● ● ●
8 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X16 FLANGE 		0-28050-616-0 01 1 0605- ● ● ● ●
15 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ●
15 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE 		0-91180-108-0 02 1 0603-0604 ● ● ●
15 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE 		0-91180-108-0 02 1 0605- ● ● ● ●
15 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ● ● ●
15 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE 		0-91180-108-0 04 1 0603-0604 ● ● ●
15 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE 		0-91180-108-0 04 1 0605- ● ● ● ●
78 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 FLANGE 		0-28680-620-0 04 1 0507-0512 ● ● ●
78 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 FLANGE 		0-28650-620-0 04 1 0601-0604 ● ● ●
78 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 FLANGE 		0-28650-620-0 04 1 0605- ● ● ● ●
78 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ● ● ●
78 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0604 ● ● ●
78 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0605- ● ● ● ●
166 BRACKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97090-310-1 01 1 0507-0604 ● ● ●
166 BRACKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97090-310-1 01 1 0605-0611 ● ● ● ●
166 BRACKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98029-613-0 01 1 0612-1009 ● ● ● ●
166 BRACKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98151-264-0 01 1 1010- ● ● ● ●
166 BRACKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97358-578-0 01 1 0507-0604 ● ● ●
166 BRACKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97358-578-0 01 1 0605- ● ● ● ●
167 CLIP; BAND,FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) L=350 		8-94152-256-1 01 1 0507-0604 ● ● ●
167 CLIP; BAND,FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) L=350 		8-94152-256-1 01 1 0605- ● ● ● ●
177 BRACKET; PIPE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97358-576-0 01 1 0507-0604 ● ● ●
177 BRACKET; PIPE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97358-576-0 01 1 0605- ● ● ● ●
177 BRACKET; PIPE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97358-577-0 01 1 0507-0604 ● ● ●
177 BRACKET; PIPE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97358-577-0 01 1 0605- ● ● ● ●
206 BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X16 FLANGE 		0-28050-616-0 01 1 0507-0604 ● ● ●
206 BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X16 FLANGE 		0-28050-616-0 01 1 0605- ● ● ● ●
224 TANK ASM; RECEIVER
AIR CONDITIONER MANUAL CONT(C60) 		8-97366-991-0 01 1 0507-0604 ● ● ●
224 TANK ASM; RECEIVER
AIR CONDITIONER MANUAL CONT(C60) 		8-97366-991-0 01 1 0605- ● ● ● ●
225 SWITCH; RECEIVER
AIR CONDITIONER MANUAL CONT(C60) 		8-97366-964-0 01 1 0507-0604 ● ● ●
225 SWITCH; RECEIVER
AIR CONDITIONER MANUAL CONT(C60) 		8-97366-964-0 01 1 0605- ● ● ● ●
227 BRACKET; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97300-284-0 01 1 0507-0604 ● ● ●
227 BRACKET; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97300-284-0 01 1 0605- ● ● ● ●
227 BRACKET; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97371-363-0 01 1 0507-0604 ● ● ●
227 BRACKET; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97371-363-0 01 1 0605- ● ● ● ●
265 LINING; COOLER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-97100-512-1 01 1 0507-0604 ● ● ●
265 LINING; COOLER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-97100-512-1 01 1 0605- ● ● ● ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-97096-815-0 01 1 0507-0604 ● ● ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-97096-815-0 01 1 0605- ● ● ● ●
410 GASKET; PRESSURE SWITCH
AIR CONDITIONER MANUAL CONT(C60) 		8-94154-048-0 01 1 0507-0604 ● ● ●
410 GASKET; PRESSURE SWITCH
AIR CONDITIONER MANUAL CONT(C60) 		8-94154-048-0 01 1 0605- ● ● ● ●
508 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT(C60) L=140 		5-09707-031-1 01 1 0507-0604 ● ● ●
508 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT(C60) L=140 		5-09707-031-1 01 1 0605- ● ● ● ●

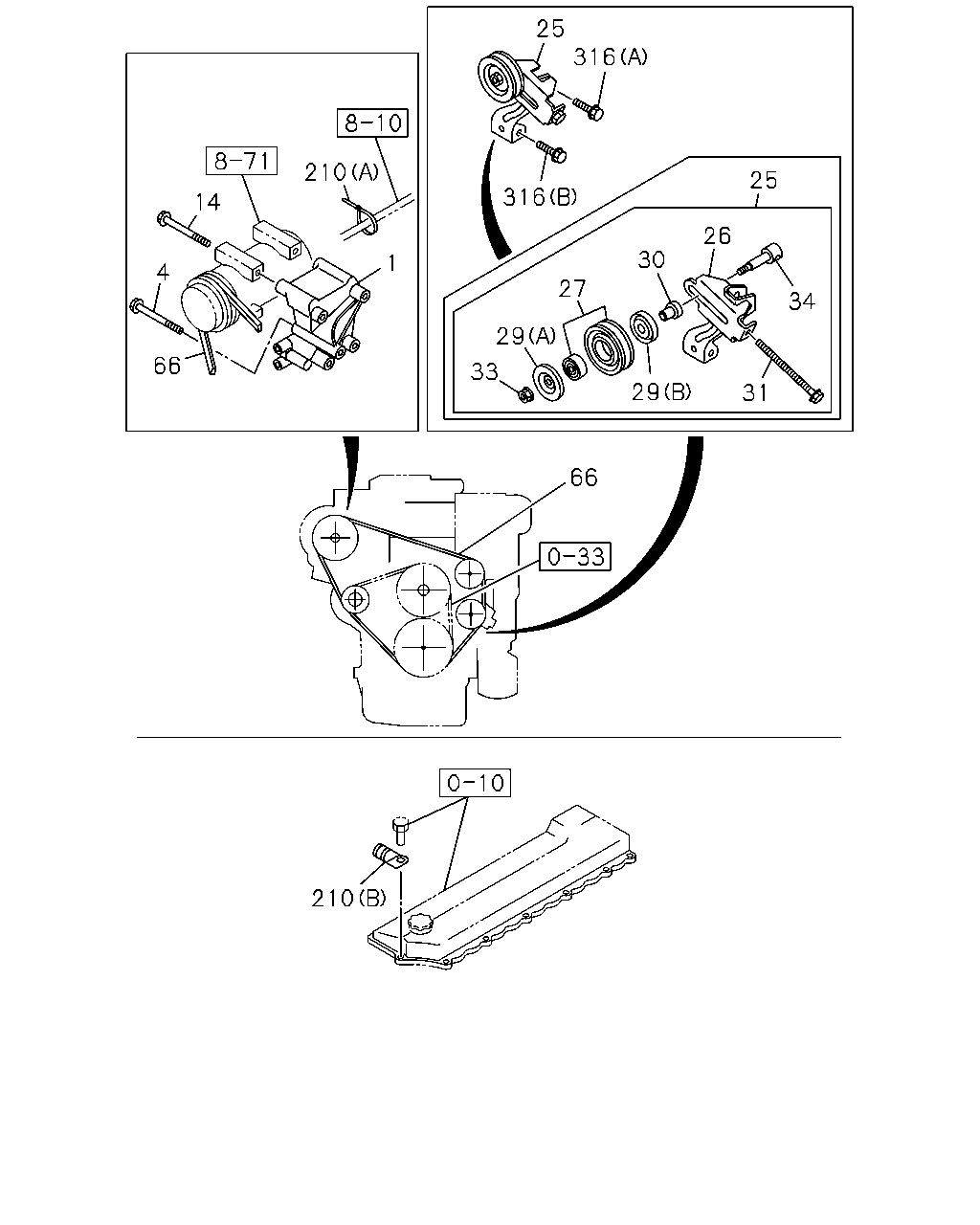

çizim 57228
25 316 210 25 316 14 26 30 1 4 27 34 29 66 33 29 31 66 210
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97379-507-2 01 1 0507-0604 ● ● ●
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97379-507-2 01 1 0605- ● ● ● ●
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28181-000-0 02 1 0507-0512 ● ● ●
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28151-000-0 02 1 0601-0604 ● ● ●
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28151-000-0 02 1 0605- ● ● ● ●
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONT(C60) M10X80 FLANGE 		0-28181-080-0 02 1 0507-0512 ● ● ●
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONT(C60) M10X80 FLANGE 		0-28151-080-0 02 1 0601-0604 ● ● ●
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONT(C60) M10X80 FLANGE 		0-28151-080-0 02 1 0605- ● ● ● ●
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) M8X90 FLANGE 		0-28080-890-0 08 1 0507-0512 ● ● ●
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) M8X90 FLANGE 		0-28050-890-0 08 1 0601-0604 ● ● ●
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) M8X90 FLANGE 		0-28050-890-0 08 1 0605- ● ● ● ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-97161-198-1 01 1 0507-0604 ● ● ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-97161-198-1 01 1 0605- ● ● ● ●
26 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97161-031-1 01 1 0507-0604 ● ● ●
26 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97161-031-1 01 1 0605- ● ● ● ●
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97386-869-0 01 1 0507-0604 ● ● ●
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97386-869-0 01 1 0605- ● ● ● ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 0507-0604 ● ● ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 0605- ● ● ● ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 0507-0604 ● ● ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 0605- ● ● ● ●
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-117-0 01 1 0507-0604 ● ● ●
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-117-0 01 1 0605- ● ● ● ●
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 0507-0604 ● ● ●
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 0605- ● ● ● ●
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 0507-0604 ● ● ●
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 0605- ● ● ● ●
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-116-0 01 1 0507-0604 ● ● ●
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-116-0 01 1 0605- ● ● ● ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-2 01 1 0507-0604 ● ● ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-3 01 1 0605- ● ● ● ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-097-0 01 1 0507-0604 ● ● ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-097-0 01 1 0605- ● ● ● ●
210 CLIP; HARNESS
(B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0507-0604 ● ● ●
210 CLIP; HARNESS
(B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0605-0801 ● ● ● ●
210 CLIP; HARNESS
(B) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802- ● ● ● ●
210 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT(C60) (A) L=140 		5-09707-031-1 01 1 0507-0604 ● ● ●
210 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT(C60) (A) L=140 		5-09707-031-1 01 1 0605- ● ● ● ●
316 BOLT; BRKT FIX
AIR CONDITIONER MANUAL CONT(C60) (A) M8X50 FLANGE 		0-28080-850-0 01 1 0507-0512 ● ● ●
316 BOLT; BRKT FIX
AIR CONDITIONER MANUAL CONT(C60) (A) M8X50 FLANGE 		0-28050-850-0 01 1 0601-0604 ● ● ●
316 BOLT; BRKT FIX
AIR CONDITIONER MANUAL CONT(C60) (A) M8X50 FLANGE 		0-28050-850-0 01 1 0605- ● ● ● ●
316 BOLT; BRKT FIX
AIR CONDITIONER MANUAL CONT(C60) (B) M10X65 FLANGE 		8-94344-540-1 01 1 0507-0604 ● ● ●
316 BOLT; BRKT FIX
AIR CONDITIONER MANUAL CONT(C60) (B) M10X65 FLANGE 		8-94344-540-1 01 1 0605- ● ● ● ●
