Isuzu WW
▶
TRUCKS
▶
ELF
▶
51047 - ELF400/450(MEXICO)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

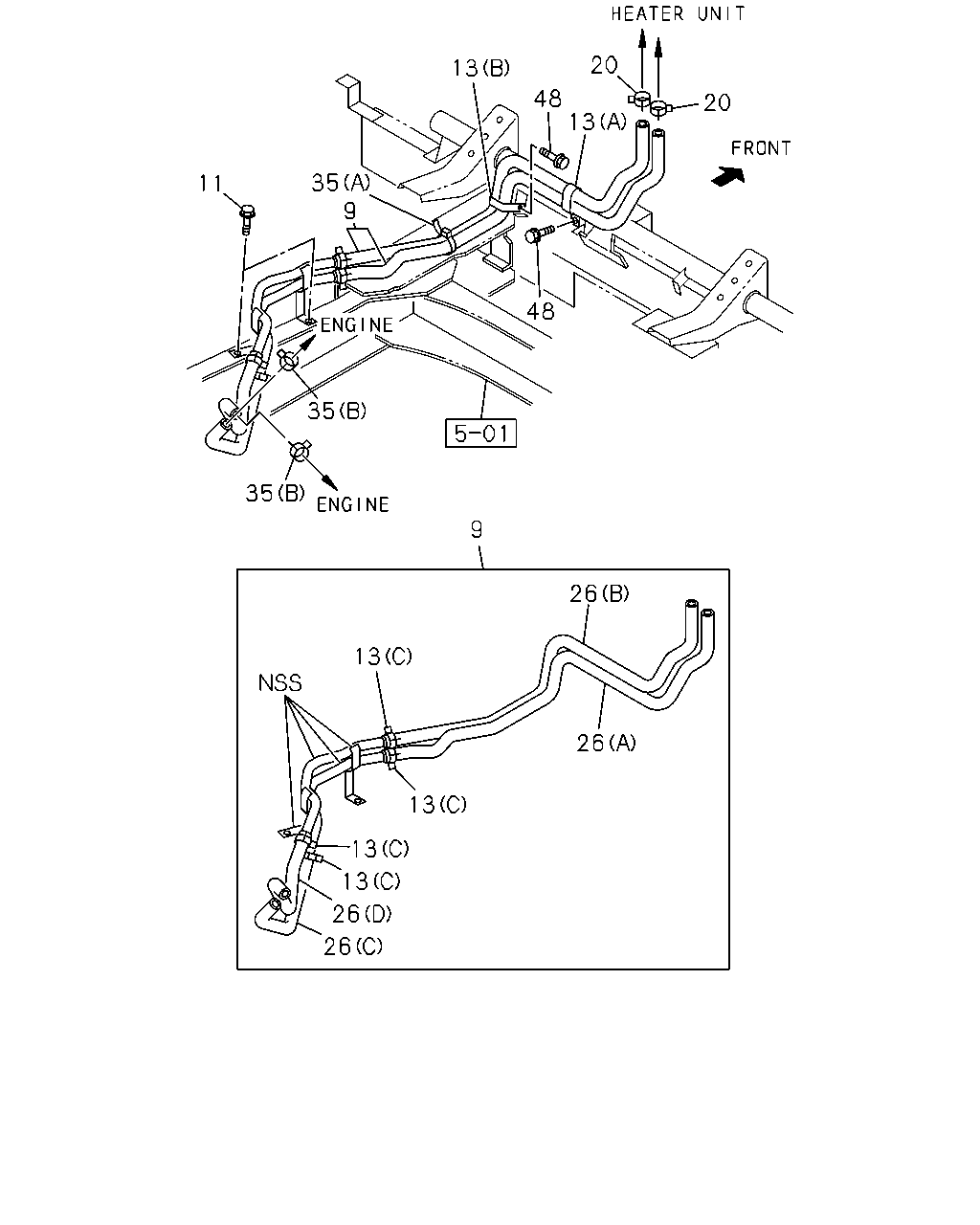

8-45 — HEATER PIPING
(#51902) — 33 parça
Tümü
A - NPC7SC
B - NPC7SF
C - NPC7SK
D - NPC7SS
20
13
48
13
20
35
9
11
48
35
35
9
26
13
26
13
13
13
26
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
9
PIPE; HTR
8-97333-099-2
01
1
0507-0604
●
●
●
9
PIPE; HTR
8-97333-099-2
01
1
0605-
●
●
●
●
11
BOLT; HTR PIPE
M8X25 FLANGE
0-28680-825-0
02
1
0507-0512
●
●
●
11
BOLT; HTR PIPE
M8X25 FLANGE
0-28650-825-0
02
1
0601-0604
●
●
●
11
BOLT; HTR PIPE
M8X25 FLANGE
0-28650-825-0
02
1
0605-
●
●
●
●
13
CLIP; HTR HOSE
(B)
5-83574-006-0
01
1
0507-0604
●
●
●
13
CLIP; HTR HOSE
(B)
5-83574-006-0
01
1
0605-0610
●
●
●
●
13
CLIP; HTR HOSE
(B)
8-98029-677-0
01
1
0611-
●
●
●
●
13
CLIP; HTR HOSE
(C) ID=22
8-94382-401-0
04
1
0507-0604
●
●
●
13
CLIP; HTR HOSE
(C) ID=22
8-94382-401-0
04
1
0605-
●
●
●
●
13
CLIP; HTR HOSE
(A) B=18
9-83651-948-1
01
1
0507-0604
●
●
●
13
CLIP; HTR HOSE
(A) B=18
9-83651-948-1
01
1
0605-0610
●
●
●
●
13
CLIP; HTR HOSE
(A) B=18
8-97359-144-0
01
1
0611-1205
●
●
●
●
13
CLIP; HTR HOSE
(A) B=18
8-98166-023-0
01
1
1206-
●
●
●
●
20
CLIP; WATER HOSE TO HTR PIPE
ID=22
8-94382-401-0
02
1
0507-0604
●
●
●
20
CLIP; WATER HOSE TO HTR PIPE
ID=22
8-94382-401-0
02
1
0605-0610
●
●
●
●
20
CLIP; WATER HOSE TO HTR PIPE
ID=22
8-97359-141-0
02
1
0611-
●
●
●
●
26
HOSE; HTR
(A)
8-97373-830-0
01
1
0507-0604
●
●
●
26
HOSE; HTR
(A)
8-97373-830-0
01
1
0605-
●
●
●
●
26
HOSE; HTR
(B)
8-97373-831-0
01
1
0507-0604
●
●
●
26
HOSE; HTR
(B)
8-97373-831-0
01
1
0605-
●
●
●
●
26
HOSE; HTR
(C)
8-97373-832-0
01
1
0507-0604
●
●
●
26
HOSE; HTR
(C)
8-97373-832-0
01
1
0605-
●
●
●
●
26
HOSE; HTR
(D)
8-97373-833-0
01
1
0507-0604
●
●
●
26
HOSE; HTR
(D)
8-97373-833-0
01
1
0605-
●
●
●
●
35
CLIP; WATER HOSE
(A) L=250
5-09707-030-1
01
1
0507-0604
●
●
●
35
CLIP; WATER HOSE
(A) L=250
5-09707-030-1
01
1
0605-
●
●
●
●
35
CLIP; WATER HOSE
(B) ID=22
8-94382-401-0
02
1
0507-0604
●
●
●
35
CLIP; WATER HOSE
(B) ID=22
8-94382-401-0
02
1
0605-0610
●
●
●
●
35
CLIP; WATER HOSE
(B) ID=22
8-97359-141-0
02
1
0611-
●
●
●
●
48
BOLT; CLIP FIX
M6X12 FLANGE
0-28080-612-0
02
1
0507-0512
●
●
●
48
BOLT; CLIP FIX
M6X12 FLANGE
0-28050-612-0
02
1
0601-0604
●
●
●
48
BOLT; CLIP FIX
M6X12 FLANGE
0-28050-612-0
02
1
0605-
●
●
●
●
