8-28 — CHASSIS ELECTRICAL (#51900) — 43 parça
çizim 57303
100 360 360 100 100 360 45 44 46
BalonParca AdiParca NoAdetTipApplied Date A B C D
44 HORN; HIGH NOTE 8-97211-743-1 01 1 0507-0604 ● ● ●
44 HORN; HIGH NOTE 8-97211-743-2 01 1 0605- ● ● ● ●
45 HORN; LOW NOTE 8-97211-744-1 01 1 0507-0604 ● ● ●
45 HORN; LOW NOTE 8-97211-744-2 01 1 0605- ● ● ● ●
46 BOLT; HORN TO BODY
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0507-0604 ● ● ●
46 BOLT; HORN TO BODY
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0605- ● ● ● ●
100 NUT; RELAY BOX COVER
M8 FLANGE 		0-91150-108-0 03 1 0507-0602 ● ● ●
100 NUT; RELAY BOX COVER
M8 FLANGE 		0-91180-108-0 03 1 0603-0604 ● ● ●
100 NUT; RELAY BOX COVER
M8 FLANGE 		0-91180-108-0 03 1 0605- ● ● ● ●
360 BOLT; RELAY BOX
(B) M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512 ● ● ●
360 BOLT; RELAY BOX
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0601-0604 ● ● ●
360 BOLT; RELAY BOX
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0605- ● ● ● ●
360 BOLT; RELAY BOX
(A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0507-0604 ● ● ●
360 BOLT; RELAY BOX
(A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0605-1210 ● ● ● ●
360 BOLT; RELAY BOX
(A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 04 1 1211- ● ● ● ●

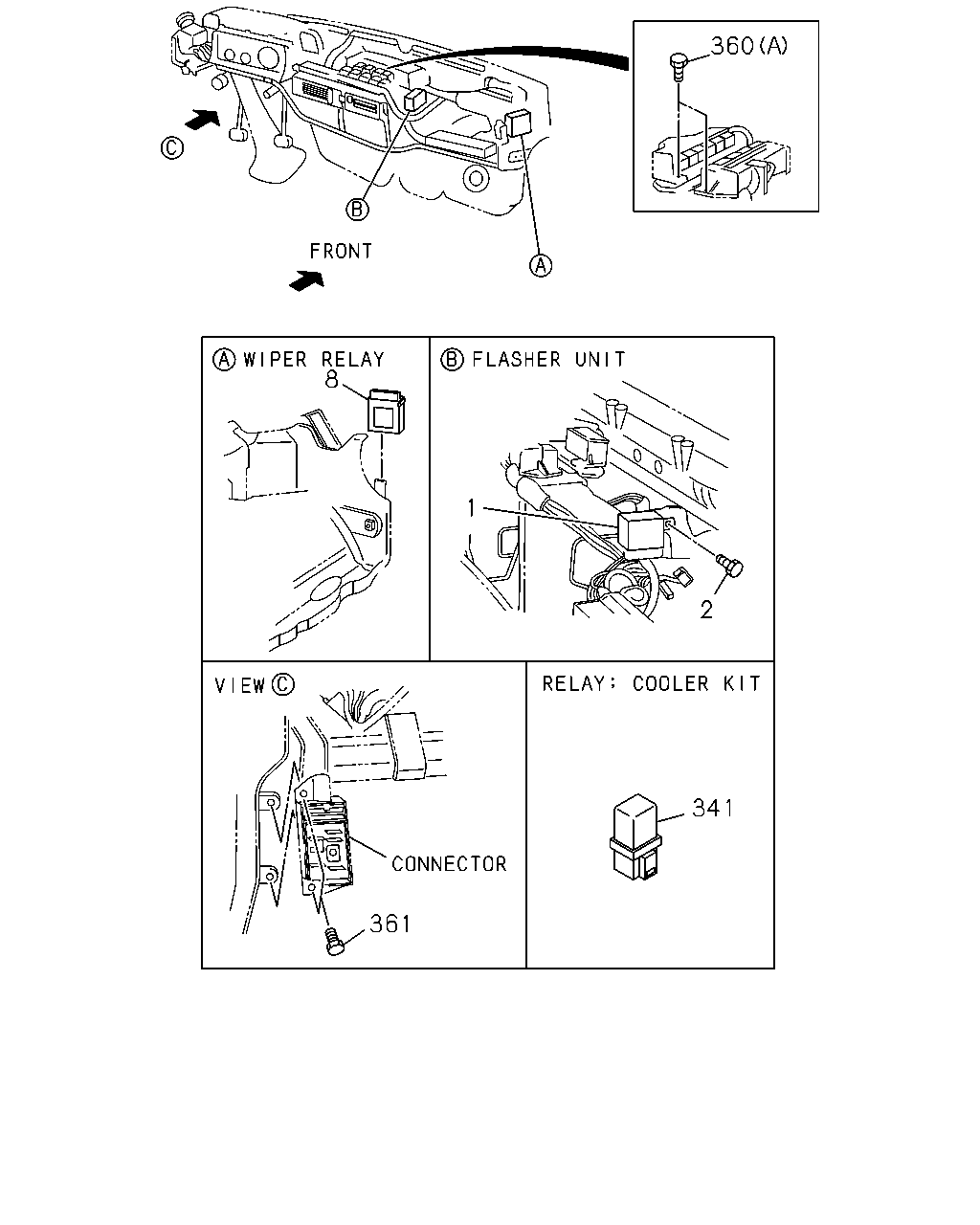

çizim 57692
360 8 1 2 341 361
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 UNIT; FLASHER 8-97228-398-0 01 1 0507-0604 ● ● ●
1 UNIT; FLASHER 8-97228-398-0 01 1 0605- ● ● ● ●
2 BOLT; FLASHER UNIT
M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0507-0604 ● ● ●
2 BOLT; FLASHER UNIT
M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0605-1210 ● ● ● ●
2 BOLT; FLASHER UNIT
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 01 1 1211- ● ● ● ●
8 RELAY; WIPER 8-97363-984-0 01 1 0507-0604 ● ● ●
8 RELAY; WIPER 8-97363-984-0 01 1 0605- ● ● ● ●
341 RELAY
AIR CONDITIONER MANUAL CONT(C60) 12V 20A 		8-97060-926-1 02 1 0507-0604 ● ● ●
341 RELAY
AIR CONDITIONER MANUAL CONT(C60) 12V 20A 		8-97060-926-1 02 1 0605- ● ● ● ●
360 BOLT; RELAY BOX
(B) M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512 ● ● ●
360 BOLT; RELAY BOX
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0601-0604 ● ● ●
360 BOLT; RELAY BOX
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0605- ● ● ● ●
360 BOLT; RELAY BOX
(A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0507-0604 ● ● ●
360 BOLT; RELAY BOX
(A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0605-1210 ● ● ● ●
360 BOLT; RELAY BOX
(A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 04 1 1211- ● ● ● ●
361 BOLT; CONNECTOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0507-0604 ● ● ●
361 BOLT; CONNECTOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0605-1210 ● ● ● ●
361 BOLT; CONNECTOR
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 01 1 1211- ● ● ● ●

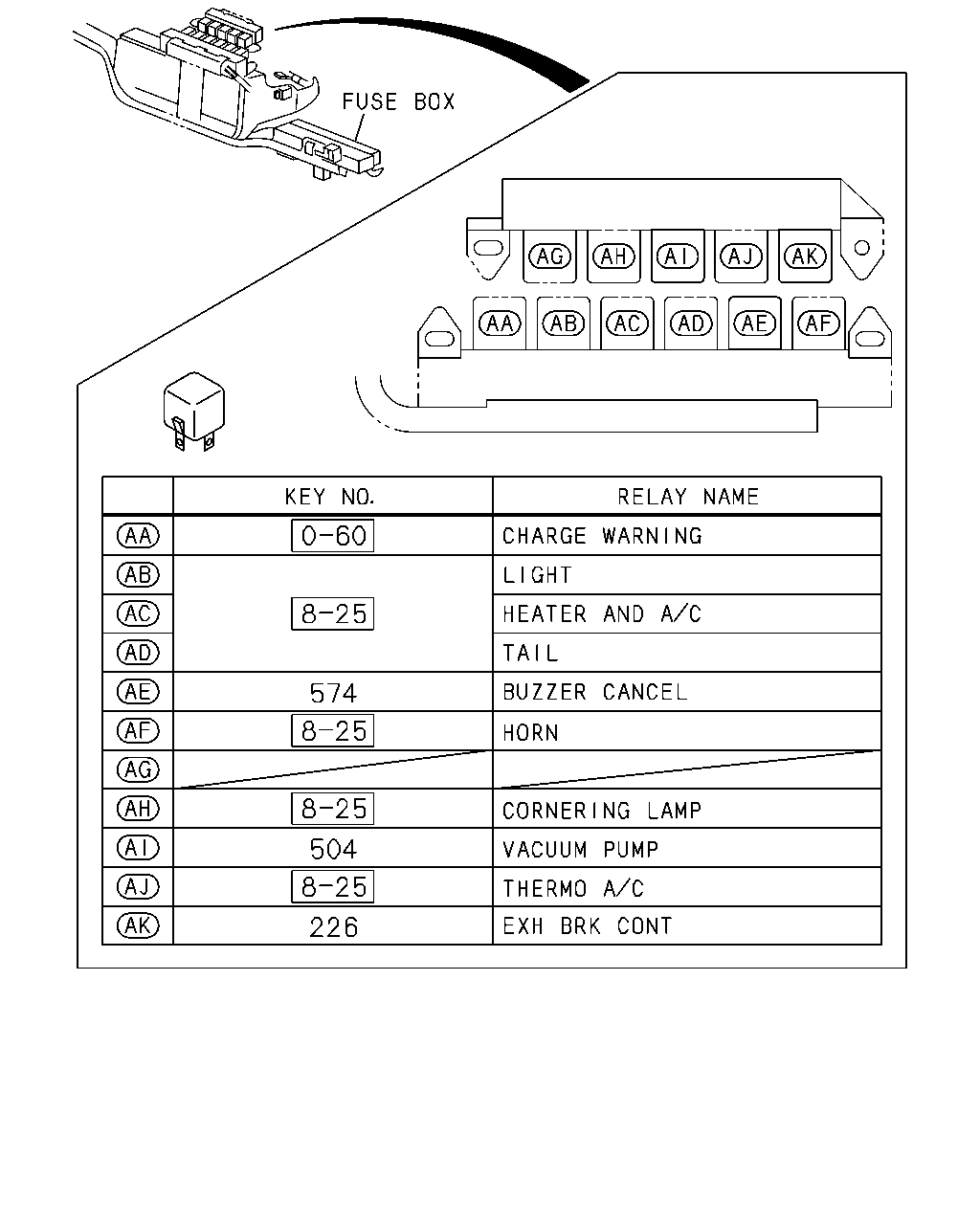

çizim 100899
574 504 226
BalonParca AdiParca NoAdetTipApplied Date A B C D
226 RELAY; EXH BRK
12V 20A 		8-97060-926-1 01 1 0507-0604 ● ● ●
226 RELAY; EXH BRK
12V 20A 		8-97060-926-1 01 1 0605- ● ● ● ●
504 RELAY; VACUUM PUMP
12V 20A 		8-97060-926-1 01 1 0507- ●
504 RELAY; VACUUM PUMP
GVWR CLASS-4 14001-16000LBS(RQG) 12V 20A 		8-97060-926-1 01 1 0507- ● ●
574 RELAY; CANCEL,BUZZER
12V 20A 		8-97060-926-1 01 1 0507-0604 ● ● ●
574 RELAY; CANCEL,BUZZER
12V 20A 		8-97060-926-1 01 1 0605- ● ● ● ●

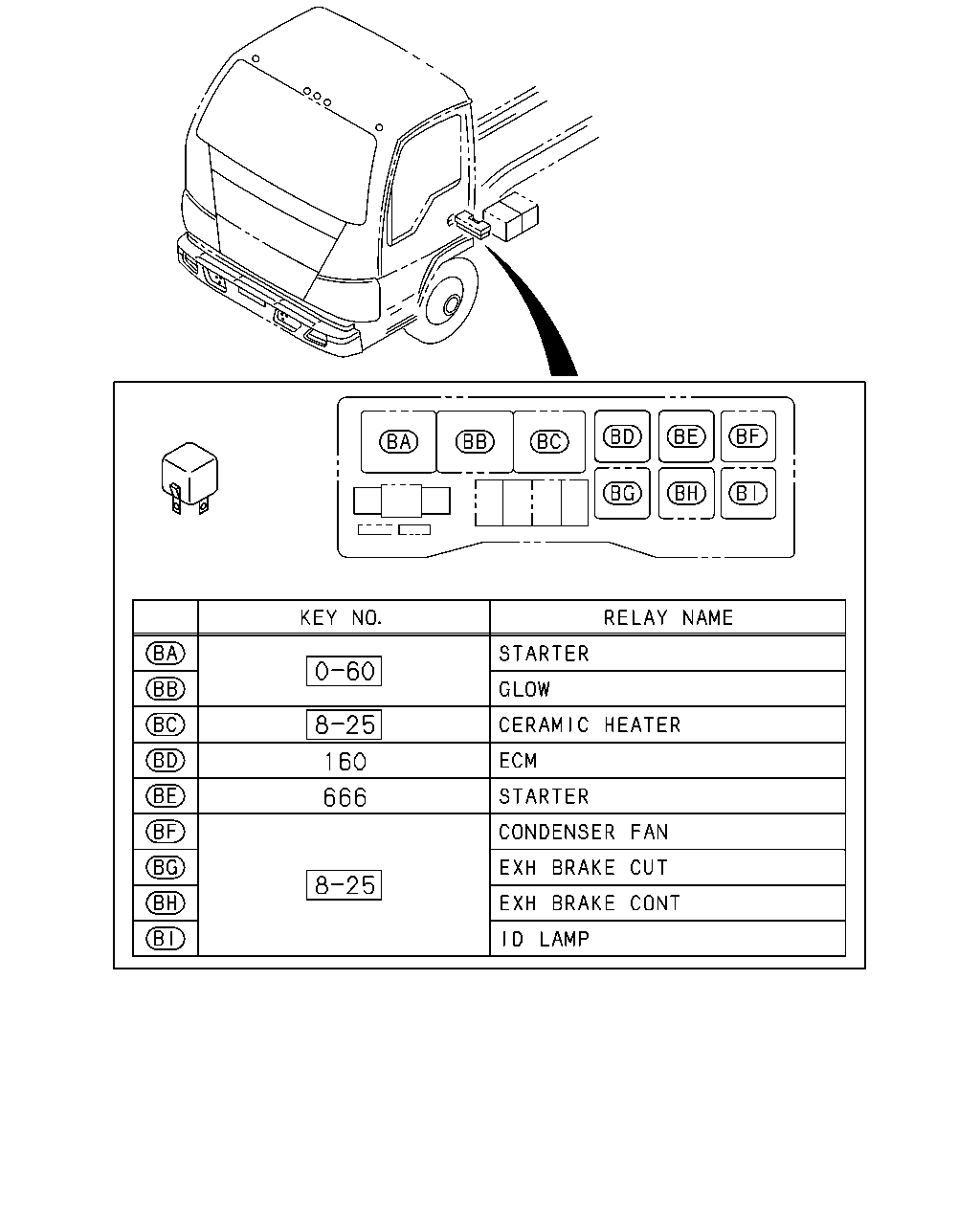

çizim 100900
160 666
BalonParca AdiParca NoAdetTipApplied Date A B C D
160 RELAY; ECM
12V 20A 		8-97060-926-1 01 1 0507-0604 ● ● ●
160 RELAY; ECM
12V 20A 		8-97060-926-1 01 1 0605- ● ● ● ●
666 RELAY; STARTER
12V 20A 		8-97060-926-1 01 1 0507-0604 ● ● ●
666 RELAY; STARTER
12V 20A 		8-97060-926-1 01 1 0605- ● ● ● ●
