Sayfa 3-75 - Isuzu EPC

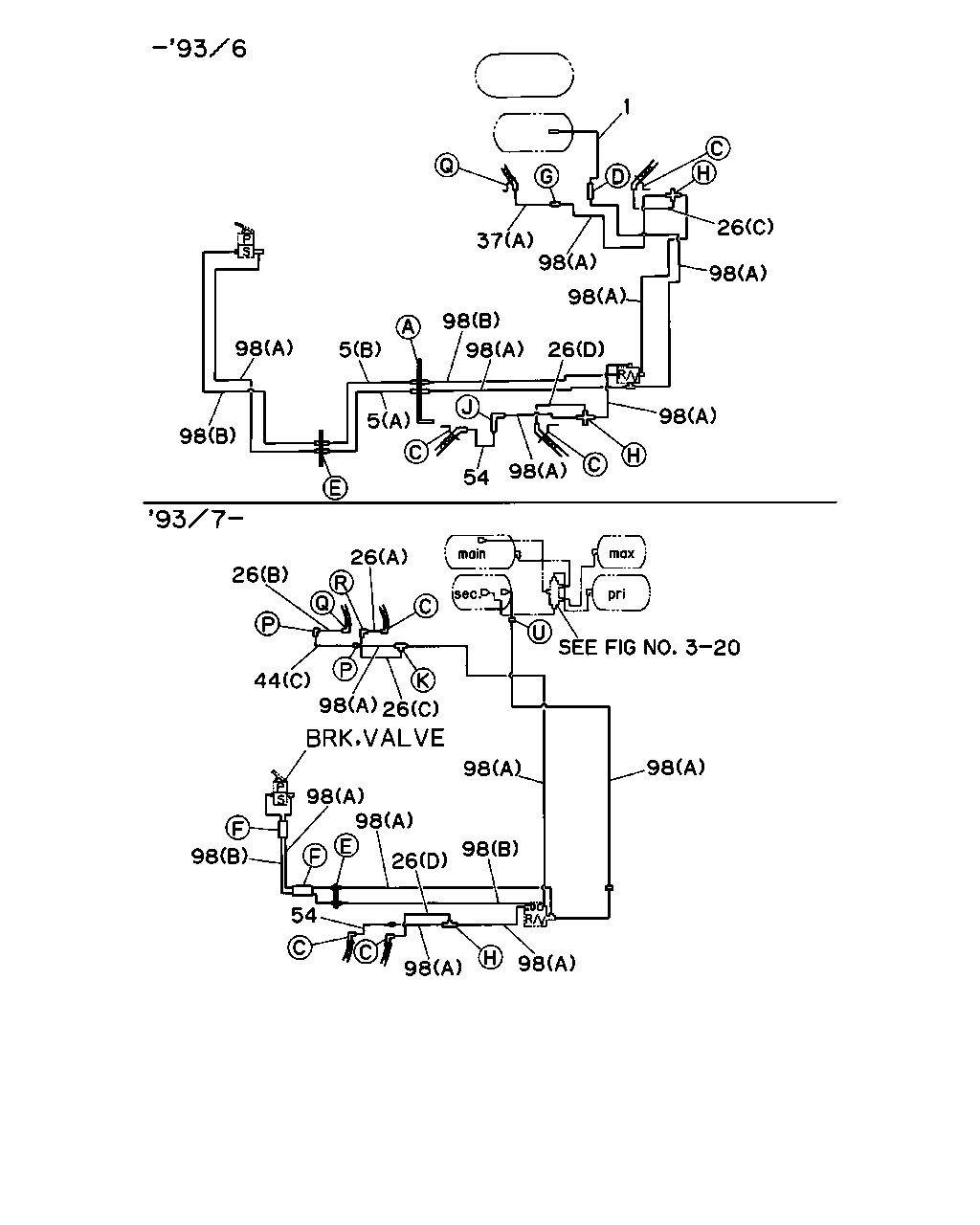

3-75 — BRAKE PIPING; AIR,FRONT (#519) — 502 parça

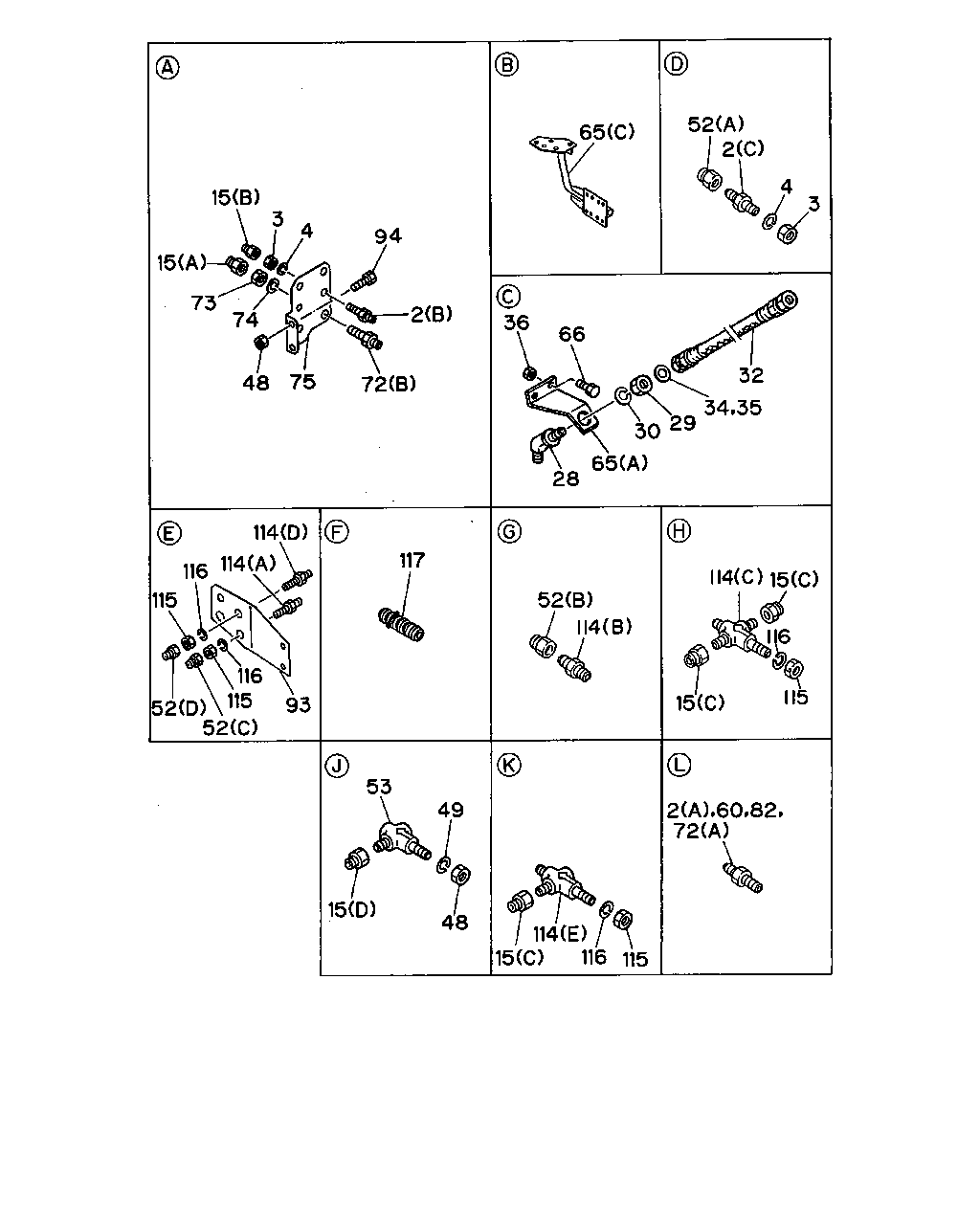

65 52 2 4 3 36 66 32 35 34 29 30 65 28 52 114 114 15 115 116 15 2 60 82 72 115 116 114 15 48 49 53 15 52 52 115 116 93 115 116 114 114 48 75 72 2 94 4 3 15 15 73 74 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (D) M22	9-09235-215-1	01	1	8712-
2	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (C) M22	9-09233-015-0	01	1	8712-9001
2	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (C) M22	9-09233-315-1	01	1	9002-9306
2	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M22	9-09233-315-1	01	1	9307-
2	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) M16 L=70 STRAIGHT	9-09233-210-1	01	1	8712-9306
2	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) M20 STRAIGHT	9-09233-012-1	01	1	8712-
3	NUT; PIPE UNION M22	9-09111-422-0	01	1	8712-9306
3	NUT; PIPE UNION M16	9-99111-416-0	01	1	9307-
3	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	01	1	9307-
3	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	03	1	8712-
3	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M16	9-99110-416-0	01	1	9307-
3	NUT; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9307-
3	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-9306
3	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M22	9-09111-422-0	01	1	9307-
3	NUT; PIPE UNION NYLON TUBE AIR PIPING<Z29> M16	9-99110-416-0	01	1	8712-9306
3	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	8712-9304
3	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99111-412-0	01	1	8712-
3	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	01	1	8712-9306
3	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M16	9-99111-416-0	01	1	8712-9306
4	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	8712-9003
4	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9004-9306
4	WASHER; LK,PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9004-9306
4	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	9004-9306
4	WASHER; LK,PIPE UNION HONG KONG EQUIPMENT(PQ1) ID=16.2	9-09150-516-0	01	1	9307-9312
4	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	8712-9306
4	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9307-9312
4	WASHER; LK,PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9307-9312
4	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=22.5	9-09150-522-0	01	1	9307-9312
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-220-0	01	1	8712-9306
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (A)	1-09660-221-0	01	1	8712-9306
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (C)	1-09660-223-0	05	1	8712-9306
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (C) M20X36	1-09660-576-0	03	1	9307-9601
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (C) M20X36	1-09660-576-0	02	1	9602-
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (D)	1-09660-637-0	01	1	9307-9601
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (D)	1-09660-637-0	02	1	9602-
28	NIPPLE; AIR PIPE	1-09654-174-1	03	1	8712-9306
28	NIPPLE; AIR PIPE	1-09654-174-1	02	1	9307-
28	NIPPLE; AIR PIPE	1-09654-119-1	01	1	9307-
29	NUT; NIPPLE M20	9-99111-420-0	03	1	8712-
30	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	03	1	8712-
32	HOSE; FLEX,FRT FWD FRONT LH,RWD FRONT L=630	0-07847-630-1	03	1	8712-9306
32	HOSE; FLEX,FRT FWD FRONT L=680	0-07847-680-1	01	1	8712-8801
32	HOSE; FLEX,FRT L=630	0-07847-630-1	04	1	9307-
32	HOSE; FLEX,FRT HONG KONG EQUIPMENT(PQ1) FWD FRONT L=680	0-07847-680-1	01	1	8802-9306
32	HOSE; FLEX,FRT EXC. HONG KONG EQUIPMENT(PQ1) FWD FRONT L=630	0-07847-630-1	01	1	8802-9306
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	8712-
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	8712-
36	NUT; HOSE BRKT M8	9-09110-408-0	08	1	8712-
48	NUT; UNION BRKT M8	9-09110-408-0	02	1	9307-
48	NUT; UNION BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9307-
48	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	02	1	8712-9304
48	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	02	1	9305-9306
48	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M16	9-99110-416-0	01	1	8712-
48	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M12	9-99111-412-0	01	1	9307-
48	NUT; UNION BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	8712-9306
48	NUT; UNION BRKT HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	8712-9306
49	WASHER; LK,UNION BRKT NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	8712-9312
49	WASHER; LK,UNION BRKT NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9307-9312
52	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) M14 & M16 STRAIGHT	1-09660-220-0	01	1	8712-9306
52	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M18 & M20 STRAIGHT	1-09660-221-0	01	1	8712-9306
52	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M18 & M22 STRAIGHT	1-09660-222-0	01	1	8712-9306
52	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M16 & M18 STRAIGHT	1-09660-223-0	01	1	8712-9306
52	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D),(C) M20X36	1-09660-576-0	02	1	9307-
53	UNION; ELBOW NYLON TUBE AIR PIPING<Z29> M16 ELBOW	9-09235-210-1	01	1	8712-
60	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M20 STRAIGHT	9-09233-012-1	01	1	8712-
65	BRACKET; FLEX HOSE (A) RWD FRONT	1-47465-377-0	01	1	8712-
65	BRACKET; FLEX HOSE (A) FWD FRONT	1-47475-557-1	01	1	8712-
65	BRACKET; FLEX HOSE (A) RWD FRONT	1-47475-106-0	01	1	8712-
65	BRACKET; FLEX HOSE (B) FWD FRONT	1-47476-196-0	01	1	8712-8801
65	BRACKET; FLEX HOSE (B) FWD FRONT	1-47477-085-0	01	1	9307-9412
65	BRACKET; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1) (B) FWD FRONT	1-47477-085-0	01	1	9501-
65	BRACKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1) (C)	1-47475-583-1	01	1	8712-
65	BRACKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1) (B) FWD FRONT	1-47476-196-0	01	1	8802-9306
65	BRACKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1) (B) FWD FRONT	1-47477-482-0	01	1	9501-
65	BRACKET; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1) (B) FWD FRONT	1-47465-667-0	01	1	8802-9306
65	BRACKET; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C)	1-47475-578-1	01	1	8712-
66	BOLT; HOSE BRKT M8X30 W/LK WASHER	9-01900-830-0	02	1	8712-9204
66	BOLT; HOSE BRKT M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9306
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28080-830-0	02	1	9307-
66	BOLT; HOSE BRKT HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	9-01900-830-0	06	1	8712-9204
66	BOLT; HOSE BRKT HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	0-50040-830-0	06	1	9205-9306
66	BOLT; HOSE BRKT HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	06	1	9307-
66	BOLT; HOSE BRKT EXC. HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER	9-01900-825-0	06	1	8712-9204
66	BOLT; HOSE BRKT EXC. HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER	0-50040-825-0	06	1	9205-9306
66	BOLT; HOSE BRKT EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28080-825-0	06	1	9307-
72	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) M20 & M16 2 WAY	1-09654-177-1	01	1	8712-
72	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) M16 L=42	9-09233-010-1	01	1	8712-
72	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) M20 L=77.5	9-09233-212-1	01	1	8712-9306
73	NUT; PIPE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	8712-9306
74	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	8712-9306
75	BRACKET; UNION NYLON TUBE AIR PIPING<Z29>	1-47476-089-0	01	1	8712-8904
75	BRACKET; UNION NYLON TUBE AIR PIPING<Z29>	1-47476-447-0	01	1	8905-9306
82	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M16 L=42	9-09233-010-1	01	1	8712-
93	BRACKET; UNION,TUBE FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29>	1-47476-438-0	01	1	8712-9011
93	BRACKET; UNION,TUBE NYLON TUBE AIR PIPING<Z29>	1-47476-438-0	01	1	9012-9306
93	BRACKET; UNION,TUBE NYLON TUBE AIR PIPING<Z29>	1-47476-872-0	01	1	9307-
93	BRACKET; UNION,TUBE NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6>	1-47476-088-0	01	1	8712-9011
94	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9307-
94	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	02	1	9307-
94	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	9-01900-830-0	04	1	8712-9204
94	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	0-50040-830-0	04	1	9205-9306
94	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	8712-9204
94	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306
94	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M12X35 W/LK WASHER	9-01901-235-0	02	1	8712-9204
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M12X35 W/LK WASHER	0-50041-235-0	02	1	9205-9306
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M16 L=42	9-09233-010-1	01	1	8712-9306
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) M16 L=70 STRAIGHT	9-09233-210-1	01	1	8712-9306
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M20 L=77.5	9-09233-212-1	01	1	8712-
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	9-09238-210-1	02	1	8712-9306
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M16 2WAY	1-09650-182-1	01	1	9307-
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (E)	1-09656-308-1	01	1	9307-
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) UNS 17/32-24 L=57	1-09664-083-0	01	1	9307-
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	02	1	8712-9304
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	02	1	9305-9306
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M16	9-99110-416-0	01	1	8712-9306
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> UNS 17/32-24 B=17	1-09487-023-0	01	1	9307-
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	8712-
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M14	9-99110-414-0	01	1	9307-
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9307-
116	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	02	1	8712-9306
116	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	8712-9306
116	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	8712-
116	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9307-9312
116	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	01	1	9307-9312
117	TUBE; CORRUGATE NYLON TUBE AIR PIPING<Z29>	1-71997-792-0	02	1	8712-

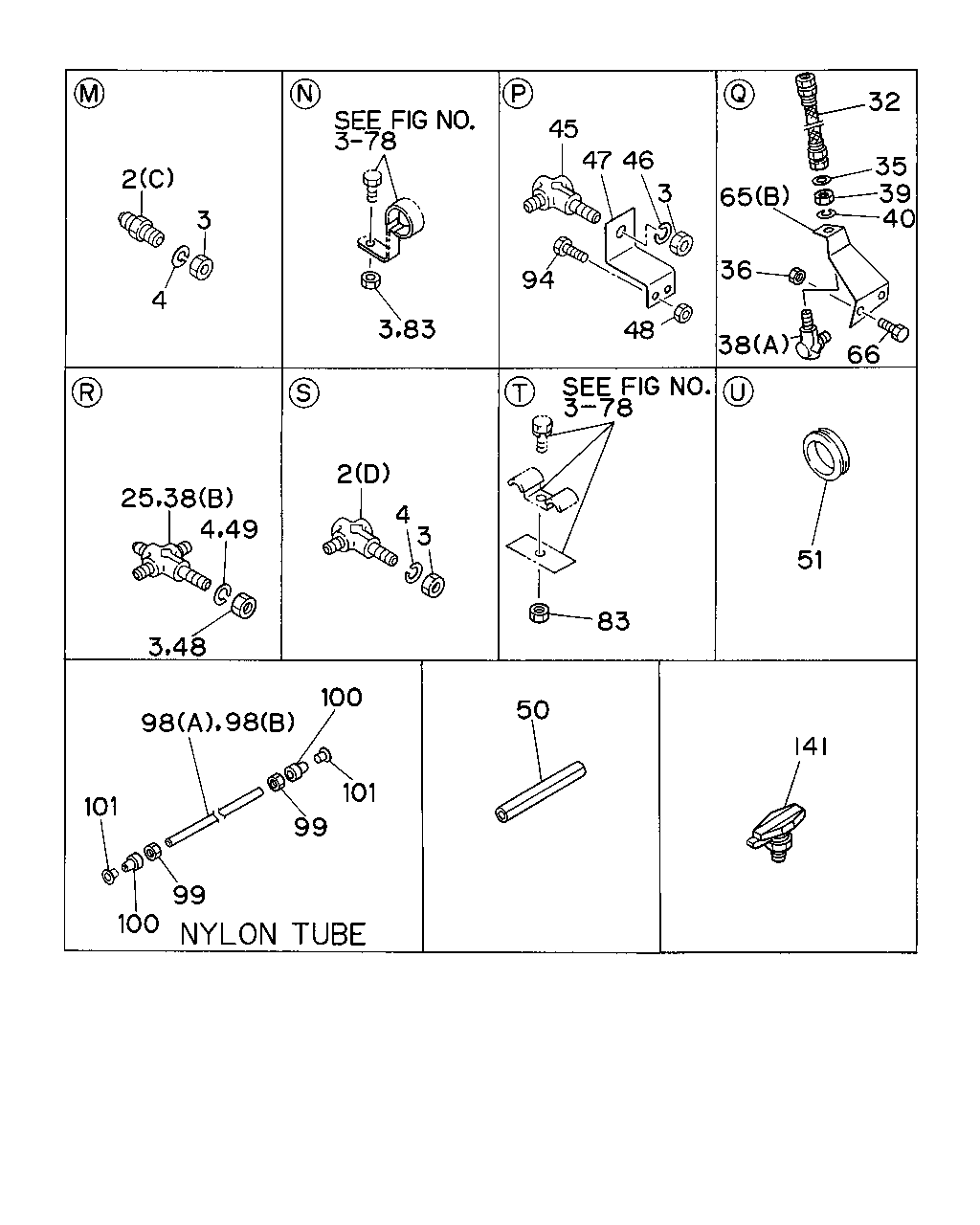

2 3 4 3 83 45 94 47 46 3 48 36 38 66 65 32 35 39 40 51 83 141 50 100 101 99 99 100 101 98 98 3 48 4 49 25 38 2 4 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (D) M22	9-09235-215-1	01	1	8712-
2	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (C) M22	9-09233-015-0	01	1	8712-9001
2	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (C) M22	9-09233-315-1	01	1	9002-9306
2	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) M22	9-09233-315-1	01	1	9307-
2	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) M16 L=70 STRAIGHT	9-09233-210-1	01	1	8712-9306
2	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) M20 STRAIGHT	9-09233-012-1	01	1	8712-
3	NUT; PIPE UNION M22	9-09111-422-0	01	1	8712-9306
3	NUT; PIPE UNION M16	9-99111-416-0	01	1	9307-
3	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	01	1	9307-
3	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	03	1	8712-
3	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M16	9-99110-416-0	01	1	9307-
3	NUT; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9307-
3	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-9306
3	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M22	9-09111-422-0	01	1	9307-
3	NUT; PIPE UNION NYLON TUBE AIR PIPING<Z29> M16	9-99110-416-0	01	1	8712-9306
3	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	8712-9304
3	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99111-412-0	01	1	8712-
3	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	01	1	8712-9306
3	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M16	9-99111-416-0	01	1	8712-9306
4	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	8712-9003
4	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9004-9306
4	WASHER; LK,PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9004-9306
4	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	9004-9306
4	WASHER; LK,PIPE UNION HONG KONG EQUIPMENT(PQ1) ID=16.2	9-09150-516-0	01	1	9307-9312
4	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	8712-9306
4	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9307-9312
4	WASHER; LK,PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9307-9312
4	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=22.5	9-09150-522-0	01	1	9307-9312
25	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) M16 3WAY	9-09238-910-1	01	1	9307-
25	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M16	9-09238-310-1	02	1	8712-9306
25	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M16	9-09238-310-1	01	1	9307-
25	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M16	9-09238-310-1	01	1	9307-
32	HOSE; FLEX,FRT FWD FRONT LH,RWD FRONT L=630	0-07847-630-1	03	1	8712-9306
32	HOSE; FLEX,FRT FWD FRONT L=680	0-07847-680-1	01	1	8712-8801
32	HOSE; FLEX,FRT L=630	0-07847-630-1	04	1	9307-
32	HOSE; FLEX,FRT HONG KONG EQUIPMENT(PQ1) FWD FRONT L=680	0-07847-680-1	01	1	8802-9306
32	HOSE; FLEX,FRT EXC. HONG KONG EQUIPMENT(PQ1) FWD FRONT L=630	0-07847-630-1	01	1	8802-9306
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	8712-
36	NUT; HOSE BRKT M8	9-09110-408-0	08	1	8712-
38	UNION; AIR PIPE (A)	1-09654-119-0	01	1	8712-8801
38	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A)	1-09654-119-1	01	1	8802-9306
38	UNION; AIR PIPE (A)	1-09654-119-1	01	1	9307-
38	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (A) M16	1-09654-174-1	01	1	8802-9306
38	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) M16	9-09238-310-1	01	1	9307-
39	NUT; PIPE UNION M20	9-99111-420-0	01	1	8712-
40	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	8712-
45	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M16 ELBOW	9-09235-210-1	01	1	8712-9306
45	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) M16 ELBOW	9-09235-210-1	01	1	8712-9306
45	UNION; AIR PIPE M16 ELBOW	9-09235-210-1	01	1	9307-
45	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M16 ELBOW	9-09235-210-1	01	1	9307-
46	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	8712-9306
46	WASHER; LK,PIPE UNION HONG KONG EQUIPMENT(PQ1) ID=16.2	9-09150-516-0	01	1	8712-9306
46	WASHER; LK,PIPE UNION ID=16.2	9-09150-516-0	01	1	9307-9312
46	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	9307-
47	BRACKET; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29>	1-47465-622-0	01	1	8712-9306
47	BRACKET; PIPE UNION HONG KONG EQUIPMENT(PQ1)	1-47465-622-0	01	1	8712-9306
47	BRACKET; PIPE UNION	1-47465-622-0	01	1	9307-
47	BRACKET; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29>	1-47465-622-0	01	1	9307-
48	NUT; UNION BRKT M8	9-09110-408-0	02	1	9307-
48	NUT; UNION BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9307-
48	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	02	1	8712-9304
48	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	02	1	9305-9306
48	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M16	9-99110-416-0	01	1	8712-
48	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M12	9-99111-412-0	01	1	9307-
48	NUT; UNION BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	8712-9306
48	NUT; UNION BRKT HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	8712-9306
49	WASHER; LK,UNION BRKT NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	8712-9312
49	WASHER; LK,UNION BRKT NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9307-9312
50	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> L=150	1-09360-677-1	02	1	9307-9404
50	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> L=150	1-09360-677-1	03	1	9405-
51	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=17	9-09956-256-1	04	1	9307-
65	BRACKET; FLEX HOSE (A) RWD FRONT	1-47465-377-0	01	1	8712-
65	BRACKET; FLEX HOSE (A) FWD FRONT	1-47475-557-1	01	1	8712-
65	BRACKET; FLEX HOSE (A) RWD FRONT	1-47475-106-0	01	1	8712-
65	BRACKET; FLEX HOSE (B) FWD FRONT	1-47476-196-0	01	1	8712-8801
65	BRACKET; FLEX HOSE (B) FWD FRONT	1-47477-085-0	01	1	9307-9412
65	BRACKET; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1) (B) FWD FRONT	1-47477-085-0	01	1	9501-
65	BRACKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1) (C)	1-47475-583-1	01	1	8712-
65	BRACKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1) (B) FWD FRONT	1-47476-196-0	01	1	8802-9306
65	BRACKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1) (B) FWD FRONT	1-47477-482-0	01	1	9501-
65	BRACKET; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1) (B) FWD FRONT	1-47465-667-0	01	1	8802-9306
65	BRACKET; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C)	1-47475-578-1	01	1	8712-
66	BOLT; HOSE BRKT M8X30 W/LK WASHER	9-01900-830-0	02	1	8712-9204
66	BOLT; HOSE BRKT M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9306
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28080-830-0	02	1	9307-
66	BOLT; HOSE BRKT HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	9-01900-830-0	06	1	8712-9204
66	BOLT; HOSE BRKT HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	0-50040-830-0	06	1	9205-9306
66	BOLT; HOSE BRKT HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	06	1	9307-
66	BOLT; HOSE BRKT EXC. HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER	9-01900-825-0	06	1	8712-9204
66	BOLT; HOSE BRKT EXC. HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER	0-50040-825-0	06	1	9205-9306
66	BOLT; HOSE BRKT EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28080-825-0	06	1	9307-
83	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	8712-9306
83	NUT; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	8712-9306
83	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	01	1	9307-
83	NUT; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9307-
94	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9307-
94	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	02	1	9307-
94	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	9-01900-830-0	04	1	8712-9204
94	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	0-50040-830-0	04	1	9205-9306
94	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	8712-9204
94	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306
94	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M12X35 W/LK WASHER	9-01901-235-0	02	1	8712-9204
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M12X35 W/LK WASHER	0-50041-235-0	02	1	9205-9306
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (A) OD=12 L=30000	1-09369-544-0	AR	1	8712-9306
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) OD=8 L=30000	1-09369-578-0	AR	1	8712-9306
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) SERVICED BY L=30000 OD=3/8"	1-09368-249-0	AR	1	9307-
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) SERVICED BY L=30000 OD=1/2"	1-09368-252-0	AR	1	9307-
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	8712-9306
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	8712-9306
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 17/32-24	1-09660-557-0	AR	1	9307-
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	AR	1	9307-
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	8712-9306
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09666-043-0	AR	1	8712-9306
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09666-060-0	AR	1	9307-
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9307-
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	8712-9306
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	8712-9306
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09669-108-0	AR	1	9307-
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	AR	1	9307-
141	CONNECTOR; TEST INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47459-002-0	02	1	9405-

26 44 26 24 37 24 5 44 59 62 70 37 81 21 21 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=453 SERVICED BY L=1000	1-47434-491-0	01	1	8712-
1	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=956 SERVICED BY L=1000	1-47434-491-0	01	1	8712-9001
1	PIPE; AIR,AIR TANK TO UNION NYLON TUBE AIR PIPING<Z29> L=918 SERVICED BY L=1000	1-47434-491-0	01	1	8712-8910
1	PIPE; AIR,AIR TANK TO UNION NYLON TUBE AIR PIPING<Z29>	1-47489-246-0	01	1	8911-9001
1	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=969 SERVICED BY L=1000	1-47434-491-0	01	1	9002-
5	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1881 SERVICED BY L=2000	1-47437-986-0	01	1	8712-8802
5	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1877 SERVICED BY L=2000	1-47437-986-0	01	1	8803-9306
5	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1880 SERVICED BY L=2000	1-49111-450-0	01	1	9307-
5	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1882 SERVICED BY L=2000	1-47437-986-0	01	1	8712-9306
5	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1886 SERVICED BY L=2000	1-49111-450-0	01	1	9307-
5	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (B) L=1356 SERVICED BY L=1450	1-47437-984-0	01	1	8712-9306
5	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (A) L=1357 SERVICED BY L=1450	1-47437-984-0	01	1	8712-9306
21	PIPE; AIR,UNION TO RELAY VLV HONG KONG EQUIPMENT(PQ1) (A) L=1748 SERVICED BY L=1100	1-47434-409-0	01	1	8712-8912
21	PIPE; AIR,UNION TO RELAY VLV HONG KONG EQUIPMENT(PQ1) (A) L=1753 SERVICED BY L=1900	1-47437-971-0	01	1	9001-9306
21	PIPE; AIR,UNION TO RELAY VLV HONG KONG EQUIPMENT(PQ1) (A) L=1752 SERVICED BY L=1900	1-47426-421-0	01	1	9307-
21	PIPE; AIR,UNION TO RELAY VLV HONG KONG EQUIPMENT(PQ1) (B) L=1778 SERVICED BY L=1800	1-47437-997-0	01	1	8712-
21	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1734 SERVICED BY L=1900	1-47437-971-0	01	1	8712-9306
21	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1727 SERVICED BY L=1900	1-47426-421-0	01	1	9307-
21	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=2125 SERVICED BY L=2250	1-47437-998-0	01	1	8712-9001
21	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=2170 SERVICED BY L=2250	1-47437-998-0	01	1	9002-
24	PIPE; AIR,RELAY VLV TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=854 SERVICED BY L=900	1-47437-966-0	01	1	8712-9306
24	PIPE; AIR,RELAY VLV TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=854 SERVICED BY L=900	1-47426-413-0	01	1	9307-
24	PIPE; AIR,RELAY VLV TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=2034 SERVICED BY L=2100	1-47437-972-0	01	1	8712-8801
24	PIPE; AIR,RELAY VLV TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=2043 SERVICED BY L=2100	1-47437-972-0	01	1	8802-9306
24	PIPE; AIR,RELAY VLV TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=2017 SERVICED BY L=2100	1-47426-422-0	01	1	9307-
24	PIPE; AIR,RELAY VLV TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=2175 SERVICED BY L=2500	1-47434-479-0	01	1	8712-9306
24	PIPE; AIR,RELAY VLV TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=2177 SERVICED BY L=2500	1-47426-423-0	01	1	9307-
24	PIPE; AIR,RELAY VLV TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=854 SERVICED BY L=900	1-47437-966-0	01	1	8712-9306
24	PIPE; AIR,RELAY VLV TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=854	1-47499-309-0	01	1	9307-
26	PIPE; AIR,UNION TO FLEX HOSE (A) L=368 SERVICED BY L=400	1-47426-404-0	01	1	9307-
26	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=368 SERVICED BY L=400	1-47426-404-0	01	1	9307-
26	PIPE; AIR,UNION TO FLEX HOSE (B) L=399	1-47499-973-0	01	1	9307-9412
26	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1) (B) L=399	1-47499-973-0	01	1	9501-
26	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (A) L=332 SERVICED BY L=350	1-47437-961-0	01	1	8712-8801
26	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (A) L=327 SERVICED BY L=350	1-47437-961-0	01	1	8802-9306
26	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (A) L=463 SERVICED BY L=500	1-47426-406-0	01	1	9307-
26	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (B)	1-49115-301-0	01	1	9501-
26	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=403 SERVICED BY L=450	1-47437-962-0	01	1	8712-9306
26	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (C) L=961 SERVICED BY L=1000	1-47434-476-0	01	1	8712-9306
26	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (D) L=931 SERVICED BY L=1000	1-47434-476-0	01	1	8712-9306
26	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (D) L=931	1-47499-970-0	01	1	9307-
26	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (C) L=1236 SERVICED BY L=1250	1-47426-416-0	01	1	9307-
37	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (B) L=451 SERVICED BY L=500	1-47434-472-0	01	1	8712-9306
37	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=457 SERVICED BY L=500	1-47426-406-0	01	1	9307-
37	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (A) L=367 SERVICED BY L=400	1-47434-471-0	01	1	8712-8801
37	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (A) L=363 SERVICED BY L=400	1-47428-779-0	01	1	8802-9306
37	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (B) L=451	1-47499-313-0	01	1	9307-
37	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=453 SERVICED BY L=500	1-47428-781-0	01	1	8712-9306
37	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1495 SERVICED BY L=1550	1-47437-957-0	01	1	8712-9306
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (A) L=1373 SERVICED BY L=1400	1-47437-969-0	01	1	8712-9306
37	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> (C) L=382 SERVICED BY L=400	1-47434-471-0	01	1	8712-9306
37	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> (C) L=341 SERVICED BY L=350	1-47426-403-0	01	1	9307-
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1688 SERVICED BY L=1700	1-47434-478-0	01	1	8712-8801
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1699 SERVICED BY L=1700	1-47434-478-0	01	1	8802-8802
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1714 SERVICED BY L=1900	1-47437-971-0	02	1	8803-8901
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=2037 SERVICED BY L=2100	1-47437-972-0	01	1	8712-9306
44	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=2031 SERVICED BY L=2100	1-47426-422-0	01	1	9307-
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1728 SERVICED BY L=1900	1-47437-971-1	01	1	8902-9001
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1731 SERVICED BY L=1900	1-47437-971-1	01	1	9002-9306
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1868 SERVICED BY L=1900	1-47426-421-0	01	1	9307-9412
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1857 SERVICED BY L=1900	1-47426-421-0	01	1	9501-
44	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1655 SERVICED BY L=1700	1-47426-420-0	01	1	8712-
44	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=2031 SERVICED BY L=2100	1-47437-972-0	01	1	8712-9306
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=2033 SERVICED BY L=2100	1-47426-422-0	01	1	9307-
44	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (C) L=1662 SERVICED BY L=1700	1-47426-420-0	01	1	9307-
59	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1117 SERVICED BY L=1200	1-47437-983-0	01	1	8712-9306
59	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1121 SERVICED BY L=1200	1-49111-445-0	01	1	9307-
59	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1121 SERVICED BY L=1200	1-47437-983-0	01	1	8712-9306
59	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1121 SERVICED BY L=1200	1-49111-445-0	01	1	9307-
62	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=1995 SERVICED BY L=2000	1-47437-986-0	01	1	8712-9306
62	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=1995 SERVICED BY L=2000	1-49111-450-0	01	1	9307-9309
62	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=1990 SERVICED BY L=2000	1-49111-450-0	01	1	9310-
62	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2046 SERVICED BY L=2250	1-47437-987-0	01	1	8712-9306
62	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2046 SERVICED BY L=2250	1-49111-451-0	01	1	9307-
70	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=2021 SERVICED BY L=2250	1-47437-987-0	01	1	8712-9306
70	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=2021 SERVICED BY L=2250	1-49111-451-0	01	1	9307-
70	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2088 SERVICED BY L=2100	1-47437-972-0	01	1	8712-9306
70	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2088 SERVICED BY L=2100	1-47426-422-0	01	1	9307-
81	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1161 SERVICED BY L=1250	1-47437-968-0	01	1	8712-9306
81	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1163 SERVICED BY L=1250	1-47426-416-0	01	1	9307-
81	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1) L=1163 SERVICED BY L=1250	1-47437-968-0	01	1	8712-8910
81	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1163 SERVICED BY L=1250	1-47437-968-0	01	1	8911-9306
81	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1161 SERVICED BY L=1250	1-47426-416-0	01	1	9307-

26 37 44 26 24 37 24 5 21 44 81 37 59 70 62 1 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=453 SERVICED BY L=1000	1-47434-491-0	01	1	8712-
1	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=956 SERVICED BY L=1000	1-47434-491-0	01	1	8712-9001
1	PIPE; AIR,AIR TANK TO UNION NYLON TUBE AIR PIPING<Z29> L=918 SERVICED BY L=1000	1-47434-491-0	01	1	8712-8910
1	PIPE; AIR,AIR TANK TO UNION NYLON TUBE AIR PIPING<Z29>	1-47489-246-0	01	1	8911-9001
1	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=969 SERVICED BY L=1000	1-47434-491-0	01	1	9002-
5	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1881 SERVICED BY L=2000	1-47437-986-0	01	1	8712-8802
5	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1877 SERVICED BY L=2000	1-47437-986-0	01	1	8803-9306
5	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1880 SERVICED BY L=2000	1-49111-450-0	01	1	9307-
5	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1882 SERVICED BY L=2000	1-47437-986-0	01	1	8712-9306
5	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1886 SERVICED BY L=2000	1-49111-450-0	01	1	9307-
5	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (B) L=1356 SERVICED BY L=1450	1-47437-984-0	01	1	8712-9306
5	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (A) L=1357 SERVICED BY L=1450	1-47437-984-0	01	1	8712-9306
21	PIPE; AIR,UNION TO RELAY VLV HONG KONG EQUIPMENT(PQ1) (A) L=1748 SERVICED BY L=1100	1-47434-409-0	01	1	8712-8912
21	PIPE; AIR,UNION TO RELAY VLV HONG KONG EQUIPMENT(PQ1) (A) L=1753 SERVICED BY L=1900	1-47437-971-0	01	1	9001-9306
21	PIPE; AIR,UNION TO RELAY VLV HONG KONG EQUIPMENT(PQ1) (A) L=1752 SERVICED BY L=1900	1-47426-421-0	01	1	9307-
21	PIPE; AIR,UNION TO RELAY VLV HONG KONG EQUIPMENT(PQ1) (B) L=1778 SERVICED BY L=1800	1-47437-997-0	01	1	8712-
21	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1734 SERVICED BY L=1900	1-47437-971-0	01	1	8712-9306
21	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1727 SERVICED BY L=1900	1-47426-421-0	01	1	9307-
21	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=2125 SERVICED BY L=2250	1-47437-998-0	01	1	8712-9001
21	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=2170 SERVICED BY L=2250	1-47437-998-0	01	1	9002-
24	PIPE; AIR,RELAY VLV TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=854 SERVICED BY L=900	1-47437-966-0	01	1	8712-9306
24	PIPE; AIR,RELAY VLV TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=854 SERVICED BY L=900	1-47426-413-0	01	1	9307-
24	PIPE; AIR,RELAY VLV TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=2034 SERVICED BY L=2100	1-47437-972-0	01	1	8712-8801
24	PIPE; AIR,RELAY VLV TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=2043 SERVICED BY L=2100	1-47437-972-0	01	1	8802-9306
24	PIPE; AIR,RELAY VLV TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=2017 SERVICED BY L=2100	1-47426-422-0	01	1	9307-
24	PIPE; AIR,RELAY VLV TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=2175 SERVICED BY L=2500	1-47434-479-0	01	1	8712-9306
24	PIPE; AIR,RELAY VLV TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=2177 SERVICED BY L=2500	1-47426-423-0	01	1	9307-
24	PIPE; AIR,RELAY VLV TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=854 SERVICED BY L=900	1-47437-966-0	01	1	8712-9306
24	PIPE; AIR,RELAY VLV TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=854	1-47499-309-0	01	1	9307-
26	PIPE; AIR,UNION TO FLEX HOSE (A) L=368 SERVICED BY L=400	1-47426-404-0	01	1	9307-
26	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=368 SERVICED BY L=400	1-47426-404-0	01	1	9307-
26	PIPE; AIR,UNION TO FLEX HOSE (B) L=399	1-47499-973-0	01	1	9307-9412
26	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1) (B) L=399	1-47499-973-0	01	1	9501-
26	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (A) L=332 SERVICED BY L=350	1-47437-961-0	01	1	8712-8801
26	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (A) L=327 SERVICED BY L=350	1-47437-961-0	01	1	8802-9306
26	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (A) L=463 SERVICED BY L=500	1-47426-406-0	01	1	9307-
26	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (B)	1-49115-301-0	01	1	9501-
26	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=403 SERVICED BY L=450	1-47437-962-0	01	1	8712-9306
26	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (C) L=961 SERVICED BY L=1000	1-47434-476-0	01	1	8712-9306
26	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (D) L=931 SERVICED BY L=1000	1-47434-476-0	01	1	8712-9306
26	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (D) L=931	1-47499-970-0	01	1	9307-
26	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (C) L=1236 SERVICED BY L=1250	1-47426-416-0	01	1	9307-
37	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (B) L=451 SERVICED BY L=500	1-47434-472-0	01	1	8712-9306
37	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=457 SERVICED BY L=500	1-47426-406-0	01	1	9307-
37	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (A) L=367 SERVICED BY L=400	1-47434-471-0	01	1	8712-8801
37	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (A) L=363 SERVICED BY L=400	1-47428-779-0	01	1	8802-9306
37	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (B) L=451	1-47499-313-0	01	1	9307-
37	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=453 SERVICED BY L=500	1-47428-781-0	01	1	8712-9306
37	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1495 SERVICED BY L=1550	1-47437-957-0	01	1	8712-9306
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (A) L=1373 SERVICED BY L=1400	1-47437-969-0	01	1	8712-9306
37	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> (C) L=382 SERVICED BY L=400	1-47434-471-0	01	1	8712-9306
37	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> (C) L=341 SERVICED BY L=350	1-47426-403-0	01	1	9307-
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1688 SERVICED BY L=1700	1-47434-478-0	01	1	8712-8801
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1699 SERVICED BY L=1700	1-47434-478-0	01	1	8802-8802
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1714 SERVICED BY L=1900	1-47437-971-0	02	1	8803-8901
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=2037 SERVICED BY L=2100	1-47437-972-0	01	1	8712-9306
44	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=2031 SERVICED BY L=2100	1-47426-422-0	01	1	9307-
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1728 SERVICED BY L=1900	1-47437-971-1	01	1	8902-9001
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1731 SERVICED BY L=1900	1-47437-971-1	01	1	9002-9306
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1868 SERVICED BY L=1900	1-47426-421-0	01	1	9307-9412
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1857 SERVICED BY L=1900	1-47426-421-0	01	1	9501-
44	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1655 SERVICED BY L=1700	1-47426-420-0	01	1	8712-
44	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=2031 SERVICED BY L=2100	1-47437-972-0	01	1	8712-9306
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=2033 SERVICED BY L=2100	1-47426-422-0	01	1	9307-
44	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (C) L=1662 SERVICED BY L=1700	1-47426-420-0	01	1	9307-
59	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1117 SERVICED BY L=1200	1-47437-983-0	01	1	8712-9306
59	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1121 SERVICED BY L=1200	1-49111-445-0	01	1	9307-
59	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1121 SERVICED BY L=1200	1-47437-983-0	01	1	8712-9306
59	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1121 SERVICED BY L=1200	1-49111-445-0	01	1	9307-
62	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=1995 SERVICED BY L=2000	1-47437-986-0	01	1	8712-9306
62	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=1995 SERVICED BY L=2000	1-49111-450-0	01	1	9307-9309
62	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=1990 SERVICED BY L=2000	1-49111-450-0	01	1	9310-
62	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2046 SERVICED BY L=2250	1-47437-987-0	01	1	8712-9306
62	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2046 SERVICED BY L=2250	1-49111-451-0	01	1	9307-
70	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=2021 SERVICED BY L=2250	1-47437-987-0	01	1	8712-9306
70	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=2021 SERVICED BY L=2250	1-49111-451-0	01	1	9307-
70	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2088 SERVICED BY L=2100	1-47437-972-0	01	1	8712-9306
70	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2088 SERVICED BY L=2100	1-47426-422-0	01	1	9307-
81	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1161 SERVICED BY L=1250	1-47437-968-0	01	1	8712-9306
81	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1163 SERVICED BY L=1250	1-47426-416-0	01	1	9307-
81	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1) L=1163 SERVICED BY L=1250	1-47437-968-0	01	1	8712-8910
81	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1163 SERVICED BY L=1250	1-47437-968-0	01	1	8911-9306
81	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1161 SERVICED BY L=1250	1-47426-416-0	01	1	9307-

1 26 98 98 98 37 98 98 26 5 98 98 5 54 98 98 98 98 98 98 98 26 98 98 98 98 26 44 26 26 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1) L=453 SERVICED BY L=1000	1-47434-491-0	01	1	8712-
1	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=956 SERVICED BY L=1000	1-47434-491-0	01	1	8712-9001
1	PIPE; AIR,AIR TANK TO UNION NYLON TUBE AIR PIPING<Z29> L=918 SERVICED BY L=1000	1-47434-491-0	01	1	8712-8910
1	PIPE; AIR,AIR TANK TO UNION NYLON TUBE AIR PIPING<Z29>	1-47489-246-0	01	1	8911-9001
1	PIPE; AIR,AIR TANK TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=969 SERVICED BY L=1000	1-47434-491-0	01	1	9002-
5	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1881 SERVICED BY L=2000	1-47437-986-0	01	1	8712-8802
5	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1877 SERVICED BY L=2000	1-47437-986-0	01	1	8803-9306
5	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1880 SERVICED BY L=2000	1-49111-450-0	01	1	9307-
5	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1882 SERVICED BY L=2000	1-47437-986-0	01	1	8712-9306
5	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1886 SERVICED BY L=2000	1-49111-450-0	01	1	9307-
5	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (B) L=1356 SERVICED BY L=1450	1-47437-984-0	01	1	8712-9306
5	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (A) L=1357 SERVICED BY L=1450	1-47437-984-0	01	1	8712-9306
26	PIPE; AIR,UNION TO FLEX HOSE (A) L=368 SERVICED BY L=400	1-47426-404-0	01	1	9307-
26	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=368 SERVICED BY L=400	1-47426-404-0	01	1	9307-
26	PIPE; AIR,UNION TO FLEX HOSE (B) L=399	1-47499-973-0	01	1	9307-9412
26	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1) (B) L=399	1-47499-973-0	01	1	9501-
26	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (A) L=332 SERVICED BY L=350	1-47437-961-0	01	1	8712-8801
26	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (A) L=327 SERVICED BY L=350	1-47437-961-0	01	1	8802-9306
26	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (A) L=463 SERVICED BY L=500	1-47426-406-0	01	1	9307-
26	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (B)	1-49115-301-0	01	1	9501-
26	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=403 SERVICED BY L=450	1-47437-962-0	01	1	8712-9306
26	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (C) L=961 SERVICED BY L=1000	1-47434-476-0	01	1	8712-9306
26	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (D) L=931 SERVICED BY L=1000	1-47434-476-0	01	1	8712-9306
26	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (D) L=931	1-47499-970-0	01	1	9307-
26	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (C) L=1236 SERVICED BY L=1250	1-47426-416-0	01	1	9307-
37	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (B) L=451 SERVICED BY L=500	1-47434-472-0	01	1	8712-9306
37	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=457 SERVICED BY L=500	1-47426-406-0	01	1	9307-
37	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (A) L=367 SERVICED BY L=400	1-47434-471-0	01	1	8712-8801
37	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (A) L=363 SERVICED BY L=400	1-47428-779-0	01	1	8802-9306
37	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) (B) L=451	1-47499-313-0	01	1	9307-
37	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=453 SERVICED BY L=500	1-47428-781-0	01	1	8712-9306
37	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1495 SERVICED BY L=1550	1-47437-957-0	01	1	8712-9306
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (A) L=1373 SERVICED BY L=1400	1-47437-969-0	01	1	8712-9306
37	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> (C) L=382 SERVICED BY L=400	1-47434-471-0	01	1	8712-9306
37	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> (C) L=341 SERVICED BY L=350	1-47426-403-0	01	1	9307-
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1688 SERVICED BY L=1700	1-47434-478-0	01	1	8712-8801
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1699 SERVICED BY L=1700	1-47434-478-0	01	1	8802-8802
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1714 SERVICED BY L=1900	1-47437-971-0	02	1	8803-8901
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=2037 SERVICED BY L=2100	1-47437-972-0	01	1	8712-9306
44	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=2031 SERVICED BY L=2100	1-47426-422-0	01	1	9307-
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1728 SERVICED BY L=1900	1-47437-971-1	01	1	8902-9001
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1731 SERVICED BY L=1900	1-47437-971-1	01	1	9002-9306
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1868 SERVICED BY L=1900	1-47426-421-0	01	1	9307-9412
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1857 SERVICED BY L=1900	1-47426-421-0	01	1	9501-
44	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1655 SERVICED BY L=1700	1-47426-420-0	01	1	8712-
44	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=2031 SERVICED BY L=2100	1-47437-972-0	01	1	8712-9306
44	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=2033 SERVICED BY L=2100	1-47426-422-0	01	1	9307-
44	PIPE; AIR,UNION TO UNION NYLON TUBE AIR PIPING<Z29> (C) L=1662 SERVICED BY L=1700	1-47426-420-0	01	1	9307-
54	PIPE; AIR,ELBOW TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> L=450 SERVICED BY L=500	1-47434-472-0	01	1	8712-9306
54	PIPE; AIR,ELBOW TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> L=471 SERVICED BY L=500	1-47426-406-0	01	1	9307-
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (A) OD=12 L=30000	1-09369-544-0	AR	1	8712-9306
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) OD=8 L=30000	1-09369-578-0	AR	1	8712-9306
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) SERVICED BY L=30000 OD=3/8"	1-09368-249-0	AR	1	9307-
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> (B) SERVICED BY L=30000 OD=1/2"	1-09368-252-0	AR	1	9307-

97 120 103 121 103 102 113 120 107 106 107 106 125 63 108 63 108 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
63	HOSE; FLEX,BRK LINE,CAB SIDE HONG KONG EQUIPMENT(PQ1) L=850	0-07706-850-0	02	1	8712-9408
63	HOSE; FLEX,BRK LINE,CAB SIDE HONG KONG EQUIPMENT(PQ1) L=830	0-07706-830-0	02	1	9409-
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=960	0-07424-960-0	01	1	8712-8804
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=910	0-07424-910-0	01	1	8805-
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=880	1-09363-369-2	01	1	8712-
97	PIPE; AIR,BRK VLV TO UNION HONG KONG EQUIPMENT(PQ1) L=1083 SERVICED BY L=1100	1-47437-982-0	01	1	8712-9306
97	PIPE; AIR,BRK VLV TO UNION HONG KONG EQUIPMENT(PQ1) L=1083 SERVICED BY L=1100	1-49111-444-0	01	1	9307-
97	PIPE; AIR,BRK VLV TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1080 SERVICED BY L=1100	1-47437-967-0	01	1	8712-9306
97	PIPE; AIR,BRK VLV TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1080 SERVICED BY L=1100	1-47426-415-0	01	1	9307-
102	PIPE; AIR,FLEX HOSE TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1481 SERVICED BY L=1600	1-47437-985-0	01	1	8712-9306
102	PIPE; AIR,FLEX HOSE TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1481 SERVICED BY L=1600	1-49111-448-0	01	1	9307-
103	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50000-616-0	02	1	8712-9204
103	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301
103	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302
103	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9303-
103	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16	1-09980-296-0	02	1	8712-
106	NUT; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	02	1	8712-
106	NUT; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	8712-
106	NUT; FLEX HOSE HONG KONG EQUIPMENT(PQ1) M20	9-99111-420-0	02	1	8712-
107	WASHER; LK,FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	02	1	8712-
107	WASHER; LK,FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	02	1	8712-
107	WASHER; LK,FLEX HOSE HONG KONG EQUIPMENT(PQ1) ID=20.2	9-09150-520-0	02	1	8712-
108	COVER; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	02	1	8712-9306
108	COVER; RUBBER,FLEX HOSE ID=23 OD=27 L=40	1-09337-015-0	05	1	8712-9306
113	PIPE; AIR,UNION TO BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=925 SERVICED BY L=1000	1-47434-485-0	01	1	8712-9306
113	PIPE; AIR,UNION TO BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=925 SERVICED BY L=1000	1-49111-443-0	01	1	9307-
120	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B)	1-47470-184-2	01	1	8712-
120	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B)	1-47470-176-2	01	1	8712-
120	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47470-175-2	01	1	8712-
121	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=1386 SERVICED BY L=1450	1-47437-984-0	01	1	8712-9306
121	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=1387 SERVICED BY L=1450	1-49111-447-0	01	1	9307-
121	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1372 SERVICED BY L=1400	1-47437-969-0	01	1	8712-9306
121	PIPE; AIR,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1372 SERVICED BY L=1400	1-47426-418-0	01	1	9307-
122	CONNECTOR; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29>	1-09656-359-1	01	1	8712-
125	GASKET; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=11 OD=18	9-09572-510-0	01	1	8712-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
