8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#51899) — 25 parça

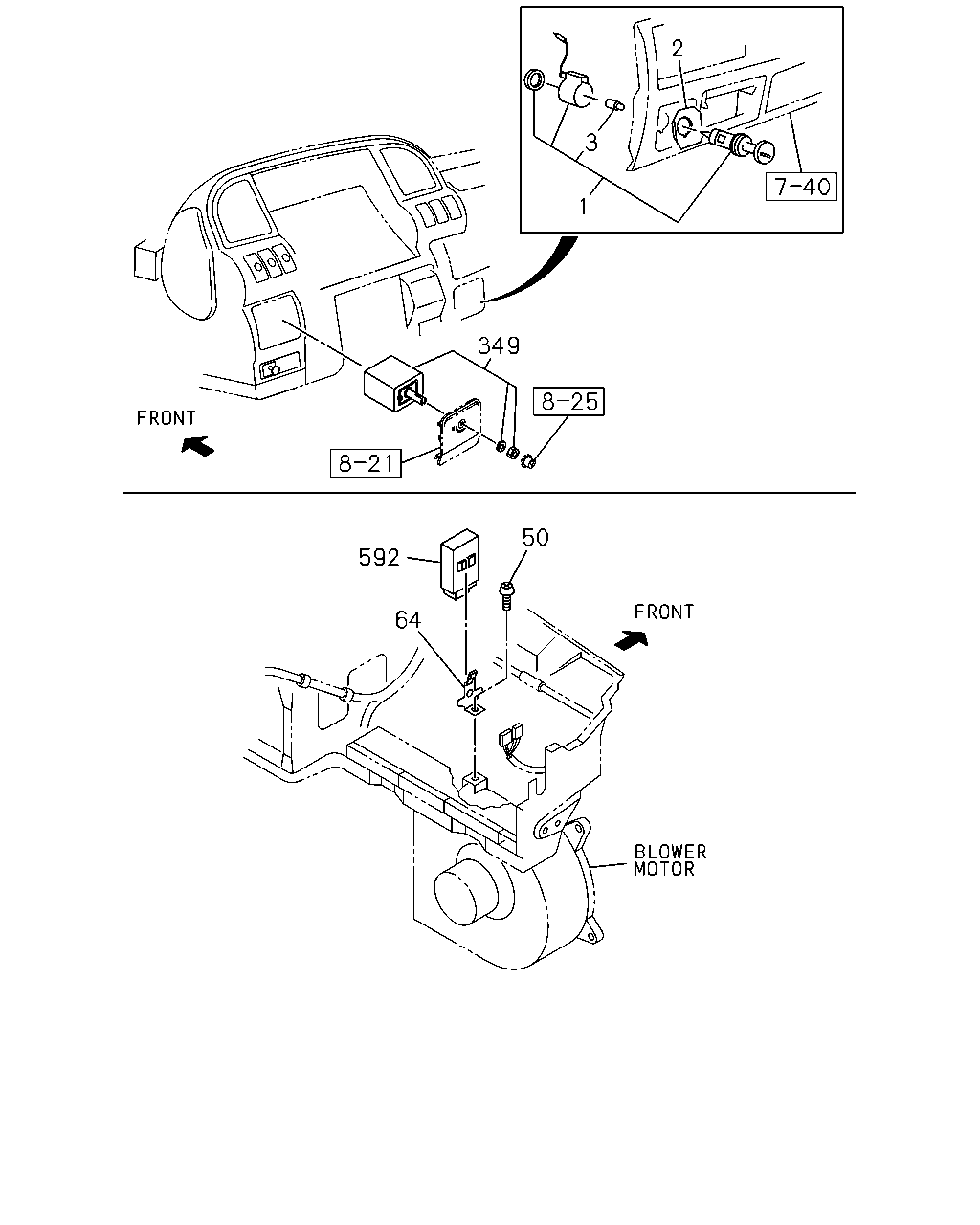

çizim 57390
2 3 1 349 50 592 64
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LIGHTER; CIGAR 8-97320-322-0 01 1 0507-0604 ● ● ●
1 LIGHTER; CIGAR 8-97320-322-0 01 1 0605- ● ● ● ●
2 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0507-0604 ● ● ●
2 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0605-0706 ● ● ● ●
2 BEZEL; CIGAR LIGHTER 8-98091-060-0 01 1 0707- ● ● ● ●
3 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 0507-0604 ● ● ●
3 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 0605- ● ● ● ●
50 SCREW; CONTROLLER
M5X20 		8-94436-927-0 01 1 0507-0604 ● ● ●
50 SCREW; CONTROLLER
M5X20 		8-94436-927-0 01 1 0605-0612 ● ● ● ●
50 SCREW; CONTROLLER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0701-1101 ● ● ● ●
50 SCREW; CONTROLLER
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ● ●
50 SCREW; CONTROLLER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ● ●
64 BRACKET; CONTROLLER 8-97178-310-1 01 1 0507-0604 ● ● ●
64 BRACKET; CONTROLLER 8-97178-310-1 01 1 0605- ● ● ● ●
349 CONTROL; ILLUMINATION 8-94434-441-1 01 1 0507-0604 ● ● ●
349 CONTROL; ILLUMINATION 8-94434-441-1 01 1 0605- ● ● ● ●
592 CONTROLLER; DAY TIME RUNNING LIGHT 8-97225-455-0 01 1 0507-0604 ● ● ●
592 CONTROLLER; DAY TIME RUNNING LIGHT 8-97225-455-0 01 1 0605- ● ● ● ●

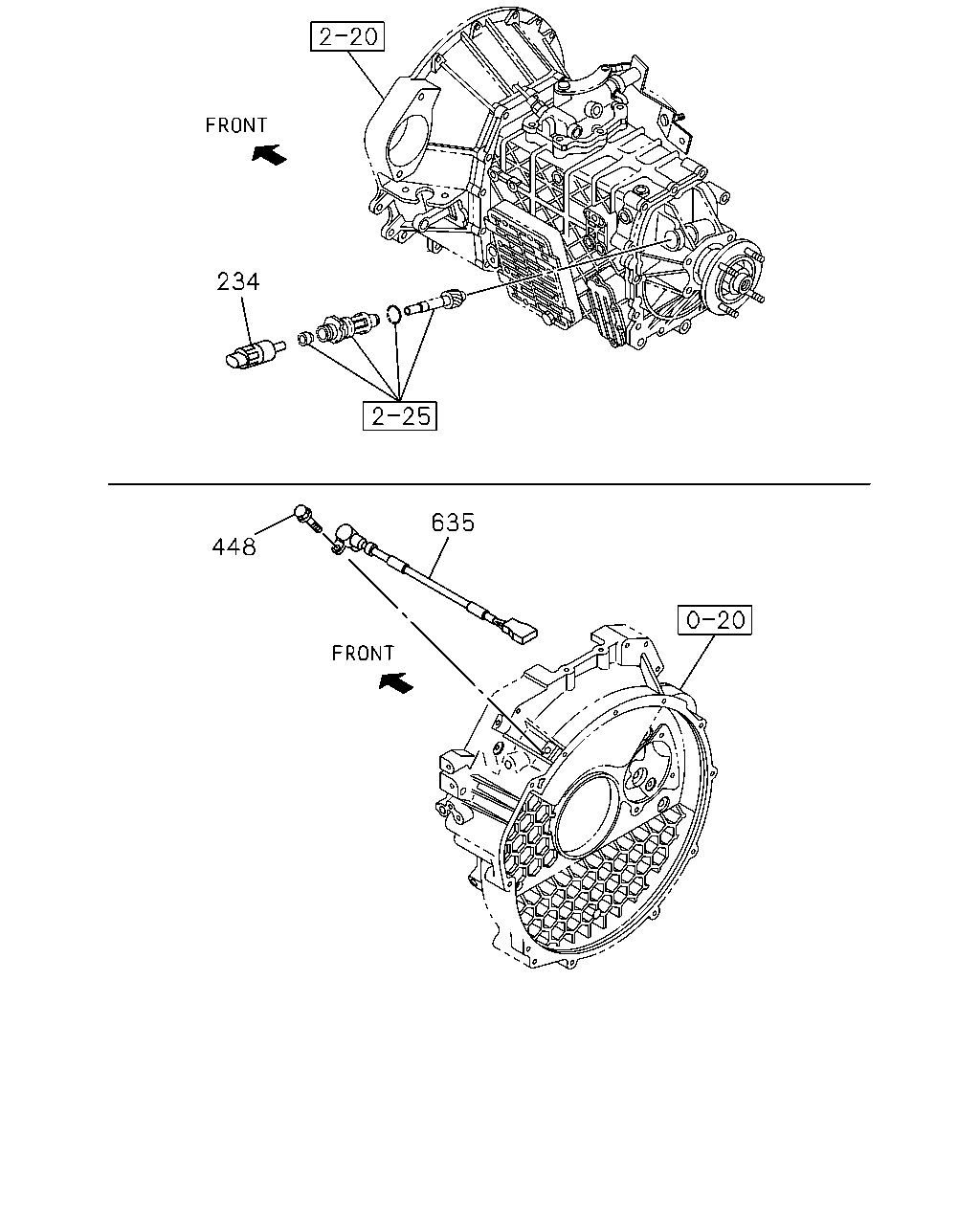

çizim 100624
234 635 448
BalonParca AdiParca NoAdetTipApplied Date A B C D
234 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0507-0604 ● ● ●
234 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0605- ● ● ● ●
448 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 0507-0512 ● ● ●
448 BOLT; SENSOR
M6X16 FLANGE 		0-28050-616-0 01 1 0601-0604 ● ● ●
448 BOLT; SENSOR
M6X16 FLANGE 		0-28050-616-0 01 1 0605- ● ● ● ●
635 SENSOR; TACHOMETER
DENSO 		8-97306-113-1 01 1 0507-0604 ● ● ●
635 SENSOR; TACHOMETER
DENSO 		8-97306-113-1 01 1 0605- ● ● ● ●
