8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#51898) — 106 parça
Tümü
A - NPC7SC
B - NPC7SF
C - NPC7SK
D - NPC7SS
◀
[825A] RELAY;CAB SIDE (14 parça)
[825A] SWITCH LAYOUT;INST PANEL (34 parça)
[825A] RELAY;FRAME SIDE (11 parça)
[825A] DOOR SWITCH AND RELAY (21 parça)
[825A] COMB SWITCH AND OTHER PARTS (26 parça)
▶

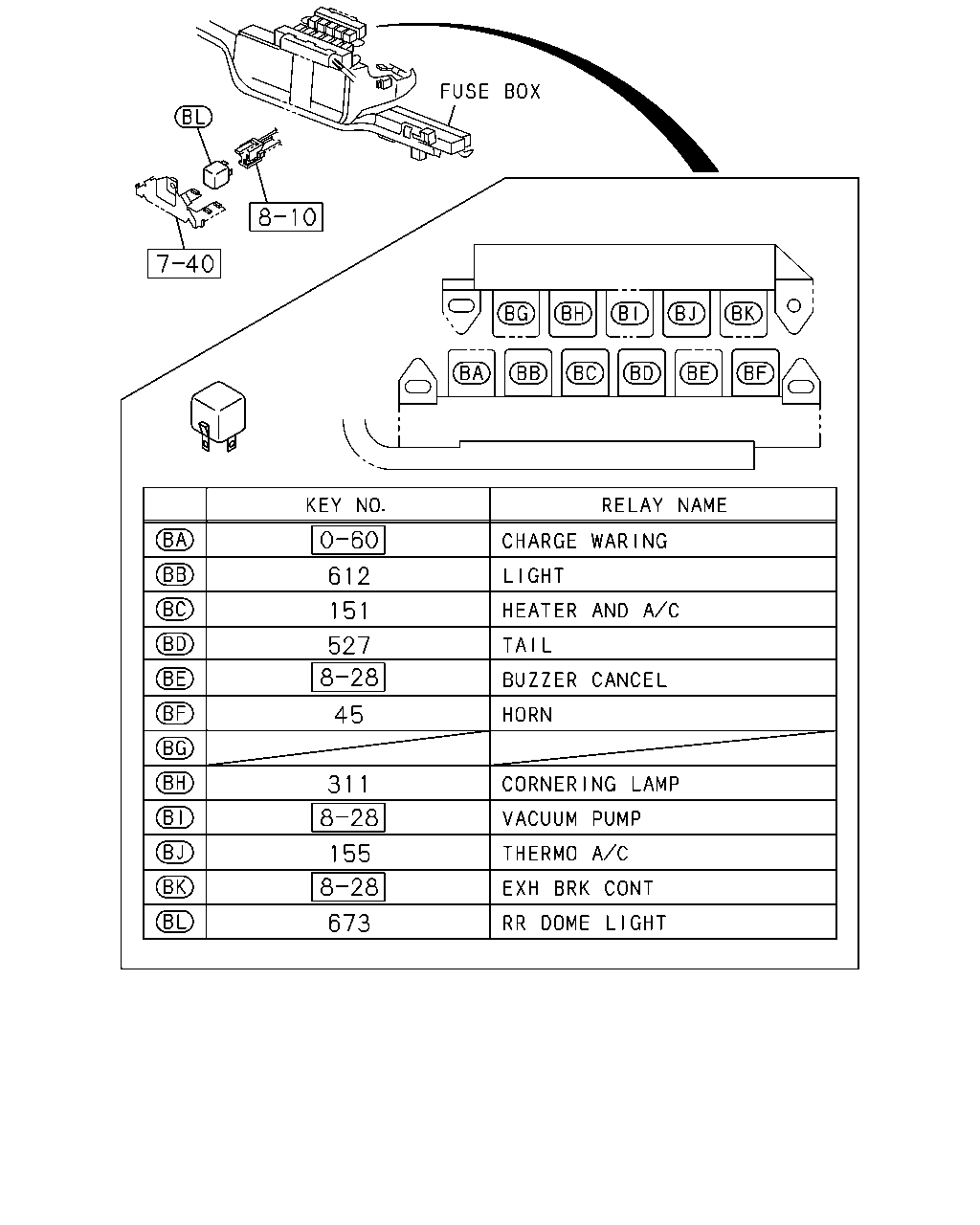

612
151
527
45
311
155
673
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
45
RELAY; HORN
12V 20A
8-97060-926-1
01
1
0507-0604
●
●
●
45
RELAY; HORN
12V 20A
8-97060-926-1
01
1
0605-
●
●
●
●
151
RELAY; HTR & A/C
12V 20A
8-97060-926-1
01
1
0507-0604
●
●
●
151
RELAY; HTR & A/C
12V 20A
8-97060-926-1
01
1
0605-
●
●
●
●
155
RELAY; THERMO SW,A/C
AIR CONDITIONER MANUAL CONT(C60) 12V 20A
8-97060-926-1
01
1
0507-0604
●
●
●
155
RELAY; THERMO SW,A/C
AIR CONDITIONER MANUAL CONT(C60) 12V 20A
8-97060-926-1
01
1
0605-
●
●
●
●
311
RELAY; CORNERING LAMP
12V 20A
8-97060-926-1
01
1
0507-0604
●
●
●
311
RELAY; CORNERING LAMP
12V 20A
8-97060-926-1
01
1
0605-
●
●
●
●
527
RELAY; TAIL
12V 20A
8-97060-926-1
01
1
0507-0604
●
●
●
527
RELAY; TAIL
12V 20A
8-97060-926-1
01
1
0605-
●
●
●
●
612
RELAY; LIGHT
12V 20A
8-97060-926-1
01
1
0507-0604
●
●
●
612
RELAY; LIGHT
12V 20A
8-97060-926-1
01
1
0605-
●
●
●
●
673
RELAY; RR DOME LIGHT
12V 20A
8-97060-926-1
01
1
0507-0604
●
●
●
673
RELAY; RR DOME LIGHT
12V 20A
8-97060-926-1
01
1
0605-
●
●
●
●

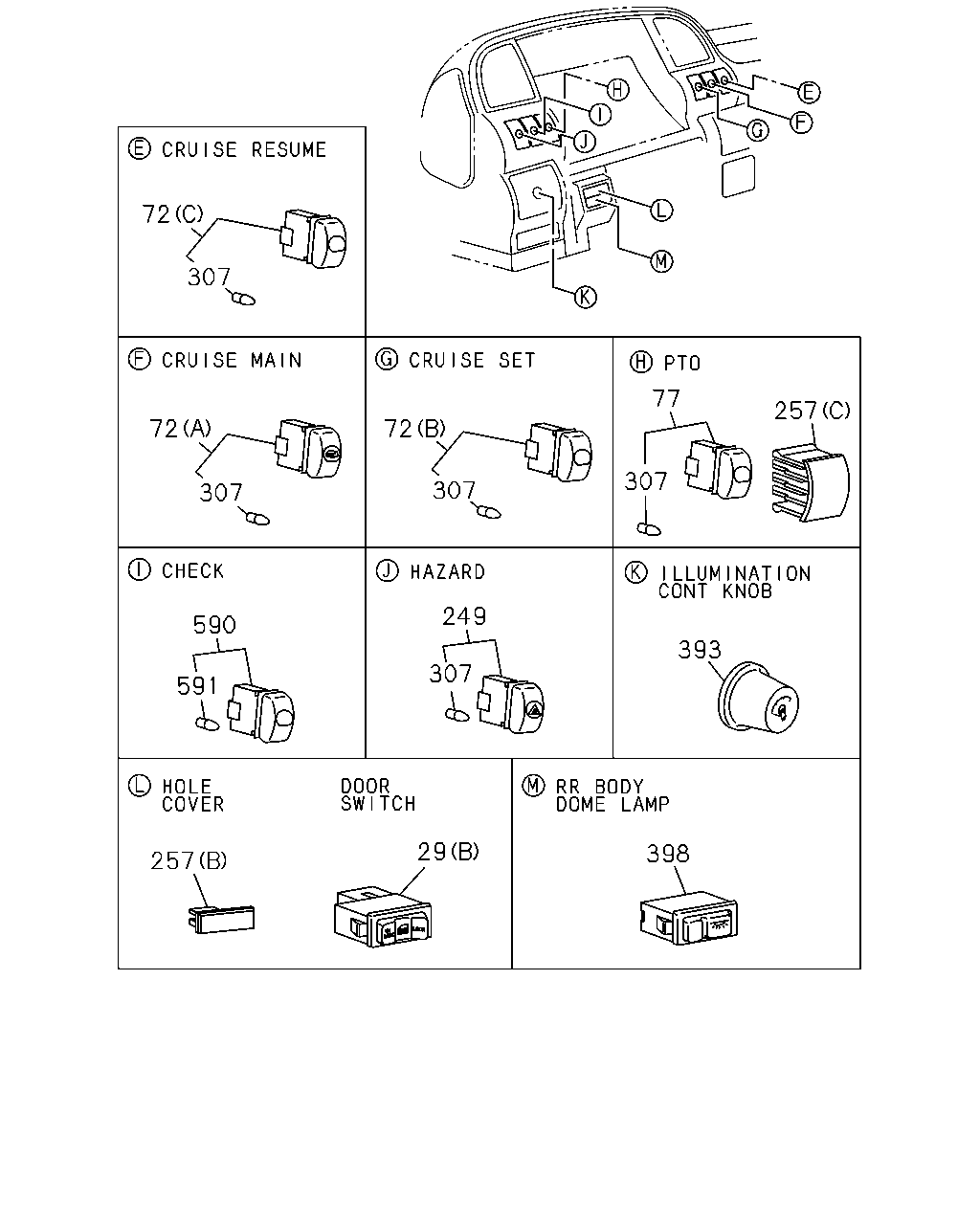

72
307
77
257
72
72
307
307
307
249
590
393
307
591
29
398
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
29
SWITCH; DOOR
(A)
8-97855-032-3
01
1
0507-0604
●
●
●
29
SWITCH; DOOR
(A)
8-97855-032-3
01
1
0605-
●
●
●
●
29
SWITCH; DOOR
AUTO DOOR LOCK<AU4> (B)
8-97246-932-0
01
1
0507-0604
●
●
●
29
SWITCH; DOOR
AUTO DOOR LOCK<AU4> (B)
8-97246-932-0
01
1
0605-
●
●
●
●
72
SWITCH; CRUISE CONT
(A) MAIN
8-97375-266-0
01
1
0507-0604
●
●
●
72
SWITCH; CRUISE CONT
(A) MAIN
8-97375-266-0
01
1
0605-
●
●
●
●
72
SWITCH; CRUISE CONT
(B) SET
8-97375-267-0
01
1
0507-0604
●
●
●
72
SWITCH; CRUISE CONT
(B) SET
8-97375-267-0
01
1
0605-
●
●
●
●
72
SWITCH; CRUISE CONT
(C) RESUME
8-97375-268-0
01
1
0507-0604
●
●
●
72
SWITCH; CRUISE CONT
(C) RESUME
8-97375-268-0
01
1
0605-
●
●
●
●
77
SWITCH; PTO
DEALER INSTALLED OPTION<6JJ>
8-97375-265-1
01
1
0507-0604
●
●
●
77
SWITCH; PTO
DEALER INSTALLED OPTION<6JJ>
8-97375-265-1
01
1
0605-
●
●
●
●
249
SWITCH; HAZARD
8-97202-476-0
01
1
0507-0604
●
●
●
249
SWITCH; HAZARD
8-97202-476-0
01
1
0605-
●
●
●
●
257
COVER; HOLE,SW
(A)
8-94229-914-1
01
1
0507-0604
●
●
●
257
COVER; HOLE,SW
(A)
8-94229-914-1
01
1
0605-
●
●
●
●
257
COVER; HOLE,SW
(C)
8-97136-694-0
01
1
0507-0604
●
●
●
257
COVER; HOLE,SW
(C)
8-97136-694-0
01
1
0605-
●
●
●
●
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (B)
8-94310-890-0
01
1
0507-0604
●
●
●
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (B)
8-94310-890-0
01
1
0605-
●
●
●
●
307
BULB ASM; SW
14V 60MA
8-97116-329-0
02
1
0507-0604
●
●
●
307
BULB ASM; SW
DEALER INSTALLED OPTION<6JJ> 14V 60MA
8-97116-329-0
02
1
0507-0604
●
●
●
307
BULB ASM; SW
14V 60MA
8-97116-329-0
02
1
0605-
●
●
●
●
307
BULB ASM; SW
DEALER INSTALLED OPTION<6JJ> 14V 60MA
8-97116-329-0
02
1
0605-
●
●
●
●
307
BULB ASM; SW
14V 60MA
8-97116-329-0
04
1
0507-0604
●
●
●
307
BULB ASM; SW
14V 60MA
8-97116-329-0
04
1
0605-
●
●
●
●
393
KNOB; ILLUMINATION CONT
8-94434-444-0
01
1
0507-0604
●
●
●
393
KNOB; ILLUMINATION CONT
8-94434-444-0
01
1
0605-
●
●
●
●
398
SWITCH; RR BODY,DOME LAMP
8-97095-521-1
01
1
0507-0604
●
●
●
398
SWITCH; RR BODY,DOME LAMP
8-97095-521-1
01
1
0605-
●
●
●
●
590
SWITCH; CHECK
ODOMETER & OIL LEVEL CHECK
8-97380-118-0
01
1
0507-0604
●
●
●
590
SWITCH; CHECK
ODOMETER & OIL LEVEL CHECK
8-97380-118-0
01
1
0605-
●
●
●
●
591
BULB; CHECK
14V 60MA
8-97116-329-0
02
1
0507-0604
●
●
●
591
BULB; CHECK
14V 60MA
8-97116-329-0
02
1
0605-
●
●
●
●

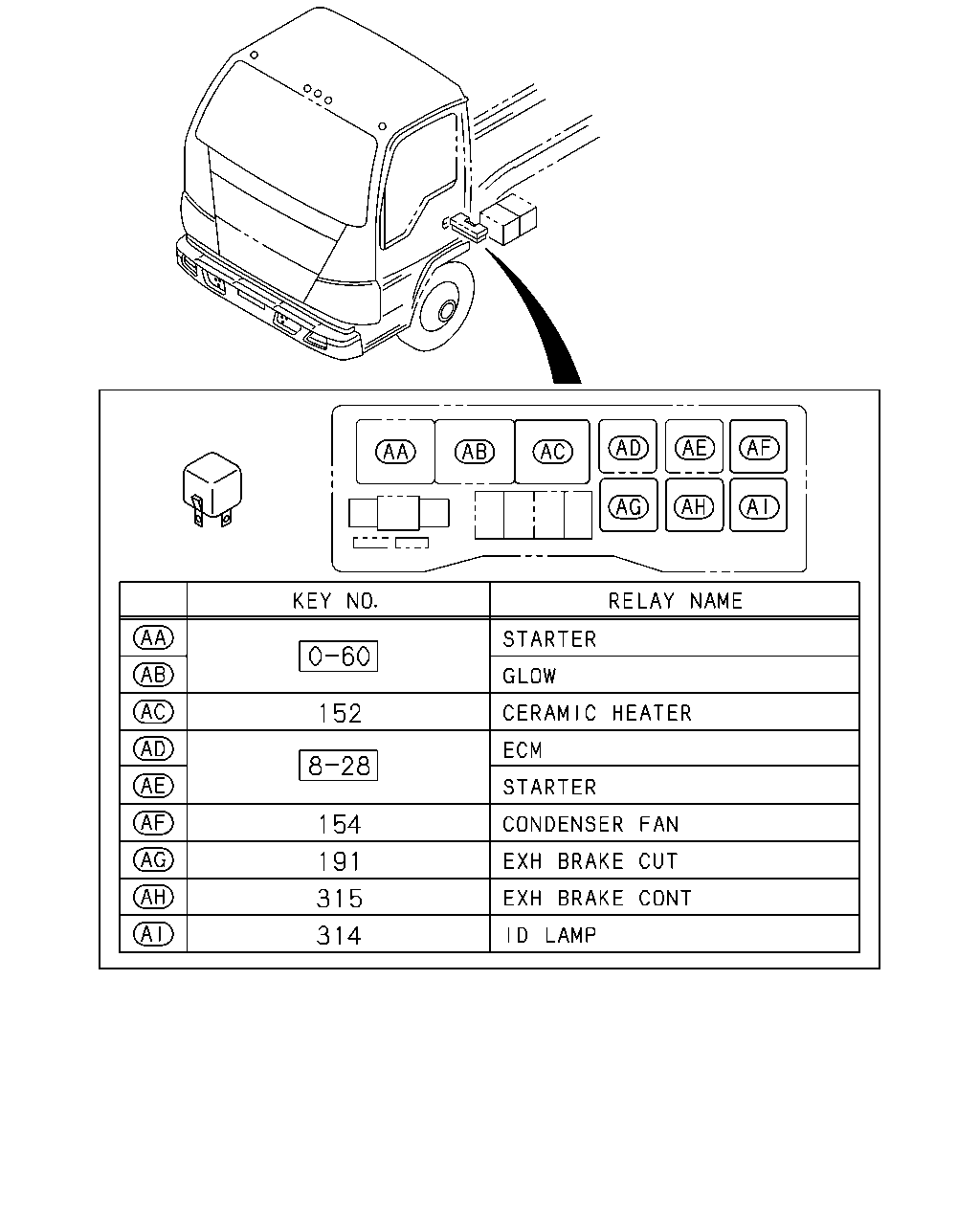

152
154
191
315
314
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
152
RELAY; CERAMIC HTR
12V 80A
8-97173-951-0
01
1
0507-0604
●
●
●
152
RELAY; CERAMIC HTR
12V 80A
8-97173-951-0
01
1
0605-
●
●
●
●
154
RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 12V 20A
8-97060-926-1
01
1
0507-0604
●
●
●
154
RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 12V 20A
8-97060-926-1
01
1
0605-
●
●
●
●
191
RELAY; EXH BRK CUT
12V 20A
8-97060-926-1
01
1
0507-0604
●
●
●
191
RELAY; EXH BRK CUT
12V 20A
8-97060-926-1
01
1
0605-
●
●
●
●
314
RELAY; ID LAMP
LAMPS-FIVE,ROOF MARKER<U01> 12V 20A
8-97060-926-1
01
1
0507-0508
●
●
●
314
RELAY; ID LAMP
12V 20A
8-97060-926-1
01
1
0509-0604
●
●
●
314
RELAY; ID LAMP
12V 20A
8-97060-926-1
01
1
0605-
●
●
●
●
315
RELAY; EXH BRAKE CONT
12V 20A
8-97060-926-1
01
1
0507-0604
●
●
●
315
RELAY; EXH BRAKE CONT
12V 20A
8-97060-926-1
01
1
0605-
●
●
●
●

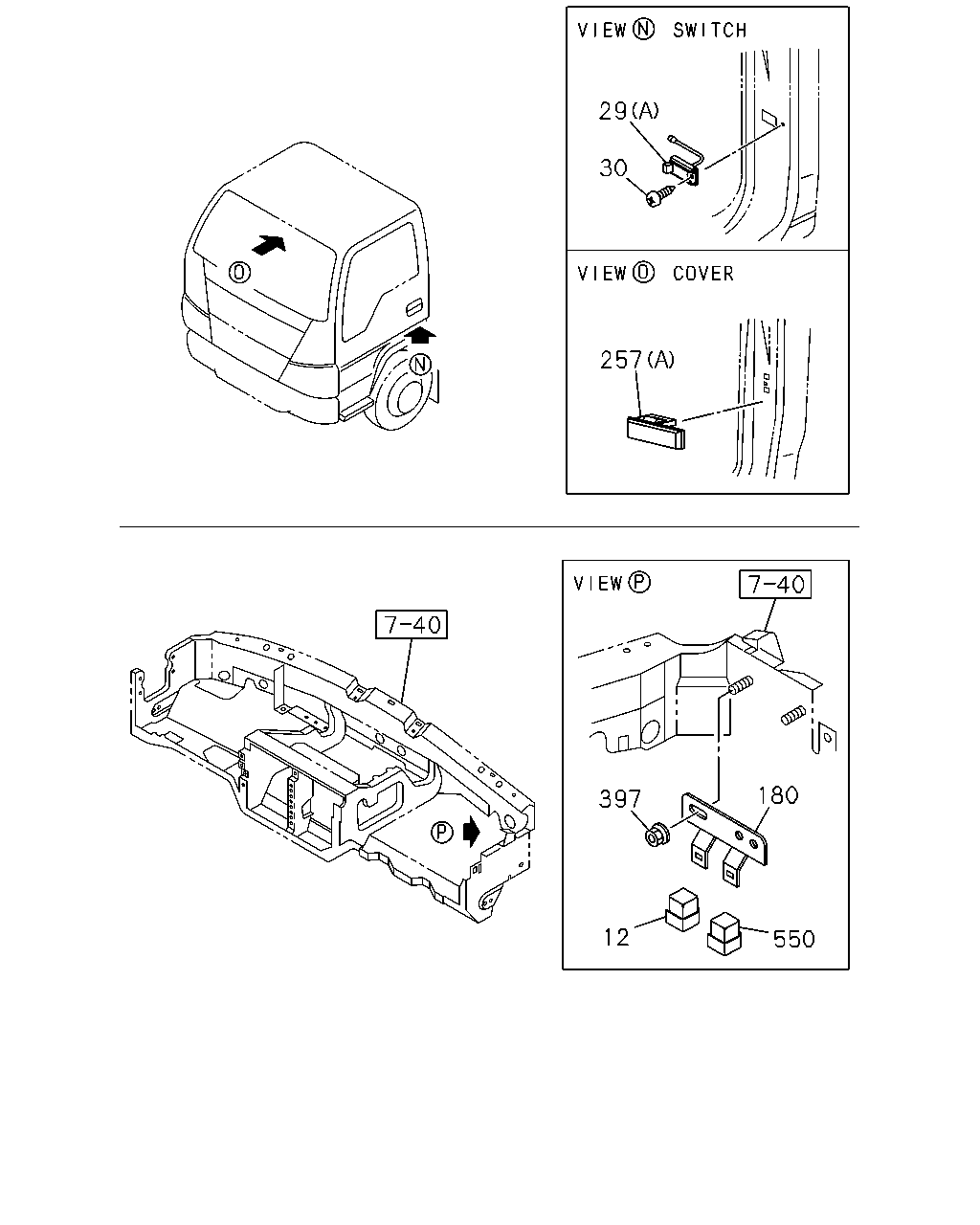

29
30
257
180
397
12
550
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
12
RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 12V 20A
8-97060-926-1
01
1
0507-0604
●
●
●
12
RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 12V 20A
8-97060-926-1
01
1
0605-
●
●
●
●
29
SWITCH; DOOR
(A)
8-97855-032-3
01
1
0507-0604
●
●
●
29
SWITCH; DOOR
(A)
8-97855-032-3
01
1
0605-
●
●
●
●
29
SWITCH; DOOR
AUTO DOOR LOCK<AU4> (B)
8-97246-932-0
01
1
0507-0604
●
●
●
29
SWITCH; DOOR
AUTO DOOR LOCK<AU4> (B)
8-97246-932-0
01
1
0605-
●
●
●
●
30
SCREW; DOOR SW
M5X16
8-94279-341-0
01
1
0507-0604
●
●
●
30
SCREW; DOOR SW
M5X16
8-94279-341-0
01
1
0605-
●
●
●
●
180
BRACKET; RELAY
8-97258-763-0
01
1
0507-0604
●
●
●
180
BRACKET; RELAY
8-97258-763-0
01
1
0605-
●
●
●
●
257
COVER; HOLE,SW
(A)
8-94229-914-1
01
1
0507-0604
●
●
●
257
COVER; HOLE,SW
(A)
8-94229-914-1
01
1
0605-
●
●
●
●
257
COVER; HOLE,SW
(C)
8-97136-694-0
01
1
0507-0604
●
●
●
257
COVER; HOLE,SW
(C)
8-97136-694-0
01
1
0605-
●
●
●
●
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (B)
8-94310-890-0
01
1
0507-0604
●
●
●
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (B)
8-94310-890-0
01
1
0605-
●
●
●
●
397
NUT; BRKT FIX
M6 FLANGE
0-91150-106-0
02
1
0507-0602
●
●
●
397
NUT; BRKT FIX
M6 FLANGE
0-91180-106-0
02
1
0603-0604
●
●
●
397
NUT; BRKT FIX
M6 FLANGE
0-91180-106-0
02
1
0605-
●
●
●
●
550
RELAY; ABS
12V 20A
8-97060-926-1
01
1
0507-0604
●
●
●
550
RELAY; ABS
12V 20A
8-97060-926-1
01
1
0605-
●
●
●
●

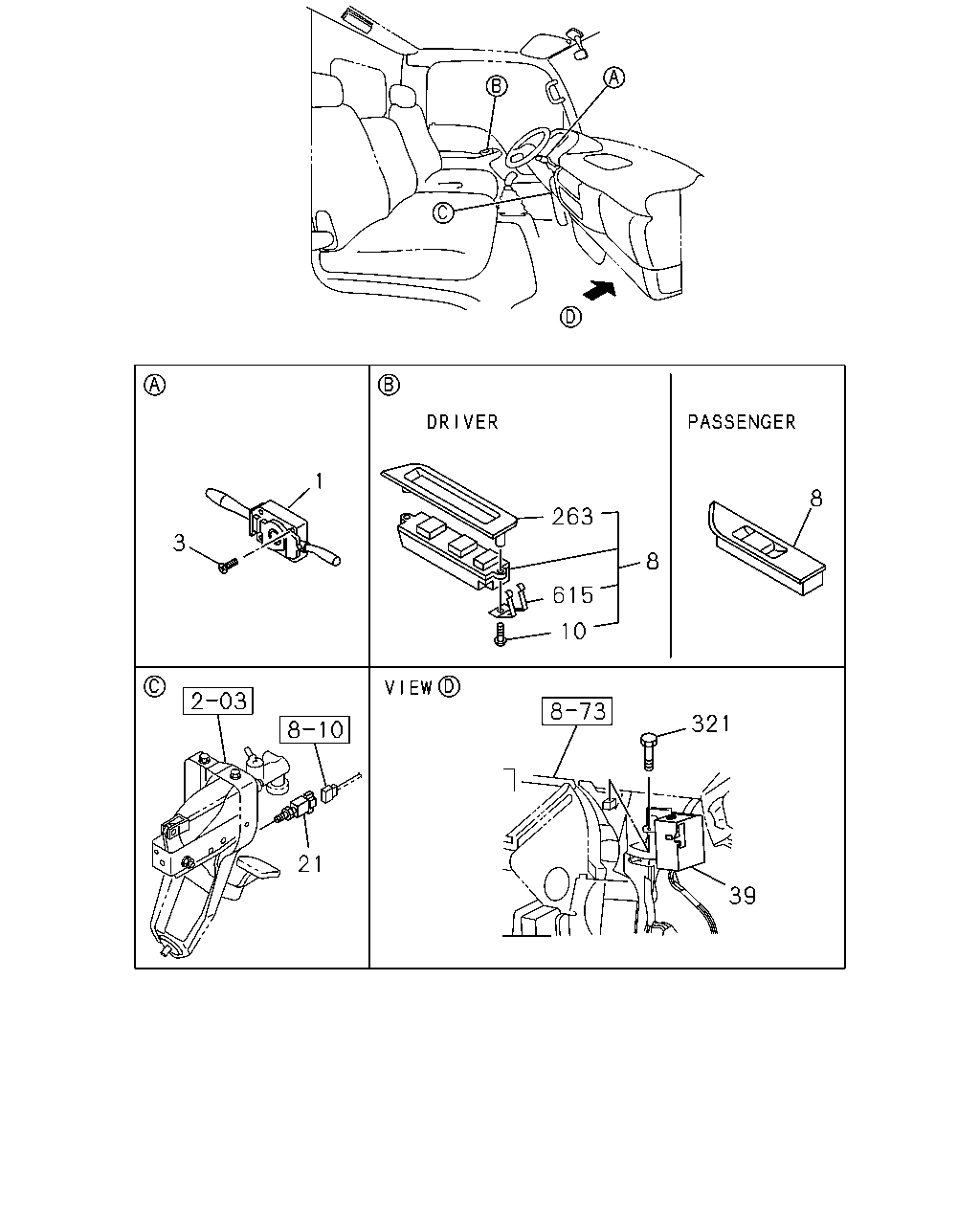

1
8
263
3
8
615
10
321
21
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
SWITCH; COMB
8-97383-517-0
01
1
0507-0604
●
●
●
1
SWITCH; COMB
8-97383-517-0
01
1
0605-
●
●
●
●
3
SCREW; COMB SW
M5X20 W/LK WASHER
9-03910-520-0
04
1
0507-0604
●
●
●
3
SCREW; COMB SW
M5X20 W/LK WASHER
9-03910-520-0
04
1
0605-0605
●
●
●
●
3
SCREW; COMB SW
M5X20 W/LK WASHER
0-36220-520-0
04
1
0605-0612
●
●
●
●
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
04
1
0701-
●
●
●
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE
8-97214-399-0
01
1
0507-0604
●
●
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE
8-97214-399-0
01
1
0605-0703
●
●
●
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE
8-98075-446-0
01
1
0704-0907
●
●
●
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE
8-98147-236-0
01
1
0908-
●
●
●
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE
8-97364-113-0
01
1
0507-0604
●
●
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE
8-97364-113-0
01
1
0605-0907
●
●
●
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE
8-98147-228-0
01
1
0908-
●
●
●
●
10
SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32>
8-97219-239-0
02
1
0507-0604
●
●
●
10
SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32>
8-97219-239-0
02
1
0605-
●
●
●
●
21
SWITCH; CLU
8-97358-248-0
01
1
0507-0604
●
●
●
21
SWITCH; CLU
8-97358-248-0
01
1
0605-
●
●
●
●
39
RELAY; DOOR LK
AUTO DOOR LOCK<AU4>
8-97250-192-0
01
1
0507-0604
●
●
●
39
RELAY; DOOR LK
AUTO DOOR LOCK<AU4>
8-97250-192-0
01
1
0605-
●
●
●
●
263
COVER; SW
POWER WINDOW FRT DOOR<A32>
8-97219-236-0
01
1
0507-0604
●
●
●
263
COVER; SW
POWER WINDOW FRT DOOR<A32>
8-97219-236-0
01
1
0605-
●
●
●
●
321
BOLT; RELAY
AUTO DOOR LOCK<AU4> M6X16 W/LK&PL WASHER
8-94139-963-0
01
1
0507-0604
●
●
●
321
BOLT; RELAY
AUTO DOOR LOCK<AU4> M6X16 W/LK&PL WASHER
8-94139-963-0
01
1
0605-1210
●
●
●
●
321
BOLT; RELAY
AUTO DOOR LOCK<AU4> M6X19.5 W/LK&PL WASHER
8-97360-226-0
01
1
1211-
●
●
●
●
615
SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32>
8-97219-238-0
01
1
0507-0604
●
●
●
615
SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32>
8-97219-238-0
01
1
0605-
●
●
●
●
