◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51047 - ELF400/450(MEXICO) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#51897) — 47 parça

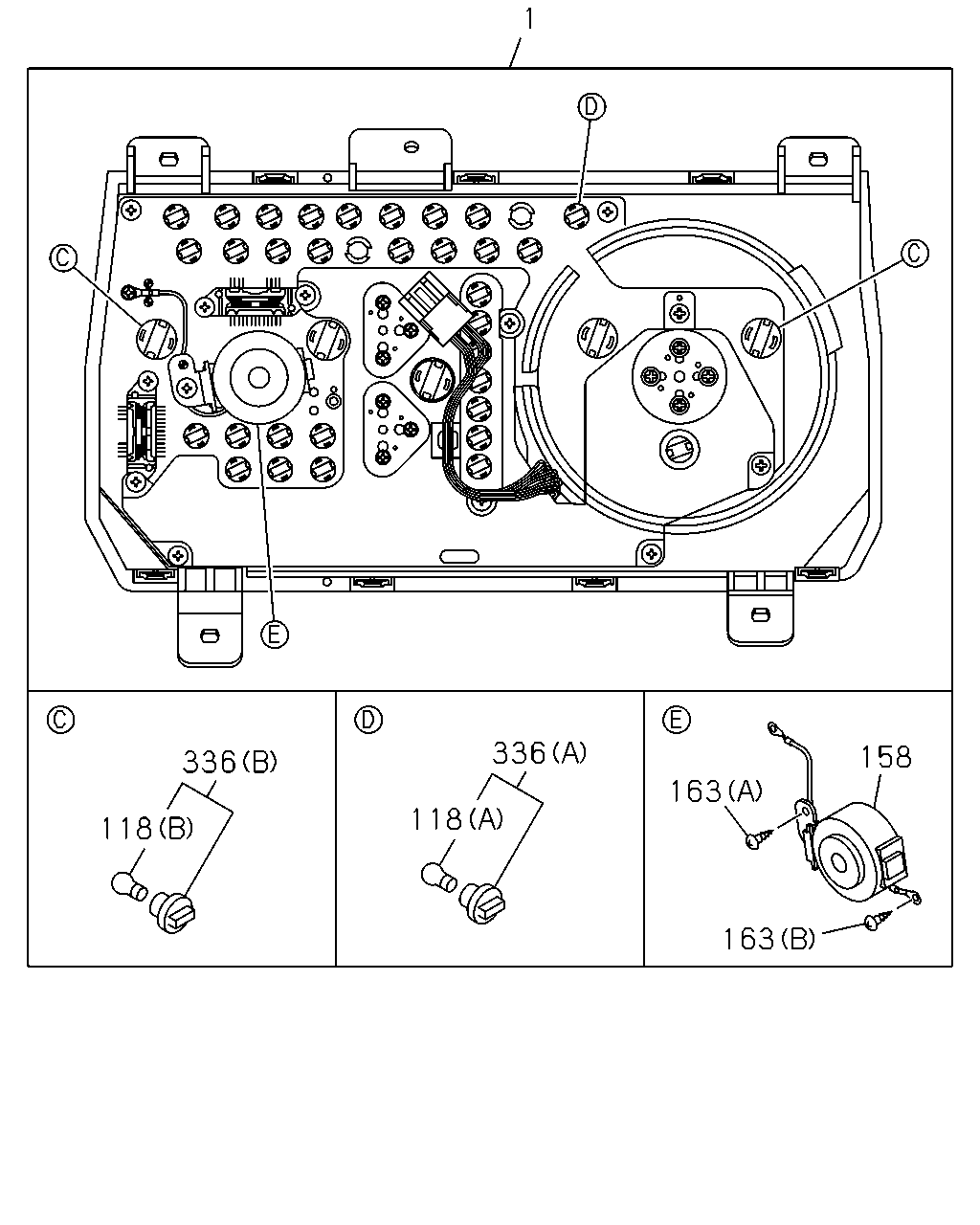

çizim 57691
1 336 158 336 163 118 118 163
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 METER COMPL; CLUSTER 8-97379-431-0 01 1 0507-0604 ● ● ●
1 METER COMPL; CLUSTER 8-97379-431-0 01 1 0605- ● ● ● ●
118 BULB; CLUSTER METER
(A) 14V 2W 		8-97305-175-0 16 1 0507-0604 ● ● ●
118 BULB; CLUSTER METER
(A) 14V 2W 		8-97305-175-0 16 1 0605- ● ● ● ●
118 BULB; CLUSTER METER
(B) 14V 3.4W 		8-97305-176-0 05 1 0507-0604 ● ● ●
118 BULB; CLUSTER METER
(B) 14V 3.4W 		8-97305-176-0 05 1 0605- ● ● ● ●
158 BUZZER; VAC WARNING 8-97185-096-0 01 1 0507-0604 ● ● ●
158 BUZZER; VAC WARNING 8-97185-096-0 01 1 0605- ● ● ● ●
163 SCREW; BUZZER
(B) 		8-97185-098-0 02 1 0507-0604 ● ● ●
163 SCREW; BUZZER
(B) 		8-97185-098-0 02 1 0605- ● ● ● ●
163 SCREW; BUZZER
(A) 		8-97185-099-0 01 1 0507-0604 ● ● ●
163 SCREW; BUZZER
(A) 		8-97185-099-0 01 1 0605- ● ● ● ●
336 LAMP ASM; WARNING
(A) 		8-97185-092-0 16 1 0507-0604 ● ● ●
336 LAMP ASM; WARNING
(A) 		8-97185-092-0 16 1 0605- ● ● ● ●
336 LAMP ASM; WARNING
(B) 		8-97185-094-0 05 1 0507-0604 ● ● ●
336 LAMP ASM; WARNING
(B) 		8-97185-094-0 05 1 0605- ● ● ● ●

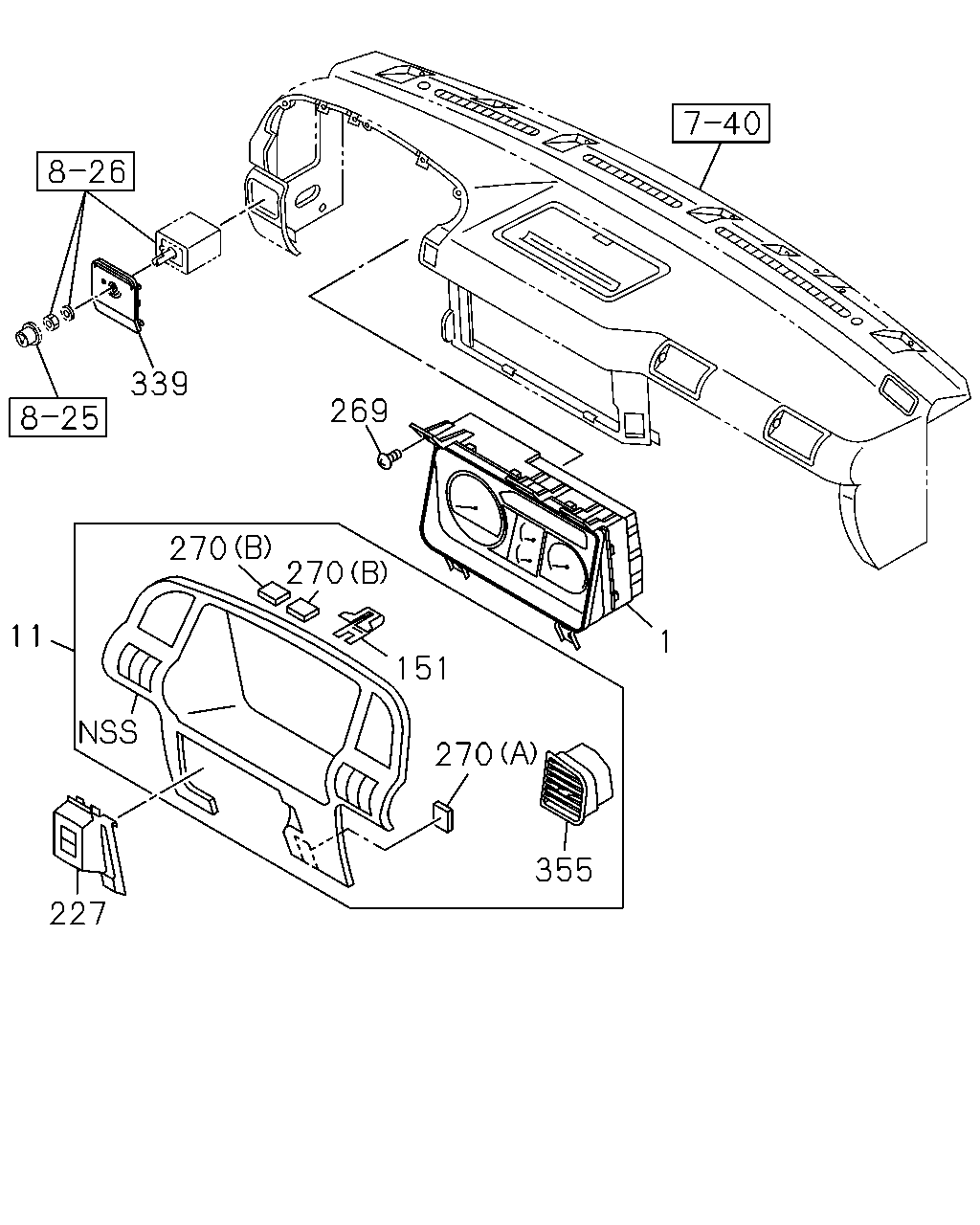

çizim 100621
339 269 270 11 1 151 355 227 270 270
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 METER COMPL; CLUSTER 8-97379-431-0 01 1 0507-0604 ● ● ●
1 METER COMPL; CLUSTER 8-97379-431-0 01 1 0605- ● ● ● ●
11 CLUSTER ASM; METER
BLACK 		8-97195-965-2 01 1 0507-0604 ● ● ●
11 CLUSTER ASM; METER
BLACK 		8-97195-965-2 01 1 0605- ● ● ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 07 1 0507-0604 ● ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 07 1 0605- ● ● ● ●
227 BEZEL; METER
BLACK 		8-97994-861-0 01 1 0507-0604 ● ● ●
227 BEZEL; METER
BLACK 		8-97994-861-0 01 1 0605- ● ● ● ●
269 SCREW; METER CLUSTER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0507-0604 ● ● ●
269 SCREW; METER CLUSTER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0605-1210 ● ● ● ●
269 SCREW; METER CLUSTER
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 05 1 1211- ● ● ● ●
270 CUSHION; METER CLUSTER
(A) 15X30 T=5 		8-94270-366-2 01 1 0507-0604 ● ● ●
270 CUSHION; METER CLUSTER
(A) 15X30 T=5 		8-94270-366-2 01 1 0605- ● ● ● ●
270 CUSHION; METER CLUSTER
(B) 6X30 T=2 		8-94270-378-1 02 1 0507-0604 ● ● ●
270 CUSHION; METER CLUSTER
(B) 6X30 T=2 		8-94270-378-1 02 1 0605- ● ● ● ●
339 BEZEL; SW,CLUSTER METER
DARK GRAY 		8-97582-214-4 01 1 0507-0604 ● ● ●
339 BEZEL; SW,CLUSTER METER
DARK GRAY 		8-97582-214-4 01 1 0605- ● ● ● ●
355 GRILLE; VENT
BLACK 		8-97195-967-1 01 1 0507-0604 ● ● ●
355 GRILLE; VENT
BLACK 		8-97195-967-1 01 1 0605- ● ● ● ●
355 GRILLE; VENT
BLACK 		8-97195-966-1 01 1 0507-0604 ● ● ●
355 GRILLE; VENT
BLACK 		8-97195-966-1 01 1 0605- ● ● ● ●

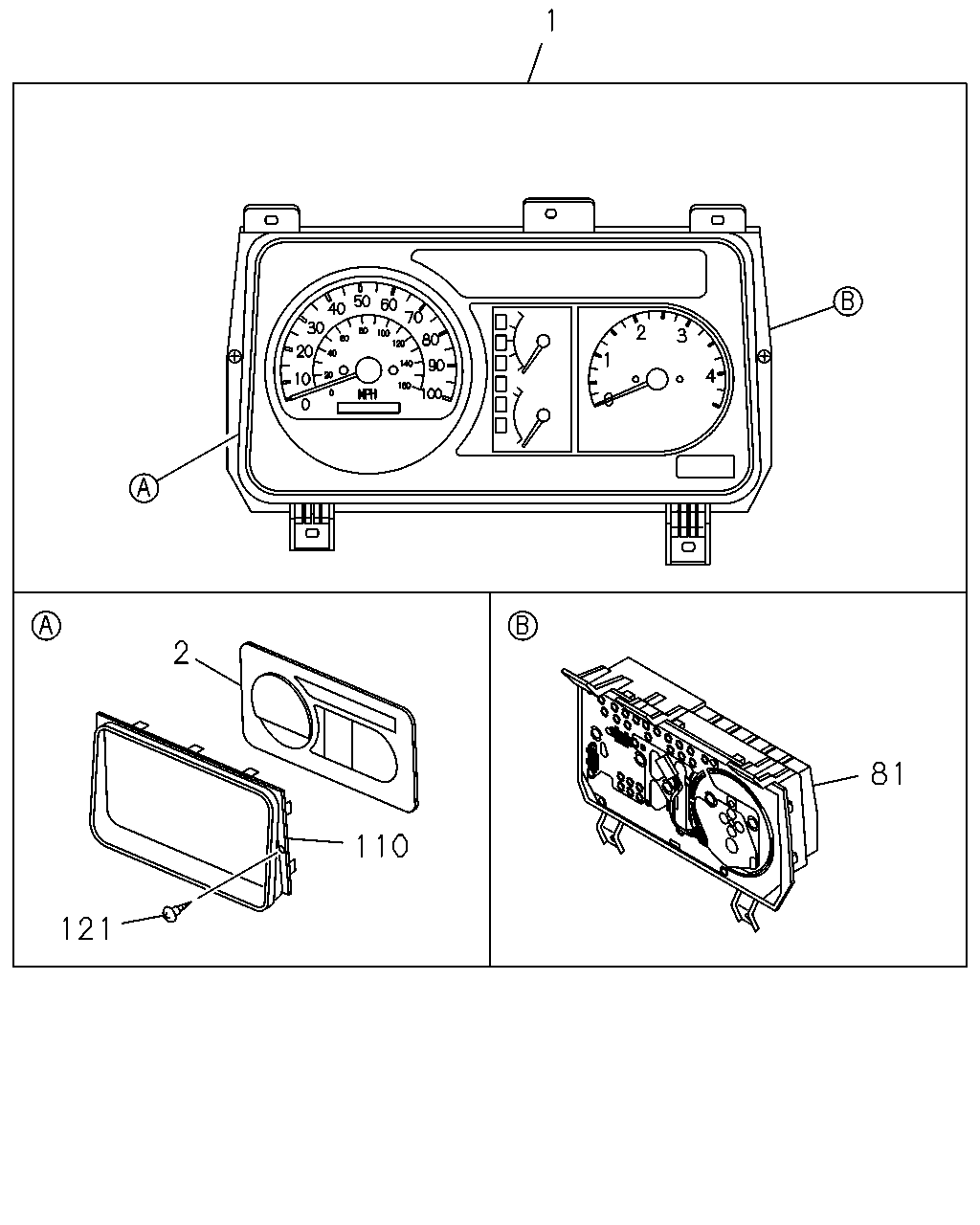

çizim 100898
1 2 81 110 121
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 METER COMPL; CLUSTER 8-97379-431-0 01 1 0507-0604 ● ● ●
1 METER COMPL; CLUSTER 8-97379-431-0 01 1 0605- ● ● ● ●
2 PANEL; CLUSTER 8-97185-047-0 01 1 0507-0604 ● ● ●
2 PANEL; CLUSTER 8-97185-047-0 01 1 0605- ● ● ● ●
81 METER SUB ASM 8-97383-419-0 01 1 0507-0604 ● ● ●
81 METER SUB ASM 8-97383-419-0 01 1 0605- ● ● ● ●
110 GLASS; CLUSTER METER 8-97185-045-0 01 1 0507-0604 ● ● ●
110 GLASS; CLUSTER METER 8-97185-045-0 01 1 0605- ● ● ● ●
121 SCREW; PANEL FIX,CLUSTER METER 8-97185-100-0 02 1 0507-0604 ● ● ●
121 SCREW; PANEL FIX,CLUSTER METER 8-97185-100-0 02 1 0605- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
