8-15 — FIXING PARTS; WIRING HARNESS (#51896) — 570 parça

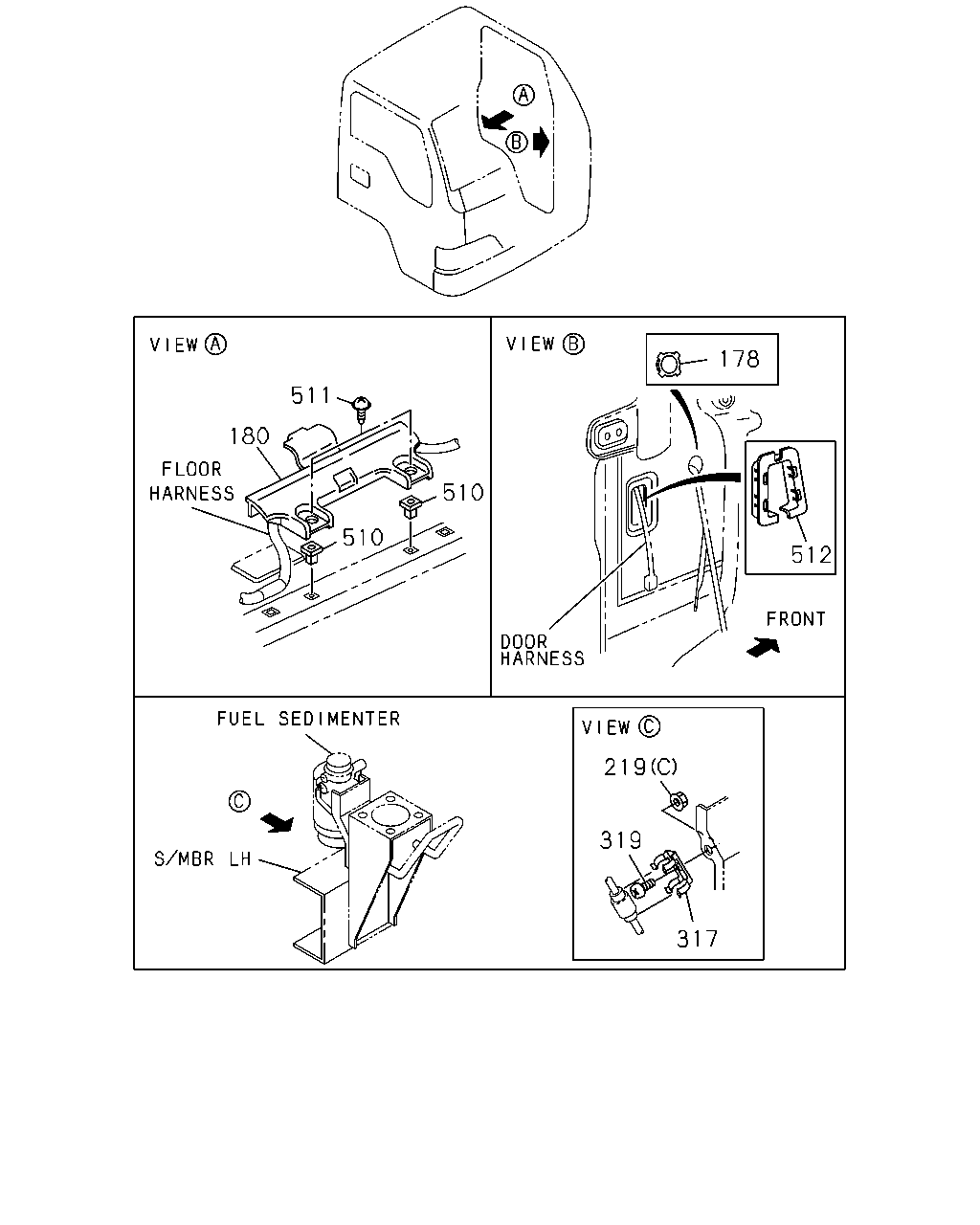

çizim 57429
178 511 180 510 510 512 219 319 317
BalonParca AdiParca NoAdetTipApplied Date A B C D
178 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 0507-0604 ● ● ●
178 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 0605- ● ● ● ●
180 COVER; HARNESS 8-97856-130-4 02 1 0507-0604 ● ● ●
180 COVER; HARNESS 8-97856-130-4 02 1 0605- ● ● ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603-0604 ● ● ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0605- ● ● ● ●
219 NUT
(C) M5 FLANGE 		5-09440-003-0 01 1 0507-0604 ● ● ●
219 NUT
(C) M5 FLANGE 		5-09440-003-0 01 1 0605- ● ● ● ●
219 NUT
(A) M6 FLANGE 		0-91150-106-0 04 1 0507-0602 ● ● ●
219 NUT
(A) M6 FLANGE 		0-91180-106-0 04 1 0603-0604 ● ● ●
219 NUT
(A) M6 FLANGE 		0-91180-106-0 04 1 0605- ● ● ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603-0604 ● ● ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0605- ● ● ● ●
219 NUT
EXC. FUEL TANK 125L,33GAL<NL7> (B) M8 FLANGE 		0-91150-108-0 03 1 0507-0508 ● ● ●
317 CLAMP; CONNECTOR 8-94441-365-0 01 1 0507-0604 ● ● ●
317 CLAMP; CONNECTOR 8-94441-365-0 01 1 0605- ● ● ● ●
319 SCREW; CLAMP,HARNESS CONNECTOR
M5X16 W/LK WASHER 		9-03910-516-0 01 1 0507-0604 ● ● ●
319 SCREW; CLAMP,HARNESS CONNECTOR
M5X16 W/LK WASHER 		9-03910-516-0 01 1 0605-0605 ● ● ● ●
319 SCREW; CLAMP,HARNESS CONNECTOR
M5X16 W/LK WASHER 		0-36220-516-0 01 1 0605- ● ● ● ●
510 GROMMET; SCREW
H=15 		8-94463-268-1 04 1 0507-0604 ● ● ●
510 GROMMET; SCREW
H=15 		8-94463-268-1 04 1 0605- ● ● ● ●
511 SCREW; HARNESS COVER
M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 0507-0604 ● ● ●
511 SCREW; HARNESS COVER
M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 0605-0605 ● ● ● ●
511 SCREW; HARNESS COVER
M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 0605-0702 ● ● ● ●
511 SCREW; HARNESS COVER
T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 0703- ● ● ● ●
512 PROTECTOR; HARNESS 8-97072-950-0 02 1 0507-0604 ● ● ●
512 PROTECTOR; HARNESS 8-97072-950-0 02 1 0605- ● ● ● ●

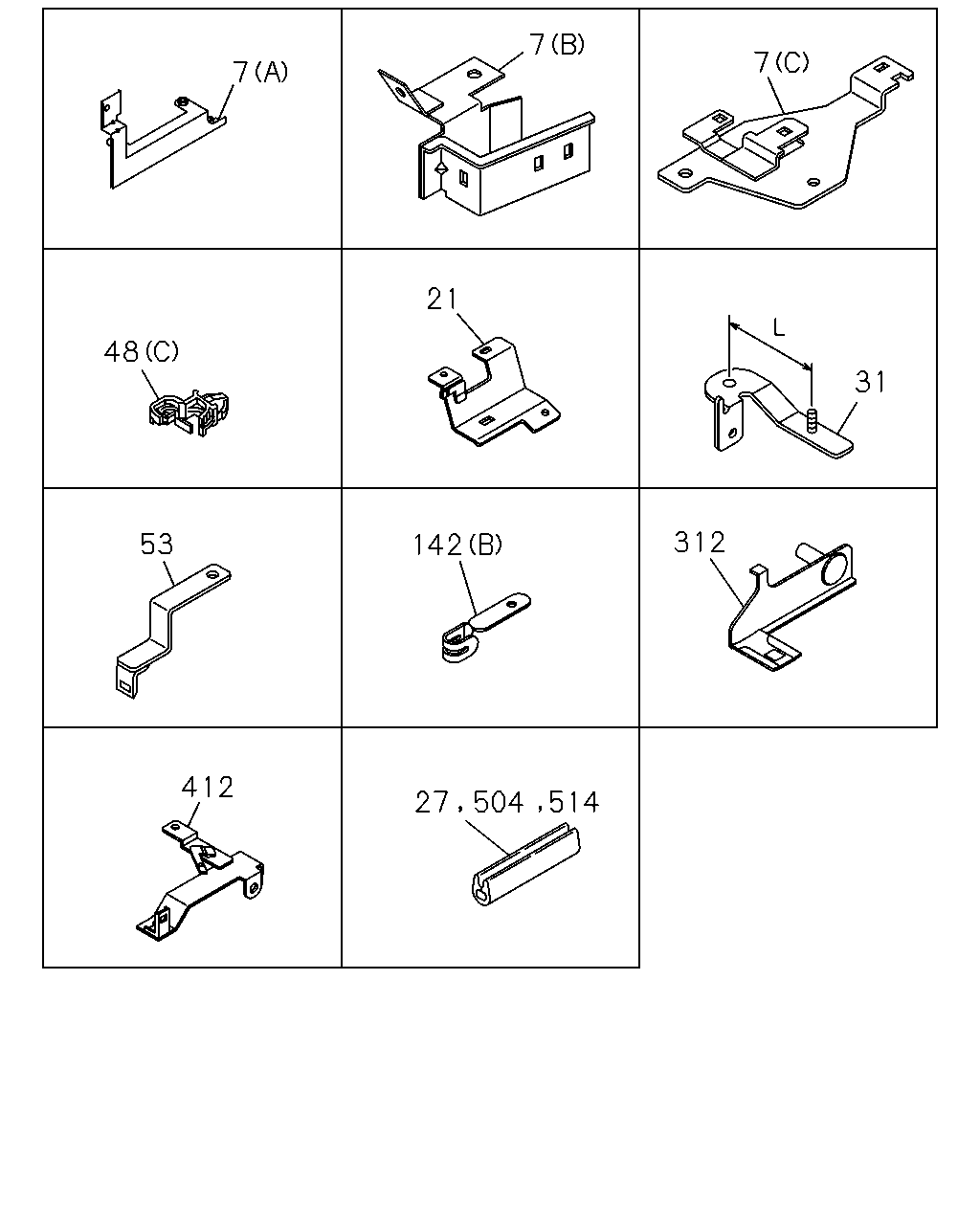

çizim 57431
7 7 7 21 48 31 312 53 142 412 514 27 504
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 BRACKET; CONNECTOR
(A) 		8-97094-992-1 01 1 0507-0604 ● ● ●
7 BRACKET; CONNECTOR
(A) 		8-97094-992-1 01 1 0605- ● ● ● ●
7 BRACKET; CONNECTOR
(B) 		8-97210-724-0 01 1 0507-0604 ● ● ●
7 BRACKET; CONNECTOR
(B) 		8-97210-724-0 01 1 0605- ● ● ● ●
7 BRACKET; CONNECTOR
(C) 		8-97379-023-0 01 1 0507-0604 ● ● ●
7 BRACKET; CONNECTOR
(C) 		8-97379-023-0 01 1 0605- ● ● ● ●
21 BRACKET; ENG HARNESS 8-97324-447-0 01 1 0507-0604 ● ● ●
21 BRACKET; ENG HARNESS 8-97324-447-0 01 1 0605- ● ● ● ●
27 PROTECTOR; EDGE
L=80 		5-22439-006-0 02 1 0507-0604 ● ● ●
27 PROTECTOR; EDGE
L=80 		5-22439-006-0 02 1 0605- ● ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
FUEL TANK 125L,33GAL<NL7> L=47 		8-97042-635-0 01 1 0507-0508 ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
L=47 		8-97042-635-0 01 1 0509-0604 ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
L=47 		8-97042-635-0 01 1 0605- ● ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
FUEL TANK 125L,33GAL<NL7> L=73 		8-97077-845-0 02 1 0507-0508 ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
L=73 		8-97077-845-0 02 1 0509-0604 ● ● ●
31 BRACKET; HARNESS CLIP,PIPE
L=73 		8-97077-845-0 02 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=32 L=75 		1-09700-702-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=32 L=75 		1-09700-702-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 02 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0507-0508 ● ● ●
48 CLIP; FRAME HARNESS
FUEL TANK 125L,33GAL<NL7> (A) ID=14 L=47 		5-09700-319-0 03 1 0507-0508 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0509-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0509-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=27 		5-09700-323-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=27 		5-09700-323-0 02 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(H) L=140 		5-09707-031-1 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(H) L=140 		5-09707-031-1 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(I) T=4.5 & 9 		5-09709-023-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(I) T=4.5 & 9 		5-09709-023-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(J) T=6.0 		5-09709-024-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(J) T=6.0 		5-09709-024-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 02 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=40 L=90 		1-09701-290-0 03 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=40 L=90 		1-09701-290-0 03 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=24 		8-94149-610-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=24 		8-94149-610-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=42 W/STUD 		8-97363-356-0 04 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=42 W/STUD 		8-97363-356-0 04 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(I) T=4.5 & 9 		5-09709-023-0 03 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(I) T=4.5 & 9 		5-09709-023-0 03 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=11 L=50 		9-09525-085-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=11 L=50 		9-09525-085-0 01 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=11 L=50 		0-95235-085-0 01 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
EXC. FUEL TANK 125L,33GAL<NL7> (N) ID=16 L=40 		9-09525-575-0 03 1 0507-0508 ● ● ●
53 BRACKET; HARNESS 8-97288-889-0 01 1 0507-0604 ● ● ●
53 BRACKET; HARNESS 8-97288-889-0 01 1 0605- ● ● ● ●
142 CLIP; HARNESS,ENG
(A) L=140 		5-09707-031-1 01 1 0507-0604 ● ● ●
142 CLIP; HARNESS,ENG
(A) L=140 		5-09707-031-1 01 1 0605- ● ● ● ●
142 CLIP; HARNESS,ENG
(B) 		8-97101-436-0 01 1 0507-0604 ● ● ●
142 CLIP; HARNESS,ENG
(B) 		8-97101-436-0 01 1 0605- ● ● ● ●
312 BRACKET; CLIP HARNESS 8-97017-072-2 01 1 0507-0604 ● ● ●
312 BRACKET; CLIP HARNESS 8-97017-072-2 01 1 0605- ● ● ● ●
412 BRACKET; HARNESS,TRANS 8-97324-451-1 01 1 0507-0604 ● ● ●
412 BRACKET; HARNESS,TRANS 8-97324-451-1 01 1 0605- ● ● ● ●
504 PROTECTOR; HARNESS
L=80 		5-22439-006-0 01 1 0507-0604 ● ● ●
504 PROTECTOR; HARNESS
L=80 		5-22439-006-0 01 1 0507-0604 ● ● ●
504 PROTECTOR; HARNESS
L=80 		5-22439-006-0 01 1 0605- ● ● ● ●
504 PROTECTOR; HARNESS
L=80 		5-22439-006-0 01 1 0605- ● ● ● ●
514 FINISHER; HARNESS
L=120 SERVICED BY L=2040 		1-71997-513-1 04 1 0507-0604 ● ● ●
514 FINISHER; HARNESS
L=120 SERVICED BY L=2040 		1-71997-513-1 04 1 0605-0606 ● ● ● ●
514 FINISHER; HARNESS
L=120 SERVICED BY L=500 		1-79937-746-0 04 1 0607- ● ● ● ●
514 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0507-0604 ● ● ●
514 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0605- ● ● ● ●
514 FINISHER; HARNESS
GVWR CLASS-5 16001-19500LBS(RQH) L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0507-0604 ● ●
514 FINISHER; HARNESS
GVWR CLASS-5 16001-19500LBS(RQH) L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0605-0606 ● ●
514 FINISHER; HARNESS
L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0605-0606 ●
514 FINISHER; HARNESS
GVWR CLASS-5 16001-19500LBS(RQH) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 0607- ● ●
514 FINISHER; HARNESS
L=175 SERVICED BY L=500 		1-79937-746-0 01 1 0607- ●
çizim 57469
22 16 22 48 142 16 22 102 488 16 205 48 22 102 22 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1011-1405 ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (A) L=155 		8-97173-307-0 05 1 1011-1405 ● ● ● ●
16 CLIP; HARNESS
(M) ID=22 & 22 		8-94464-837-0 01 1 0507- ●
16 CLIP; HARNESS
EXC. HYDRO BRAKE BOOSTER(7QQ) (M) ID=22 & 22 		8-94464-837-0 01 1 0507- ● ●
16 CLIP; HARNESS
(B) ID=27 		5-09700-323-0 01 1 0507- ●
16 CLIP; HARNESS
(C) L=135 		1-09987-143-1 01 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(C) L=135 		1-09987-143-1 01 1 0605- ● ● ● ●
16 CLIP; HARNESS
(D) 1 SET=5 PIECE 		1-09987-214-0 03 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(D) 1 SET=5 PIECE 		1-09987-214-0 03 1 0605- ● ● ● ●
16 CLIP; HARNESS
(G) L=250 		5-09707-030-1 01 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(G) L=250 		5-09707-030-1 01 1 0605- ● ● ● ●
16 CLIP; HARNESS
(I) T=4.5 & 9 		5-09709-023-0 03 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(I) T=4.5 & 9 		5-09709-023-0 03 1 0605- ● ● ● ●
16 CLIP; HARNESS
(J) ID=10 & 16 		8-94413-325-0 02 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(J) ID=10 & 16 		8-94413-325-0 02 1 0605- ● ● ● ●
16 CLIP; HARNESS
(K) ID=6 & 10-13 		8-97069-515-0 03 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(K) ID=6 & 10-13 		8-97069-515-0 03 1 0605- ● ● ● ●
16 CLIP; HARNESS
(L) ID=15-32 		8-97174-404-0 04 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(L) ID=15-32 		8-97174-404-0 04 1 0605- ● ● ● ●
16 CLIP; HARNESS
(E) ID=14 L=47 		5-09700-319-0 03 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(E) ID=14 L=47 		5-09700-319-0 03 1 0605- ● ● ● ●
16 CLIP; HARNESS
(F) ID=20 		5-09700-321-0 02 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(F) ID=20 		5-09700-321-0 02 1 0605- ● ● ● ●
16 CLIP; HARNESS
(H) L=140 		5-09707-031-1 01 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(H) L=140 		5-09707-031-1 01 1 0605- ● ● ● ●
16 CLIP; HARNESS
(I) T=4.5 & 9 		5-09709-023-0 02 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(I) T=4.5 & 9 		5-09709-023-0 02 1 0605- ● ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (N) L=175 		8-97110-167-0 04 1 0507-0604 ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (N) L=175 		8-97110-167-0 04 1 0605- ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 10 1 0507-0604 ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 10 1 0605-1009 ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 11 1 1010-1010 ● ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 06 1 1011-1405 ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1406- ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1406- ● ● ● ●
16 CLIP; HARNESS
(B) ID=27 		5-09700-323-0 03 1 0507- ●
16 CLIP; HARNESS
(B) ID=27 		5-09700-323-0 04 1 0507- ●
16 CLIP; HARNESS
(B) ID=27 		5-09700-323-0 05 1 0605- ●
22 CLIP; ENG HARNESS
(A) L=250 		5-09707-030-1 01 1 0507-0604 ● ● ●
22 CLIP; ENG HARNESS
(A) L=250 		5-09707-030-1 01 1 0605- ● ● ● ●
22 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-1 01 1 0507-0604 ● ● ●
22 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-1 01 1 0507-0604 ●
22 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-1 01 1 0605- ● ● ● ●
22 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-1 01 1 0605- ● ●
22 CLIP; ENG HARNESS
(D) L=100 		5-09707-036-1 02 1 0507-0604 ● ● ●
22 CLIP; ENG HARNESS
(D) L=100 		5-09707-036-1 02 1 0605- ● ● ● ●
22 CLIP; ENG HARNESS
(C) L=170 		5-09707-054-0 02 1 0507-0604 ● ● ●
22 CLIP; ENG HARNESS
(C) L=170 		5-09707-054-0 02 1 0605- ● ● ● ●
22 CLIP; ENG HARNESS
(E) L=350 		8-97373-487-0 01 1 0507-0604 ● ● ●
22 CLIP; ENG HARNESS
(E) L=350 		8-97373-487-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=32 L=75 		1-09700-702-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=32 L=75 		1-09700-702-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 02 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0507-0508 ● ● ●
48 CLIP; FRAME HARNESS
FUEL TANK 125L,33GAL<NL7> (A) ID=14 L=47 		5-09700-319-0 03 1 0507-0508 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0509-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0509-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=27 		5-09700-323-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=27 		5-09700-323-0 02 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(H) L=140 		5-09707-031-1 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(H) L=140 		5-09707-031-1 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(I) T=4.5 & 9 		5-09709-023-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(I) T=4.5 & 9 		5-09709-023-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(J) T=6.0 		5-09709-024-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(J) T=6.0 		5-09709-024-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 02 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=40 L=90 		1-09701-290-0 03 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=40 L=90 		1-09701-290-0 03 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=24 		8-94149-610-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=24 		8-94149-610-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=42 W/STUD 		8-97363-356-0 04 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=42 W/STUD 		8-97363-356-0 04 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(I) T=4.5 & 9 		5-09709-023-0 03 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(I) T=4.5 & 9 		5-09709-023-0 03 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=11 L=50 		9-09525-085-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=11 L=50 		9-09525-085-0 01 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=11 L=50 		0-95235-085-0 01 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
EXC. FUEL TANK 125L,33GAL<NL7> (N) ID=16 L=40 		9-09525-575-0 03 1 0507-0508 ● ● ●
102 CLIP; BAND
(A) L=250 		5-09707-030-1 01 1 0507-0604 ● ● ●
102 CLIP; BAND
(A) L=250 		5-09707-030-1 01 1 0605- ● ● ● ●
102 CLIP; BAND
(B) L=170 		5-09707-054-0 01 1 0507-0604 ● ● ●
102 CLIP; BAND
(B) L=170 		5-09707-054-0 01 1 0605- ● ● ● ●
142 CLIP; HARNESS,ENG
(A) L=140 		5-09707-031-1 01 1 0507-0604 ● ● ●
142 CLIP; HARNESS,ENG
(A) L=140 		5-09707-031-1 01 1 0605- ● ● ● ●
142 CLIP; HARNESS,ENG
(B) 		8-97101-436-0 01 1 0507-0604 ● ● ●
142 CLIP; HARNESS,ENG
(B) 		8-97101-436-0 01 1 0605- ● ● ● ●
205 CLIP; BACK LAMP HARNESS
L=135 		1-09987-143-1 01 1 0507-0604 ● ● ●
205 CLIP; BACK LAMP HARNESS
L=135 		1-09987-143-1 01 1 0605- ● ● ● ●
488 CLIP; CABLE,TRAILER
L=250 		5-09707-030-1 01 1 0507-0604 ● ● ●
488 CLIP; CABLE,TRAILER
L=250 		5-09707-030-1 01 1 0605- ● ● ● ●
çizim 57492
208 16 48 48 48 16 264 48
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1011-1405 ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (A) L=155 		8-97173-307-0 05 1 1011-1405 ● ● ● ●
16 CLIP; HARNESS
(M) ID=22 & 22 		8-94464-837-0 01 1 0507- ●
16 CLIP; HARNESS
EXC. HYDRO BRAKE BOOSTER(7QQ) (M) ID=22 & 22 		8-94464-837-0 01 1 0507- ● ●
16 CLIP; HARNESS
(B) ID=27 		5-09700-323-0 01 1 0507- ●
16 CLIP; HARNESS
(C) L=135 		1-09987-143-1 01 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(C) L=135 		1-09987-143-1 01 1 0605- ● ● ● ●
16 CLIP; HARNESS
(D) 1 SET=5 PIECE 		1-09987-214-0 03 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(D) 1 SET=5 PIECE 		1-09987-214-0 03 1 0605- ● ● ● ●
16 CLIP; HARNESS
(G) L=250 		5-09707-030-1 01 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(G) L=250 		5-09707-030-1 01 1 0605- ● ● ● ●
16 CLIP; HARNESS
(I) T=4.5 & 9 		5-09709-023-0 03 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(I) T=4.5 & 9 		5-09709-023-0 03 1 0605- ● ● ● ●
16 CLIP; HARNESS
(J) ID=10 & 16 		8-94413-325-0 02 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(J) ID=10 & 16 		8-94413-325-0 02 1 0605- ● ● ● ●
16 CLIP; HARNESS
(K) ID=6 & 10-13 		8-97069-515-0 03 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(K) ID=6 & 10-13 		8-97069-515-0 03 1 0605- ● ● ● ●
16 CLIP; HARNESS
(L) ID=15-32 		8-97174-404-0 04 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(L) ID=15-32 		8-97174-404-0 04 1 0605- ● ● ● ●
16 CLIP; HARNESS
(E) ID=14 L=47 		5-09700-319-0 03 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(E) ID=14 L=47 		5-09700-319-0 03 1 0605- ● ● ● ●
16 CLIP; HARNESS
(F) ID=20 		5-09700-321-0 02 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(F) ID=20 		5-09700-321-0 02 1 0605- ● ● ● ●
16 CLIP; HARNESS
(H) L=140 		5-09707-031-1 01 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(H) L=140 		5-09707-031-1 01 1 0605- ● ● ● ●
16 CLIP; HARNESS
(I) T=4.5 & 9 		5-09709-023-0 02 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(I) T=4.5 & 9 		5-09709-023-0 02 1 0605- ● ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (N) L=175 		8-97110-167-0 04 1 0507-0604 ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (N) L=175 		8-97110-167-0 04 1 0605- ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 10 1 0507-0604 ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 10 1 0605-1009 ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 11 1 1010-1010 ● ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 06 1 1011-1405 ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1406- ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1406- ● ● ● ●
16 CLIP; HARNESS
(B) ID=27 		5-09700-323-0 03 1 0507- ●
16 CLIP; HARNESS
(B) ID=27 		5-09700-323-0 04 1 0507- ●
16 CLIP; HARNESS
(B) ID=27 		5-09700-323-0 05 1 0605- ●
48 CLIP; FRAME HARNESS
(B) ID=32 L=75 		1-09700-702-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=32 L=75 		1-09700-702-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 02 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0507-0508 ● ● ●
48 CLIP; FRAME HARNESS
FUEL TANK 125L,33GAL<NL7> (A) ID=14 L=47 		5-09700-319-0 03 1 0507-0508 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0509-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0509-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=27 		5-09700-323-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=27 		5-09700-323-0 02 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(H) L=140 		5-09707-031-1 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(H) L=140 		5-09707-031-1 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(I) T=4.5 & 9 		5-09709-023-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(I) T=4.5 & 9 		5-09709-023-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(J) T=6.0 		5-09709-024-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(J) T=6.0 		5-09709-024-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 02 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=40 L=90 		1-09701-290-0 03 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=40 L=90 		1-09701-290-0 03 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=24 		8-94149-610-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=24 		8-94149-610-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=42 W/STUD 		8-97363-356-0 04 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=42 W/STUD 		8-97363-356-0 04 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(I) T=4.5 & 9 		5-09709-023-0 03 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(I) T=4.5 & 9 		5-09709-023-0 03 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=11 L=50 		9-09525-085-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=11 L=50 		9-09525-085-0 01 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=11 L=50 		0-95235-085-0 01 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
EXC. FUEL TANK 125L,33GAL<NL7> (N) ID=16 L=40 		9-09525-575-0 03 1 0507-0508 ● ● ●
208 CLIP; HARNESS,MAG VLV
(A) T=5.5 		5-09709-047-0 03 1 0507- ●
208 CLIP; HARNESS,MAG VLV
(B) ID=14 L=47 		5-09700-319-0 01 1 0507-0604 ● ● ●
208 CLIP; HARNESS,MAG VLV
(B) ID=14 L=47 		5-09700-319-0 01 1 0605- ● ● ● ●
208 CLIP; HARNESS,MAG VLV
(A) T=5.5 		5-09709-047-0 04 1 0507- ●
208 CLIP; HARNESS,MAG VLV
(A) T=5.5 		5-09709-047-0 05 1 0507- ●
208 CLIP; HARNESS,MAG VLV
(A) T=5.5 		5-09709-047-0 06 1 0605- ●
264 CLIP; HARNESS,HEADLAMP
ID=6 & 10-13 		8-97069-515-0 01 1 0507-0604 ● ● ●
264 CLIP; HARNESS,HEADLAMP
ID=6 & 10-13 		8-97069-515-0 01 1 0605- ● ● ● ●
çizim 57493
16 48 208 16 16 48 48 48 48 16 48 208 48
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1011-1405 ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (A) L=155 		8-97173-307-0 05 1 1011-1405 ● ● ● ●
16 CLIP; HARNESS
(M) ID=22 & 22 		8-94464-837-0 01 1 0507- ●
16 CLIP; HARNESS
EXC. HYDRO BRAKE BOOSTER(7QQ) (M) ID=22 & 22 		8-94464-837-0 01 1 0507- ● ●
16 CLIP; HARNESS
(B) ID=27 		5-09700-323-0 01 1 0507- ●
16 CLIP; HARNESS
(C) L=135 		1-09987-143-1 01 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(C) L=135 		1-09987-143-1 01 1 0605- ● ● ● ●
16 CLIP; HARNESS
(D) 1 SET=5 PIECE 		1-09987-214-0 03 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(D) 1 SET=5 PIECE 		1-09987-214-0 03 1 0605- ● ● ● ●
16 CLIP; HARNESS
(G) L=250 		5-09707-030-1 01 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(G) L=250 		5-09707-030-1 01 1 0605- ● ● ● ●
16 CLIP; HARNESS
(I) T=4.5 & 9 		5-09709-023-0 03 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(I) T=4.5 & 9 		5-09709-023-0 03 1 0605- ● ● ● ●
16 CLIP; HARNESS
(J) ID=10 & 16 		8-94413-325-0 02 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(J) ID=10 & 16 		8-94413-325-0 02 1 0605- ● ● ● ●
16 CLIP; HARNESS
(K) ID=6 & 10-13 		8-97069-515-0 03 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(K) ID=6 & 10-13 		8-97069-515-0 03 1 0605- ● ● ● ●
16 CLIP; HARNESS
(L) ID=15-32 		8-97174-404-0 04 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(L) ID=15-32 		8-97174-404-0 04 1 0605- ● ● ● ●
16 CLIP; HARNESS
(E) ID=14 L=47 		5-09700-319-0 03 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(E) ID=14 L=47 		5-09700-319-0 03 1 0605- ● ● ● ●
16 CLIP; HARNESS
(F) ID=20 		5-09700-321-0 02 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(F) ID=20 		5-09700-321-0 02 1 0605- ● ● ● ●
16 CLIP; HARNESS
(H) L=140 		5-09707-031-1 01 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(H) L=140 		5-09707-031-1 01 1 0605- ● ● ● ●
16 CLIP; HARNESS
(I) T=4.5 & 9 		5-09709-023-0 02 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(I) T=4.5 & 9 		5-09709-023-0 02 1 0605- ● ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (N) L=175 		8-97110-167-0 04 1 0507-0604 ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (N) L=175 		8-97110-167-0 04 1 0605- ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 10 1 0507-0604 ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 10 1 0605-1009 ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 11 1 1010-1010 ● ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 06 1 1011-1405 ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1406- ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1406- ● ● ● ●
16 CLIP; HARNESS
(B) ID=27 		5-09700-323-0 03 1 0507- ●
16 CLIP; HARNESS
(B) ID=27 		5-09700-323-0 04 1 0507- ●
16 CLIP; HARNESS
(B) ID=27 		5-09700-323-0 05 1 0605- ●
48 CLIP; FRAME HARNESS
(B) ID=32 L=75 		1-09700-702-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=32 L=75 		1-09700-702-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 02 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0507-0508 ● ● ●
48 CLIP; FRAME HARNESS
FUEL TANK 125L,33GAL<NL7> (A) ID=14 L=47 		5-09700-319-0 03 1 0507-0508 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0509-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0509-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=27 		5-09700-323-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=27 		5-09700-323-0 02 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(H) L=140 		5-09707-031-1 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(H) L=140 		5-09707-031-1 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(I) T=4.5 & 9 		5-09709-023-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(I) T=4.5 & 9 		5-09709-023-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(J) T=6.0 		5-09709-024-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(J) T=6.0 		5-09709-024-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 02 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=40 L=90 		1-09701-290-0 03 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=40 L=90 		1-09701-290-0 03 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=24 		8-94149-610-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=24 		8-94149-610-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=42 W/STUD 		8-97363-356-0 04 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=42 W/STUD 		8-97363-356-0 04 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(I) T=4.5 & 9 		5-09709-023-0 03 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(I) T=4.5 & 9 		5-09709-023-0 03 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=11 L=50 		9-09525-085-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=11 L=50 		9-09525-085-0 01 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=11 L=50 		0-95235-085-0 01 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
EXC. FUEL TANK 125L,33GAL<NL7> (N) ID=16 L=40 		9-09525-575-0 03 1 0507-0508 ● ● ●
208 CLIP; HARNESS,MAG VLV
(A) T=5.5 		5-09709-047-0 03 1 0507- ●
208 CLIP; HARNESS,MAG VLV
(B) ID=14 L=47 		5-09700-319-0 01 1 0507-0604 ● ● ●
208 CLIP; HARNESS,MAG VLV
(B) ID=14 L=47 		5-09700-319-0 01 1 0605- ● ● ● ●
208 CLIP; HARNESS,MAG VLV
(A) T=5.5 		5-09709-047-0 04 1 0507- ●
208 CLIP; HARNESS,MAG VLV
(A) T=5.5 		5-09709-047-0 05 1 0507- ●
208 CLIP; HARNESS,MAG VLV
(A) T=5.5 		5-09709-047-0 06 1 0605- ●
çizim 57494
8 38 139 239 547 150 8 239 139 150 38 377 386 19 358 294 469 519 525 219 294 54 219 294
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 BOLT; BRKT,CONNECTOR
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ● ● ●
8 BOLT; BRKT,CONNECTOR
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0604 ● ● ●
8 BOLT; BRKT,CONNECTOR
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0605- ● ● ● ●
8 BOLT; BRKT,CONNECTOR
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0507-0604 ● ● ●
8 BOLT; BRKT,CONNECTOR
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0605-1210 ● ● ● ●
8 BOLT; BRKT,CONNECTOR
(A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 03 1 1211- ● ● ● ●
19 BOLT; PROTECTOR
M10X35 FLANGE 		0-28681-035-0 01 1 0507-0512 ● ● ●
19 BOLT; PROTECTOR
M10X35 FLANGE 		0-28651-035-0 01 1 0601-0604 ● ● ●
19 BOLT; PROTECTOR
M10X35 FLANGE 		0-28651-035-0 01 1 0605- ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0604 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0604 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0605- ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0605- ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0601-0604 ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0605- ● ● ● ●
38 BOLT; CLIP,HARNESS
EXC. FUEL TANK 125L,33GAL<NL7> (A) M8X20 FLANGE 		0-28680-820-0 03 1 0507-0508 ● ● ●
54 NUT
M6 FLANGE 		0-91150-106-0 01 1 0507-0602 ● ● ●
54 NUT
M6 FLANGE 		0-91180-106-0 01 1 0603-0604 ● ● ●
54 NUT
M6 FLANGE 		0-91180-106-0 01 1 0605- ● ● ● ●
139 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ● ● ●
139 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0604 ● ● ●
139 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0605- ● ● ● ●
139 BOLT; BRKT
FUEL TANK 125L,33GAL<NL7> (A) M8X16 FLANGE 		0-28080-816-0 03 1 0507-0508 ● ● ●
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 03 1 0509-0512 ● ● ●
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 03 1 0601-0604 ● ● ●
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 03 1 0605- ● ● ● ●
150 BOLT; CLIP
(A) M8X12 FLANGE 		0-28080-812-0 01 1 0507-0512 ● ● ●
150 BOLT; CLIP
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0604 ● ● ●
150 BOLT; CLIP
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0605- ● ● ● ●
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0507-0512 ● ● ●
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0604 ● ● ●
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0605- ● ● ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603-0604 ● ● ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0605- ● ● ● ●
219 NUT
(C) M5 FLANGE 		5-09440-003-0 01 1 0507-0604 ● ● ●
219 NUT
(C) M5 FLANGE 		5-09440-003-0 01 1 0605- ● ● ● ●
219 NUT
(A) M6 FLANGE 		0-91150-106-0 04 1 0507-0602 ● ● ●
219 NUT
(A) M6 FLANGE 		0-91180-106-0 04 1 0603-0604 ● ● ●
219 NUT
(A) M6 FLANGE 		0-91180-106-0 04 1 0605- ● ● ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603-0604 ● ● ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0605- ● ● ● ●
219 NUT
EXC. FUEL TANK 125L,33GAL<NL7> (B) M8 FLANGE 		0-91150-108-0 03 1 0507-0508 ● ● ●
239 BOLT; GRAND
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0507-0604 ● ● ●
239 BOLT; GRAND
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0605- ● ● ● ●
239 BOLT; GRAND
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0507-0604 ● ● ●
239 BOLT; GRAND
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0605- ● ● ● ●
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-0604 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0605-0606 ● ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0607- ● ● ● ●
294 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-0604 ● ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0605-0606 ● ● ● ●
294 NUT
(C) M10 FLANGE 		0-91180-110-0 02 1 0607- ● ● ● ●
294 NUT
(B) M6 FLANGE 		0-91150-106-0 01 1 0507-0602 ● ● ●
294 NUT
(B) M6 FLANGE 		0-91180-106-0 01 1 0603-0604 ● ● ●
294 NUT
(B) M6 FLANGE 		0-91180-106-0 01 1 0605- ● ● ● ●
358 BOLT; EARTH
M10X12 FLANGE 		0-28181-012-0 01 1 0507-0512 ● ● ●
358 BOLT; EARTH
M10X12 FLANGE 		0-28151-012-0 01 1 0601-0604 ● ● ●
358 BOLT; EARTH
M10X12 FLANGE 		0-28151-012-0 01 1 0605- ● ● ● ●
377 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0507-0604 ● ● ●
377 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0605- ● ● ● ●
386 BOLT; GRAND HARNESS
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0507-0604 ● ● ●
386 BOLT; GRAND HARNESS
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0605- ● ● ● ●
469 NUT; PROTECTOR
M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ● ● ●
469 NUT; PROTECTOR
M10 FLANGE 		0-91180-110-0 01 1 0603-0604 ● ● ●
469 NUT; PROTECTOR
M10 FLANGE 		0-91180-110-0 01 1 0605- ● ● ● ●
519 NUT; EARTH CABLE
M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ● ● ●
519 NUT; EARTH CABLE
M10 FLANGE 		0-91180-110-0 01 1 0603-0604 ● ● ●
519 NUT; EARTH CABLE
M10 FLANGE 		0-91180-110-0 01 1 0605- ● ● ● ●
525 NUT; CLIP
M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ● ● ●
525 NUT; CLIP
M10 FLANGE 		0-91180-110-0 01 1 0603-0604 ● ● ●
525 NUT; CLIP
M10 FLANGE 		0-91180-110-0 01 1 0605- ● ● ● ●
547 BOLT
M6X25 FLANGE 		0-28680-625-0 01 1 0507-0512 ● ● ●
547 BOLT
M6X25 FLANGE 		0-28650-625-0 01 1 0601-0604 ● ● ●
547 BOLT
M6X25 FLANGE 		0-28650-625-0 01 1 0605- ● ● ● ●
çizim 100869
48 48 48 48
BalonParca AdiParca NoAdetTipApplied Date A B C D
48 CLIP; FRAME HARNESS
(B) ID=32 L=75 		1-09700-702-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=32 L=75 		1-09700-702-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 02 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0507-0508 ● ● ●
48 CLIP; FRAME HARNESS
FUEL TANK 125L,33GAL<NL7> (A) ID=14 L=47 		5-09700-319-0 03 1 0507-0508 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0509-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0509-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 02 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 03 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(A) ID=14 L=47 		5-09700-319-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=27 		5-09700-323-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=27 		5-09700-323-0 02 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(H) L=140 		5-09707-031-1 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(H) L=140 		5-09707-031-1 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(I) T=4.5 & 9 		5-09709-023-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(I) T=4.5 & 9 		5-09709-023-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(J) T=6.0 		5-09709-024-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(J) T=6.0 		5-09709-024-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 02 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 02 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=40 L=90 		1-09701-290-0 03 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=40 L=90 		1-09701-290-0 03 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=24 		8-94149-610-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(K) ID=24 		8-94149-610-0 01 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=42 W/STUD 		8-97363-356-0 04 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(L) ID=42 W/STUD 		8-97363-356-0 04 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(I) T=4.5 & 9 		5-09709-023-0 03 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(I) T=4.5 & 9 		5-09709-023-0 03 1 0605- ● ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=11 L=50 		9-09525-085-0 01 1 0507-0604 ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=11 L=50 		9-09525-085-0 01 1 0605-0606 ● ● ● ●
48 CLIP; FRAME HARNESS
(M) ID=11 L=50 		0-95235-085-0 01 1 0607- ● ● ● ●
48 CLIP; FRAME HARNESS
EXC. FUEL TANK 125L,33GAL<NL7> (N) ID=16 L=40 		9-09525-575-0 03 1 0507-0508 ● ● ●

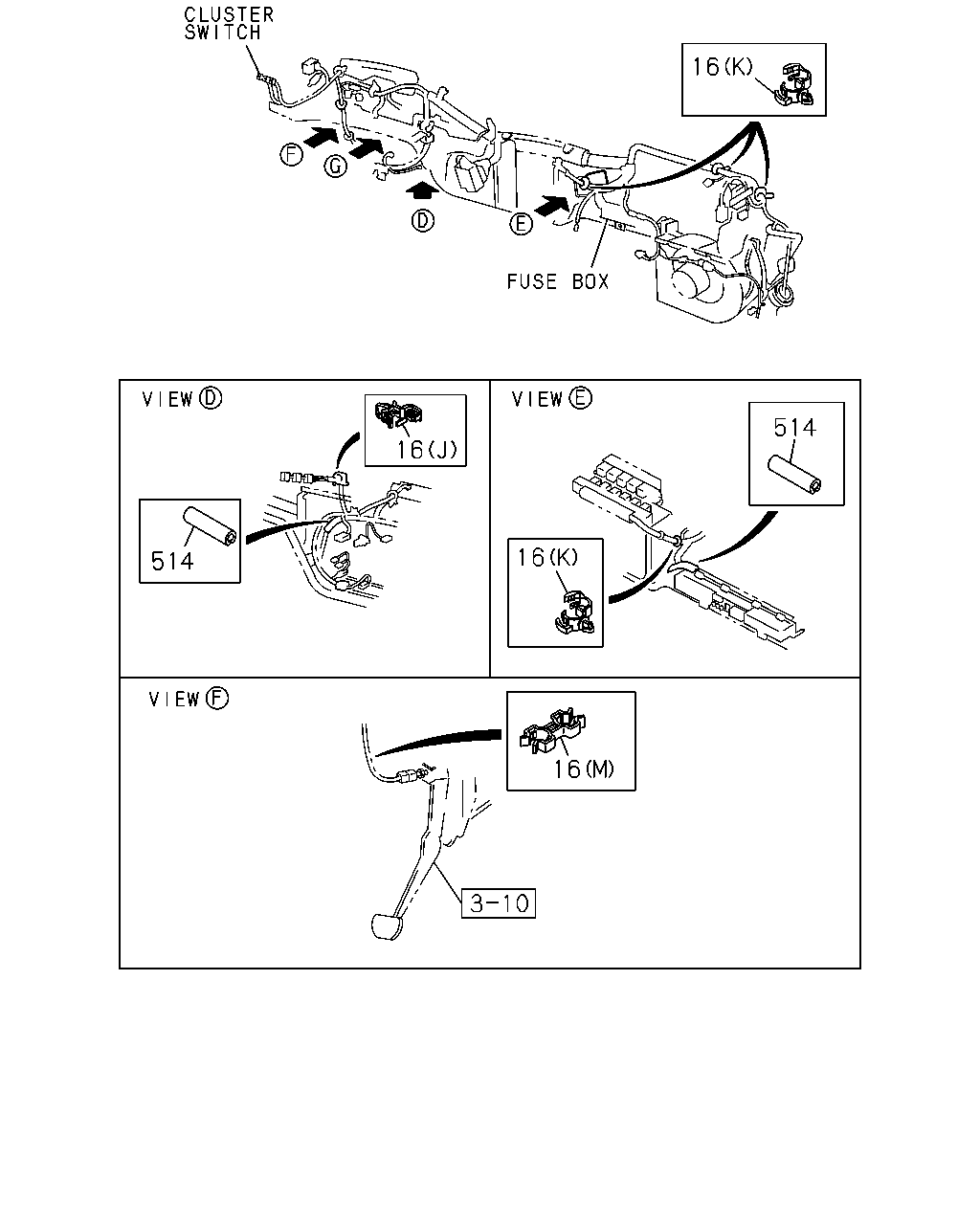

çizim 100897
16 514 16 16 514 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1011-1405 ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (A) L=155 		8-97173-307-0 05 1 1011-1405 ● ● ● ●
16 CLIP; HARNESS
(M) ID=22 & 22 		8-94464-837-0 01 1 0507- ●
16 CLIP; HARNESS
EXC. HYDRO BRAKE BOOSTER(7QQ) (M) ID=22 & 22 		8-94464-837-0 01 1 0507- ● ●
16 CLIP; HARNESS
(B) ID=27 		5-09700-323-0 01 1 0507- ●
16 CLIP; HARNESS
(C) L=135 		1-09987-143-1 01 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(C) L=135 		1-09987-143-1 01 1 0605- ● ● ● ●
16 CLIP; HARNESS
(D) 1 SET=5 PIECE 		1-09987-214-0 03 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(D) 1 SET=5 PIECE 		1-09987-214-0 03 1 0605- ● ● ● ●
16 CLIP; HARNESS
(G) L=250 		5-09707-030-1 01 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(G) L=250 		5-09707-030-1 01 1 0605- ● ● ● ●
16 CLIP; HARNESS
(I) T=4.5 & 9 		5-09709-023-0 03 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(I) T=4.5 & 9 		5-09709-023-0 03 1 0605- ● ● ● ●
16 CLIP; HARNESS
(J) ID=10 & 16 		8-94413-325-0 02 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(J) ID=10 & 16 		8-94413-325-0 02 1 0605- ● ● ● ●
16 CLIP; HARNESS
(K) ID=6 & 10-13 		8-97069-515-0 03 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(K) ID=6 & 10-13 		8-97069-515-0 03 1 0605- ● ● ● ●
16 CLIP; HARNESS
(L) ID=15-32 		8-97174-404-0 04 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(L) ID=15-32 		8-97174-404-0 04 1 0605- ● ● ● ●
16 CLIP; HARNESS
(E) ID=14 L=47 		5-09700-319-0 03 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(E) ID=14 L=47 		5-09700-319-0 03 1 0605- ● ● ● ●
16 CLIP; HARNESS
(F) ID=20 		5-09700-321-0 02 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(F) ID=20 		5-09700-321-0 02 1 0605- ● ● ● ●
16 CLIP; HARNESS
(H) L=140 		5-09707-031-1 01 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(H) L=140 		5-09707-031-1 01 1 0605- ● ● ● ●
16 CLIP; HARNESS
(I) T=4.5 & 9 		5-09709-023-0 02 1 0507-0604 ● ● ●
16 CLIP; HARNESS
(I) T=4.5 & 9 		5-09709-023-0 02 1 0605- ● ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (N) L=175 		8-97110-167-0 04 1 0507-0604 ● ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (N) L=175 		8-97110-167-0 04 1 0605- ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 10 1 0507-0604 ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 10 1 0605-1009 ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 11 1 1010-1010 ● ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 06 1 1011-1405 ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1406- ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (A) L=155 		8-97173-307-0 05 1 1406- ● ● ● ●
16 CLIP; HARNESS
(B) ID=27 		5-09700-323-0 03 1 0507- ●
16 CLIP; HARNESS
(B) ID=27 		5-09700-323-0 04 1 0507- ●
16 CLIP; HARNESS
(B) ID=27 		5-09700-323-0 05 1 0605- ●
514 FINISHER; HARNESS
L=120 SERVICED BY L=2040 		1-71997-513-1 04 1 0507-0604 ● ● ●
514 FINISHER; HARNESS
L=120 SERVICED BY L=2040 		1-71997-513-1 04 1 0605-0606 ● ● ● ●
514 FINISHER; HARNESS
L=120 SERVICED BY L=500 		1-79937-746-0 04 1 0607- ● ● ● ●
514 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0507-0604 ● ● ●
514 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0605- ● ● ● ●
514 FINISHER; HARNESS
GVWR CLASS-5 16001-19500LBS(RQH) L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0507-0604 ● ●
514 FINISHER; HARNESS
GVWR CLASS-5 16001-19500LBS(RQH) L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0605-0606 ● ●
514 FINISHER; HARNESS
L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0605-0606 ●
514 FINISHER; HARNESS
GVWR CLASS-5 16001-19500LBS(RQH) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 0607- ● ●
514 FINISHER; HARNESS
L=175 SERVICED BY L=500 		1-79937-746-0 01 1 0607- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
