8-10 — WIRING HARNESS AND FUSE (#51895) — 154 parça

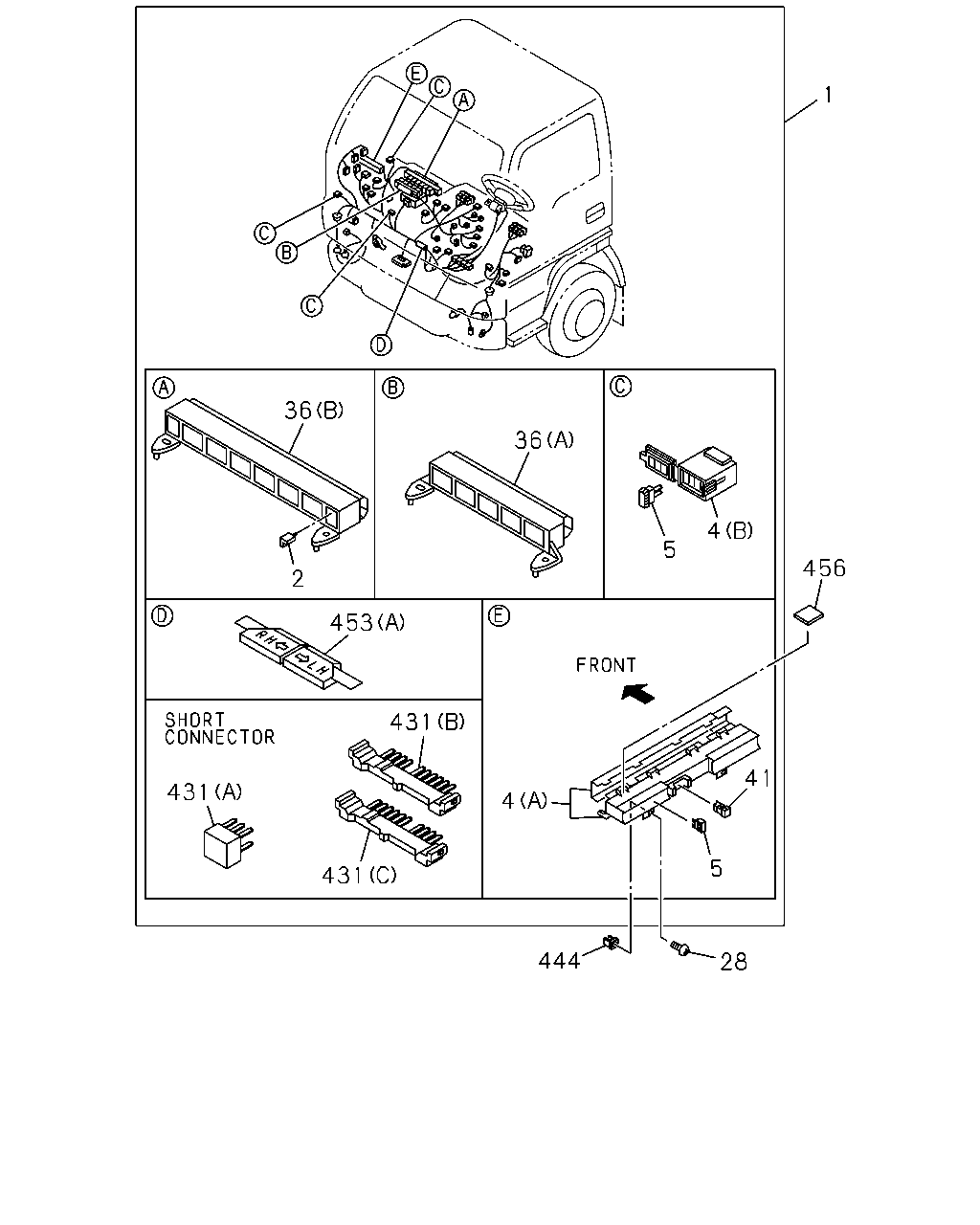

çizim 57430
1 36 36 4 5 456 2 453 431 41 431 4 5 431 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97379-008-5 01 1 0507-0605 ●
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,HYDRO BRAKE BOOSTER(7QQ) 		8-97379-008-5 01 1 0507-0605 ● ●
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98028-204-0 01 1 0606- ●
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,HYDRO BRAKE BOOSTER(7QQ) 		8-98028-204-0 01 1 0606- ● ●
1 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> 		8-97379-010-5 01 1 0507-0605 ●
1 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97379-010-5 01 1 0507-0605 ● ●
1 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> 		8-98028-206-0 01 1 0606- ●
1 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98028-206-0 01 1 0606- ● ●
1 HARNESS; CAB
HYDRO BRAKE BOOSTER(7QQ) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97379-007-5 01 1 0507-0604 ● ●
1 HARNESS; CAB
HYDRO BRAKE BOOSTER(7QQ) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97379-007-5 01 1 0605-0605 ● ●
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97379-007-5 01 1 0605-0605 ●
1 HARNESS; CAB
HYDRO BRAKE BOOSTER(7QQ) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98028-203-0 01 1 0606- ● ●
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98028-203-0 01 1 0606- ●
1 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> HYDRO BRAKE BOOSTER(7QQ) 		8-97379-009-5 01 1 0507-0604 ● ●
1 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> HYDRO BRAKE BOOSTER(7QQ) 		8-97379-009-5 01 1 0605-0605 ● ●
1 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> 		8-97379-009-5 01 1 0605-0605 ●
1 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> HYDRO BRAKE BOOSTER(7QQ) 		8-98028-205-0 01 1 0606- ● ●
1 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> 		8-98028-205-0 01 1 0606- ●
2 DIODE; CABLE HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 0507- ● ● ● ●
4 BOX ASM; FUSE,HARNESS
(B) 		8-94364-546-1 02 1 0507-0604 ● ● ●
4 BOX ASM; FUSE,HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) 		8-94364-546-1 02 1 0605- ● ● ● ●
4 BOX ASM; FUSE,HARNESS
POWER WINDOW FRT DOOR<A32> (B) 		8-94364-546-1 02 1 0605- ● ● ● ●
4 BOX ASM; FUSE,HARNESS
(A) 		8-97214-415-0 01 1 0507-0604 ● ● ●
4 BOX ASM; FUSE,HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) 		8-97214-415-0 01 1 0605- ● ● ● ●
4 BOX ASM; FUSE,HARNESS
POWER WINDOW FRT DOOR<A32> (A) 		8-97214-415-0 01 1 0605- ● ● ● ●
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 AR 1 0507- ● ● ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 AR 1 0507- ● ● ● ●
5 FUSE; FACIA HARNESS
20A YELLOW 		5-82516-004-0 AR 1 0507- ● ● ● ●
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 AR 1 0507- ● ● ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0507-0604 ● ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0605-0605 ● ● ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101 ● ● ● ●
28 SCREW; FUSE BOX
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ● ●
36 BOX; RELAY
(B) 		8-97087-639-2 01 1 0507-0604 ● ● ●
36 BOX; RELAY
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) 		8-97087-639-2 01 1 0605- ● ● ● ●
36 BOX; RELAY
POWER WINDOW FRT DOOR<A32> (B) 		8-97087-639-2 01 1 0605- ● ● ● ●
36 BOX; RELAY
(A) 		8-97087-640-2 01 1 0507-0604 ● ● ●
36 BOX; RELAY
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) 		8-97087-640-2 01 1 0605- ● ● ● ●
36 BOX; RELAY
POWER WINDOW FRT DOOR<A32> (A) 		8-97087-640-2 01 1 0605- ● ● ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0507-0604 ● ● ●
41 PULLER; FUSE
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> L=25.3 B=11.5 		8-94121-482-0 01 1 0605- ● ● ● ●
41 PULLER; FUSE
POWER WINDOW FRT DOOR<A32> L=25.3 B=11.5 		8-94121-482-0 01 1 0605- ● ● ● ●
431 CONNECTOR; JOINT
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) 10P BLUE 		1-82699-598-0 04 1 0606- ● ● ● ●
431 CONNECTOR; JOINT
POWER WINDOW FRT DOOR<A32> (B) 10P BLUE 		1-82699-598-0 04 1 0606- ● ● ● ●
431 CONNECTOR; JOINT
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) 10P GREEN 		1-82699-599-0 01 1 0606- ● ● ● ●
431 CONNECTOR; JOINT
POWER WINDOW FRT DOOR<A32> (C) 10P GREEN 		1-82699-599-0 01 1 0606- ● ● ● ●
431 CONNECTOR; JOINT
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) 6P 		8-97077-941-0 01 1 0606- ● ● ● ●
431 CONNECTOR; JOINT
POWER WINDOW FRT DOOR<A32> (A) 6P 		8-97077-941-0 01 1 0606- ● ● ● ●
444 GROMMET; SCREW,FUSE BOX
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0507-0604 ● ● ●
444 GROMMET; SCREW,FUSE BOX
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0605- ● ● ● ●
453 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 0507-0604 ● ● ●
453 PROTECTOR; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) 		8-97074-957-0 01 1 0605- ● ● ● ●
453 PROTECTOR; HARNESS
POWER WINDOW FRT DOOR<A32> (A) 		8-97074-957-0 01 1 0605- ● ● ● ●
453 PROTECTOR; HARNESS
(B) 		8-97120-591-1 01 1 0507-0604 ● ● ●
453 PROTECTOR; HARNESS
(B) 		8-97120-591-1 01 1 0605- ● ● ● ●
456 CUSHION; FUSE BOX
15X30 T=5 		8-94270-366-2 01 1 0507-0604 ● ● ●
456 CUSHION; FUSE BOX
15X30 T=5 		8-94270-366-2 01 1 0605- ● ● ● ●

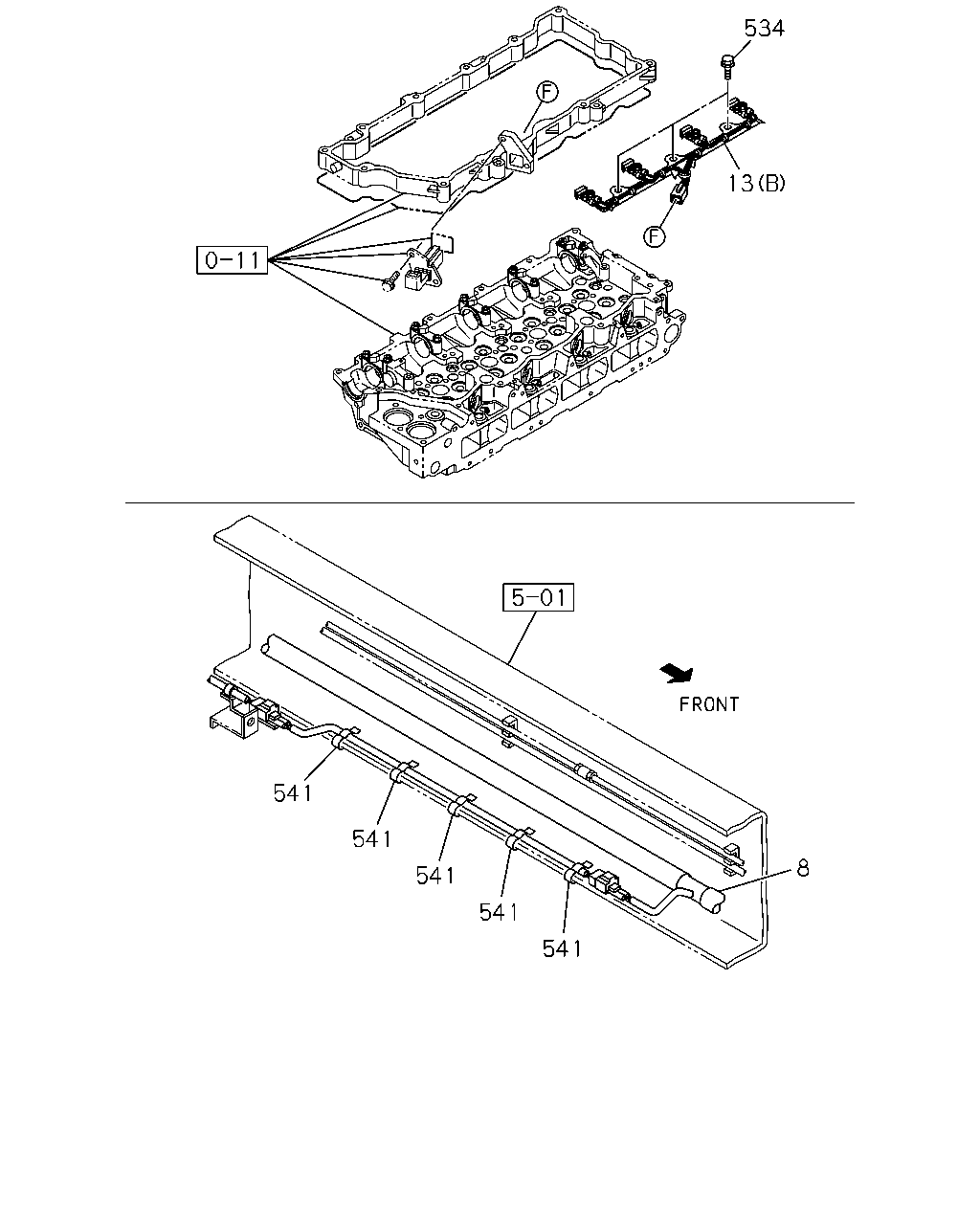

çizim 57466
534 13 541 541 8 541 541 541
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 HARNESS; FRAME,FRT 8-98009-755-0 01 1 0507- ●
8 HARNESS; FRAME,FRT 8-98009-756-0 01 1 0507- ●
8 HARNESS; FRAME,FRT 8-98009-757-0 01 1 0507- ●
8 HARNESS; FRAME,FRT 8-98009-758-0 01 1 0605- ●
13 HARNESS; ENG
(A) 		8-97310-503-4 01 1 0507-0509 ● ● ●
13 HARNESS; ENG
(A) 		8-98023-702-0 01 1 0510-0604 ● ● ●
13 HARNESS; ENG
(A) 		8-98023-702-0 01 1 0605- ● ● ● ●
13 HARNESS; ENG
(B) 		8-97332-133-2 01 1 0507-0604 ● ● ●
13 HARNESS; ENG
(B) 		8-97332-133-3 01 1 0605- ● ● ● ●
534 BOLT
M10X55 FLANGE 		8-94399-863-1 03 1 0507-0604 ● ● ●
534 BOLT
M10X55 FLANGE 		8-94399-863-1 03 1 0605-0805 ● ● ● ●
534 BOLT
M10X55 FLANGE 		8-97365-449-0 03 1 0806- ● ● ● ●
541 CLIP
T=6.0 		5-09709-012-0 10 1 0507-0604 ● ● ●
541 CLIP
T=6.0 		5-09709-012-0 10 1 0605- ● ● ● ●

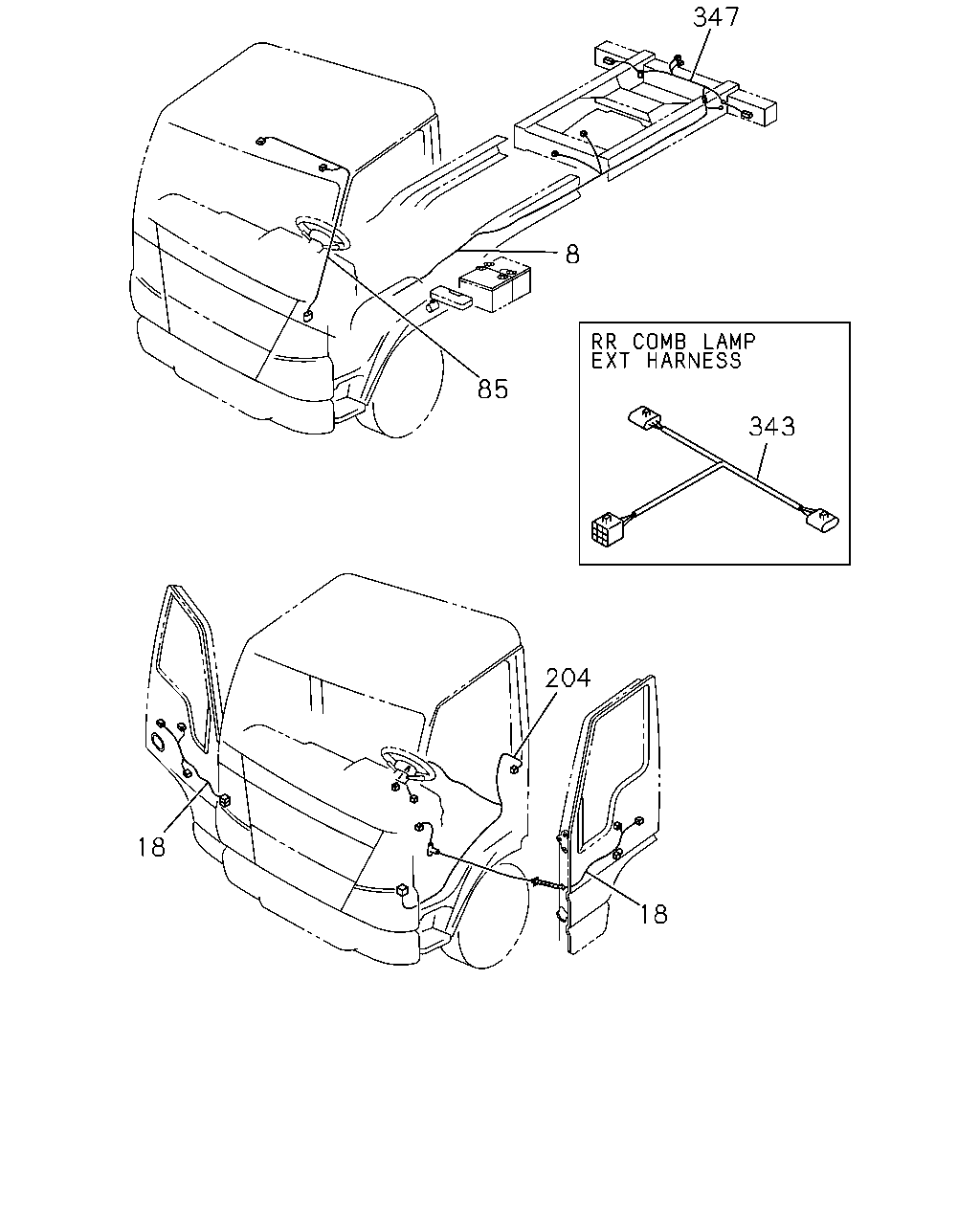

çizim 57467
347 8 85 343 204 18 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 HARNESS; FRAME,FRT 8-98009-755-0 01 1 0507- ●
8 HARNESS; FRAME,FRT 8-98009-756-0 01 1 0507- ●
8 HARNESS; FRAME,FRT 8-98009-757-0 01 1 0507- ●
8 HARNESS; FRAME,FRT 8-98009-758-0 01 1 0605- ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> 		8-97226-669-0 01 1 1011-1405 ● ● ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 1406- ● ● ● ●
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97105-936-1 02 1 0507-0604 ● ● ●
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97105-936-1 02 1 0605- ● ● ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97245-412-0 01 1 0507-0604 ● ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97245-412-0 01 1 0605- ● ● ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 0507-0604 ● ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 0605-1009 ● ● ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98166-820-0 01 1 1010-1010 ● ● ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98166-820-0 01 1 1011-1405 ● ● ● ●
85 HARNESS; ROOM LAMP
LAMPS-FIVE,ROOF MARKER<U01> 		8-97162-628-2 01 1 0507-0508 ● ● ●
85 HARNESS; ROOM LAMP 8-97162-628-2 01 1 0509-0604 ● ● ●
85 HARNESS; ROOM LAMP 8-97162-628-2 01 1 0605- ● ● ● ●
85 HARNESS; ROOM LAMP
EXC. LAMPS-FIVE,ROOF MARKER<U01> 		8-97162-640-2 01 1 0507-0508 ● ● ●
204 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0507-0604 ● ● ●
204 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0605- ● ● ● ●
343 HARNESS; EXT,RR COMB LAMP 8-97249-292-0 01 1 0507-0604 ● ● ●
343 HARNESS; EXT,RR COMB LAMP 8-97249-292-0 01 1 0605- ● ● ● ●
347 HARNESS; CABLE,RR BODY 8-97147-852-1 01 1 0507-0604 ● ● ●
347 HARNESS; CABLE,RR BODY 8-97147-852-1 01 1 0605- ● ● ● ●

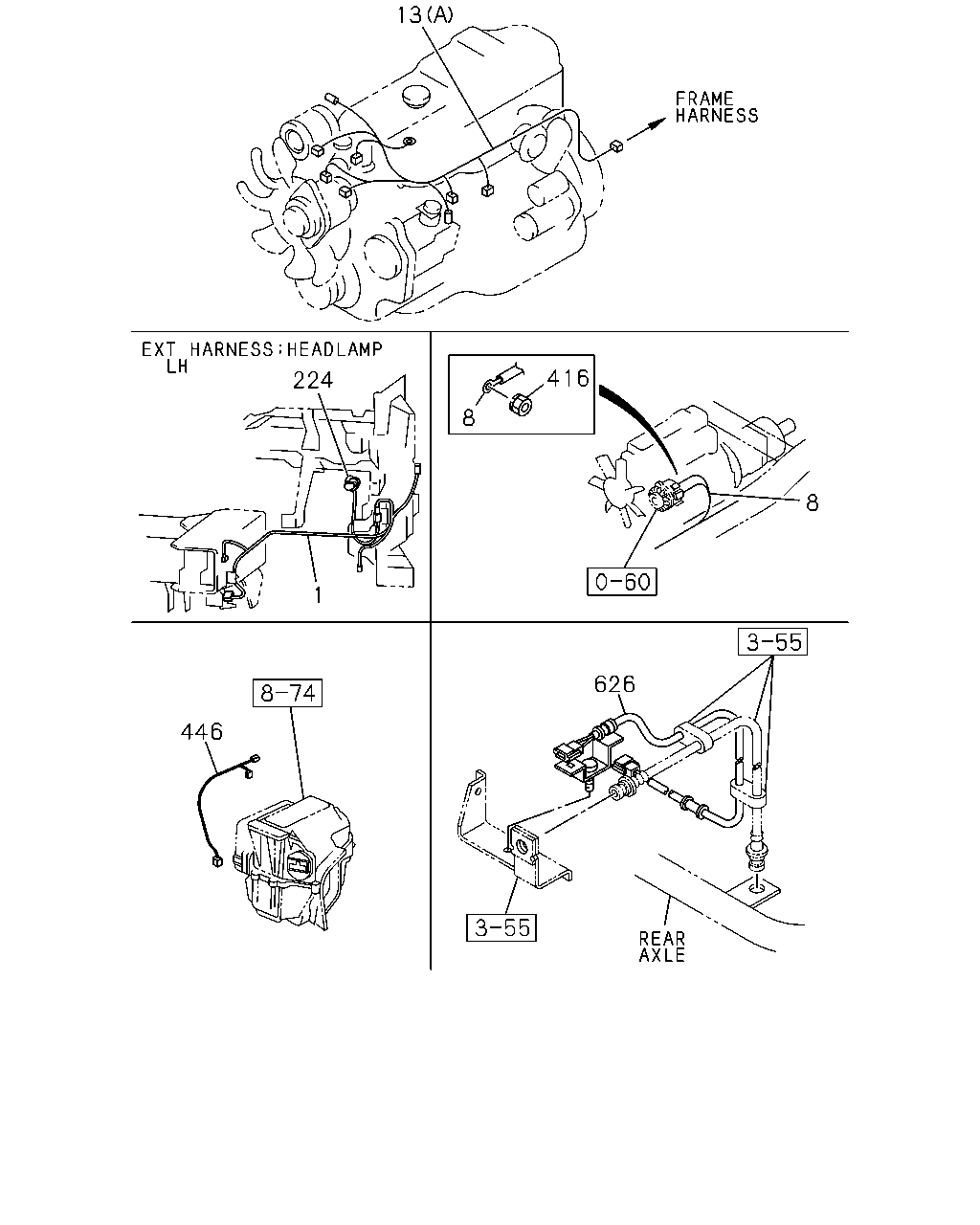

çizim 57468
13 416 224 8 8 1 626 446
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97379-008-5 01 1 0507-0605 ●
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,HYDRO BRAKE BOOSTER(7QQ) 		8-97379-008-5 01 1 0507-0605 ● ●
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98028-204-0 01 1 0606- ●
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,HYDRO BRAKE BOOSTER(7QQ) 		8-98028-204-0 01 1 0606- ● ●
1 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> 		8-97379-010-5 01 1 0507-0605 ●
1 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97379-010-5 01 1 0507-0605 ● ●
1 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> 		8-98028-206-0 01 1 0606- ●
1 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98028-206-0 01 1 0606- ● ●
1 HARNESS; CAB
HYDRO BRAKE BOOSTER(7QQ) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97379-007-5 01 1 0507-0604 ● ●
1 HARNESS; CAB
HYDRO BRAKE BOOSTER(7QQ) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97379-007-5 01 1 0605-0605 ● ●
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97379-007-5 01 1 0605-0605 ●
1 HARNESS; CAB
HYDRO BRAKE BOOSTER(7QQ) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98028-203-0 01 1 0606- ● ●
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98028-203-0 01 1 0606- ●
1 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> HYDRO BRAKE BOOSTER(7QQ) 		8-97379-009-5 01 1 0507-0604 ● ●
1 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> HYDRO BRAKE BOOSTER(7QQ) 		8-97379-009-5 01 1 0605-0605 ● ●
1 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> 		8-97379-009-5 01 1 0605-0605 ●
1 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> HYDRO BRAKE BOOSTER(7QQ) 		8-98028-205-0 01 1 0606- ● ●
1 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> 		8-98028-205-0 01 1 0606- ●
8 HARNESS; FRAME,FRT 8-98009-755-0 01 1 0507- ●
8 HARNESS; FRAME,FRT 8-98009-756-0 01 1 0507- ●
8 HARNESS; FRAME,FRT 8-98009-757-0 01 1 0507- ●
8 HARNESS; FRAME,FRT 8-98009-758-0 01 1 0605- ●
13 HARNESS; ENG
(A) 		8-97310-503-4 01 1 0507-0509 ● ● ●
13 HARNESS; ENG
(A) 		8-98023-702-0 01 1 0510-0604 ● ● ●
13 HARNESS; ENG
(A) 		8-98023-702-0 01 1 0605- ● ● ● ●
13 HARNESS; ENG
(B) 		8-97332-133-2 01 1 0507-0604 ● ● ●
13 HARNESS; ENG
(B) 		8-97332-133-3 01 1 0605- ● ● ● ●
224 HARNESS; EXT,HEADLAMP 8-97387-962-0 01 1 0507-0604 ● ● ●
224 HARNESS; EXT,HEADLAMP 8-97387-962-0 01 1 0605- ● ● ● ●
416 NUT; TERMINAL
M8 W/LK WASHER 		8-94413-537-0 01 1 0507-0604 ● ● ●
416 NUT; TERMINAL
M8 W/LK WASHER 		8-94413-537-0 01 1 0605- ● ● ● ●
446 HARNESS; EXT,CERAMIC HEATER 8-97378-409-0 01 1 0507-0604 ● ● ●
446 HARNESS; EXT,CERAMIC HEATER 8-97378-409-0 01 1 0605- ● ● ● ●
626 HARNESS; FLEX HOSE 8-97253-968-1 01 1 0507-0604 ● ● ●
626 HARNESS; FLEX HOSE 8-97253-968-1 01 1 0605- ● ● ● ●
626 HARNESS; FLEX HOSE 8-97207-700-1 01 1 0507-0604 ● ● ●
626 HARNESS; FLEX HOSE 8-97207-700-1 01 1 0605- ● ● ● ●

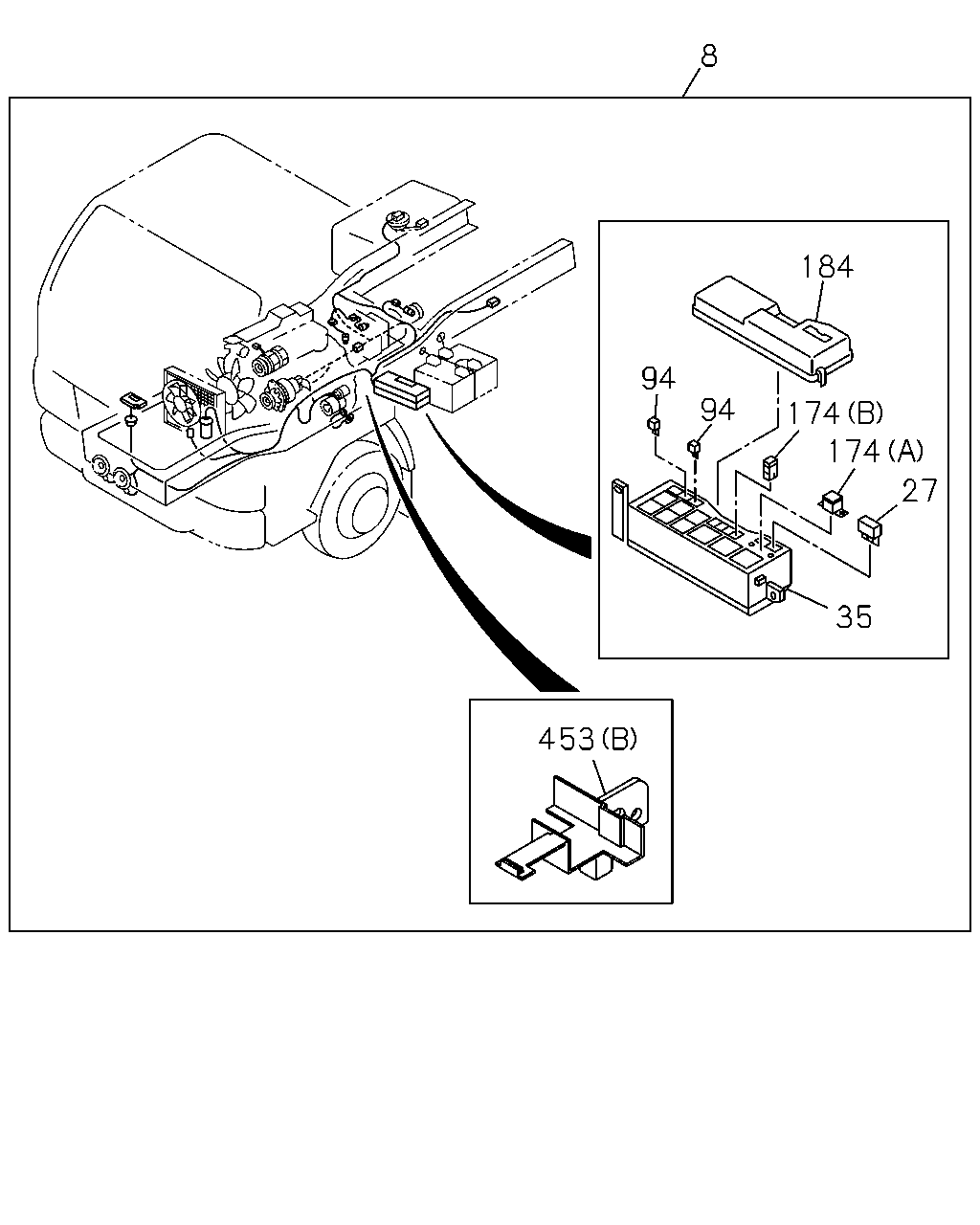

çizim 100896
8 184 174 174 94 94 27 35 453
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 HARNESS; FRAME,FRT 8-98009-755-0 01 1 0507- ●
8 HARNESS; FRAME,FRT 8-98009-756-0 01 1 0507- ●
8 HARNESS; FRAME,FRT 8-98009-757-0 01 1 0507- ●
8 HARNESS; FRAME,FRT 8-98009-758-0 01 1 0605- ●
27 FUSE UNIT
15A BLUE 		5-82516-003-0 AR 1 0507- ● ● ● ●
27 FUSE UNIT
20A YELLOW 		5-82516-004-0 AR 1 0507- ● ● ● ●
35 BOX; RELAY & FUSE 8-97063-150-1 01 1 0507-0604 ● ● ●
35 BOX; RELAY & FUSE 8-97063-150-1 01 1 0605- ● ● ● ●
94 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 03 1 0507-0604 ● ● ●
94 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 03 1 0605- ● ● ● ●
174 FUSE; SLOW BLOW
(A) 100A BLUE 		8-94388-306-0 AR 1 0507- ● ● ● ●
174 FUSE; SLOW BLOW
(B) 50A RED 		8-94468-663-0 AR 1 0507- ● ● ● ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-94468-664-0 AR 1 0507- ● ● ● ●
184 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 0507-0604 ● ● ●
184 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 0605- ● ● ● ●
453 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 0507-0604 ● ● ●
453 PROTECTOR; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) 		8-97074-957-0 01 1 0605- ● ● ● ●
453 PROTECTOR; HARNESS
POWER WINDOW FRT DOOR<A32> (A) 		8-97074-957-0 01 1 0605- ● ● ● ●
453 PROTECTOR; HARNESS
(B) 		8-97120-591-1 01 1 0507-0604 ● ● ●
453 PROTECTOR; HARNESS
(B) 		8-97120-591-1 01 1 0605- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
