8-01 — LAMP; FRONT AND FRONT SIDE (#51892) — 86 parça

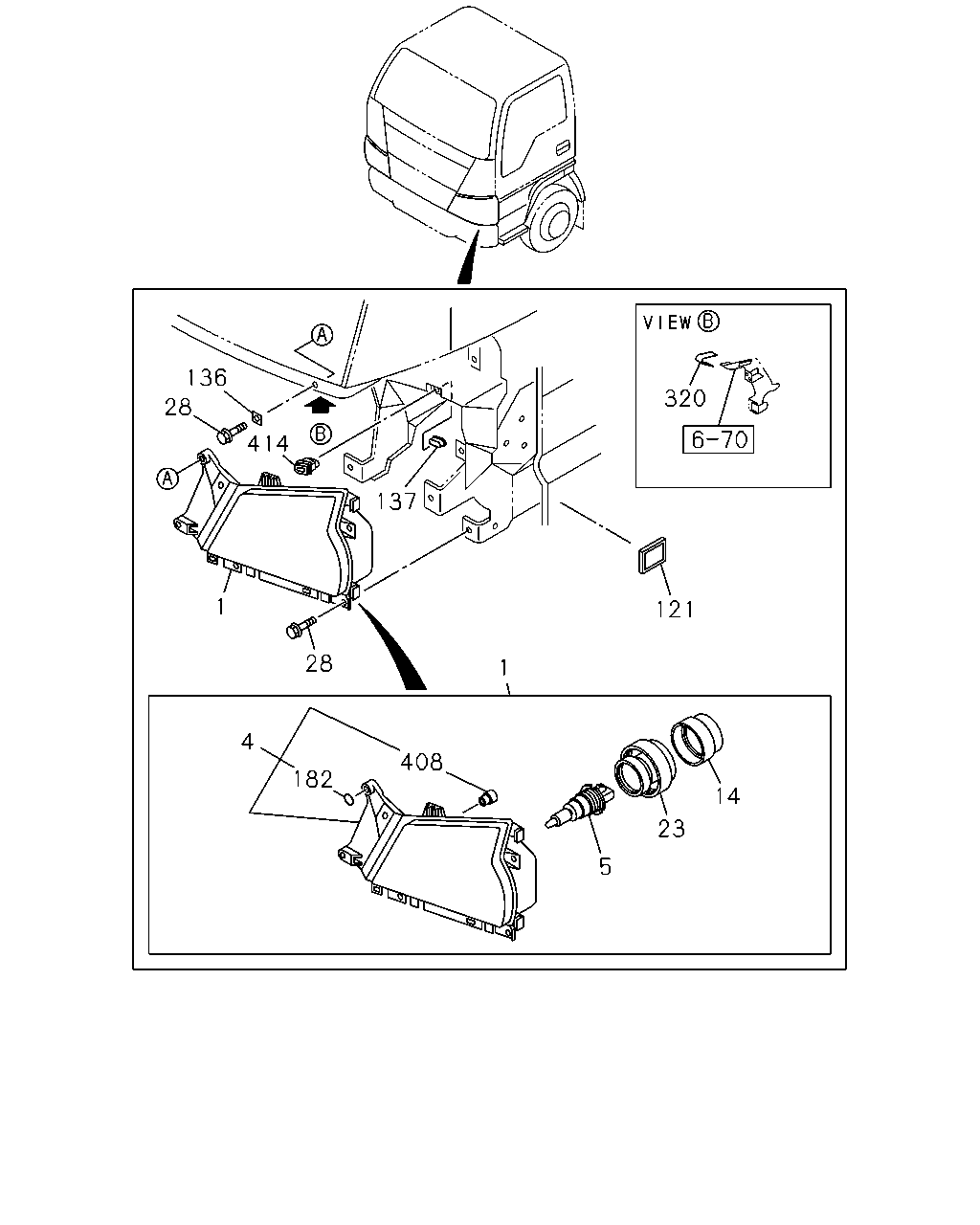

136 320 28 414 137 1 121 28 1 4 408 182 14 23 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	LAMP ASM; HEAD	8-97376-912-3	01	1	0507-0604	●	●	●
1	LAMP ASM; HEAD	8-97376-912-3	01	1	0605-	●	●	●	●
1	LAMP ASM; HEAD	8-97376-911-3	01	1	0507-0604	●	●	●
1	LAMP ASM; HEAD	8-97376-911-3	01	1	0605-	●	●	●	●
4	HEADLAMP UNIT	8-98009-831-0	01	1	0507-0604	●	●	●
4	HEADLAMP UNIT	8-98009-831-0	01	1	0605-	●	●	●	●
4	HEADLAMP UNIT	8-98009-830-0	01	1	0507-0604	●	●	●
4	HEADLAMP UNIT	8-98009-830-0	01	1	0605-	●	●	●	●
5	BULB; HEADLAMP 12V 65/55W	8-97379-226-0	02	1	0507-0604	●	●	●
5	BULB; HEADLAMP 12V 65/55W	8-97379-226-0	02	1	0605-	●	●	●	●
14	CAP; BULB,LAMP	8-97379-224-0	02	1	0507-0604	●	●	●
14	CAP; BULB,LAMP	8-97379-224-0	02	1	0605-	●	●	●	●
23	COVER; BULB,HEADLAMP	8-97379-221-0	02	1	0507-0604	●	●	●
23	COVER; BULB,HEADLAMP	8-97379-221-0	02	1	0605-	●	●	●	●
28	BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0507-0604	●	●	●
28	BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0605-0607	●	●	●	●
28	BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-98031-842-0	08	1	0608-1401	●	●	●	●
28	BOLT; HEADLAMP M6X23.5 W/LK&PL WASHER	8-98164-723-0	08	1	1402-	●	●	●	●
121	REFLECTOR; REFLEX	8-98013-990-0	02	1	0507-0604	●	●	●
121	REFLECTOR; REFLEX	8-98013-990-1	02	1	0605-	●	●	●	●
136	SEAL; HEADLAMP 25X25	8-94272-533-0	02	1	0507-0604	●	●	●
136	SEAL; HEADLAMP 25X25	8-94272-533-0	02	1	0605-	●	●	●	●
137	GROMMET; HEADLAMP	8-97581-666-0	02	1	0507-0604	●	●	●
137	GROMMET; HEADLAMP	8-97581-666-0	02	1	0605-	●	●	●	●
182	GASKET; HEADLAMP	8-97378-869-0	02	1	0507-0604	●	●	●
182	GASKET; HEADLAMP	8-97378-869-0	02	1	0605-	●	●	●	●
320	SEALER; HEADLAMP BRKT	8-97850-499-1	01	1	0507-0604	●	●	●
320	SEALER; HEADLAMP BRKT	8-97850-499-1	01	1	0605-	●	●	●	●
408	CAP; BREATHER,HEADLAMP	8-97378-874-0	02	1	0507-0604	●	●	●
408	CAP; BREATHER,HEADLAMP	8-97378-874-0	02	1	0605-	●	●	●	●
414	PIN; HEADLAMP,RIM	8-97581-667-0	02	1	0507-0604	●	●	●
414	PIN; HEADLAMP,RIM	8-97581-667-0	02	1	0605-	●	●	●	●

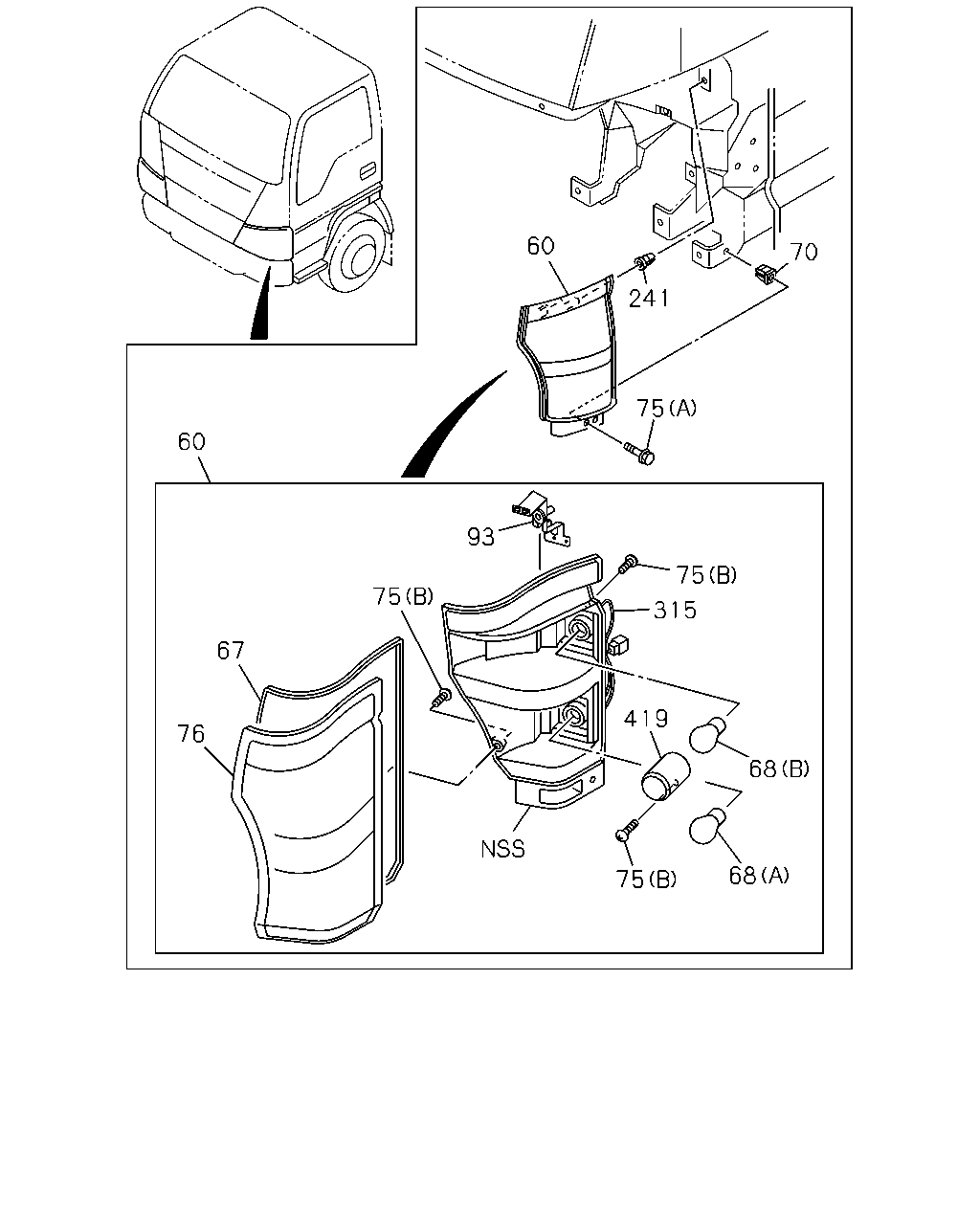

60 70 241 75 60 93 75 75 315 67 419 76 68 68 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
60	LAMP ASM; FRT COMB	8-98010-894-0	01	1	0507-0604	●	●	●
60	LAMP ASM; FRT COMB	8-98010-894-0	01	1	0605-	●	●	●	●
60	LAMP ASM; FRT COMB	8-98010-893-0	01	1	0507-0604	●	●	●
60	LAMP ASM; FRT COMB	8-98010-893-0	01	1	0605-	●	●	●	●
67	GASKET; FRT COMB LAMP	8-97378-948-0	02	1	0507-0604	●	●	●
67	GASKET; FRT COMB LAMP	8-97378-948-0	02	1	0605-	●	●	●	●
68	BULB; FRT COMB LAMP (A) 12V 27/8W	8-94404-036-0	02	1	0507-0604	●	●	●
68	BULB; FRT COMB LAMP (A) 12V 27/8W	8-94404-036-0	02	1	0605-	●	●	●	●
68	BULB; FRT COMB LAMP (B) 12V 27/8W	8-97183-462-0	02	1	0507-0604	●	●	●
68	BULB; FRT COMB LAMP (B) 12V 27/8W	8-97183-462-0	02	1	0605-	●	●	●	●
70	GROMMET; SCREW,FRT COMB LAMP	1-09983-081-0	02	1	0507-0604	●	●	●
70	GROMMET; SCREW,FRT COMB LAMP	1-09983-081-0	02	1	0605-	●	●	●	●
75	SCREW; FRT COMB LAMP (A) M6X16 TAPPING	8-97374-995-0	02	1	0507-0604	●	●	●
75	SCREW; FRT COMB LAMP (A) M6X16 TAPPING	8-97374-995-0	02	1	0605-	●	●	●	●
75	SCREW; FRT COMB LAMP (B) M4X12	8-97378-944-0	14	1	0507-0604	●	●	●
75	SCREW; FRT COMB LAMP (B) M4X12	8-97378-944-0	14	1	0605-	●	●	●	●
76	LENS; FRT COMB LAMP	8-97378-968-0	01	1	0507-0604	●	●	●
76	LENS; FRT COMB LAMP	8-97378-968-0	01	1	0605-	●	●	●	●
76	LENS; FRT COMB LAMP	8-97378-967-0	01	1	0507-0604	●	●	●
76	LENS; FRT COMB LAMP	8-97378-967-0	01	1	0605-	●	●	●	●
93	BRACKET; SIDE COMB LAMP	8-97378-945-0	01	1	0507-0604	●	●	●
93	BRACKET; SIDE COMB LAMP	8-97378-945-0	01	1	0605-	●	●	●	●
93	BRACKET; SIDE COMB LAMP	8-97378-943-0	01	1	0507-0604	●	●	●
93	BRACKET; SIDE COMB LAMP	8-97378-943-0	01	1	0605-	●	●	●	●
241	GROMMET; FRT LAMP	8-97380-030-0	02	1	0507-0604	●	●	●
241	GROMMET; FRT LAMP	8-97380-030-0	02	1	0605-	●	●	●	●
315	HARNESS; FRT COMB LAMP	8-98010-918-0	02	1	0507-0604	●	●	●
315	HARNESS; FRT COMB LAMP	8-98010-918-0	02	1	0605-	●	●	●	●
419	LENS; INNER,FRT COMB LAMP	8-97378-947-0	01	1	0507-0604	●	●	●
419	LENS; INNER,FRT COMB LAMP	8-97378-947-0	01	1	0605-	●	●	●	●
419	LENS; INNER,FRT COMB LAMP	8-97378-946-0	01	1	0507-0604	●	●	●
419	LENS; INNER,FRT COMB LAMP	8-97378-946-0	01	1	0605-	●	●	●	●

256 82 292 83 80 86 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
80	BULB; MARKER LAMP LAMPS-FIVE,ROOF MARKER<U01> 12V 5W	8-97330-503-0	05	1	0507-0508	●	●	●
80	BULB; MARKER LAMP 12V 5W	8-97330-503-0	05	1	0509-0604	●	●	●
80	BULB; MARKER LAMP 12V 5W	8-97330-503-0	05	1	0605-	●	●	●	●
82	SCREW; MARKER LAMP LAMPS-FIVE,ROOF MARKER<U01>	1-82219-011-0	10	1	0507-0508	●	●	●
82	SCREW; MARKER LAMP	1-82219-011-0	10	1	0509-0604	●	●	●
82	SCREW; MARKER LAMP	1-82219-011-0	10	1	0605-	●	●	●	●
83	LENS; MARKER LAMP LAMPS-FIVE,ROOF MARKER<U01> ORANGE	1-82215-042-0	05	1	0507-0508	●	●	●
83	LENS; MARKER LAMP ORANGE	1-82215-042-0	05	1	0509-0604	●	●	●
83	LENS; MARKER LAMP ORANGE	1-82215-042-0	05	1	0605-	●	●	●	●
84	GASKET; MARKER LAMP LAMPS-FIVE,ROOF MARKER<U01>	1-82216-021-0	05	1	0507-0508	●	●	●
84	GASKET; MARKER LAMP	1-82216-021-0	05	1	0509-0604	●	●	●
84	GASKET; MARKER LAMP	1-82216-021-0	05	1	0605-	●	●	●	●
86	NUT; MARKER LAMP LAMPS-FIVE,ROOF MARKER<U01> M6 FLANGE	0-91150-106-0	10	1	0507-0508	●	●	●
86	NUT; MARKER LAMP M6 FLANGE	0-91150-106-0	10	1	0509-0602	●	●	●
86	NUT; MARKER LAMP M6 FLANGE	0-91180-106-0	10	1	0603-0604	●	●	●
86	NUT; MARKER LAMP M6 FLANGE	0-91180-106-0	10	1	0605-	●	●	●	●
256	LAMP; MARKER LAMPS-FIVE,ROOF MARKER<U01>	8-97351-813-0	05	1	0507-0508	●	●	●
256	LAMP; MARKER	8-97351-813-0	05	1	0509-0604	●	●	●
256	LAMP; MARKER	8-97351-813-1	05	1	0605-	●	●	●	●
292	WASHER; MARKER LAMP LAMPS-FIVE,ROOF MARKER<U01>	1-82219-012-0	10	1	0507-0508	●	●	●
292	WASHER; MARKER LAMP	1-82219-012-0	10	1	0509-0604	●	●	●
292	WASHER; MARKER LAMP	1-82219-012-0	10	1	0605-	●	●	●	●
