◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51047 - ELF400/450(MEXICO) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#51891) — 34 parça

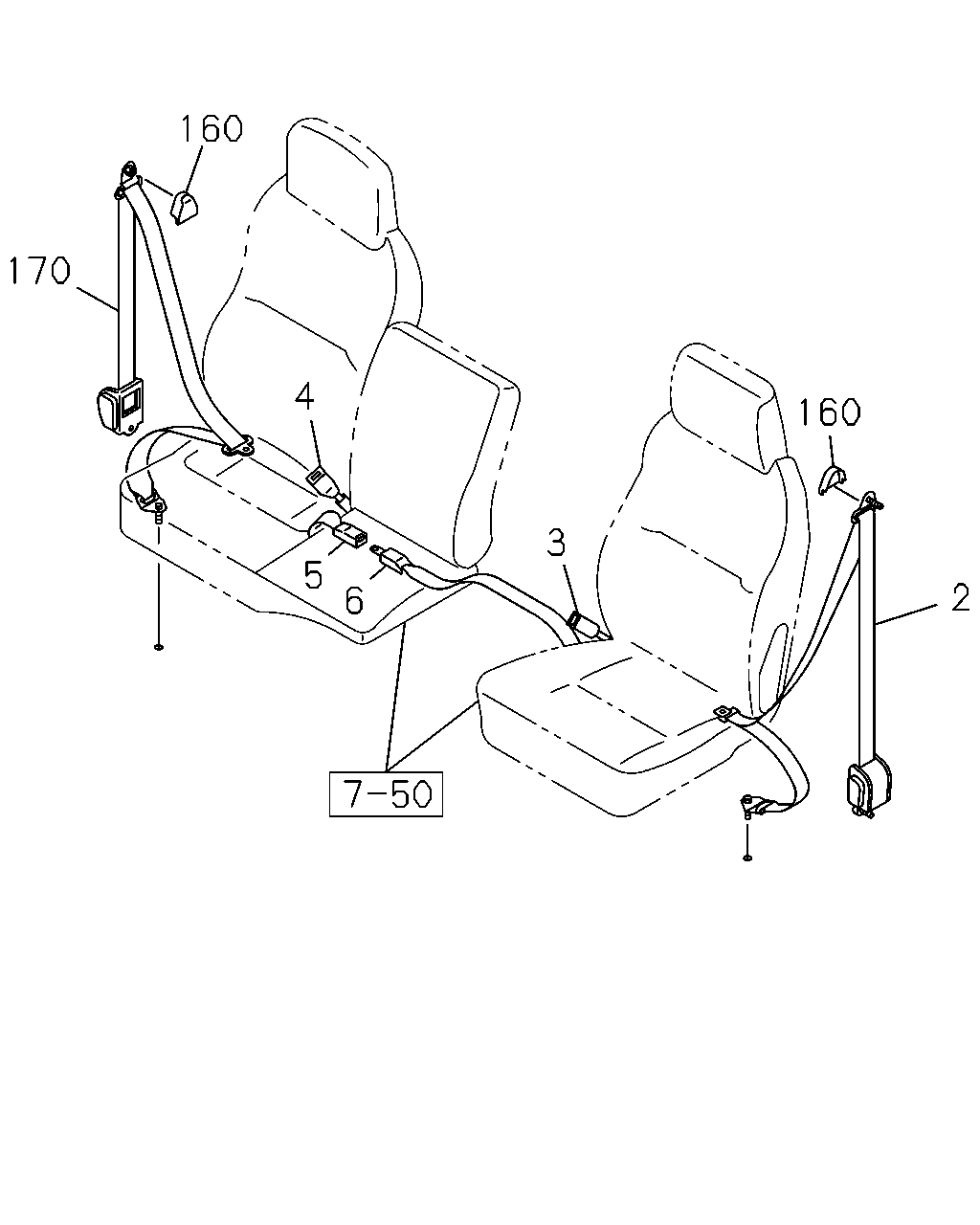

çizim 57356
160 170 4 160 3 5 2 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97400-111-0 01 1 0507-0507 ● ● ●
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97404-965-1 01 1 0508-0604 ● ● ●
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97404-965-1 01 1 0605- ● ● ● ●
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97400-919-0 01 1 0507-0604 ● ● ●
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97400-919-0 01 1 0605- ● ● ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97396-952-0 01 1 0507-0604 ● ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97396-952-0 01 1 0605- ● ● ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97401-516-0 01 1 0507-0512 ● ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97404-304-0 01 1 0601-0604 ● ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97404-304-0 01 1 0605- ● ● ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97400-451-0 01 1 0507-0507 ● ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97404-967-0 01 1 0508-0604 ● ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97404-967-0 01 1 0605- ● ● ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 01 1 0507-0604 ● ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 01 1 0605- ● ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97400-112-0 01 1 0507-0507 ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97404-966-1 01 1 0508-0604 ● ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97404-966-1 01 1 0605- ● ● ● ●
çizim 57357
152 41 41 41 161 166 166 161 176 166 161 166
BalonParca AdiParca NoAdetTipApplied Date A B C D
41 NUT; BRKT,ANCHOR
M8 W/LK WASHER 		8-94327-073-0 04 1 0507-0604 ● ● ●
41 NUT; BRKT,ANCHOR
M8 W/LK WASHER 		8-94327-073-0 04 1 0605-0805 ● ● ● ●
41 NUT; BRKT,ANCHOR
M8 W/LK WASHER 		8-97581-234-0 04 1 0806- ● ● ● ●
152 PROTECTOR 8-97287-563-0 02 1 0507-0604 ● ● ●
152 PROTECTOR 8-97287-563-0 02 1 0605- ● ● ● ●
161 REINFORCEMENT; SEAT BELT ANCHOR
(B) 		8-97850-427-1 01 1 0507-0604 ● ● ●
161 REINFORCEMENT; SEAT BELT ANCHOR
(B) 		8-97850-427-1 01 1 0605- ● ● ● ●
161 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-376-2 01 1 0507-0604 ● ● ●
161 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-376-2 01 1 0605- ● ● ● ●
161 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-286-5 01 1 0507-0604 ● ● ●
161 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-286-5 01 1 0605- ● ● ● ●
166 BOLT; SEAT BELT ANCHOR
M8X25 FLANGE 		0-28680-825-0 07 1 0507-0512 ● ● ●
166 BOLT; SEAT BELT ANCHOR
M8X25 FLANGE 		0-28650-825-0 07 1 0601-0604 ● ● ●
166 BOLT; SEAT BELT ANCHOR
M8X25 FLANGE 		0-28650-825-0 07 1 0605- ● ● ● ●
176 PATCH ASM; ANCHOR HOLE FIX 1-79998-900-0 01 1 0507-0604 ● ● ●
176 PATCH ASM; ANCHOR HOLE FIX 1-79998-900-0 01 1 0605- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
