7-50 — FRONT SEAT (#51890) — 73 parça
çizim 57353
1 17 99 2 18 19 12 24 228 13 69 382 71 63
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BACK ASM; SEAT
DARK GRAY 		8-97400-098-2 01 1 0507-0604 ● ● ●
1 BACK ASM; SEAT
DARK GRAY 		8-97400-098-2 01 1 0605-0605 ● ● ● ●
1 BACK ASM; SEAT
DARK GRAY 		8-97407-812-0 01 1 0606- ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97400-099-1 01 1 0507-0604 ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97400-099-1 01 1 0605-0605 ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97407-813-0 01 1 0606- ● ● ● ●
12 CUSHION; SEAT,FRT
DARK GRAY 		8-97400-100-1 01 1 0507-0604 ● ● ●
12 CUSHION; SEAT,FRT
DARK GRAY 		8-97400-100-1 01 1 0605-0605 ● ● ● ●
12 CUSHION; SEAT,FRT
DARK GRAY 		8-97407-814-0 01 1 0606- ● ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97400-101-1 01 1 0507-0604 ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97400-101-1 01 1 0605-0605 ● ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97407-815-0 01 1 0606- ● ● ● ●
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0507-0604 ● ● ●
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0605- ● ● ● ●
18 COVER; RECLINING
DARK GRAY 		8-97400-095-0 01 1 0507-0604 ● ● ●
18 COVER; RECLINING
DARK GRAY 		8-97400-095-0 01 1 0605- ● ● ● ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0507-0604 ● ● ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0605-0605 ● ● ● ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605- ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97400-096-0 01 1 0507-0604 ● ● ●
24 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97400-096-0 01 1 0605-0804 ● ● ● ●
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97415-446-0 01 1 0805- ● ● ● ●
63 ADJUSTER; SEAT SLIDE 8-97854-670-3 01 1 0507-0604 ● ● ●
63 ADJUSTER; SEAT SLIDE 8-97854-670-3 01 1 0605- ● ● ● ●
69 NUT; FRT SEAT
M8 		1-09984-109-0 02 1 0507-0604 ● ● ●
69 NUT; FRT SEAT
M8 		1-09984-109-0 02 1 0605- ● ● ● ●
71 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0507-0604 ● ● ●
71 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0605- ● ● ● ●
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0507-0604 ● ● ●
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0605- ● ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0507-0604 ● ● ●
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0605- ● ● ● ●
382 WASHER; PL,DRIVER SEAT
ID=8.4 OD=22 		8-94127-883-1 02 1 0507-0604 ● ● ●
382 WASHER; PL,DRIVER SEAT
ID=8.4 OD=22 		8-94127-883-1 02 1 0605- ● ● ● ●

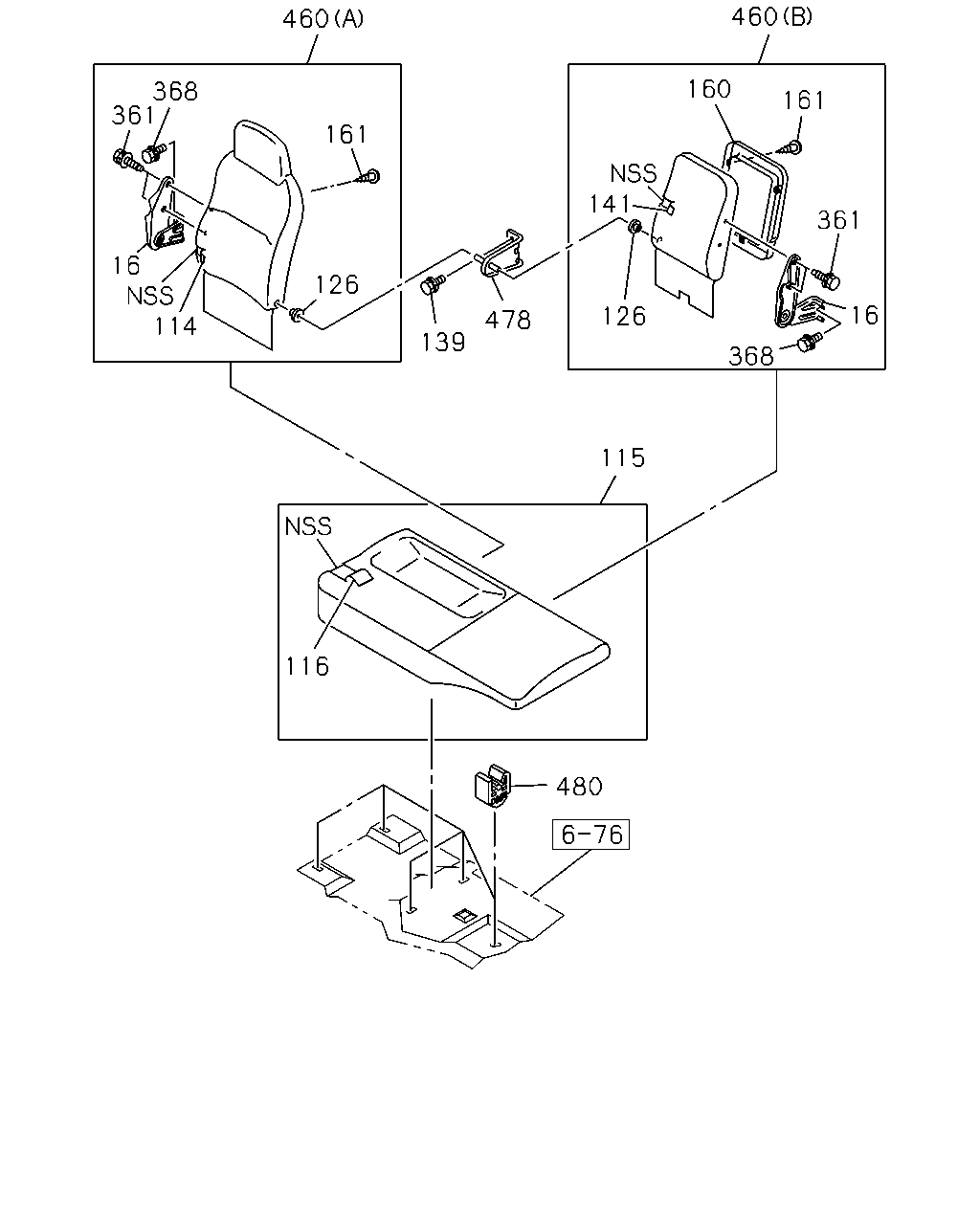

çizim 57355
460 460 160 368 361 161 161 141 361 16 114 126 16 126 478 139 368 115 116 480
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-273-3 01 1 0507-0604 ● ● ●
16 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-273-3 01 1 0605- ● ● ● ●
16 ADJUSTER ASM; RECLINING
PASSENGER SIDE BLACK 		8-97859-274-3 01 1 0507-0604 ● ● ●
16 ADJUSTER ASM; RECLINING
PASSENGER SIDE BLACK 		8-97859-274-3 01 1 0605- ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97400-103-1 01 1 0507-0604 ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97400-103-1 01 1 0605-0605 ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97407-820-0 01 1 0606- ● ● ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97400-077-1 01 1 0507-0604 ● ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97400-077-1 01 1 0605-0605 ● ● ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97407-807-2 01 1 0606- ● ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97400-109-1 01 1 0507-0604 ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97400-109-1 01 1 0605-0605 ● ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97407-822-0 01 1 0606- ● ● ● ●
126 BUSHING; HINGE,RECLINING 8-97854-900-0 02 1 0507-0604 ● ● ●
126 BUSHING; HINGE,RECLINING 8-97854-900-0 02 1 0605-0804 ● ● ● ●
126 BUSHING; HINGE,RECLINING 8-98069-558-0 02 1 0805- ● ● ● ●
139 BOLT; PASSENGER SEAT
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0507-0604 ● ● ●
139 BOLT; PASSENGER SEAT
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0605- ● ● ● ●
141 COVER; TRIM,BENCH SEAT,BACK
DARK GRAY 		8-97400-105-1 01 1 0507-0604 ● ● ●
141 COVER; TRIM,BENCH SEAT,BACK
DARK GRAY 		8-97400-105-1 01 1 0605-0605 ● ● ● ●
141 COVER; TRIM,BENCH SEAT,BACK
DARK GRAY 		8-97407-821-0 01 1 0606- ● ● ● ●
160 CONSOLE; UPR,BACK CENTER
GRAY 		8-97398-252-1 01 1 0507-0604 ● ● ●
160 CONSOLE; UPR,BACK CENTER
GRAY 		8-97398-252-1 01 1 0605- ● ● ● ●
161 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 0507-0604 ● ● ●
161 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 0605- ● ● ● ●
361 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 04 1 0507-0604 ● ● ●
361 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 04 1 0605- ● ● ● ●
368 BOLT; SEAT
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0507-0604 ● ● ●
368 BOLT; SEAT
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0605- ● ● ● ●
460 BACK ASM; PASSENGER SEAT
(A) PASSENGER SIDE DARK GRAY 		8-97400-074-2 01 1 0507-0604 ● ● ●
460 BACK ASM; PASSENGER SEAT
(A) PASSENGER SIDE DARK GRAY 		8-97400-074-2 01 1 0605-0605 ● ● ● ●
460 BACK ASM; PASSENGER SEAT
(A) PASSENGER SIDE DARK GRAY 		8-97407-805-0 01 1 0606- ● ● ● ●
460 BACK ASM; PASSENGER SEAT
(B) PASSENGER CENTER DARK GRAY 		8-97400-075-1 01 1 0507-0604 ● ● ●
460 BACK ASM; PASSENGER SEAT
(B) PASSENGER CENTER DARK GRAY 		8-97400-075-1 01 1 0605-0605 ● ● ● ●
460 BACK ASM; PASSENGER SEAT
(B) PASSENGER CENTER DARK GRAY 		8-97407-806-2 01 1 0606- ● ● ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT 8-97868-185-0 01 1 0507-0604 ● ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT 8-97868-185-0 01 1 0605- ● ● ● ●
480 CLIP; CUSHION 8-94279-977-0 05 1 0507-0604 ● ● ●
480 CLIP; CUSHION 8-94279-977-0 05 1 0605- ● ● ● ●
