Sayfa 8-73 - Isuzu EPC

8-73 — BLOWER UNIT (#5189) — 211 parça

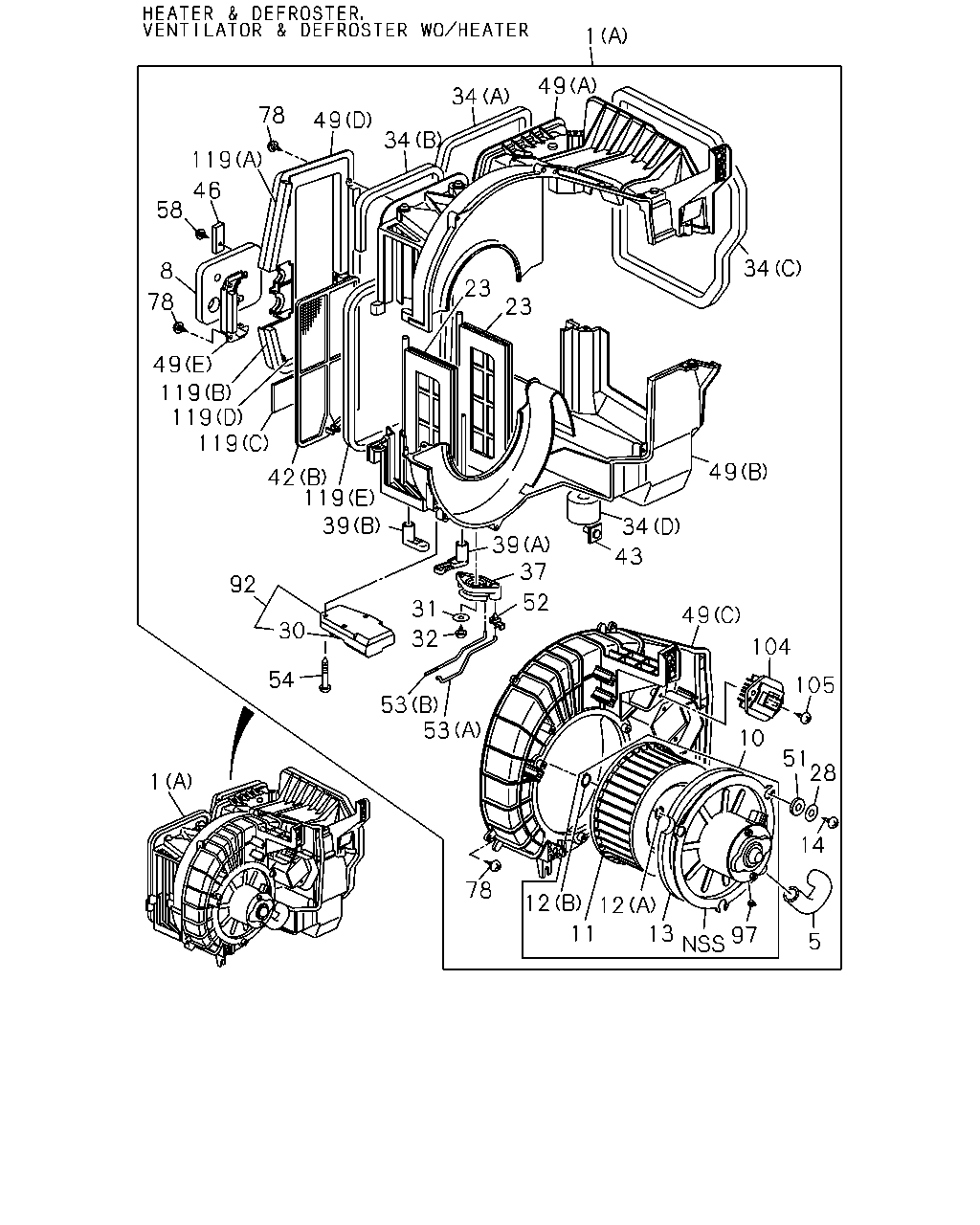

1 49 34 78 49 34 119 46 58 34 8 23 78 23 49 119 119 119 49 42 119 39 34 39 37 43 92 52 31 49 30 32 104 54 105 53 53 10 51 28 1 14 78 12 12 13 97 11 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83561-131-4	01	1	9610-9905
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83561-150-3	01	1	9906-
1	BLOWER ASM HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83561-105-8	01	1	9606-
5	HOSE; AIR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83563-140-0	01	1	9606-9609
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83563-140-0	01	1	9610-
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-261-1	01	1	9610-
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-801-1	01	1	9606-
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-100-1	01	1	9606-9609
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-100-1	01	1	9610-9901
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-161-0	01	1	9902-
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-635-0	01	1	9606-9609
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-635-0	01	1	9610-
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	5-83569-088-0	01	1	9606-9609
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	5-83569-088-0	01	1	9610-
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94243-962-0	01	1	9606-9609
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94243-962-0	01	1	9610-
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-636-0	01	1	9606-9609
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-636-0	01	1	9610-
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	03	1	9906-
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	03	1	9606-9609
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	03	1	9610-9901
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	03	1	9902-9905
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	03	1	9906-
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-637-0	02	1	9606-9609
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-637-0	02	1	9610-
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-170-0	03	1	9606-9609
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-170-0	03	1	9610-
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-345-1	01	1	9606-9609
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-345-1	01	1	9610-
31	WASHER; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-095-0	01	1	9606-9609
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-095-0	01	1	9610-
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	01	1	9906-
32	SCREW; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	01	1	9606-9609
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	01	1	9610-9901
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	01	1	9902-9905
32	SCREW; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	01	1	9906-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-633-2	01	1	9606-9609
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-633-2	01	1	9610-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-634-1	01	1	9606-9609
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-634-2	01	1	9610-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-644-0	01	1	9606-9609
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-644-0	01	1	9610-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83579-687-0	01	1	9606-9609
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83579-687-0	01	1	9610-9702
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83579-687-0	01	1	9703-9901
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-344-0	01	1	9606-9609
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-344-0	01	1	9610-
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-342-0	01	1	9606-9609
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-342-0	01	1	9610-
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-343-0	01	1	9606-9609
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-343-0	01	1	9610-
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-642-3	02	1	9610-9702
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-933-0	02	1	9703-9901
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-993-0	02	1	9902-
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-643-2	01	1	9606-9609
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-643-2	01	1	9610-
43	BOLT; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-0	04	1	9606-9609
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-2	04	1	9610-
46	PLATE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83571-870-1	01	1	9606-
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-336-6	01	1	9610-
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	1-83564-340-1	01	1	9610-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-337-4	01	1	9606-9609
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-337-4	01	1	9610-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E)	1-83564-339-1	01	1	9606-9609
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E)	1-83564-339-1	01	1	9610-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-351-0	01	1	9606-9609
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-351-1	01	1	9610-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-352-5	01	1	9606-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83564-353-0	01	1	9606-9609
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83564-353-1	01	1	9610-
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-496-0	03	1	9606-9609
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-496-0	03	1	9610-
52	CLIP; LEVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	02	1	9703-9901
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94248-794-0	02	1	9902-
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-488-0	02	1	9606-9609
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-488-0	02	1	9610-9702
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-488-0	02	1	9703-9901
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-638-0	01	1	9606-9609
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-638-0	01	1	9610-
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-639-0	01	1	9606-9609
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-639-0	01	1	9610-
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	9606-9609
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	9610-
58	SCREW; PLATE TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	01	1	9606-
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	17	1	9606-9609
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	17	1	9610-
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-640-0	01	1	9606-9609
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-640-1	01	1	9610-
97	PLUG; FAN MOTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-248-0	01	1	9606-9609
97	PLUG; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-248-0	01	1	9610-9702
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83519-073-0	01	1	9606-9609
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83519-073-1	01	1	9610-
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	02	1	9606-9609
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	02	1	9610-
119	LINING; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-670-0	01	1	9606-9609
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-670-1	01	1	9610-
119	LINING; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-671-0	01	1	9606-9609
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-671-1	01	1	9610-
119	LINING; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-672-0	01	1	9606-9609
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-672-0	01	1	9610-9901
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-672-0	01	1	9902-0007
119	LINING; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83579-673-1	01	1	9606-9609
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83579-673-1	01	1	9610-9901
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-673-2	01	1	9902-
119	LINING; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E)	1-83579-839-0	02	1	9606-

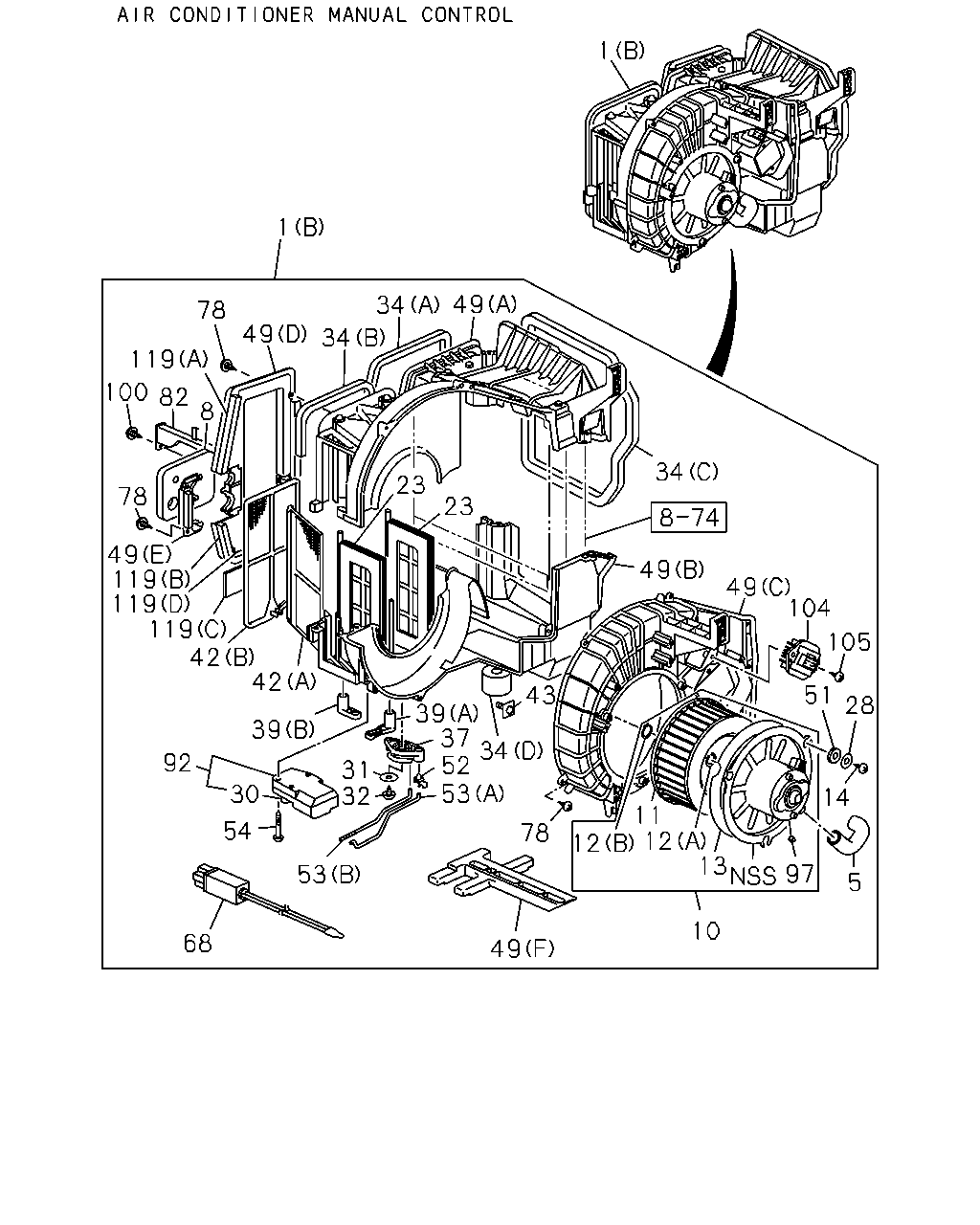

1 1 49 34 78 49 34 119 100 82 8 34 23 78 23 49 119 119 119 42 42 49 49 104 43 105 51 28 39 37 34 52 53 39 92 31 32 30 14 11 12 12 54 78 13 97 53 5 10 68 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83561-131-4	01	1	9610-9905
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83561-150-3	01	1	9906-
1	BLOWER ASM HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83561-105-8	01	1	9606-
5	HOSE; AIR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83563-140-0	01	1	9606-9609
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83563-140-0	01	1	9610-
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-261-1	01	1	9610-
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-801-1	01	1	9606-
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-100-1	01	1	9606-9609
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-100-1	01	1	9610-9901
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-161-0	01	1	9902-
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-635-0	01	1	9606-9609
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-635-0	01	1	9610-
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	5-83569-088-0	01	1	9606-9609
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	5-83569-088-0	01	1	9610-
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94243-962-0	01	1	9606-9609
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94243-962-0	01	1	9610-
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-636-0	01	1	9606-9609
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-636-0	01	1	9610-
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	03	1	9906-
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	03	1	9606-9609
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	03	1	9610-9901
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	03	1	9902-9905
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	03	1	9906-
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-637-0	02	1	9606-9609
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-637-0	02	1	9610-
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-170-0	03	1	9606-9609
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-170-0	03	1	9610-
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-345-1	01	1	9606-9609
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-345-1	01	1	9610-
31	WASHER; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-095-0	01	1	9606-9609
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-095-0	01	1	9610-
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	01	1	9906-
32	SCREW; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	01	1	9606-9609
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	01	1	9610-9901
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	01	1	9902-9905
32	SCREW; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20	9-09829-324-1	01	1	9906-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-633-2	01	1	9606-9609
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-633-2	01	1	9610-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-634-1	01	1	9606-9609
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-634-2	01	1	9610-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-644-0	01	1	9606-9609
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-644-0	01	1	9610-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83579-687-0	01	1	9606-9609
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83579-687-0	01	1	9610-9702
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83579-687-0	01	1	9703-9901
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-344-0	01	1	9606-9609
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-344-0	01	1	9610-
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-342-0	01	1	9606-9609
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-342-0	01	1	9610-
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-343-0	01	1	9606-9609
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-343-0	01	1	9610-
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-642-3	02	1	9610-9702
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-933-0	02	1	9703-9901
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-993-0	02	1	9902-
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-643-2	01	1	9606-9609
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-643-2	01	1	9610-
43	BOLT; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-0	04	1	9606-9609
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-2	04	1	9610-
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-336-6	01	1	9610-
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	1-83564-340-1	01	1	9610-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-337-4	01	1	9606-9609
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-337-4	01	1	9610-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E)	1-83564-339-1	01	1	9606-9609
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E)	1-83564-339-1	01	1	9610-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-351-0	01	1	9606-9609
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-351-1	01	1	9610-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-352-5	01	1	9606-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83564-353-0	01	1	9606-9609
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83564-353-1	01	1	9610-
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-496-0	03	1	9606-9609
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-496-0	03	1	9610-
52	CLIP; LEVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	02	1	9703-9901
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94248-794-0	02	1	9902-
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-488-0	02	1	9606-9609
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-488-0	02	1	9610-9702
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-488-0	02	1	9703-9901
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-638-0	01	1	9606-9609
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-638-0	01	1	9610-
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-639-0	01	1	9606-9609
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-639-0	01	1	9610-
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	9606-9609
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	9610-
68	THERMOSTAT; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-026-1	01	1	9610-
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	17	1	9606-9609
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	17	1	9610-
82	BRACKET; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-871-1	01	1	9610-
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-640-0	01	1	9606-9609
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-640-1	01	1	9610-
97	PLUG; FAN MOTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-248-0	01	1	9606-9609
97	PLUG; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-248-0	01	1	9610-9702
100	SCREW; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	01	1	9610-
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83519-073-0	01	1	9606-9609
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83519-073-1	01	1	9610-
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	02	1	9606-9609
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	02	1	9610-
119	LINING; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-670-0	01	1	9606-9609
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-670-1	01	1	9610-
119	LINING; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-671-0	01	1	9606-9609
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-671-1	01	1	9610-
119	LINING; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-672-0	01	1	9606-9609
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-672-0	01	1	9610-9901
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-672-0	01	1	9902-0007
119	LINING; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83579-673-1	01	1	9606-9609
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83579-673-1	01	1	9610-9901
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-673-2	01	1	9902-
119	LINING; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E)	1-83579-839-0	02	1	9606-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
