◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51047 - ELF400/450(MEXICO) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#51888) — 43 parça

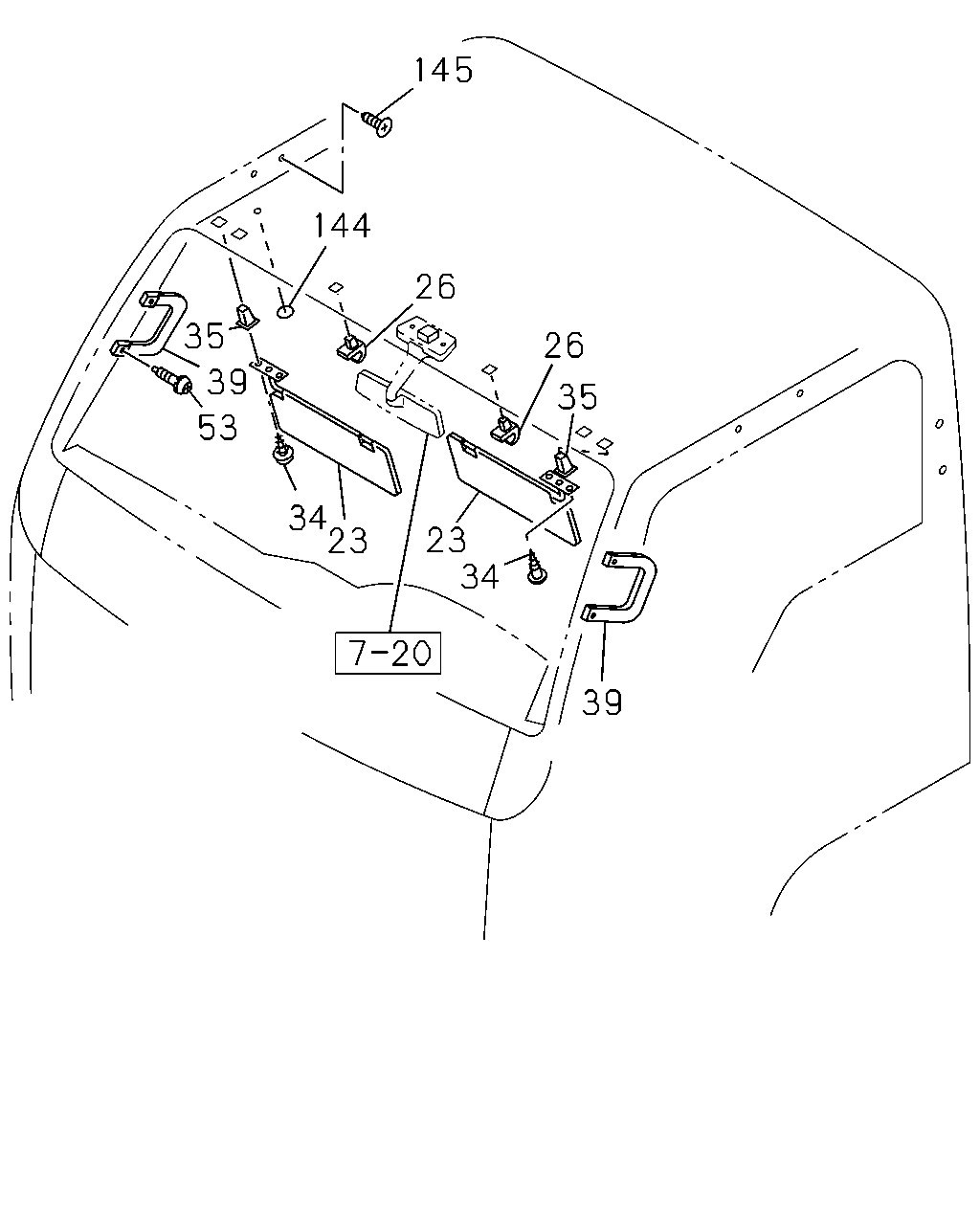

çizim 57358
145 144 26 35 26 39 35 53 34 23 23 34 39
BalonParca AdiParca NoAdetTipApplied Date A B C D
23 SUN VISOR
LIGHT GRAY 		8-97410-896-1 01 1 0507-0509 ● ● ●
23 SUN VISOR
LIGHT GRAY 		8-97404-434-0 01 1 0510-0604 ● ● ●
23 SUN VISOR
LIGHT GRAY 		8-97404-434-0 01 1 0605- ● ● ● ●
23 SUN VISOR
LIGHT GRAY 		8-97867-781-2 01 1 0507-0509 ● ● ●
23 SUN VISOR
LIGHT GRAY 		8-97404-441-0 01 1 0510-0604 ● ● ●
23 SUN VISOR
LIGHT GRAY 		8-97404-441-0 01 1 0605- ● ● ● ●
26 HOLDER; SUN VISOR
LIGHT GRAY 		8-94351-982-0 02 1 0507-0604 ● ● ●
26 HOLDER; SUN VISOR
LIGHT GRAY 		8-94351-982-0 02 1 0605-0610 ● ● ● ●
26 HOLDER; SUN VISOR
DARK GRAY 		8-97405-171-0 02 1 0611- ● ● ● ●
34 SCREW; SUN VISOR
M5X20 		5-09981-059-0 04 1 0507-0604 ● ● ●
34 SCREW; SUN VISOR
M5X20 		5-09981-059-0 04 1 0605-0612 ● ● ● ●
34 SCREW; SUN VISOR
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0701-0706 ● ● ● ●
34 SCREW; SUN VISOR
M5X18 TAPPING 		0-72180-518-0 04 1 0707- ● ● ● ●
35 GROMMET; SCREW,SUN VISOR 8-94279-039-0 04 1 0507-0604 ● ● ●
35 GROMMET; SCREW,SUN VISOR 8-94279-039-0 04 1 0605- ● ● ● ●
39 HANDLE; ASSIST,A-POST
GRAY 		8-97582-194-1 02 1 0507-0604 ● ● ●
39 HANDLE; ASSIST,A-POST
GRAY 		8-97582-194-1 02 1 0605-0702 ● ● ● ●
39 HANDLE; ASSIST,A-POST
GRAY 		8-97409-477-0 02 1 0703- ● ● ● ●
53 SCREW; ASSIST HANDLE
M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0507-0604 ● ● ●
53 SCREW; ASSIST HANDLE
M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0605-0612 ● ● ● ●
53 SCREW; ASSIST HANDLE
M6X28 		8-98004-344-0 04 1 0701- ● ● ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0507-0604 ● ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0605-0610 ● ● ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611- ● ● ● ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0507-0604 ● ● ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0605-0606 ● ● ● ●
144 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR MARINE BLUE(890),BODY COLOR HERTZ PENSKE YELLOW(978) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0607- ● ● ● ●
145 PLUG; HOLE
OD=12 L=14.8 		8-94279-921-0 04 1 0507-0604 ● ● ●
145 PLUG; HOLE
OD=12 L=14.8 		8-94279-921-0 04 1 0605- ● ● ● ●

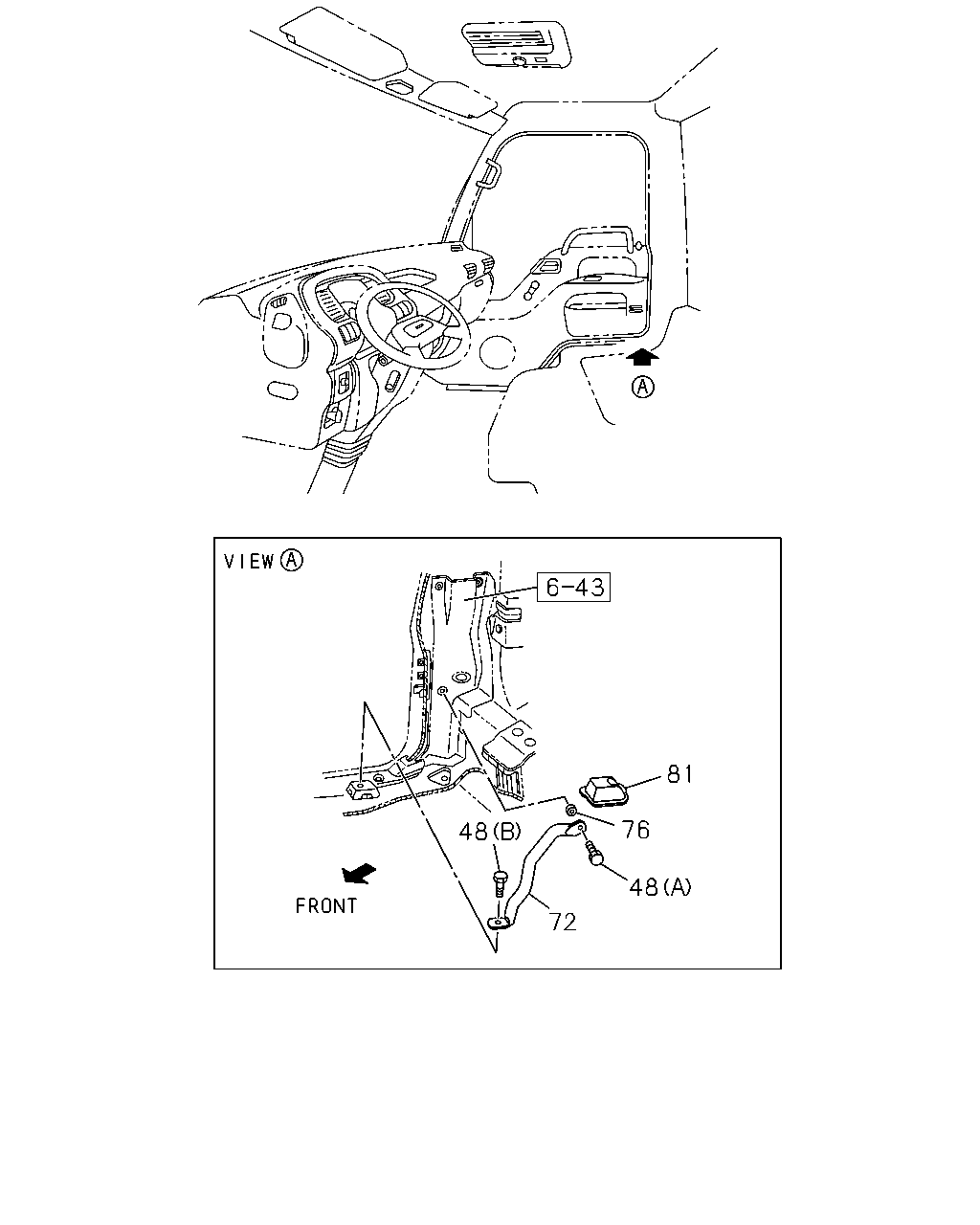

çizim 100867
81 76 48 48 72
BalonParca AdiParca NoAdetTipApplied Date A B C D
48 BOLT; ASSIST GRIP
(A) M6X16 W/LK&PL WASHER 		8-94279-214-0 02 1 0507-0604 ● ● ●
48 BOLT; ASSIST GRIP
(A) M6X16 W/LK&PL WASHER 		8-94279-214-0 02 1 0605- ● ● ● ●
48 BOLT; ASSIST GRIP
(B) M6X40 LK&PL WASHER 		8-94279-215-0 02 1 0507-0604 ● ● ●
48 BOLT; ASSIST GRIP
(B) M6X40 LK&PL WASHER 		8-94279-215-0 02 1 0605- ● ● ● ●
72 GRIP; ASSIST,CAB ENTRY,BACK 8-97856-889-2 01 1 0507-0604 ● ● ●
72 GRIP; ASSIST,CAB ENTRY,BACK 8-97856-889-2 01 1 0605- ● ● ● ●
72 GRIP; ASSIST,CAB ENTRY,BACK 8-97890-506-0 01 1 0507-0604 ● ● ●
72 GRIP; ASSIST,CAB ENTRY,BACK 8-97890-506-0 01 1 0605- ● ● ● ●
76 SPACER; ASSIST GRIP 8-97857-268-0 02 1 0507-0604 ● ● ●
76 SPACER; ASSIST GRIP 8-97857-268-0 02 1 0605- ● ● ● ●
81 CAP; ASSIST GRIP
GRAY 		8-97582-827-4 01 1 0507-0604 ● ● ●
81 CAP; ASSIST GRIP
GRAY 		8-97582-827-4 01 1 0605- ● ● ● ●
81 CAP; ASSIST GRIP
GRAY 		8-97585-438-3 01 1 0507-0604 ● ● ●
81 CAP; ASSIST GRIP
GRAY 		8-97585-438-3 01 1 0605- ● ● ● ●
