Isuzu WW
▶
TRUCKS
▶
ELF
▶
51047 - ELF400/450(MEXICO)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶

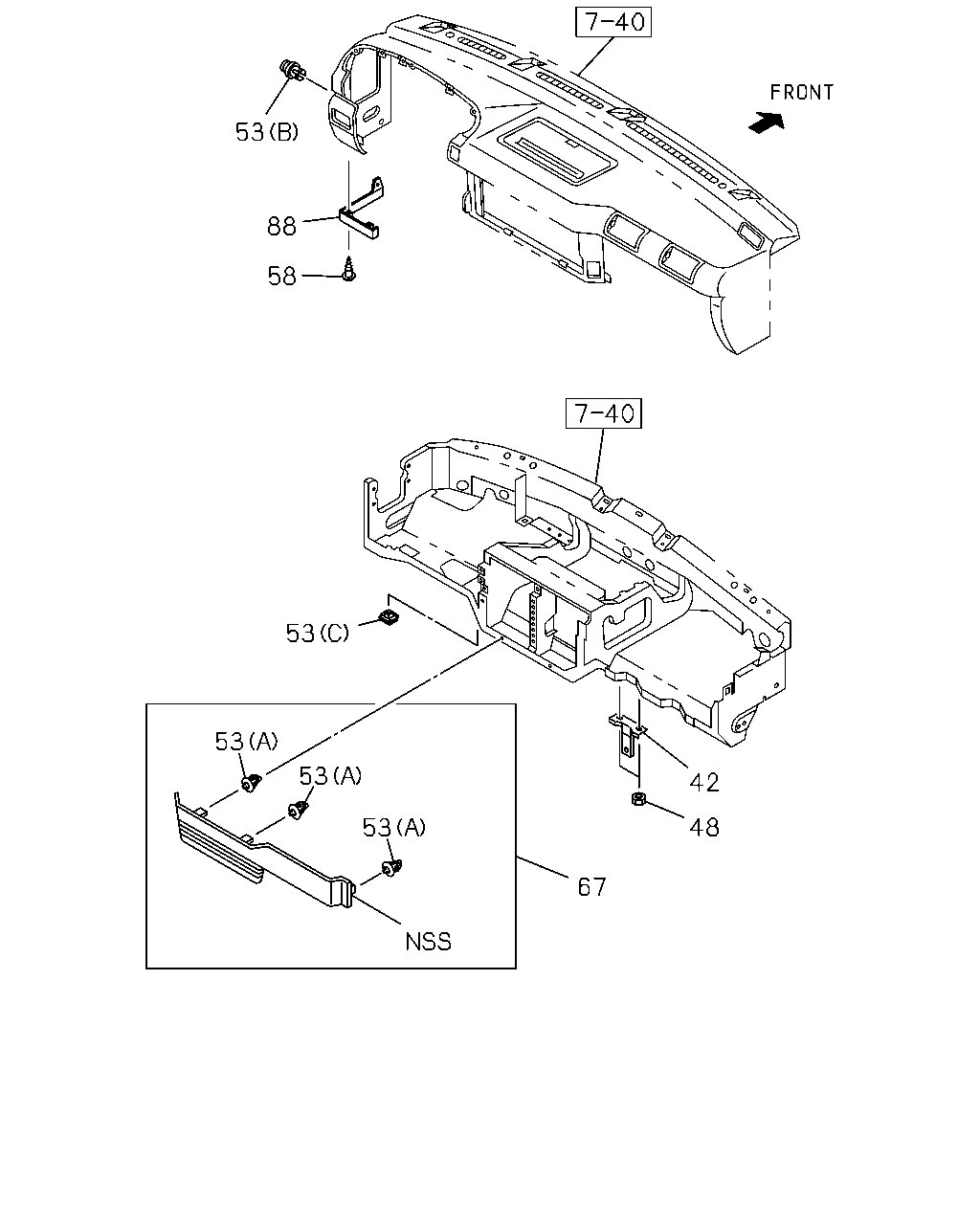

7-41 - UNDER COVER; INSTRUMENT
▶
7-41 — UNDER COVER; INSTRUMENT
(#51886) — 18 parça
Tümü
A - NPC7SC
B - NPC7SF
C - NPC7SK
D - NPC7SS
53
88
58
53
53
53
42
48
53
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
42
BRACKET; UNDER COVER
8-97217-299-1
01
1
0507-0604
●
●
●
42
BRACKET; UNDER COVER
8-97217-299-1
01
1
0605-
●
●
●
●
48
NUT; UNDER COVER
M6 FLANGE
0-91150-106-0
02
1
0507-0602
●
●
●
48
NUT; UNDER COVER
M6 FLANGE
0-91180-106-0
02
1
0603-0604
●
●
●
48
NUT; UNDER COVER
M6 FLANGE
0-91180-106-0
02
1
0605-
●
●
●
●
53
CLIP; UNDER COVER
(B) DARK GRAY
8-97582-246-0
01
1
0507-0604
●
●
●
53
CLIP; UNDER COVER
(B) DARK GRAY
8-97582-246-0
01
1
0605-
●
●
●
●
53
CLIP; UNDER COVER
(A)
8-97853-169-0
04
1
0507-0604
●
●
●
53
CLIP; UNDER COVER
(A)
8-97853-169-0
04
1
0605-
●
●
●
●
53
CLIP; UNDER COVER
(C)
8-97853-249-5
03
1
0507-0604
●
●
●
53
CLIP; UNDER COVER
(C)
8-97853-249-5
03
1
0605-
●
●
●
●
58
SCREW; UNDER COVER
M5X14
8-94279-325-0
02
1
0507-0604
●
●
●
58
SCREW; UNDER COVER
M5X14
8-94279-325-0
02
1
0605-0612
●
●
●
●
58
SCREW; UNDER COVER
M5X14 TAPPING W/TORQUES
8-98061-856-0
02
1
0701-
●
●
●
●
67
COVER; UNDER,INST PNL
8-97857-188-3
01
1
0507-0604
●
●
●
67
COVER; UNDER,INST PNL
8-97857-188-3
01
1
0605-
●
●
●
●
88
COVER; UNDER,INST PNL SIDE
DARK GRAY
8-97585-432-1
01
1
0507-0604
●
●
●
88
COVER; UNDER,INST PNL SIDE
DARK GRAY
8-97585-432-1
01
1
0605-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
