7-40 — INSTRUMENT PANEL AND BOX (#51885) — 162 parça

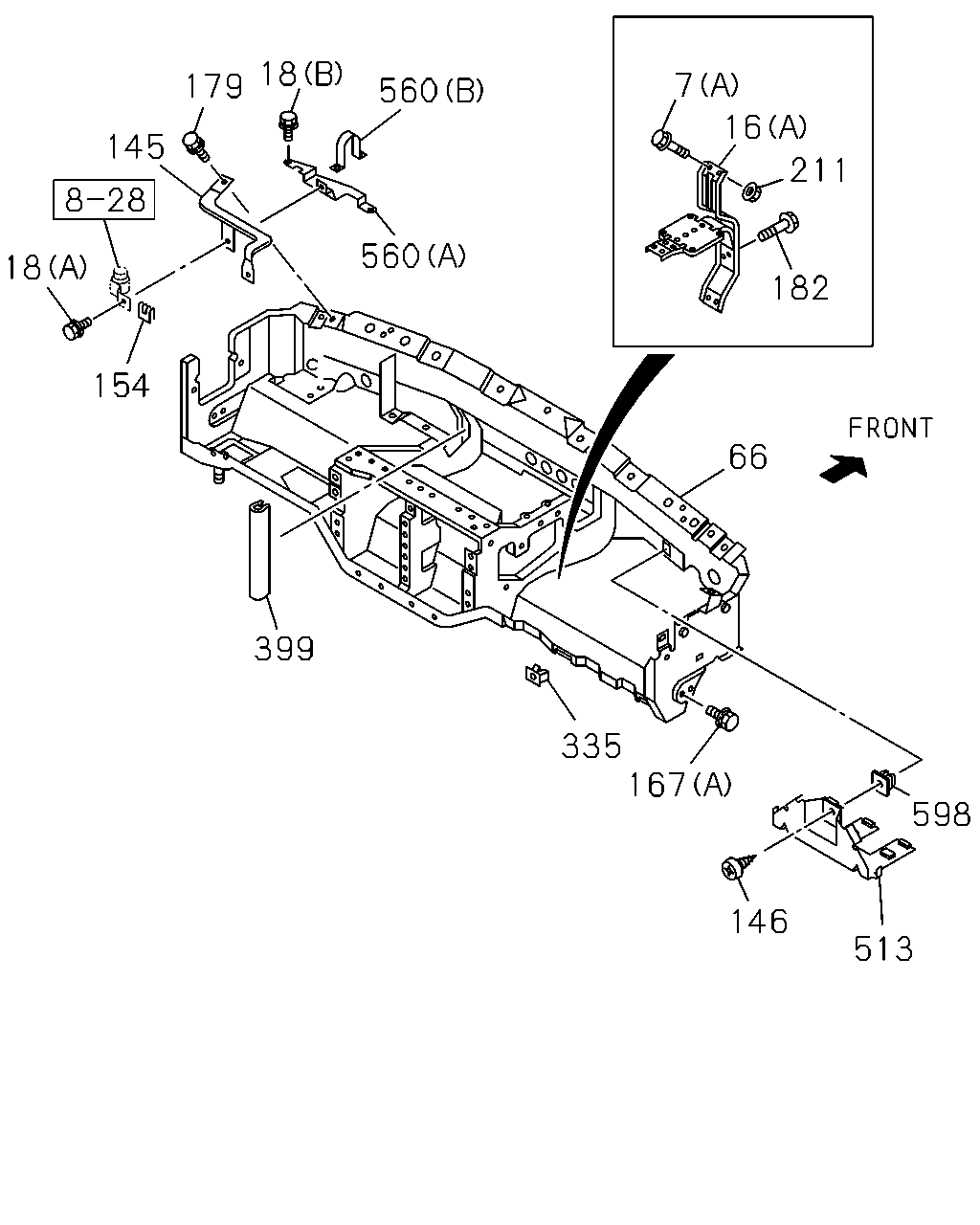

çizim 57674
18 7 179 560 16 145 211 560 18 182 154 66 399 335 167 598 146 513
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 BOLT; SUPPORT,INST PNL
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ● ● ●
7 BOLT; SUPPORT,INST PNL
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0604 ● ● ●
7 BOLT; SUPPORT,INST PNL
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0605- ● ● ● ●
7 BOLT; SUPPORT,INST PNL
(B) M8X23 FLANGE 		8-97264-766-0 04 1 0507-0604 ● ● ●
7 BOLT; SUPPORT,INST PNL
(B) M8X23 FLANGE 		8-97264-766-0 04 1 0605- ● ● ● ●
16 BRACKET; INST PNL
(A) 		8-97853-306-7 01 1 0507-0604 ● ● ●
16 BRACKET; INST PNL
(A) 		8-97853-306-7 01 1 0605- ● ● ● ●
16 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0507-0604 ● ● ●
16 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0605- ● ● ● ●
16 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0507-0604 ● ● ●
16 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0605- ● ● ● ●
18 BOLT; BRKT
(B) M10X25 FLANGE 		0-28691-025-0 01 1 0507-0512 ●
18 BOLT; BRKT
GVWR CLASS-4 14001-16000LBS(RQG) (B) M10X25 FLANGE 		0-28691-025-0 01 1 0507-0512 ● ●
18 BOLT; BRKT
(B) M10X25 FLANGE 		0-28661-025-0 01 1 0601- ●
18 BOLT; BRKT
GVWR CLASS-4 14001-16000LBS(RQG) (B) M10X25 FLANGE 		0-28661-025-0 01 1 0601- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0507-1210 ●
18 BOLT; BRKT
GVWR CLASS-4 14001-16000LBS(RQG) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0507-1210 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 03 1 1211- ●
18 BOLT; BRKT
GVWR CLASS-4 14001-16000LBS(RQG) (A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 03 1 1211- ● ●
66 REINFORCEMENT; INST PANEL 8-98020-229-1 01 1 0507-0604 ● ● ●
66 REINFORCEMENT; INST PANEL 8-98020-229-1 01 1 0605- ● ● ● ●
145 STAY; INST PANEL SIDE 8-97868-201-2 01 1 0507- ●
145 STAY; INST PANEL SIDE
GVWR CLASS-4 14001-16000LBS(RQG) 		8-97868-201-2 01 1 0507- ● ●
145 STAY; INST PANEL SIDE
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97856-461-3 01 1 0507-0604 ● ●
145 STAY; INST PANEL SIDE
GVWR CLASS-5 16001-19500LBS(RQH) 		8-97856-461-3 01 1 0605- ● ●
145 STAY; INST PANEL SIDE 8-97856-461-3 01 1 0605- ●
146 SCREW; TAP
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0507-0604 ● ● ●
146 SCREW; TAP
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0605-0605 ● ● ● ●
146 SCREW; TAP
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605-0612 ● ● ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0701-1101 ● ● ● ●
146 SCREW; TAP
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ● ●
154 NUT
M6 SPIRE NUT 		8-97210-973-1 04 1 0507-0604 ● ● ●
154 NUT
M6 SPIRE NUT 		8-97210-973-1 04 1 0605- ● ● ● ●
167 BOLT; REINF TO INST
(A) M6X25 		8-94279-204-0 04 1 0507-0604 ● ● ●
167 BOLT; REINF TO INST
(A) M6X25 		8-94279-204-0 04 1 0605- ● ● ● ●
167 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 0507-0604 ● ● ●
167 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 0605- ● ● ● ●
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 01 1 0507-0512 ● ● ●
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50640-612-0 01 1 0601-0604 ● ● ●
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50640-612-0 01 1 0605- ● ● ● ●
182 BOLT; BRKT,INST PANEL
M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0507-0604 ● ● ●
182 BOLT; BRKT,INST PANEL
M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0605- ● ● ● ●
211 NUT; BRKT TO INST
M6 FLANGE 		0-91150-106-0 02 1 0507-0602 ● ● ●
211 NUT; BRKT TO INST
M6 FLANGE 		0-91180-106-0 02 1 0603-0604 ● ● ●
211 NUT; BRKT TO INST
M6 FLANGE 		0-91180-106-0 02 1 0605- ● ● ● ●
335 GROMMET; GLOVE BOX LK
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0507-0604 ● ● ●
335 GROMMET; GLOVE BOX LK
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0605- ● ● ● ●
399 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 0507-0604 ● ● ●
399 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 0605- ● ● ● ●
513 BRACKET; RELAY 8-97859-391-2 01 1 0507-0604 ● ● ●
513 BRACKET; RELAY 8-97859-391-2 01 1 0605- ● ● ● ●
560 BRACKET
(A) 		8-97865-136-3 01 1 0507- ●
560 BRACKET
GVWR CLASS-4 14001-16000LBS(RQG) (A) 		8-97865-136-3 01 1 0507- ● ●
560 BRACKET
(B) 		8-97865-140-1 01 1 0507- ●
560 BRACKET
GVWR CLASS-4 14001-16000LBS(RQG) (B) 		8-97865-140-1 01 1 0507- ● ●
598 GROMMET; SCREW
D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 0507-0604 ● ● ●
598 GROMMET; SCREW
D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 0605- ● ● ● ●

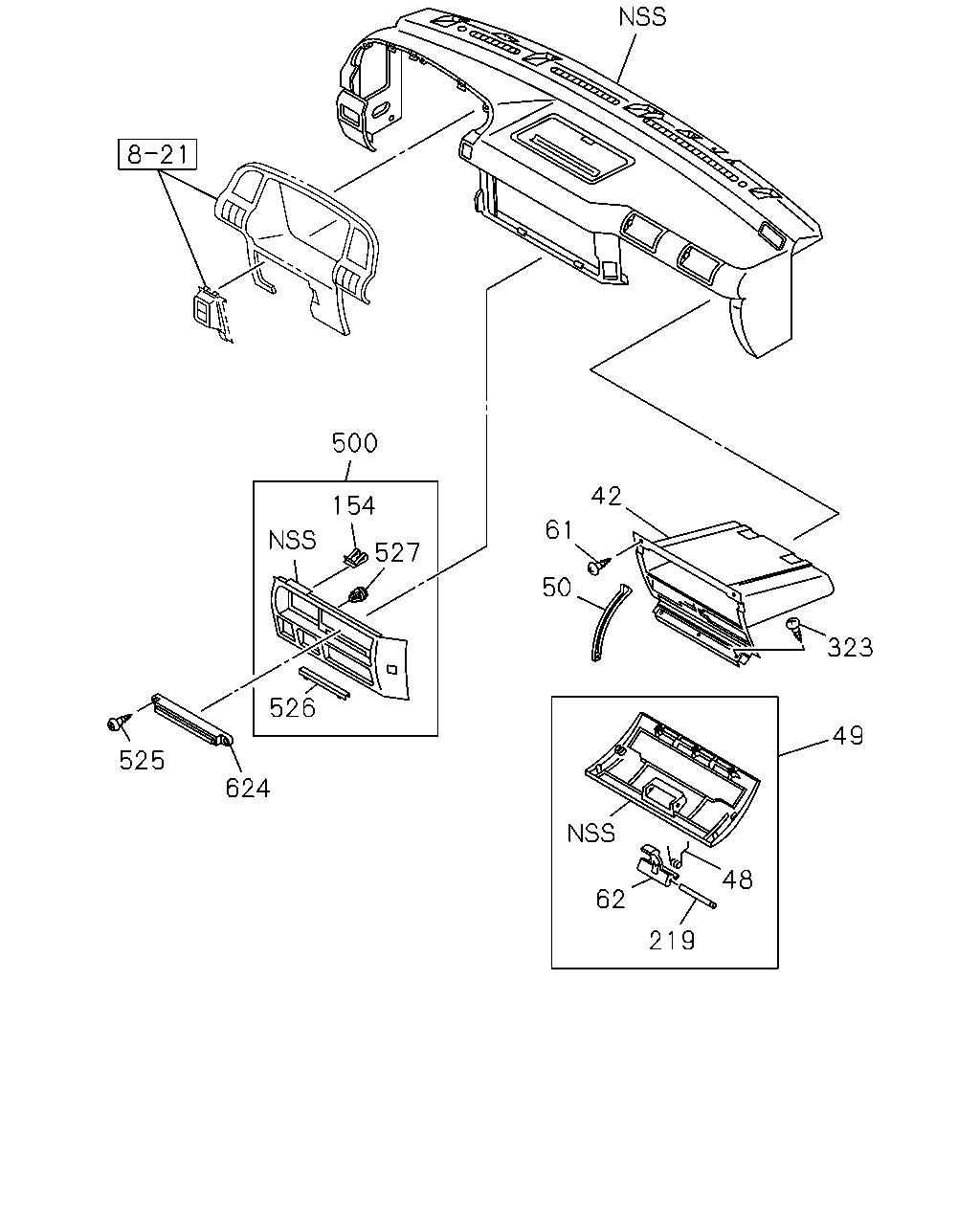

çizim 57675
500 42 154 61 527 50 323 526 49 525 624 48 62 219
BalonParca AdiParca NoAdetTipApplied Date A B C D
42 BOX; GLOVE,INST PNL 8-97853-281-6 01 1 0507-0604 ● ● ●
42 BOX; GLOVE,INST PNL 8-97853-281-6 01 1 0605- ● ● ● ●
48 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 0507-0604 ● ● ●
48 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 0605- ● ● ● ●
49 LID; GLOVE BOX
DARK GRAY 		8-97582-808-4 01 1 0507-0604 ● ● ●
49 LID; GLOVE BOX
DARK GRAY 		8-97582-808-4 01 1 0605- ● ● ● ●
50 STOPPER; LID,GLOVE BOX,INST CLUSTER 8-97853-152-0 02 1 0507-0604 ● ● ●
50 STOPPER; LID,GLOVE BOX,INST CLUSTER 8-97853-152-0 02 1 0605- ● ● ● ●
61 SCREW; GLOVE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0507-0604 ● ● ●
61 SCREW; GLOVE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0605-0605 ● ● ● ●
61 SCREW; GLOVE BOX
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0605-0612 ● ● ● ●
61 SCREW; GLOVE BOX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0701-1101 ● ● ● ●
61 SCREW; GLOVE BOX
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ● ● ●
61 SCREW; GLOVE BOX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ● ● ●
62 KNOB; GLOVE BOX LID
DARK GRAY 		8-97582-487-1 01 1 0507-0604 ● ● ●
62 KNOB; GLOVE BOX LID
DARK GRAY 		8-97582-487-1 01 1 0605- ● ● ● ●
154 NUT
M6 SPIRE NUT 		8-97210-973-1 04 1 0507-0604 ● ● ●
154 NUT
M6 SPIRE NUT 		8-97210-973-1 04 1 0605- ● ● ● ●
219 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 0507-0604 ● ● ●
219 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 0605- ● ● ● ●
323 SCREW; GLOVE BOX LK
M5X14 		8-94279-325-0 03 1 0507-0604 ● ● ●
323 SCREW; GLOVE BOX LK
M5X14 		8-94279-325-0 03 1 0605-0612 ● ● ● ●
323 SCREW; GLOVE BOX LK
M5X14 TAPPING W/TORQUES 		8-98061-856-0 03 1 0701- ● ● ● ●
500 CLUSTER; INST CENTER
DARK GRAY 		8-97585-434-8 01 1 0507-0604 ● ● ●
500 CLUSTER; INST CENTER
DARK GRAY 		8-97585-434-8 01 1 0605- ● ● ● ●
525 SCREW; CUP STAND
M5X14 		8-94279-325-0 02 1 0507-0604 ● ● ●
525 SCREW; CUP STAND
M5X14 		8-94279-325-0 02 1 0605-0612 ● ● ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101 ● ● ● ●
525 SCREW; CUP STAND
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ● ●
526 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97582-490-1 01 1 0507-0604 ● ● ●
526 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97582-490-1 01 1 0605- ● ● ● ●
527 CLIP; INST CLUSTER 8-97853-169-0 04 1 0507-0604 ● ● ●
527 CLIP; INST CLUSTER 8-97853-169-0 04 1 0605- ● ● ● ●
624 COVER; CUP STAND 1-72438-139-1 01 1 0507-0604 ● ● ●
624 COVER; CUP STAND 1-72438-139-1 01 1 0605- ● ● ● ●

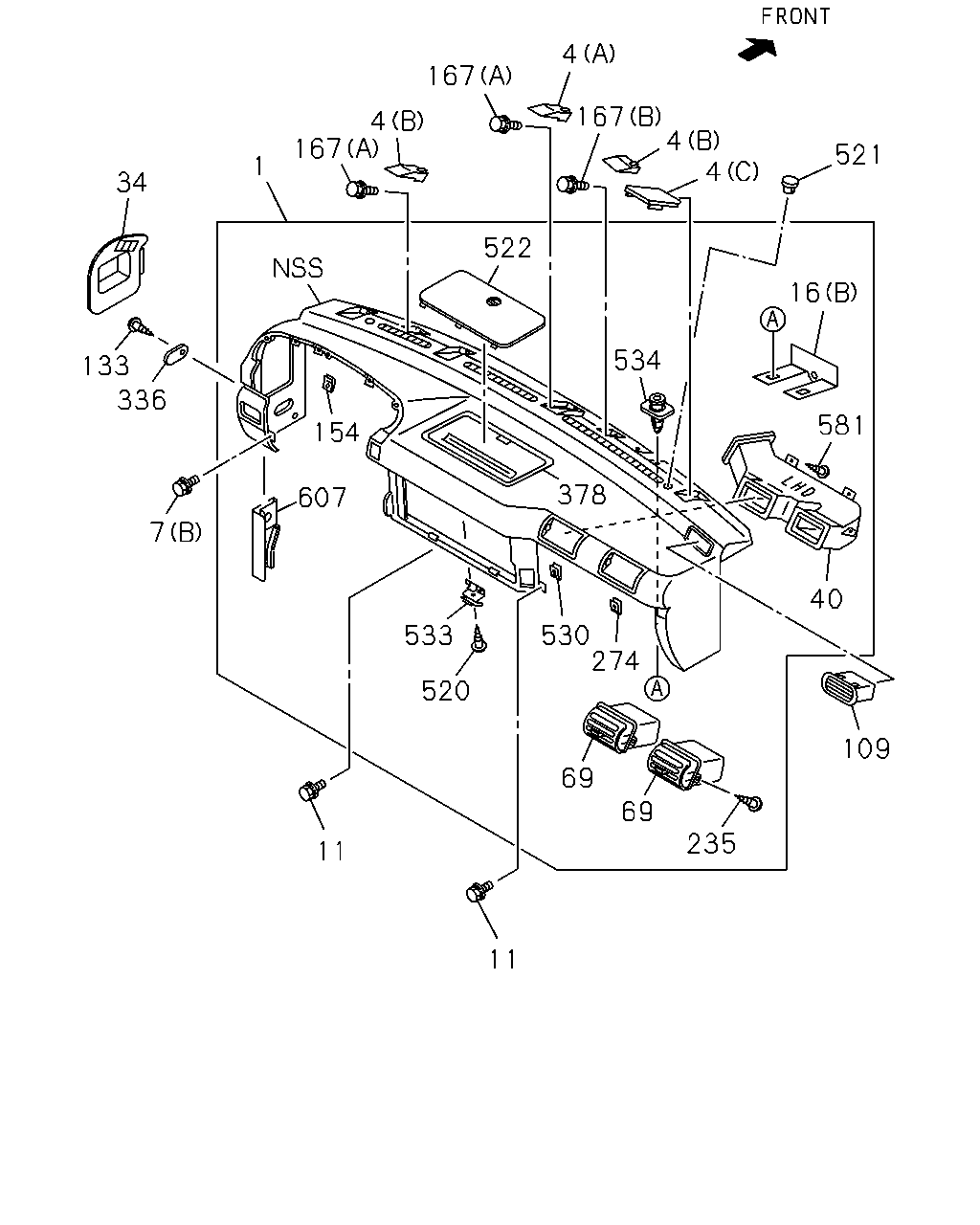

çizim 58102
4 167 167 4 4 4 167 521 1 34 522 16 534 133 336 581 154 378 607 7 40 530 274 533 520 109 69 69 235 11 11
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; INST
DARK GRAY 		8-97585-435-1 01 1 0507-0604 ● ● ●
1 PANEL; INST
DARK GRAY 		8-97585-435-1 01 1 0605- ● ● ● ●
4 COVER; INST PNL
(A) DARK GRAY 		8-97582-215-3 02 1 0507-0604 ● ● ●
4 COVER; INST PNL
(A) DARK GRAY 		8-97582-215-3 02 1 0605- ● ● ● ●
4 COVER; INST PNL
(C) DARK GRAY 		8-97582-217-3 01 1 0507-0604 ● ● ●
4 COVER; INST PNL
(C) DARK GRAY 		8-97582-217-3 01 1 0605- ● ● ● ●
4 COVER; INST PNL
(B) DARK GRAY 		8-97582-813-1 01 1 0507-0604 ● ● ●
4 COVER; INST PNL
(B) DARK GRAY 		8-97582-813-1 01 1 0605- ● ● ● ●
4 COVER; INST PNL
(C) DARK GRAY 		8-97582-216-3 01 1 0507-0604 ● ● ●
4 COVER; INST PNL
(C) DARK GRAY 		8-97582-216-3 01 1 0605- ● ● ● ●
4 COVER; INST PNL
(B) DARK GRAY 		8-97582-812-1 01 1 0507-0604 ● ● ●
4 COVER; INST PNL
(B) DARK GRAY 		8-97582-812-1 01 1 0605- ● ● ● ●
7 BOLT; SUPPORT,INST PNL
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ● ● ●
7 BOLT; SUPPORT,INST PNL
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0604 ● ● ●
7 BOLT; SUPPORT,INST PNL
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0605- ● ● ● ●
7 BOLT; SUPPORT,INST PNL
(B) M8X23 FLANGE 		8-97264-766-0 04 1 0507-0604 ● ● ●
7 BOLT; SUPPORT,INST PNL
(B) M8X23 FLANGE 		8-97264-766-0 04 1 0605- ● ● ● ●
11 BOLT; INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0507-0604 ● ● ●
11 BOLT; INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0605-1210 ● ● ● ●
11 BOLT; INST PNL
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 1211- ● ● ● ●
16 BRACKET; INST PNL
(A) 		8-97853-306-7 01 1 0507-0604 ● ● ●
16 BRACKET; INST PNL
(A) 		8-97853-306-7 01 1 0605- ● ● ● ●
16 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0507-0604 ● ● ●
16 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0605- ● ● ● ●
16 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0507-0604 ● ● ●
16 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0605- ● ● ● ●
34 LID; OIL TANK
DARK GRAY 		8-97585-433-5 01 1 0507-0604 ● ● ●
34 LID; OIL TANK
DARK GRAY 		8-97585-433-5 01 1 0605- ● ● ● ●
40 DUCT; VENT,SIDE CLUSTER BEZEL 8-97262-699-0 01 1 0507-0604 ● ● ●
40 DUCT; VENT,SIDE CLUSTER BEZEL 8-97262-699-0 01 1 0605- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97582-612-0 02 1 0507-0604 ● ● ●
69 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97582-612-0 02 1 0605- ● ● ● ●
109 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97585-436-0 01 1 0507-0604 ● ● ●
109 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97585-436-0 01 1 0605- ● ● ● ●
133 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 0507-0604 ● ● ●
133 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 0605-0605 ● ● ● ●
133 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74160-520-0 02 1 0605-0612 ● ● ● ●
133 SCREW; COVER,INST PNL
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0701- ● ● ● ●
154 NUT
M6 SPIRE NUT 		8-97210-973-1 04 1 0507-0604 ● ● ●
154 NUT
M6 SPIRE NUT 		8-97210-973-1 04 1 0605- ● ● ● ●
167 BOLT; REINF TO INST
(A) M6X25 		8-94279-204-0 04 1 0507-0604 ● ● ●
167 BOLT; REINF TO INST
(A) M6X25 		8-94279-204-0 04 1 0605- ● ● ● ●
167 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 0507-0604 ● ● ●
167 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 0605- ● ● ● ●
235 SCREW; GRILLE
M5X14 		8-94279-325-0 04 1 0507-0604 ● ● ●
235 SCREW; GRILLE
M5X14 		8-94279-325-0 04 1 0605- ● ● ● ●
274 NUT; GLOVE BOX
M5 SPIRE NUT 		8-94279-051-0 02 1 0507-0604 ● ● ●
274 NUT; GLOVE BOX
M5 SPIRE NUT 		8-94279-051-0 02 1 0605- ● ● ● ●
336 COVER; INST PANEL SIDE
DARK GRAY 		8-97582-218-4 02 1 0507-0604 ● ● ●
336 COVER; INST PANEL SIDE
DARK GRAY 		8-97582-218-4 02 1 0605- ● ● ● ●
378 SEAL; INST PANEL 8-97209-399-0 01 1 0507-0604 ● ● ●
378 SEAL; INST PANEL 8-97209-399-0 01 1 0605- ● ● ● ●
520 SCREW; CLIP,SPRING
M5X14 		8-94279-325-0 03 1 0507-0604 ● ● ●
520 SCREW; CLIP,SPRING
M5X14 		8-94279-325-0 03 1 0605- ● ● ● ●
521 COVER; SUN SENSOR
DARK GRAY 		8-97582-334-2 01 1 0507-0604 ● ● ●
521 COVER; SUN SENSOR
DARK GRAY 		8-97582-334-2 01 1 0605- ● ● ● ●
522 LID; RELAY BOX
DARK GRAY 		8-97582-494-6 01 1 0507-0604 ● ● ●
522 LID; RELAY BOX
DARK GRAY 		8-97582-494-6 01 1 0605- ● ● ● ●
530 CLIP; GLOVE BOX 8-97856-135-0 01 1 0507-0604 ● ● ●
530 CLIP; GLOVE BOX 8-97856-135-0 01 1 0605- ● ● ● ●
533 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 0507-0604 ● ● ●
533 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 0605- ● ● ● ●
534 CLIP; BRKT 8-97856-276-0 04 1 0507-0604 ● ● ●
534 CLIP; BRKT 8-97856-276-0 04 1 0605- ● ● ● ●
581 SCREW
M5X14 		8-94279-325-0 03 1 0507-0604 ● ● ●
581 SCREW
M5X14 		8-94279-325-0 03 1 0605- ● ● ● ●
607 FIXING ASM; CLIP INST TO M/CSTR 8-97857-893-2 01 1 0507-0604 ● ● ●
607 FIXING ASM; CLIP INST TO M/CSTR 8-97857-893-2 01 1 0605- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
