◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51047 - ELF400/450(MEXICO) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#51882) — 102 parça

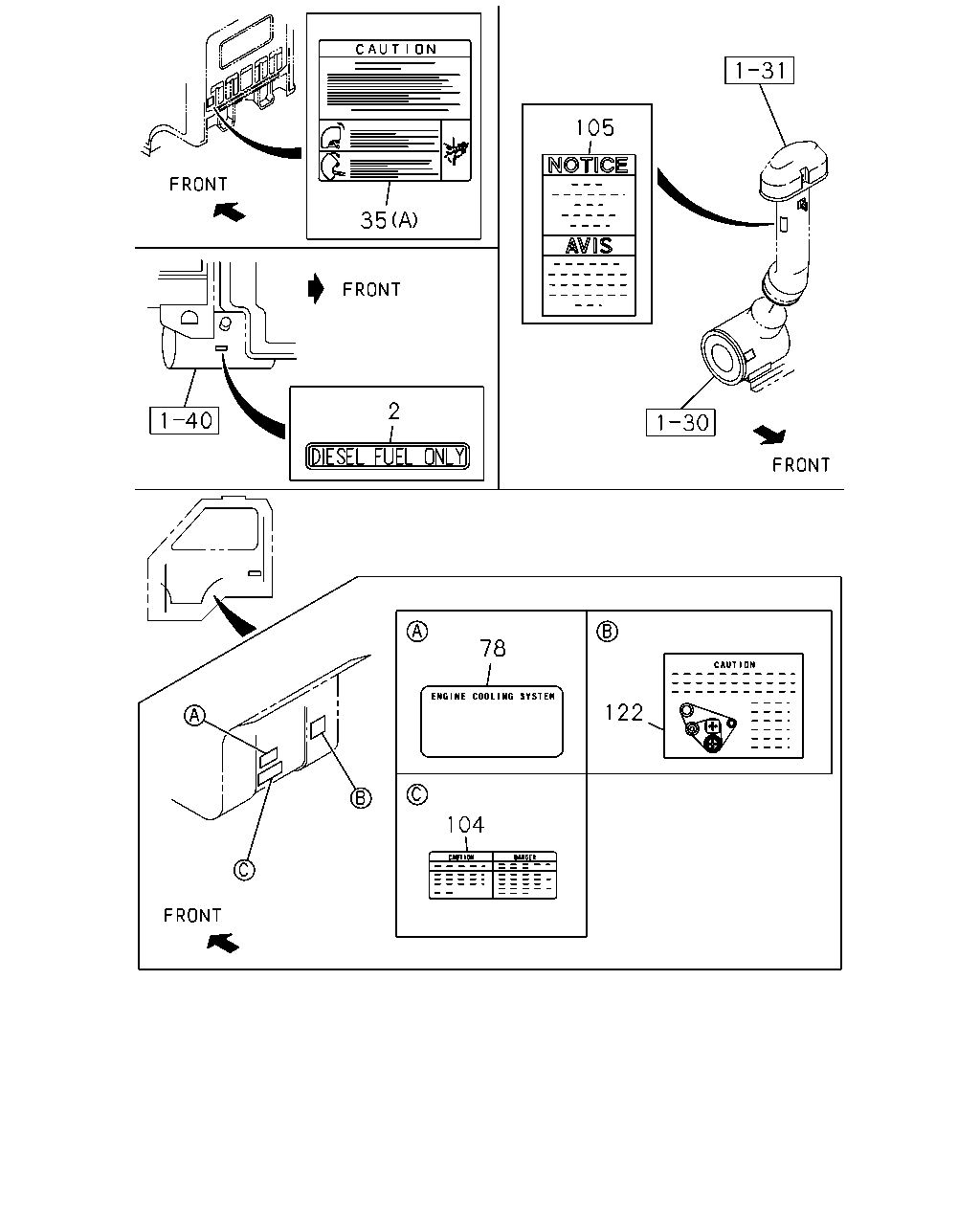

çizim 57423
105 35 2 78 122 104
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 LABEL; FUEL CAUTION 1-85883-153-0 01 1 0507-0508 ● ● ●
2 LABEL; FUEL CAUTION 1-85883-153-0 01 1 0509-0604 ● ● ●
2 LABEL; FUEL CAUTION 1-85883-153-0 01 1 0605-0610 ● ● ● ●
2 LABEL; FUEL CAUTION 8-98069-856-0 01 1 0612- ● ● ● ●
35 PLATE; CAUTION,CAB
(C) 		8-97857-419-1 01 1 0607-1005 ● ● ● ●
35 PLATE; CAUTION,CAB
(C) 		8-98070-512-0 01 1 1006- ● ● ● ●
35 PLATE; CAUTION,CAB
(A) 		8-97859-203-0 01 1 0507-0604 ● ● ●
35 PLATE; CAUTION,CAB
(A) 		8-97859-203-0 01 1 0605-0608 ● ● ● ●
35 PLATE; CAUTION,CAB
(B) 		8-98022-472-0 01 1 0507-0604 ● ● ●
35 PLATE; CAUTION,CAB
(B) 		8-98022-472-0 01 1 0605- ● ● ● ●
78 PLATE; CAUTION,ENG COOLAN 8-97315-104-0 01 1 0507-0604 ● ● ●
78 PLATE; CAUTION,ENG COOLAN 8-97315-104-0 01 1 0605- ● ● ● ●
104 PLATE; CAUTION,FAN BLADE 8-97315-109-0 01 1 0605- ● ● ● ●
104 PLATE; CAUTION,FAN BLADE 8-98024-247-0 01 1 0507-0604 ● ● ●
104 PLATE; CAUTION,FAN BLADE 8-98024-247-0 01 1 0605- ● ● ● ●
105 PLATE; CAUTION,START AIDS 8-97382-932-1 01 1 0507-0604 ● ● ●
105 PLATE; CAUTION,START AIDS 8-97382-932-1 01 1 0605- ● ● ● ●
122 PLATE; CAUTION,BELT ROUTING 8-97315-101-0 01 1 0507-0604 ● ● ●
122 PLATE; CAUTION,BELT ROUTING 8-97315-101-0 01 1 0605- ● ● ● ●
çizim 57424
35 60 193 58 84 101 229 106 193 280 296 297 300 298 299
BalonParca AdiParca NoAdetTipApplied Date A B C D
35 PLATE; CAUTION,CAB
(C) 		8-97857-419-1 01 1 0607-1005 ● ● ● ●
35 PLATE; CAUTION,CAB
(C) 		8-98070-512-0 01 1 1006- ● ● ● ●
35 PLATE; CAUTION,CAB
(A) 		8-97859-203-0 01 1 0507-0604 ● ● ●
35 PLATE; CAUTION,CAB
(A) 		8-97859-203-0 01 1 0605-0608 ● ● ● ●
35 PLATE; CAUTION,CAB
(B) 		8-98022-472-0 01 1 0507-0604 ● ● ●
35 PLATE; CAUTION,CAB
(B) 		8-98022-472-0 01 1 0605- ● ● ● ●
58 PLATE; CAUTION,ENG START 8-98024-248-0 01 1 0507-0604 ● ● ●
58 PLATE; CAUTION,ENG START 8-98024-248-0 01 1 0605- ● ● ● ●
60 PLATE; CAUTION,CAB TILT 8-98021-270-0 01 1 0507-0507 ● ● ●
60 PLATE; CAUTION,CAB TILT 8-97857-419-0 01 1 0508-0604 ● ● ●
60 PLATE; CAUTION,CAB TILT 8-97857-419-0 01 1 0605-0606 ● ● ● ●
84 PLATE; CAUTION,BRAKE FLUID 8-98022-467-0 01 1 0507-0604 ● ● ●
84 PLATE; CAUTION,BRAKE FLUID 8-98022-467-0 01 1 0605- ● ● ● ●
101 PLATE; CAUTION,NO STEP
(B) 		8-98021-268-0 02 1 0507-0604 ● ● ●
101 PLATE; CAUTION,NO STEP
(B) 		8-98021-268-0 02 1 0605-0606 ● ● ● ●
101 PLATE; CAUTION,NO STEP
(A) 		8-98022-471-0 01 1 0507-0604 ● ● ●
101 PLATE; CAUTION,NO STEP
(A) 		8-98022-471-0 01 1 0605- ● ● ● ●
106 PLATE; CAUTION,ROOF VENT
(A) 		8-94273-602-0 01 1 0507-0604 ● ● ●
106 PLATE; CAUTION,ROOF VENT
(A) 		8-94273-602-0 01 1 0605-0606 ● ● ● ●
106 PLATE; CAUTION,ROOF VENT
(B) 		8-98021-269-0 01 1 0507-0507 ● ● ●
106 PLATE; CAUTION,ROOF VENT
(B) 		8-97580-590-0 01 1 0508-0604 ● ● ●
106 PLATE; CAUTION,ROOF VENT
(B) 		8-97580-590-0 01 1 0605- ● ● ● ●
193 PLATE; CAUTION,EGR
(B) 		8-98025-362-0 01 1 0507-0604 ● ● ●
193 PLATE; CAUTION,EGR
(B) 		8-98025-362-0 01 1 0605- ● ● ● ●
193 PLATE; CAUTION,EGR
(A) 		8-98025-936-0 01 1 0507-0604 ● ● ●
193 PLATE; CAUTION,EGR
(A) 		8-98025-936-0 01 1 0605- ● ● ● ●
229 PLATE; CAUTION 8-98022-267-1 01 1 0507-0604 ● ● ●
229 PLATE; CAUTION 8-98022-267-1 01 1 0605-0608 ● ● ● ●
229 PLATE; CAUTION 8-98058-334-0 01 1 0609- ● ● ● ●
280 LABEL; EXH BRAKE 8-97377-803-0 01 1 0507-0604 ● ● ●
280 LABEL; EXH BRAKE 8-97377-803-0 01 1 0605- ● ● ● ●
296 PLATE; CAUTION,HBB TANK 8-98021-118-1 01 1 0507-0604 ● ● ●
296 PLATE; CAUTION,HBB TANK 8-98021-118-1 01 1 0605-0606 ● ● ● ●
296 PLATE; CAUTION,HBB TANK
GVWR CLASS-5 16001-19500LBS(RQH) VEHICLE CATEGORY ELF450(7NQ) 		8-98021-118-1 01 1 0607-0608 ● ●
296 PLATE; CAUTION,HBB TANK 8-98021-118-1 01 1 0607-0608 ●
296 PLATE; CAUTION,HBB TANK
HYDRO BRAKE BOOSTER(7QQ) 		8-98021-118-1 01 1 0609- ● ●
296 PLATE; CAUTION,HBB TANK 8-98021-118-1 01 1 0609- ●
297 PLATE; CAUTION,P/S TANK 8-98022-474-1 01 1 0507-0604 ● ● ●
297 PLATE; CAUTION,P/S TANK 8-98022-474-1 01 1 0605- ● ● ● ●
298 PLATE; CAUTION,RADIATOR CAP 8-98022-470-0 01 1 0507-0604 ● ● ●
298 PLATE; CAUTION,RADIATOR CAP 8-98022-470-0 01 1 0605-0606 ● ● ● ●
299 PLATE; CAUTION,STEERING LEVER LOCK 8-98022-473-0 01 1 0507-0604 ● ● ●
299 PLATE; CAUTION,STEERING LEVER LOCK 8-98022-473-0 01 1 0605- ● ● ● ●
300 PLATE; CAUTION,ENG COOLING 8-98022-265-1 01 1 0507-0604 ● ● ●
300 PLATE; CAUTION,ENG COOLING 8-98022-265-1 01 1 0605-0608 ● ● ● ●
300 PLATE; CAUTION,ENG COOLING 8-98058-333-0 01 1 0609- ● ● ● ●
çizim 57623
49 281 106 151 6 6 151 184
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER<P10> (B) 		1-85887-680-0 01 1 0511- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER<P10> (A) 		1-85887-662-0 01 1 0507-0604 ● ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER<P10> (A) 		1-85887-662-0 01 1 0605-0610 ● ● ● ●
49 PLATE; CAUTION,FUSE BOX 8-98021-655-0 01 1 0507-0604 ● ● ●
49 PLATE; CAUTION,FUSE BOX 8-98021-655-0 01 1 0605- ● ● ● ●
106 PLATE; CAUTION,ROOF VENT
(A) 		8-94273-602-0 01 1 0507-0604 ● ● ●
106 PLATE; CAUTION,ROOF VENT
(A) 		8-94273-602-0 01 1 0605-0606 ● ● ● ●
106 PLATE; CAUTION,ROOF VENT
(B) 		8-98021-269-0 01 1 0507-0507 ● ● ●
106 PLATE; CAUTION,ROOF VENT
(B) 		8-97580-590-0 01 1 0508-0604 ● ● ●
106 PLATE; CAUTION,ROOF VENT
(B) 		8-97580-590-0 01 1 0605- ● ● ● ●
151 PLATE; CAUTION,EXH WARNING
(A) 		8-97365-604-1 01 1 0507-0604 ● ● ●
151 PLATE; CAUTION,EXH WARNING
(A) 		8-97365-604-1 01 1 0605-0606 ● ● ● ●
151 PLATE; CAUTION,EXH WARNING
(B) 		8-98022-266-1 01 1 0607-0607 ● ● ● ●
151 PLATE; CAUTION,EXH WARNING
(B) 		8-98057-161-1 01 1 0608- ● ● ● ●
184 PLATE; NAME,EXH BRAKE 8-98022-266-1 01 1 0507-0604 ● ● ●
184 PLATE; NAME,EXH BRAKE 8-98022-266-1 01 1 0605-0606 ● ● ● ●
281 LABEL; PASS 8-97588-025-0 01 1 0507-0604 ● ● ●
281 LABEL; PASS 8-97588-025-0 01 1 0605- ● ● ● ●
çizim 100837
157 35 101
BalonParca AdiParca NoAdetTipApplied Date A B C D
35 PLATE; CAUTION,CAB
(C) 		8-97857-419-1 01 1 0607-1005 ● ● ● ●
35 PLATE; CAUTION,CAB
(C) 		8-98070-512-0 01 1 1006- ● ● ● ●
35 PLATE; CAUTION,CAB
(A) 		8-97859-203-0 01 1 0507-0604 ● ● ●
35 PLATE; CAUTION,CAB
(A) 		8-97859-203-0 01 1 0605-0608 ● ● ● ●
35 PLATE; CAUTION,CAB
(B) 		8-98022-472-0 01 1 0507-0604 ● ● ●
35 PLATE; CAUTION,CAB
(B) 		8-98022-472-0 01 1 0605- ● ● ● ●
101 PLATE; CAUTION,NO STEP
(B) 		8-98021-268-0 02 1 0507-0604 ● ● ●
101 PLATE; CAUTION,NO STEP
(B) 		8-98021-268-0 02 1 0605-0606 ● ● ● ●
101 PLATE; CAUTION,NO STEP
(A) 		8-98022-471-0 01 1 0507-0604 ● ● ●
101 PLATE; CAUTION,NO STEP
(A) 		8-98022-471-0 01 1 0605- ● ● ● ●
157 PLATE; CAUTION,RR BODY INSTALLATION 8-98022-261-0 01 1 0507-0604 ● ● ●
157 PLATE; CAUTION,RR BODY INSTALLATION 8-98022-261-0 01 1 0605- ● ● ● ●

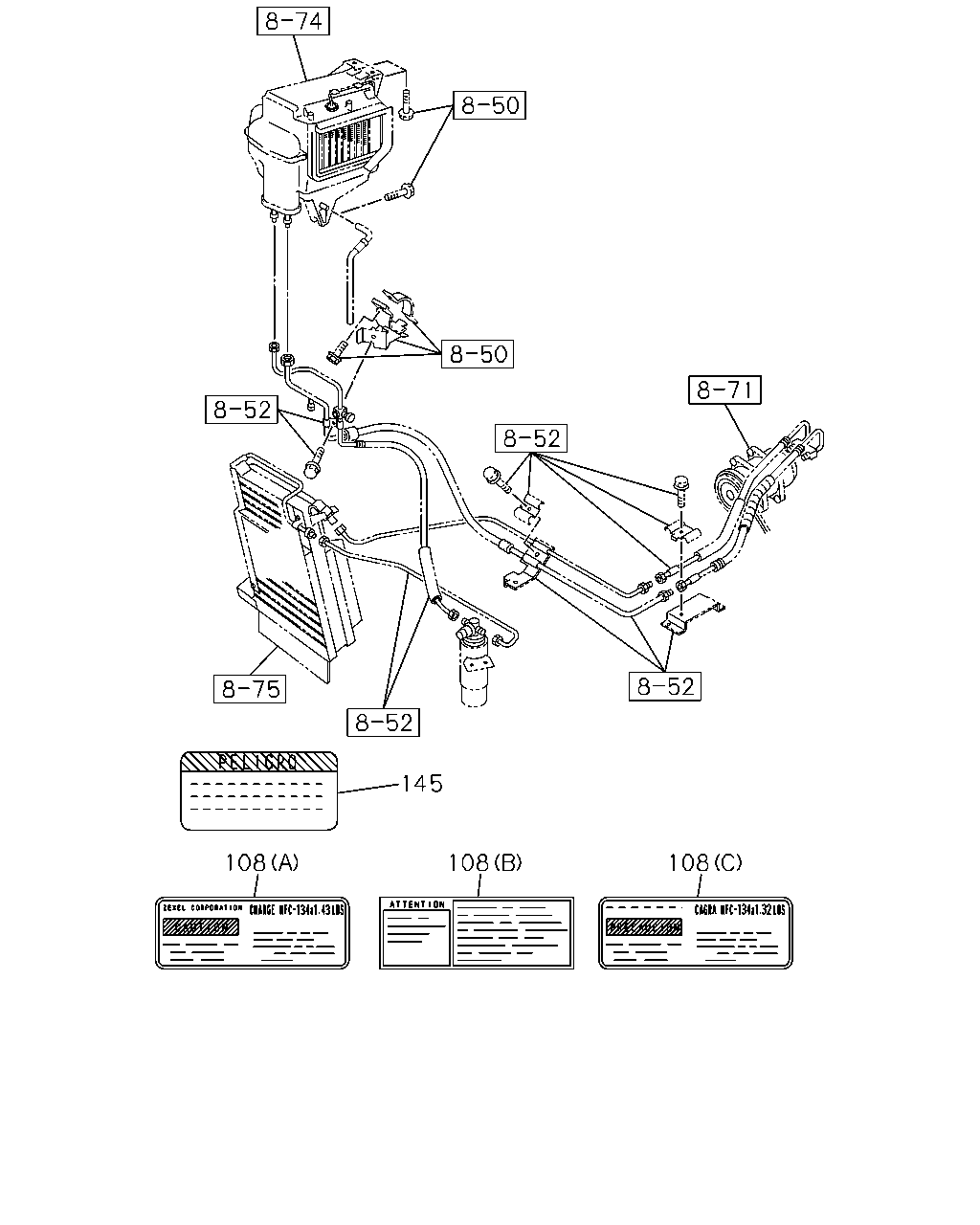

çizim 100839
145 108 108 108
BalonParca AdiParca NoAdetTipApplied Date A B C D
108 LABEL; CAUTION,A/C
AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98050-116-0 01 1 0607- ● ● ● ●
108 LABEL; CAUTION,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94435-270-1 01 1 0507-0604 ● ● ●
108 LABEL; CAUTION,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94435-270-1 01 1 0605- ● ● ● ●
108 LABEL; CAUTION,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97062-917-0 01 1 0507-0604 ● ● ●
108 LABEL; CAUTION,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97062-917-0 01 1 0605- ● ● ● ●
145 PLATE; CAUTION,RADIATOR 8-98022-470-0 01 1 0607-0608 ● ● ● ●
145 PLATE; CAUTION,RADIATOR 8-98057-420-0 01 1 0609- ● ● ● ●
