Isuzu WW
▶
TRUCKS
▶
ELF
▶
51047 - ELF400/450(MEXICO)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-80 - BACK PANEL
▶
6-80 — BACK PANEL
(#51877) — 27 parça
Tümü
A - NPC7SC
B - NPC7SF
C - NPC7SK
D - NPC7SS
◀

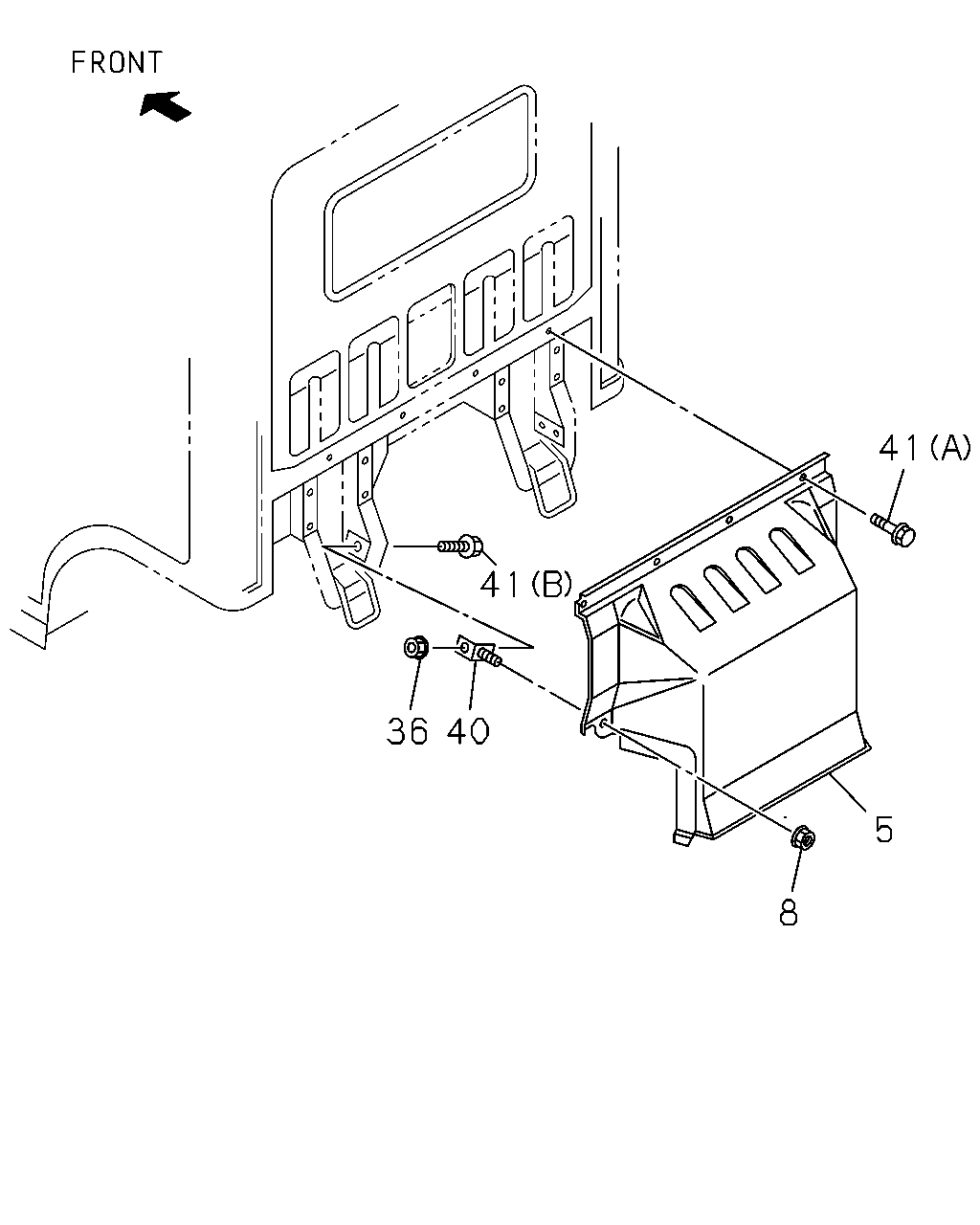

[680A] (NO.2) (15 parça)
[680A] (NO.1) (12 parça)
▶
41
41
36
40
5
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
5
PANEL; CAB BACK
8-97383-525-5
01
1
0507-0604
●
●
●
5
PANEL; CAB BACK
8-97383-525-5
01
1
0605-
●
●
●
●
8
NUT; BACK PANEL
M8 FLANGE
0-91150-108-0
02
1
0507-0602
●
●
●
8
NUT; BACK PANEL
M8 FLANGE
0-91180-108-0
02
1
0603-0604
●
●
●
8
NUT; BACK PANEL
M8 FLANGE
0-91180-108-0
02
1
0605-
●
●
●
●
36
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0507-0602
●
●
●
36
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-0604
●
●
●
36
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0605-
●
●
●
●
40
BRACKET; BACK PANEL
8-97322-264-0
02
1
0507-0604
●
●
●
40
BRACKET; BACK PANEL
8-97322-264-0
02
1
0605-
●
●
●
●
41
BOLT
(B) M8X20 FLANGE
0-28680-820-0
02
1
0507-0512
●
●
●
41
BOLT
(B) M8X20 FLANGE
0-28650-820-0
02
1
0601-0604
●
●
●
41
BOLT
(B) M8X20 FLANGE
0-28650-820-0
02
1
0605-
●
●
●
●
41
BOLT
(A) M5X16 TAPPING W/PL WASHER
8-94496-177-1
04
1
0507-0604
●
●
●
41
BOLT
(A) M5X16 TAPPING W/PL WASHER
8-94496-177-1
04
1
0605-
●
●
●
●
1
2
2
2
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
PANEL; BACK OUTER
8-97859-127-0
01
1
0507-0604
●
●
●
1
PANEL; BACK OUTER
8-97859-127-0
01
1
0605-
●
●
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK
1-76798-019-0
05
1
0507-0604
●
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK
1-76798-019-0
05
1
0605-
●
●
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=36 T=0.05 BLACK
5-76777-035-0
02
1
0507-0604
●
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=36 T=0.05 BLACK
5-76777-035-0
02
1
0605-0710
●
●
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=32 BLACK
8-98031-126-0
02
1
0711-
●
●
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=16.2
8-94492-493-0
02
1
0507-0512
●
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=15.0
8-94279-040-0
02
1
0601-0604
●
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=15.0
8-94279-040-0
02
1
0605-
●
●
●
●
16
REINFORCEMENT; BACK OUTER PNL
8-97890-837-1
01
1
0507-0604
●
●
●
16
REINFORCEMENT; BACK OUTER PNL
8-97890-837-1
01
1
0605-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
