◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51047 - ELF400/450(MEXICO) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#51874) — 10 parça

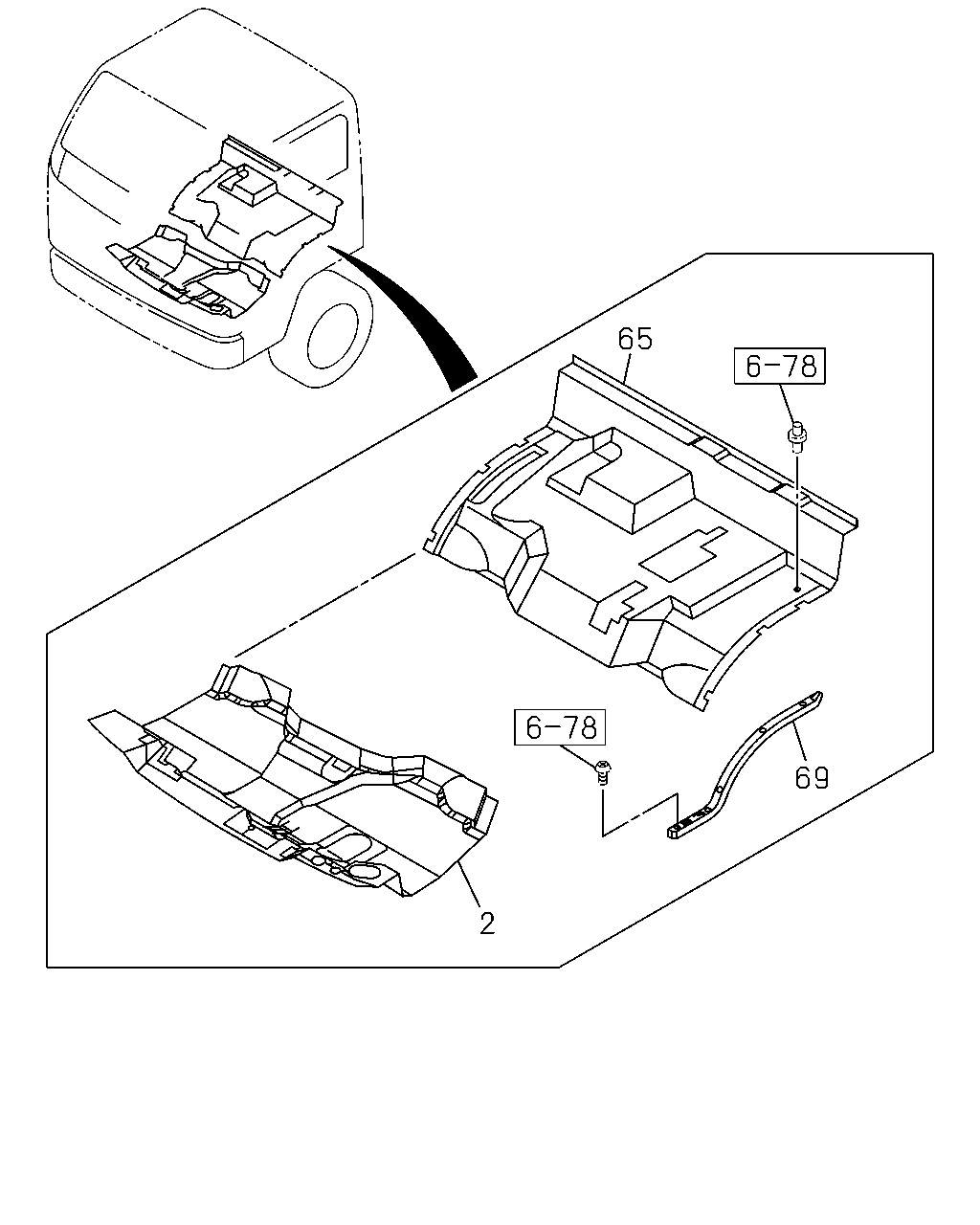

çizim 57428
65 69 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97585-415-3 01 1 0507-0604 ● ● ●
2 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97585-415-4 01 1 0605- ● ● ● ●
2 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97585-414-3 01 1 0507-0604 ● ● ●
2 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97585-414-4 01 1 0605- ● ● ● ●
65 MAT ASM; SILENCER,CAB FLOOR
GRAY 		8-97585-421-1 01 1 0507-0604 ● ● ●
65 MAT ASM; SILENCER,CAB FLOOR
GRAY 		8-97585-421-2 01 1 0605- ● ● ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-804-1 01 1 0507-0604 ● ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-804-1 01 1 0605- ● ● ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97585-424-1 01 1 0507-0604 ● ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97585-424-1 01 1 0605- ● ● ● ●
