◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51047 - ELF400/450(MEXICO) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#51873) — 69 parça

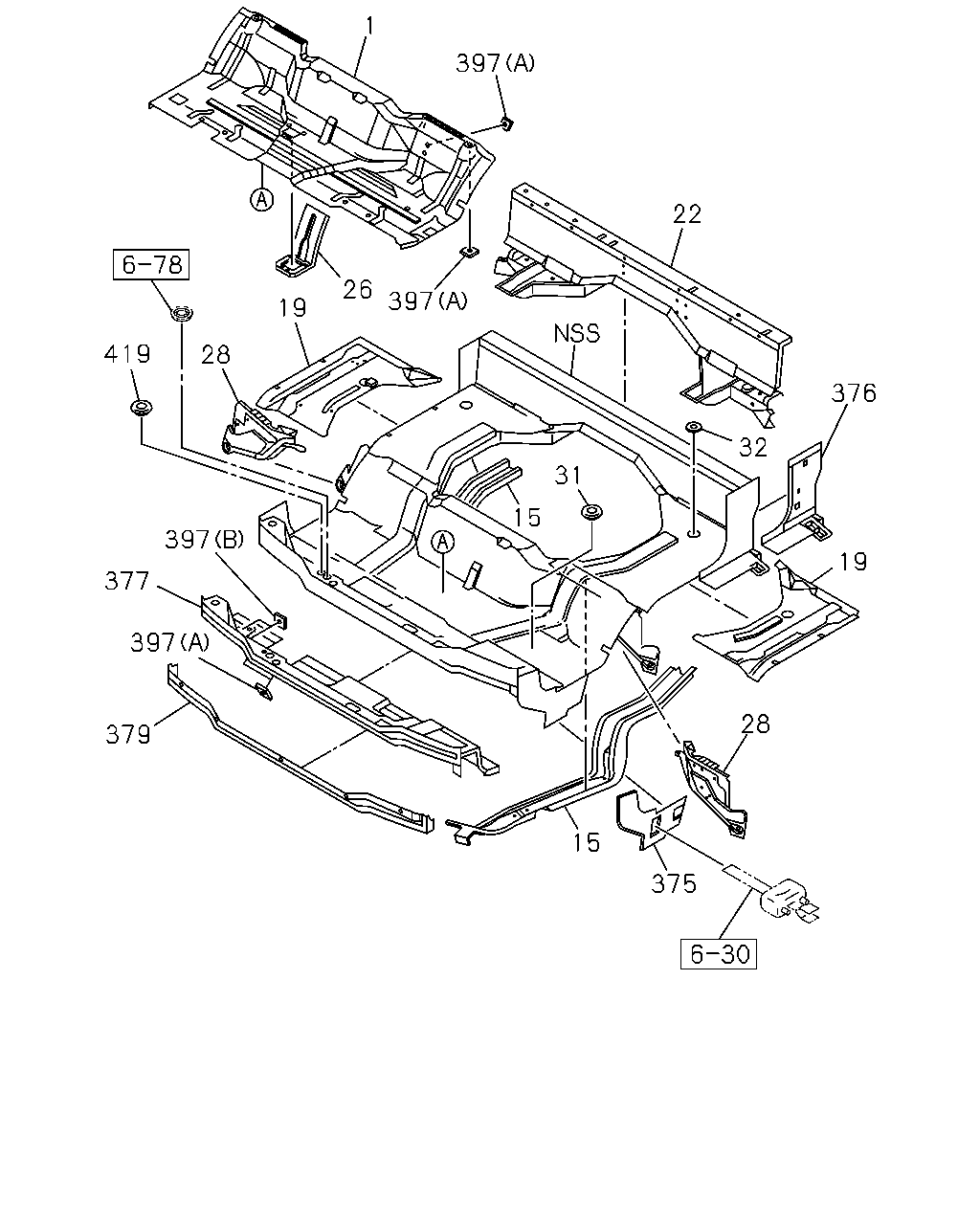

çizim 57389
1 397 22 26 397 19 419 28 376 32 31 15 397 19 377 397 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; FLOOR 8-97850-402-6 01 1 0507-0604 ● ● ●
1 PANEL; FLOOR 8-97850-402-6 01 1 0605- ● ● ● ●
15 FRAME; UNDER 8-97850-060-9 01 1 0507-0604 ● ● ●
15 FRAME; UNDER 8-97850-060-9 01 1 0605- ● ● ● ●
15 FRAME; UNDER 8-98013-405-0 01 1 0507-0604 ● ● ●
15 FRAME; UNDER 8-98013-405-0 01 1 0605- ● ● ● ●
19 PANEL; FLOOR SIDE,REAR 8-97890-503-1 01 1 0507-0604 ● ● ●
19 PANEL; FLOOR SIDE,REAR 8-97890-503-2 01 1 0605- ● ● ● ●
19 PANEL; FLOOR SIDE,REAR 8-97890-502-1 01 1 0507-0604 ● ● ●
19 PANEL; FLOOR SIDE,REAR 8-97890-502-2 01 1 0605- ● ● ● ●
22 FRAME; FLOOR REAR 8-97850-464-5 01 1 0507-0604 ● ● ●
22 FRAME; FLOOR REAR 8-97850-464-9 01 1 0605-1510 ● ● ● ●
22 FRAME; FLOOR REAR 8-98309-368-0 01 1 1511- ● ● ● ●
26 PANEL; GEAR CONT REINF 8-97850-403-0 01 1 0507-0604 ● ● ●
26 PANEL; GEAR CONT REINF 8-97850-403-0 01 1 0605- ● ● ● ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0507-0604 ● ● ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0605-1106 ● ● ● ●
28 GUSSET; FLOOR PANEL SIDE 8-98170-771-0 01 1 1107- ● ● ● ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0507-0604 ● ● ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0605-1106 ● ● ● ●
28 GUSSET; FLOOR PANEL SIDE 8-98170-770-0 01 1 1107- ● ● ● ●
31 GROMMET; LOCATION HOLE,CAB FLOOR
OD=28.5 		8-94279-711-0 02 1 0507-0604 ● ● ●
31 GROMMET; LOCATION HOLE,CAB FLOOR
OD=28.5 		8-94279-711-0 02 1 0605- ● ● ● ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
OD=53.5 		8-94356-253-0 02 1 0507-0604 ● ● ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
OD=53.5 		8-94356-253-0 02 1 0605- ● ● ● ●
375 CLOSING; PILLAR 8-97850-087-4 01 1 0507-0604 ● ● ●
375 CLOSING; PILLAR 8-97850-087-4 01 1 0605- ● ● ● ●
375 CLOSING; PILLAR 8-97850-086-5 01 1 0507-0604 ● ● ●
375 CLOSING; PILLAR 8-97850-086-5 01 1 0605- ● ● ● ●
376 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 0507-0604 ● ● ●
376 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 0605- ● ● ● ●
376 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 0507-0604 ● ● ●
376 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 0605- ● ● ● ●
377 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0507-0604 ● ● ●
377 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0605- ● ● ● ●
379 PANEL 8-97581-640-0 01 1 0507-0604 ● ● ●
379 PANEL 8-97581-640-0 01 1 0605- ● ● ● ●
397 NUT; PIERCE
(B) M10 		9-09114-030-0 03 1 0507-0604 ● ● ●
397 NUT; PIERCE
(B) M10 		9-09114-030-0 03 1 0605- ● ● ● ●
397 NUT; PIERCE
(A) M8 		9-09114-048-0 04 1 0507-0604 ● ● ●
397 NUT; PIERCE
(A) M8 		9-09114-048-0 04 1 0605- ● ● ● ●
397 NUT; PIERCE
(A) M8 		9-09114-048-0 05 1 0507-0604 ● ● ●
397 NUT; PIERCE
(A) M8 		9-09114-048-0 05 1 0605- ● ● ● ●
419 GROMMET; CONT SHAFT,FLOOR PANEL
OD=36 		1-09983-092-0 01 1 0507-0604 ● ● ●
419 GROMMET; CONT SHAFT,FLOOR PANEL
OD=36 		1-09983-092-0 01 1 0605- ● ● ● ●

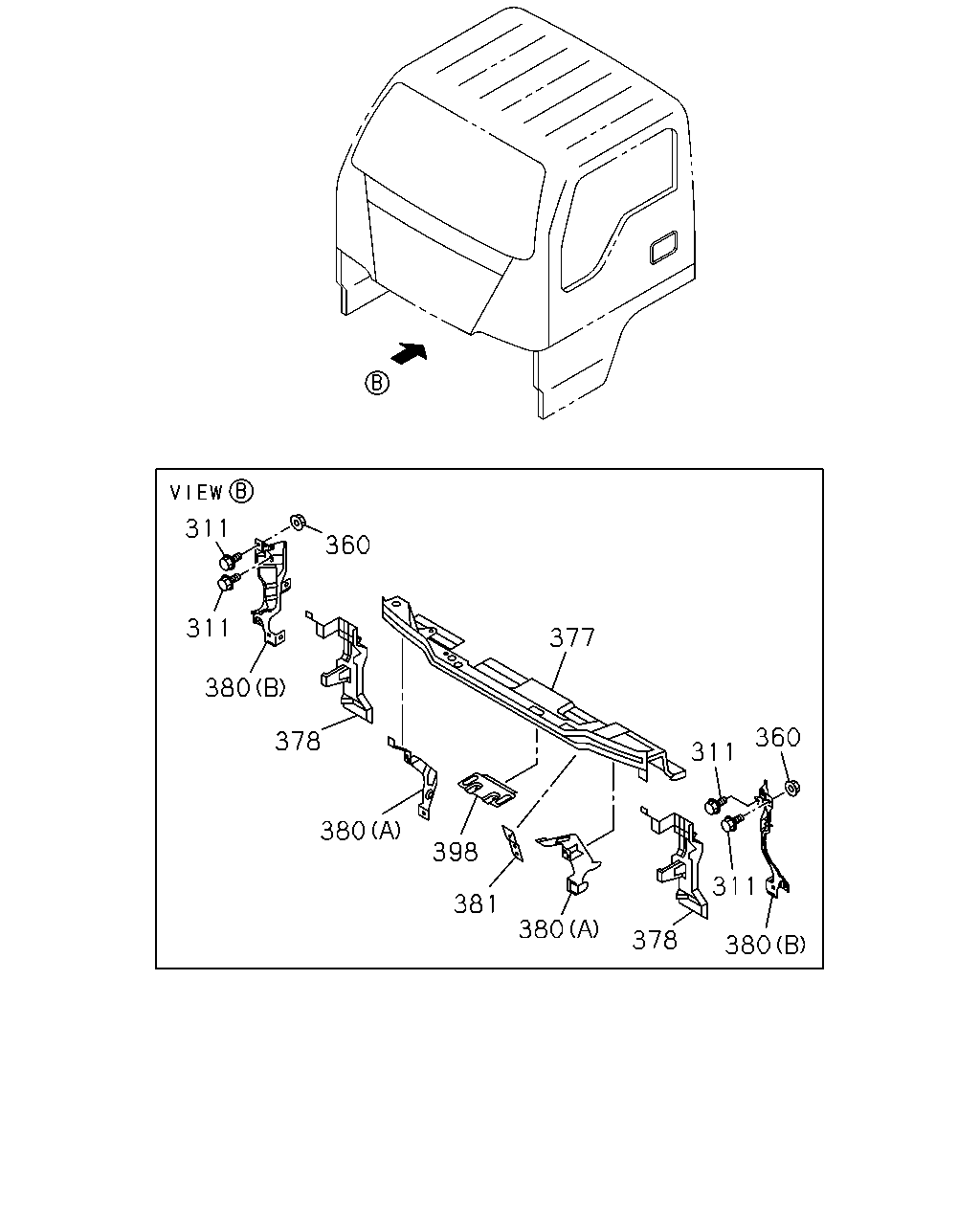

çizim 57465
311 360 311 377 380 360 378 311 380 398 311 381 380 378 380
BalonParca AdiParca NoAdetTipApplied Date A B C D
311 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0507-0604 ● ● ●
311 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0605-0804 ● ● ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0805- ● ● ● ●
360 NUT; BRKT
M6 POP NUT 		8-94279-537-0 02 1 0507-0604 ● ● ●
360 NUT; BRKT
M6 POP NUT 		8-94279-537-0 02 1 0605-0805 ● ● ● ●
360 NUT; BRKT
M6 POP NUT 		8-98013-752-0 02 1 0806- ● ● ● ●
377 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0507-0604 ● ● ●
377 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0605- ● ● ● ●
378 GASSET; LWR 8-97581-828-2 01 1 0507-0604 ● ● ●
378 GASSET; LWR 8-97581-828-2 01 1 0605- ● ● ● ●
378 GASSET; LWR 8-97581-827-1 01 1 0507-0604 ● ● ●
378 GASSET; LWR 8-97581-827-2 01 1 0605- ● ● ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97850-359-1 01 1 0507-0604 ● ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97850-359-1 01 1 0605- ● ● ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98006-088-0 01 1 0507-0604 ● ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98006-088-0 01 1 0605- ● ● ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97850-704-0 01 1 0507-0604 ● ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97850-704-0 01 1 0605- ● ● ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98006-087-0 01 1 0507-0604 ● ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98006-087-0 01 1 0605- ● ● ● ●
381 BRACKET; AIR INTAKE DUCT,FRT 8-97850-352-1 01 1 0507-0604 ● ● ●
381 BRACKET; AIR INTAKE DUCT,FRT 8-97850-352-1 01 1 0605- ● ● ● ●
398 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 0507-0604 ● ● ●
398 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 0605- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
