6-66 — HEAD LINING AND TRIM (#51871) — 20 parça

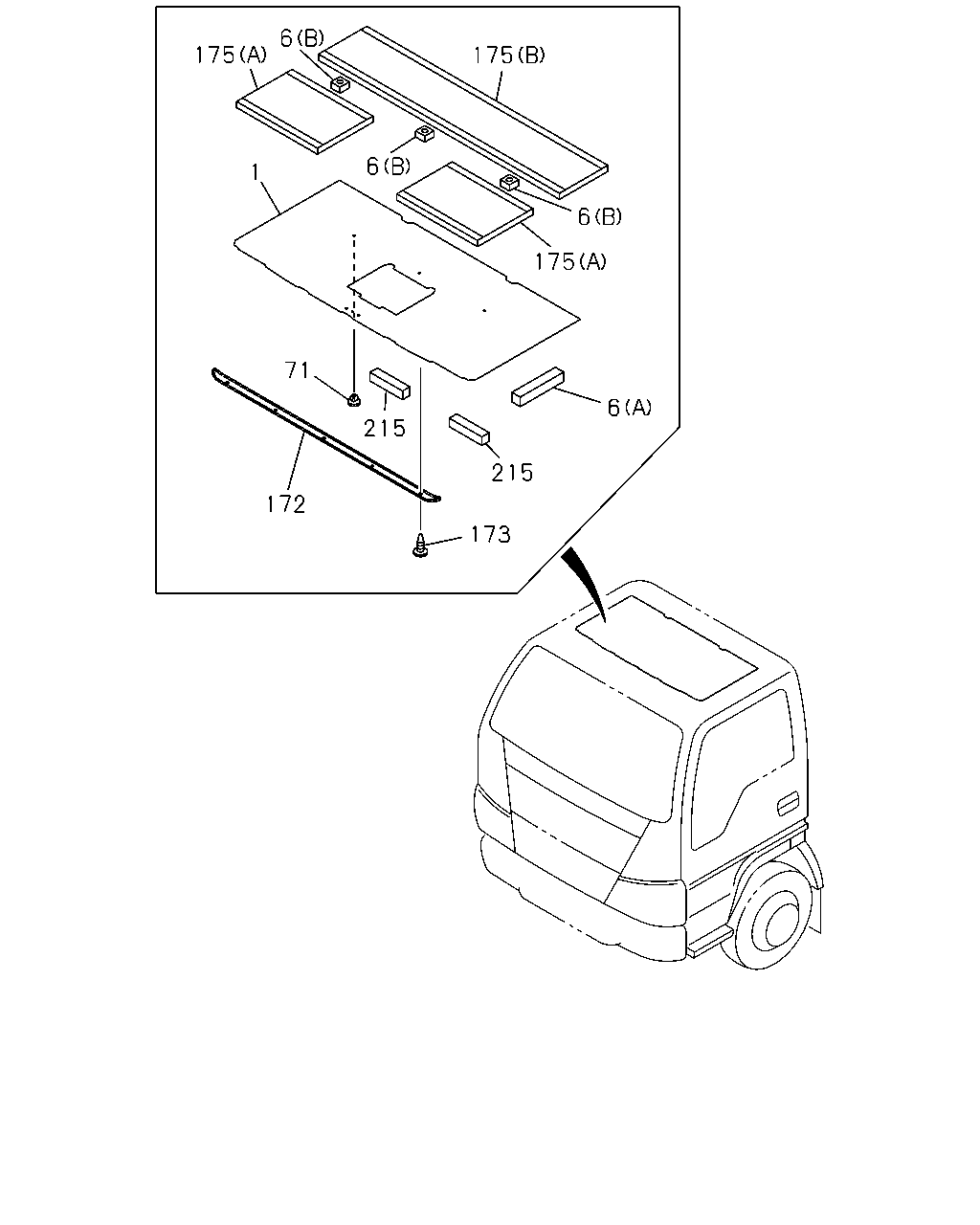

çizim 57220
6 175 175 6 1 6 175 71 6 215 215 172 173
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LINING; HD
LIGHT GRAY 		8-97868-224-2 01 1 0507-0604 ● ● ●
1 LINING; HD
LIGHT GRAY 		8-97868-224-2 01 1 0605- ● ● ● ●
6 SPACER; HD LINING
(B) 		8-94353-014-0 03 1 0507-0604 ● ● ●
6 SPACER; HD LINING
(B) 		8-94353-014-0 03 1 0605- ● ● ● ●
6 SPACER; HD LINING
(A) H=10 L=55 		8-97410-832-0 02 1 0507-0604 ● ● ●
6 SPACER; HD LINING
(A) H=10 L=55 		8-97410-832-0 02 1 0605- ● ● ● ●
71 FASTENER; HD LINING
LIGHT GRAY 		8-97867-230-2 03 1 0507-0604 ● ● ●
71 FASTENER; HD LINING
LIGHT GRAY 		8-97867-230-2 03 1 0605-0610 ● ● ● ●
71 FASTENER; HD LINING
DARK GRAY 		8-97405-301-2 03 1 0611- ● ● ● ●
172 RETAINER; HEAD LINING
LIGHT GRAY 		8-97867-611-4 01 1 0507-0604 ● ● ●
172 RETAINER; HEAD LINING
LIGHT GRAY 		8-97867-611-4 01 1 0605- ● ● ● ●
173 CLIP; RETAINER,HEAD LINING
LIGHT GRAY, D6.8X11 PUSH RIVET 		8-97867-240-0 05 1 0507-0604 ● ● ●
173 CLIP; RETAINER,HEAD LINING
LIGHT GRAY, D6.8X11 PUSH RIVET 		8-97867-240-0 05 1 0605-0708 ● ● ● ●
173 CLIP; RETAINER,HEAD LINING
DARK GRAY 		8-97406-299-0 05 1 0709- ● ● ● ●
175 CUSHION; HEAD LINING
(A) 		8-97856-524-4 02 1 0507-0604 ● ● ●
175 CUSHION; HEAD LINING
(A) 		8-97856-524-5 02 1 0605- ● ● ● ●
175 CUSHION; HEAD LINING
(B) 		8-97859-105-2 01 1 0507-0604 ● ● ●
175 CUSHION; HEAD LINING
(B) 		8-97859-105-3 01 1 0605- ● ● ● ●
215 CUSHION; TRAY BACK PANEL
L=100 		8-97866-625-0 02 1 0507-0604 ● ● ●
215 CUSHION; TRAY BACK PANEL
L=100 		8-97866-625-0 02 1 0605- ● ● ● ●
