Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#51869) — 277 parça

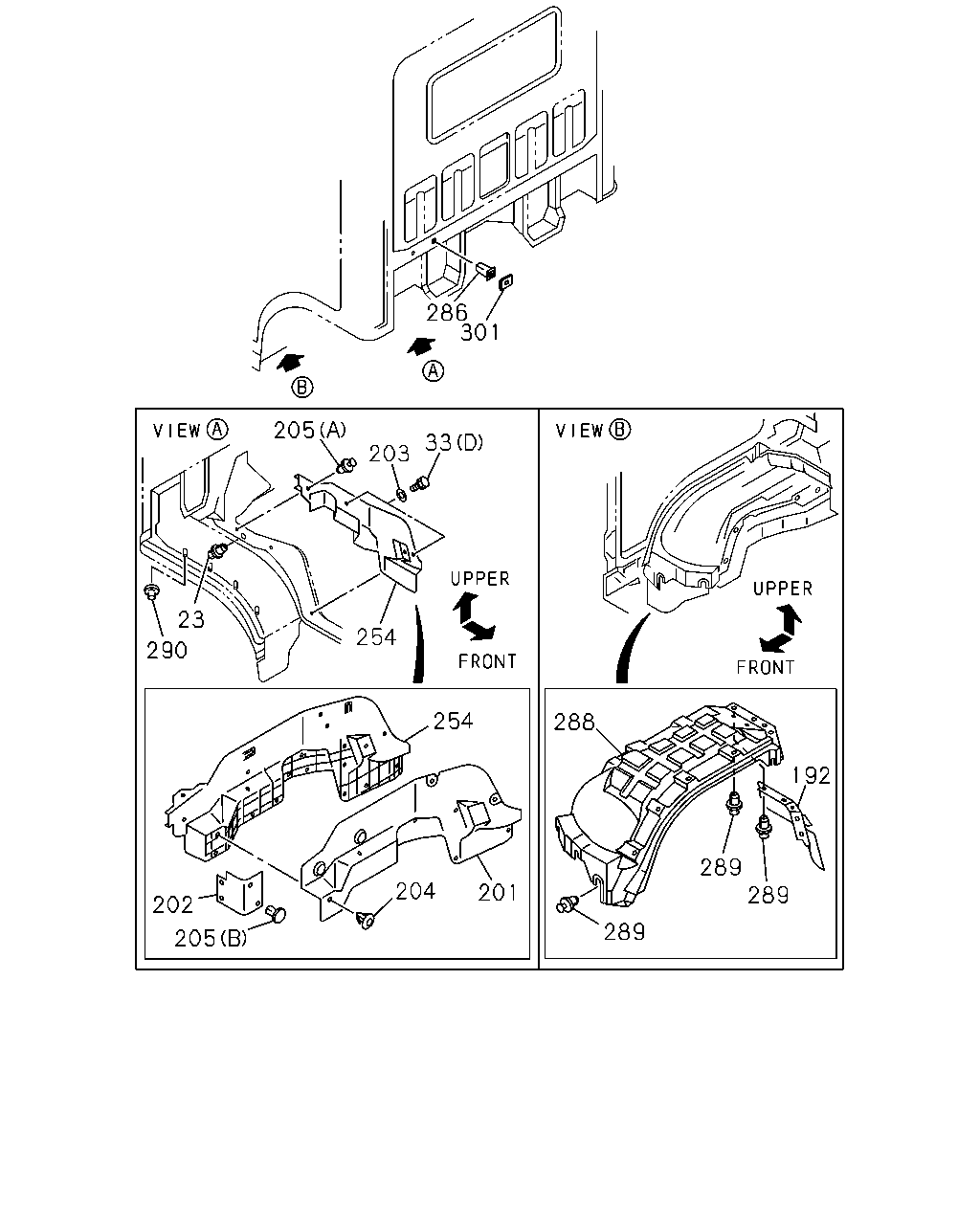

286 301 205 33 203 23 254 290 254 288 192 289 289 204 201 202 289 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	FASTENER; MUD COVER OD=8.3	8-97997-832-0	06	1	0507-0508	●	●	●
23	FASTENER; MUD COVER OD=8.3	8-97997-832-0	10	1	0509-0604	●	●	●
23	FASTENER; MUD COVER OD=8.3	8-97997-832-0	10	1	0605-	●	●	●	●
33	BOLT; MUD COVER (A) M6X16 FLANGE	0-28080-616-0	08	1	0507-0512	●
33	BOLT; MUD COVER FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) (A) M6X16 FLANGE	0-28080-616-0	08	1	0507-0512		●	●
33	BOLT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28050-616-0	01	1	0601-0604	●	●	●
33	BOLT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28050-616-0	01	1	0605-	●	●	●	●
33	BOLT; MUD COVER (A) M6X16 FLANGE	0-28050-616-0	08	1	0601-	●
33	BOLT; MUD COVER FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) (A) M6X16 FLANGE	0-28050-616-0	08	1	0601-		●	●
33	BOLT; MUD COVER (B) M8X20 FLANGE	0-28080-820-0	05	1	0507-0512	●	●	●
33	BOLT; MUD COVER (B) M8X20 FLANGE	0-28050-820-0	05	1	0601-0604	●	●	●
33	BOLT; MUD COVER (B) M8X20 FLANGE	0-28050-820-0	05	1	0605-	●	●	●	●
33	BOLT; MUD COVER (D) M6X25 FLANGE	0-28680-625-0	04	1	0507-0512	●	●	●
33	BOLT; MUD COVER (D) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604	●	●	●
33	BOLT; MUD COVER (D) M6X25 FLANGE	0-28650-625-0	04	1	0605-0605	●	●	●	●
33	BOLT; MUD COVER (D) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●	●	●
33	BOLT; MUD COVER (C) M8X25 FLANGE	0-28680-825-0	05	1	0507-0512	●	●	●
33	BOLT; MUD COVER (C) M8X25 FLANGE	0-28650-825-0	05	1	0601-0604	●	●	●
33	BOLT; MUD COVER (C) M8X25 FLANGE	0-28650-825-0	05	1	0605-	●	●	●	●
33	BOLT; MUD COVER (E) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0507-0604	●	●	●
33	BOLT; MUD COVER (E) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0605-0805	●	●	●	●
33	BOLT; MUD COVER (E) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●	●	●
33	BOLT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (D) M6X25 FLANGE	0-28680-625-0	01	1	0507-0512	●	●	●
33	BOLT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (D) M6X25 FLANGE	0-28650-625-0	01	1	0601-0604	●	●	●
33	BOLT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (D) M6X25 FLANGE	0-28650-625-0	01	1	0605-	●	●	●	●
33	BOLT; MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (A) M6X16 FLANGE	0-28080-616-0	10	1	0507-0512		●	●
33	BOLT; MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (A) M6X16 FLANGE	0-28050-616-0	10	1	0601-0604		●	●
33	BOLT; MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (A) M6X16 FLANGE	0-28050-616-0	10	1	0605-		●	●
33	BOLT; MUD COVER (A) M6X16 FLANGE	0-28050-616-0	10	1	0605-				●
192	SEAL; MUD COVER	8-97896-994-1	02	1	0507-0604	●	●	●
192	SEAL; MUD COVER	8-97896-994-1	02	1	0605-1106	●	●	●	●
192	SEAL; MUD COVER	8-98192-033-0	02	1	1107-	●	●	●	●
201	INSULATOR; VALANCE	8-97853-631-3	01	1	0507-0604	●	●	●
201	INSULATOR; VALANCE	8-97853-631-3	01	1	0605-	●	●	●	●
201	INSULATOR; VALANCE	8-97892-184-1	01	1	0507-0604	●	●	●
201	INSULATOR; VALANCE	8-97892-184-1	01	1	0605-	●	●	●	●
202	RUBBER; MUD,VALANCE PANEL	8-97892-185-0	01	1	0507-0604	●	●	●
202	RUBBER; MUD,VALANCE PANEL	8-97892-185-0	01	1	0605-	●	●	●	●
203	WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	0507-0604	●	●	●
203	WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	0605-0605	●	●	●	●
204	CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	0507-0604	●	●	●
204	CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	0605-	●	●	●	●
205	FASTENER; MUD COVER (A) D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0507-0604	●	●	●
205	FASTENER; MUD COVER (A) D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0605-	●	●	●	●
205	FASTENER; MUD COVER (B)	5-09989-002-0	04	1	0507-0604	●	●	●
205	FASTENER; MUD COVER (B)	5-09989-002-0	04	1	0605-	●	●	●	●
254	COVER; MUD,VALANCE	8-97853-359-3	01	1	0507-0604	●	●	●
254	COVER; MUD,VALANCE	8-97853-359-3	01	1	0605-	●	●	●	●
254	COVER; MUD,VALANCE	8-97892-183-0	01	1	0507-0604	●	●	●
254	COVER; MUD,VALANCE	8-97892-183-0	01	1	0605-0606	●	●	●	●
254	COVER; MUD,VALANCE	8-97892-183-0	01	1	0607-	●	●	●	●
286	GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0507-0604	●	●	●
286	GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0605-	●	●	●	●
288	LINER; TIRE HOUSE	8-97581-241-0	01	1	0507-0604	●	●	●
288	LINER; TIRE HOUSE	8-97581-241-0	01	1	0605-	●	●	●	●
288	LINER; TIRE HOUSE	8-97581-240-0	01	1	0507-0604	●	●	●
288	LINER; TIRE HOUSE	8-97581-240-0	01	1	0605-	●	●	●	●
289	FASTENER; LINER AIR CONDITIONER MANUAL CONT(C60) OD=8.3	8-94279-989-0	17	1	0507-0604	●	●	●
289	FASTENER; LINER AIR CONDITIONER MANUAL CONT(C60) OD=8.3	8-94279-989-0	17	1	0605-	●	●	●	●
289	FASTENER; LINER EXC. AIR CONDITIONER MANUAL CONT(C60) OD=8.3	8-94279-989-0	18	1	0507-0604	●	●	●
289	FASTENER; LINER EXC. AIR CONDITIONER MANUAL CONT(C60) OD=8.3	8-94279-989-0	18	1	0605-	●	●	●	●
290	NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	0507-0604	●	●	●
290	NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	0605-	●	●	●	●
301	HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0507-0604	●	●	●
301	HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0605-	●	●	●	●

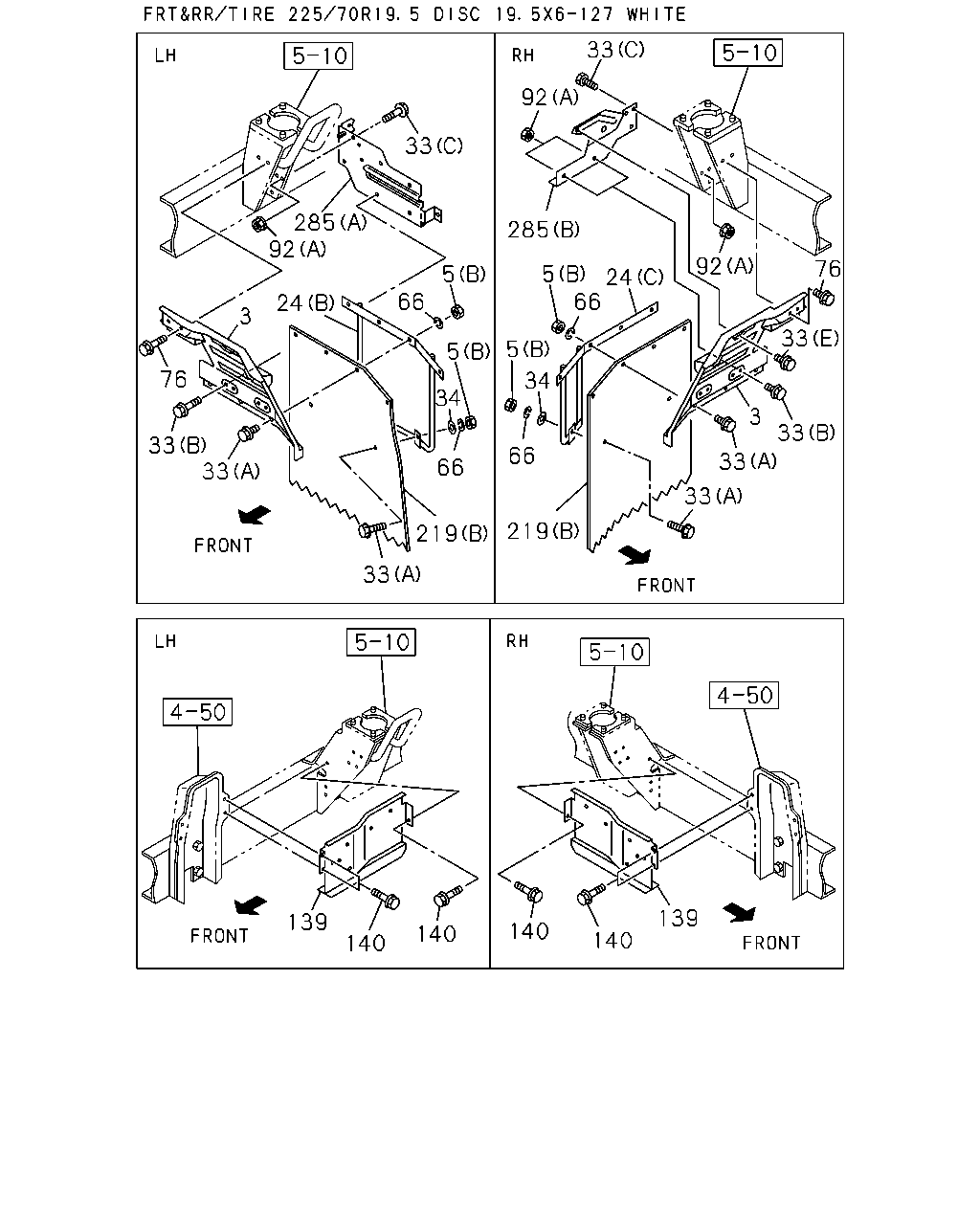

33 92 33 285 92 285 24 5 66 5 92 66 76 76 24 33 33 33 3 3 33 33 219 219 139 139 140 140 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	GUARD; MUD,RR	8-97366-988-1	01	1	0507-0604	●	●	●
3	GUARD; MUD,RR	8-97366-988-1	01	1	0605-	●	●	●	●
3	GUARD; MUD,RR	8-97048-728-3	01	1	0507-0604	●	●	●
3	GUARD; MUD,RR	8-97048-728-3	01	1	0605-	●	●	●	●
5	NUT; FLAP RUBBER (A) M6	9-09111-406-0	08	1	0507-0512	●
5	NUT; FLAP RUBBER FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) (A) M6	9-09111-406-0	08	1	0507-0512		●	●
5	NUT; FLAP RUBBER (A) M6	0-91111-506-0	08	1	0601-	●
5	NUT; FLAP RUBBER FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) (A) M6	0-91111-506-0	08	1	0601-		●	●
5	NUT; FLAP RUBBER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (B) M6	9-09111-406-0	10	1	0507-0512		●	●
5	NUT; FLAP RUBBER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (B) M6	0-91111-506-0	10	1	0601-0604		●	●
5	NUT; FLAP RUBBER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (B) M6	0-91111-506-0	10	1	0605-		●	●
5	NUT; FLAP RUBBER (B) M6	0-91111-506-0	10	1	0605-				●
24	PLATE; MUD COVER (A)	8-97095-186-0	02	1	0507-	●
24	PLATE; MUD COVER FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) (A)	8-97095-186-0	02	1	0507-		●	●
24	PLATE; MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (B)	8-97212-726-0	01	1	0507-0604		●	●
24	PLATE; MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (B)	8-97212-726-0	01	1	0605-		●	●
24	PLATE; MUD COVER (B)	8-97212-726-0	01	1	0605-				●
24	PLATE; MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (C)	8-97183-159-0	01	1	0507-0604		●	●
24	PLATE; MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (C)	8-97183-159-0	01	1	0605-		●	●
24	PLATE; MUD COVER (C)	8-97183-159-0	01	1	0605-				●
33	BOLT; MUD COVER (A) M6X16 FLANGE	0-28080-616-0	08	1	0507-0512	●
33	BOLT; MUD COVER FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) (A) M6X16 FLANGE	0-28080-616-0	08	1	0507-0512		●	●
33	BOLT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28050-616-0	01	1	0601-0604	●	●	●
33	BOLT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28050-616-0	01	1	0605-	●	●	●	●
33	BOLT; MUD COVER (A) M6X16 FLANGE	0-28050-616-0	08	1	0601-	●
33	BOLT; MUD COVER FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) (A) M6X16 FLANGE	0-28050-616-0	08	1	0601-		●	●
33	BOLT; MUD COVER (B) M8X20 FLANGE	0-28080-820-0	05	1	0507-0512	●	●	●
33	BOLT; MUD COVER (B) M8X20 FLANGE	0-28050-820-0	05	1	0601-0604	●	●	●
33	BOLT; MUD COVER (B) M8X20 FLANGE	0-28050-820-0	05	1	0605-	●	●	●	●
33	BOLT; MUD COVER (D) M6X25 FLANGE	0-28680-625-0	04	1	0507-0512	●	●	●
33	BOLT; MUD COVER (D) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604	●	●	●
33	BOLT; MUD COVER (D) M6X25 FLANGE	0-28650-625-0	04	1	0605-0605	●	●	●	●
33	BOLT; MUD COVER (D) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●	●	●
33	BOLT; MUD COVER (C) M8X25 FLANGE	0-28680-825-0	05	1	0507-0512	●	●	●
33	BOLT; MUD COVER (C) M8X25 FLANGE	0-28650-825-0	05	1	0601-0604	●	●	●
33	BOLT; MUD COVER (C) M8X25 FLANGE	0-28650-825-0	05	1	0605-	●	●	●	●
33	BOLT; MUD COVER (E) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0507-0604	●	●	●
33	BOLT; MUD COVER (E) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0605-0805	●	●	●	●
33	BOLT; MUD COVER (E) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●	●	●
33	BOLT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (D) M6X25 FLANGE	0-28680-625-0	01	1	0507-0512	●	●	●
33	BOLT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (D) M6X25 FLANGE	0-28650-625-0	01	1	0601-0604	●	●	●
33	BOLT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (D) M6X25 FLANGE	0-28650-625-0	01	1	0605-	●	●	●	●
33	BOLT; MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (A) M6X16 FLANGE	0-28080-616-0	10	1	0507-0512		●	●
33	BOLT; MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (A) M6X16 FLANGE	0-28050-616-0	10	1	0601-0604		●	●
33	BOLT; MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (A) M6X16 FLANGE	0-28050-616-0	10	1	0605-		●	●
33	BOLT; MUD COVER (A) M6X16 FLANGE	0-28050-616-0	10	1	0605-				●
66	WASHER; LK ID=6.1	9-09150-506-0	08	1	0507-0603	●
66	WASHER; LK FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) ID=6.1	9-09150-506-0	08	1	0507-0603		●	●
66	WASHER; LK ID=6.1	0-91510-506-0	08	1	0604-	●
66	WASHER; LK FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) ID=6.1	0-91510-506-0	08	1	0604-		●	●
66	WASHER; LK FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) ID=6.1	9-09150-506-0	10	1	0507-0603		●	●
66	WASHER; LK FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) ID=6.1	0-91510-506-0	10	1	0604-0604		●	●
66	WASHER; LK FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) ID=6.1	0-91510-506-0	10	1	0605-		●	●
66	WASHER; LK ID=6.1	0-91510-506-0	10	1	0605-				●
76	BOLT; MUD GUARD M8X20 FLANGE	0-28080-820-0	04	1	0507-0512	●	●	●
76	BOLT; MUD GUARD M8X20 FLANGE	0-28050-820-0	04	1	0601-0604	●	●	●
76	BOLT; MUD GUARD M8X20 FLANGE	0-28050-820-0	04	1	0605-	●	●	●	●
92	NUT; MUD COVER (A) M8 FLANGE	0-91150-108-0	08	1	0507-0602	●	●	●
92	NUT; MUD COVER (A) M8 FLANGE	0-91180-108-0	08	1	0603-0604	●	●	●
92	NUT; MUD COVER (A) M8 FLANGE	0-91180-108-0	08	1	0605-	●	●	●	●
92	NUT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (B) M6 FLANGE	8-94279-514-0	01	1	0507-0604	●	●	●
92	NUT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (B) M6 FLANGE	8-94279-514-0	01	1	0605-	●	●	●	●
139	PANEL; SIDE	8-97171-996-0	01	1	0507-0604	●	●	●
139	PANEL; SIDE	8-97171-996-0	01	1	0605-	●	●	●	●
139	PANEL; SIDE	8-97188-736-0	01	1	0507-0604	●	●	●
139	PANEL; SIDE	8-97188-736-0	01	1	0605-	●	●	●	●
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28680-825-0	06	1	0507-0512	●	●	●
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28650-825-0	06	1	0601-0604	●	●	●
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28650-825-0	06	1	0605-	●	●	●	●
219	FLAP; MUD GUARD (A)	8-97218-080-0	02	1	0507-	●
219	FLAP; MUD GUARD FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) (A)	8-97218-080-0	02	1	0507-		●	●
219	FLAP; MUD GUARD FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (B)	8-97218-085-0	01	1	0507-0604		●	●
219	FLAP; MUD GUARD FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (B)	8-97218-085-0	01	1	0605-		●	●
219	FLAP; MUD GUARD (B)	8-97218-085-0	01	1	0605-				●
219	FLAP; MUD GUARD FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (B)	8-97218-086-0	01	1	0507-0604		●	●
219	FLAP; MUD GUARD FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (B)	8-97218-086-0	01	1	0605-		●	●
219	FLAP; MUD GUARD (B)	8-97218-086-0	01	1	0605-				●
285	BRACKET; MUD COVER (A)	8-97035-780-4	01	1	0507-0604	●	●	●
285	BRACKET; MUD COVER (A)	8-97035-780-4	01	1	0605-	●	●	●	●
285	BRACKET; MUD COVER (B)	8-97035-778-4	01	1	0507-0604	●	●	●
285	BRACKET; MUD COVER (B)	8-97035-778-4	01	1	0605-	●	●	●	●
285	BRACKET; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-269-0	01	1	0507-0604	●	●	●
285	BRACKET; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-269-0	01	1	0605-	●	●	●	●

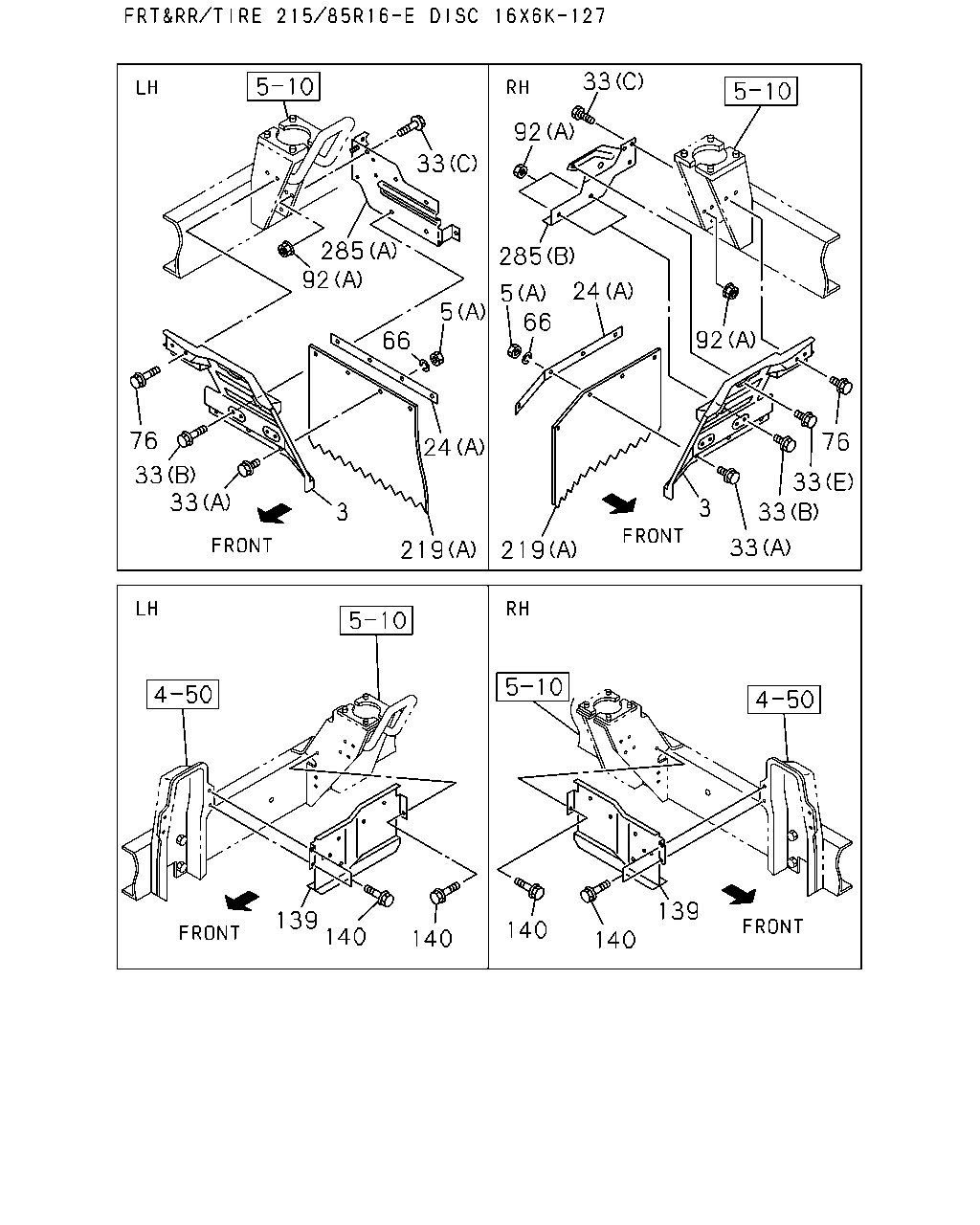

285 92 33 91 294

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
33	BOLT; MUD COVER (A) M6X16 FLANGE	0-28080-616-0	08	1	0507-0512	●
33	BOLT; MUD COVER FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) (A) M6X16 FLANGE	0-28080-616-0	08	1	0507-0512		●	●
33	BOLT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28050-616-0	01	1	0601-0604	●	●	●
33	BOLT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28050-616-0	01	1	0605-	●	●	●	●
33	BOLT; MUD COVER (A) M6X16 FLANGE	0-28050-616-0	08	1	0601-	●
33	BOLT; MUD COVER FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) (A) M6X16 FLANGE	0-28050-616-0	08	1	0601-		●	●
33	BOLT; MUD COVER (B) M8X20 FLANGE	0-28080-820-0	05	1	0507-0512	●	●	●
33	BOLT; MUD COVER (B) M8X20 FLANGE	0-28050-820-0	05	1	0601-0604	●	●	●
33	BOLT; MUD COVER (B) M8X20 FLANGE	0-28050-820-0	05	1	0605-	●	●	●	●
33	BOLT; MUD COVER (D) M6X25 FLANGE	0-28680-625-0	04	1	0507-0512	●	●	●
33	BOLT; MUD COVER (D) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604	●	●	●
33	BOLT; MUD COVER (D) M6X25 FLANGE	0-28650-625-0	04	1	0605-0605	●	●	●	●
33	BOLT; MUD COVER (D) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●	●	●
33	BOLT; MUD COVER (C) M8X25 FLANGE	0-28680-825-0	05	1	0507-0512	●	●	●
33	BOLT; MUD COVER (C) M8X25 FLANGE	0-28650-825-0	05	1	0601-0604	●	●	●
33	BOLT; MUD COVER (C) M8X25 FLANGE	0-28650-825-0	05	1	0605-	●	●	●	●
33	BOLT; MUD COVER (E) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0507-0604	●	●	●
33	BOLT; MUD COVER (E) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0605-0805	●	●	●	●
33	BOLT; MUD COVER (E) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●	●	●
33	BOLT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (D) M6X25 FLANGE	0-28680-625-0	01	1	0507-0512	●	●	●
33	BOLT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (D) M6X25 FLANGE	0-28650-625-0	01	1	0601-0604	●	●	●
33	BOLT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (D) M6X25 FLANGE	0-28650-625-0	01	1	0605-	●	●	●	●
33	BOLT; MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (A) M6X16 FLANGE	0-28080-616-0	10	1	0507-0512		●	●
33	BOLT; MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (A) M6X16 FLANGE	0-28050-616-0	10	1	0601-0604		●	●
33	BOLT; MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (A) M6X16 FLANGE	0-28050-616-0	10	1	0605-		●	●
33	BOLT; MUD COVER (A) M6X16 FLANGE	0-28050-616-0	10	1	0605-				●
91	COVER; MUD,FRT AIR CONDITIONER MANUAL CONT(C60)	8-97128-468-0	01	1	0507-0604	●	●	●
91	COVER; MUD,FRT AIR CONDITIONER MANUAL CONT(C60)	8-97128-468-0	01	1	0605-	●	●	●	●
92	NUT; MUD COVER (A) M8 FLANGE	0-91150-108-0	08	1	0507-0602	●	●	●
92	NUT; MUD COVER (A) M8 FLANGE	0-91180-108-0	08	1	0603-0604	●	●	●
92	NUT; MUD COVER (A) M8 FLANGE	0-91180-108-0	08	1	0605-	●	●	●	●
92	NUT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (B) M6 FLANGE	8-94279-514-0	01	1	0507-0604	●	●	●
92	NUT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (B) M6 FLANGE	8-94279-514-0	01	1	0605-	●	●	●	●
285	BRACKET; MUD COVER (A)	8-97035-780-4	01	1	0507-0604	●	●	●
285	BRACKET; MUD COVER (A)	8-97035-780-4	01	1	0605-	●	●	●	●
285	BRACKET; MUD COVER (B)	8-97035-778-4	01	1	0507-0604	●	●	●
285	BRACKET; MUD COVER (B)	8-97035-778-4	01	1	0605-	●	●	●	●
285	BRACKET; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-269-0	01	1	0507-0604	●	●	●
285	BRACKET; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-269-0	01	1	0605-	●	●	●	●
294	CLIP; MUD COVER AIR CONDITIONER MANUAL CONT(C60) OD=8.3	8-94279-989-0	03	1	0507-0604	●	●	●
294	CLIP; MUD COVER AIR CONDITIONER MANUAL CONT(C60) OD=8.3	8-94279-989-0	03	1	0605-	●	●	●	●

33 92 33 285 92 285 92 76 5 24 66 5 66 24 3 5 33 5 76 34 34 3 33 33 33 66 33 66 33 219 219 33 139 139 140 140 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	GUARD; MUD,RR	8-97366-988-1	01	1	0507-0604	●	●	●
3	GUARD; MUD,RR	8-97366-988-1	01	1	0605-	●	●	●	●
3	GUARD; MUD,RR	8-97048-728-3	01	1	0507-0604	●	●	●
3	GUARD; MUD,RR	8-97048-728-3	01	1	0605-	●	●	●	●
5	NUT; FLAP RUBBER (A) M6	9-09111-406-0	08	1	0507-0512	●
5	NUT; FLAP RUBBER FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) (A) M6	9-09111-406-0	08	1	0507-0512		●	●
5	NUT; FLAP RUBBER (A) M6	0-91111-506-0	08	1	0601-	●
5	NUT; FLAP RUBBER FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) (A) M6	0-91111-506-0	08	1	0601-		●	●
5	NUT; FLAP RUBBER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (B) M6	9-09111-406-0	10	1	0507-0512		●	●
5	NUT; FLAP RUBBER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (B) M6	0-91111-506-0	10	1	0601-0604		●	●
5	NUT; FLAP RUBBER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (B) M6	0-91111-506-0	10	1	0605-		●	●
5	NUT; FLAP RUBBER (B) M6	0-91111-506-0	10	1	0605-				●
24	PLATE; MUD COVER (A)	8-97095-186-0	02	1	0507-	●
24	PLATE; MUD COVER FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) (A)	8-97095-186-0	02	1	0507-		●	●
24	PLATE; MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (B)	8-97212-726-0	01	1	0507-0604		●	●
24	PLATE; MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (B)	8-97212-726-0	01	1	0605-		●	●
24	PLATE; MUD COVER (B)	8-97212-726-0	01	1	0605-				●
24	PLATE; MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (C)	8-97183-159-0	01	1	0507-0604		●	●
24	PLATE; MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (C)	8-97183-159-0	01	1	0605-		●	●
24	PLATE; MUD COVER (C)	8-97183-159-0	01	1	0605-				●
33	BOLT; MUD COVER (A) M6X16 FLANGE	0-28080-616-0	08	1	0507-0512	●
33	BOLT; MUD COVER FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) (A) M6X16 FLANGE	0-28080-616-0	08	1	0507-0512		●	●
33	BOLT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28050-616-0	01	1	0601-0604	●	●	●
33	BOLT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28050-616-0	01	1	0605-	●	●	●	●
33	BOLT; MUD COVER (A) M6X16 FLANGE	0-28050-616-0	08	1	0601-	●
33	BOLT; MUD COVER FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) (A) M6X16 FLANGE	0-28050-616-0	08	1	0601-		●	●
33	BOLT; MUD COVER (B) M8X20 FLANGE	0-28080-820-0	05	1	0507-0512	●	●	●
33	BOLT; MUD COVER (B) M8X20 FLANGE	0-28050-820-0	05	1	0601-0604	●	●	●
33	BOLT; MUD COVER (B) M8X20 FLANGE	0-28050-820-0	05	1	0605-	●	●	●	●
33	BOLT; MUD COVER (D) M6X25 FLANGE	0-28680-625-0	04	1	0507-0512	●	●	●
33	BOLT; MUD COVER (D) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604	●	●	●
33	BOLT; MUD COVER (D) M6X25 FLANGE	0-28650-625-0	04	1	0605-0605	●	●	●	●
33	BOLT; MUD COVER (D) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●	●	●
33	BOLT; MUD COVER (C) M8X25 FLANGE	0-28680-825-0	05	1	0507-0512	●	●	●
33	BOLT; MUD COVER (C) M8X25 FLANGE	0-28650-825-0	05	1	0601-0604	●	●	●
33	BOLT; MUD COVER (C) M8X25 FLANGE	0-28650-825-0	05	1	0605-	●	●	●	●
33	BOLT; MUD COVER (E) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0507-0604	●	●	●
33	BOLT; MUD COVER (E) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0605-0805	●	●	●	●
33	BOLT; MUD COVER (E) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●	●	●
33	BOLT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (D) M6X25 FLANGE	0-28680-625-0	01	1	0507-0512	●	●	●
33	BOLT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (D) M6X25 FLANGE	0-28650-625-0	01	1	0601-0604	●	●	●
33	BOLT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (D) M6X25 FLANGE	0-28650-625-0	01	1	0605-	●	●	●	●
33	BOLT; MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (A) M6X16 FLANGE	0-28080-616-0	10	1	0507-0512		●	●
33	BOLT; MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (A) M6X16 FLANGE	0-28050-616-0	10	1	0601-0604		●	●
33	BOLT; MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (A) M6X16 FLANGE	0-28050-616-0	10	1	0605-		●	●
33	BOLT; MUD COVER (A) M6X16 FLANGE	0-28050-616-0	10	1	0605-				●
34	WASHER; PL,MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) ID=6.4 OD=18	9-09160-706-0	02	1	0507-0604		●	●
34	WASHER; PL,MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) ID=6.4 OD=18	9-09160-706-0	02	1	0605-0605		●	●
34	WASHER; PL,MUD COVER ID=6.4 OD=18	9-09160-706-0	02	1	0605-0605				●
34	WASHER; PL,MUD COVER FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) ID=6.4 OD=18	0-91610-706-0	02	1	0606-		●	●
34	WASHER; PL,MUD COVER ID=6.4 OD=18	0-91610-706-0	02	1	0606-				●
66	WASHER; LK ID=6.1	9-09150-506-0	08	1	0507-0603	●
66	WASHER; LK FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) ID=6.1	9-09150-506-0	08	1	0507-0603		●	●
66	WASHER; LK ID=6.1	0-91510-506-0	08	1	0604-	●
66	WASHER; LK FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) ID=6.1	0-91510-506-0	08	1	0604-		●	●
66	WASHER; LK FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) ID=6.1	9-09150-506-0	10	1	0507-0603		●	●
66	WASHER; LK FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) ID=6.1	0-91510-506-0	10	1	0604-0604		●	●
66	WASHER; LK FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) ID=6.1	0-91510-506-0	10	1	0605-		●	●
66	WASHER; LK ID=6.1	0-91510-506-0	10	1	0605-				●
76	BOLT; MUD GUARD M8X20 FLANGE	0-28080-820-0	04	1	0507-0512	●	●	●
76	BOLT; MUD GUARD M8X20 FLANGE	0-28050-820-0	04	1	0601-0604	●	●	●
76	BOLT; MUD GUARD M8X20 FLANGE	0-28050-820-0	04	1	0605-	●	●	●	●
92	NUT; MUD COVER (A) M8 FLANGE	0-91150-108-0	08	1	0507-0602	●	●	●
92	NUT; MUD COVER (A) M8 FLANGE	0-91180-108-0	08	1	0603-0604	●	●	●
92	NUT; MUD COVER (A) M8 FLANGE	0-91180-108-0	08	1	0605-	●	●	●	●
92	NUT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (B) M6 FLANGE	8-94279-514-0	01	1	0507-0604	●	●	●
92	NUT; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (B) M6 FLANGE	8-94279-514-0	01	1	0605-	●	●	●	●
139	PANEL; SIDE	8-97171-996-0	01	1	0507-0604	●	●	●
139	PANEL; SIDE	8-97171-996-0	01	1	0605-	●	●	●	●
139	PANEL; SIDE	8-97188-736-0	01	1	0507-0604	●	●	●
139	PANEL; SIDE	8-97188-736-0	01	1	0605-	●	●	●	●
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28680-825-0	06	1	0507-0512	●	●	●
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28650-825-0	06	1	0601-0604	●	●	●
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28650-825-0	06	1	0605-	●	●	●	●
219	FLAP; MUD GUARD (A)	8-97218-080-0	02	1	0507-	●
219	FLAP; MUD GUARD FRT&RR/TIRE 215/85R16-E DISC 16X6K-127(9YY) (A)	8-97218-080-0	02	1	0507-		●	●
219	FLAP; MUD GUARD FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (B)	8-97218-085-0	01	1	0507-0604		●	●
219	FLAP; MUD GUARD FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (B)	8-97218-085-0	01	1	0605-		●	●
219	FLAP; MUD GUARD (B)	8-97218-085-0	01	1	0605-				●
219	FLAP; MUD GUARD FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (B)	8-97218-086-0	01	1	0507-0604		●	●
219	FLAP; MUD GUARD FRT&RR/TIRE 225/70R19.5 DISC 19.5X6-127 WHITE(AVU) (B)	8-97218-086-0	01	1	0605-		●	●
219	FLAP; MUD GUARD (B)	8-97218-086-0	01	1	0605-				●
285	BRACKET; MUD COVER (A)	8-97035-780-4	01	1	0507-0604	●	●	●
285	BRACKET; MUD COVER (A)	8-97035-780-4	01	1	0605-	●	●	●	●
285	BRACKET; MUD COVER (B)	8-97035-778-4	01	1	0507-0604	●	●	●
285	BRACKET; MUD COVER (B)	8-97035-778-4	01	1	0605-	●	●	●	●
285	BRACKET; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-269-0	01	1	0507-0604	●	●	●
285	BRACKET; MUD COVER AIR CONDITIONER MANUAL CONT(C60) (C)	8-97128-269-0	01	1	0605-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
