6-43 — SIDE TRIM (#51868) — 21 parça

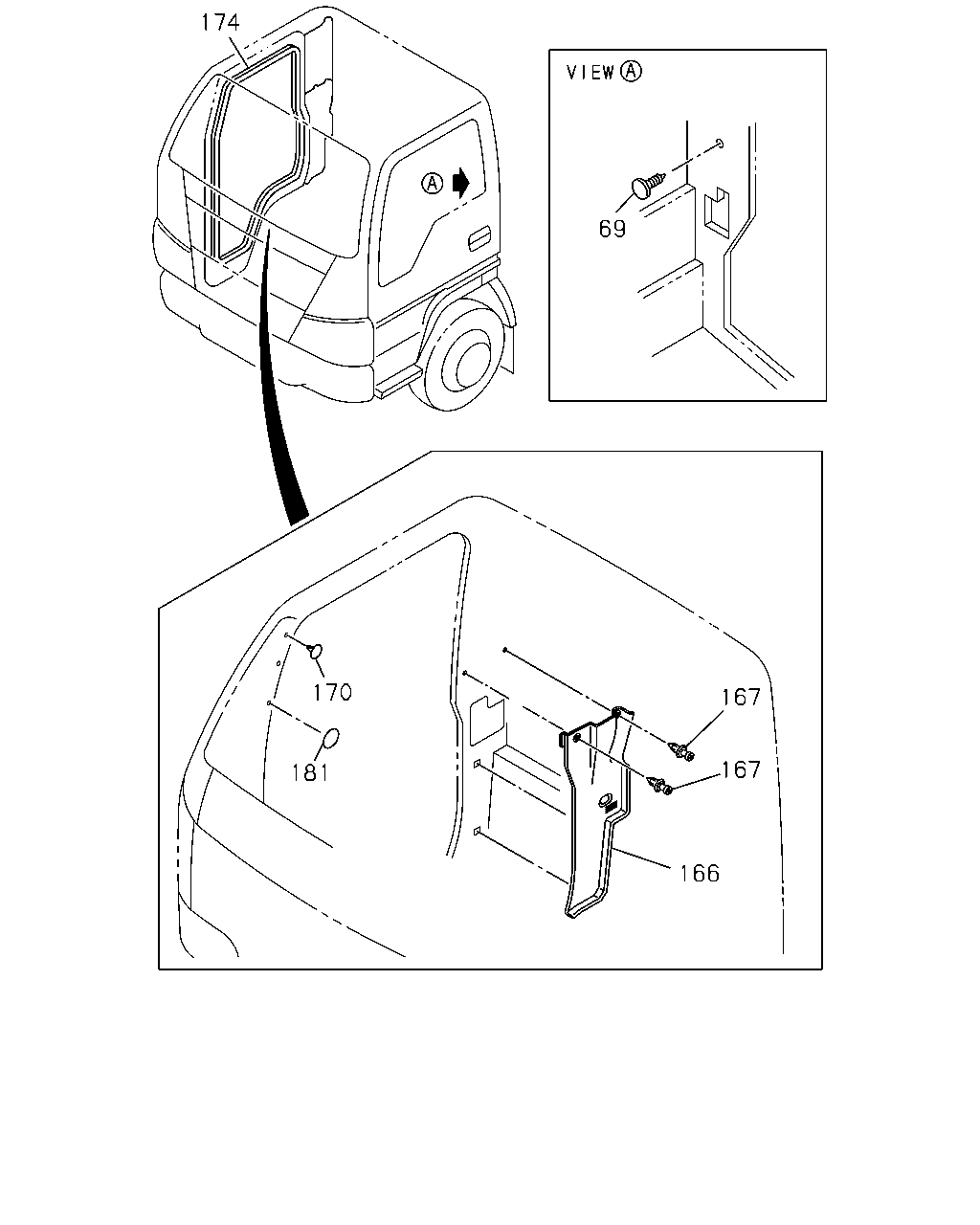

çizim 57425
174 69 170 167 167 181 166
BalonParca AdiParca NoAdetTipApplied Date A B C D
69 PLUG; HOLE
L=18.5 		8-94279-726-0 01 1 0507-0604 ● ● ●
69 PLUG; HOLE
L=18.5 		8-94279-726-0 01 1 0605- ● ● ● ●
166 TRIM; RR PILLAR
GRAY 		8-97582-818-0 01 1 0507-0604 ● ● ●
166 TRIM; RR PILLAR
GRAY 		8-97582-818-0 01 1 0605- ● ● ● ●
166 TRIM; RR PILLAR
GRAY 		8-97585-441-0 01 1 0507-0604 ● ● ●
166 TRIM; RR PILLAR
GRAY 		8-97585-441-0 01 1 0605- ● ● ● ●
167 CLIP; TRIM,RR PILLAR
GRAY 		8-97582-265-0 04 1 0507-0604 ● ● ●
167 CLIP; TRIM,RR PILLAR
GRAY 		8-97582-265-0 04 1 0605-0610 ● ● ● ●
167 CLIP; TRIM,RR PILLAR
GRAY 		8-97406-439-0 04 1 0611- ● ● ● ●
170 CLIP; HOLE 8-94244-922-0 02 1 0507-0604 ● ● ●
170 CLIP; HOLE 8-94244-922-0 02 1 0605- ● ● ● ●
174 FINISHER; BODY SIDE
L=2982 GRAY 		8-97582-256-5 01 1 0507-0604 ● ● ●
174 FINISHER; BODY SIDE
L=2982 GRAY 		8-97582-256-5 01 1 0605- ● ● ● ●
174 FINISHER; BODY SIDE
L=2982 GRAY 		8-97582-255-5 01 1 0507-0604 ● ● ●
174 FINISHER; BODY SIDE
L=2982 GRAY 		8-97582-255-5 01 1 0605- ● ● ● ●
181 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0507-0604 ● ● ●
181 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0605-0610 ● ● ● ●
181 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ● ● ● ●
181 SEAL; FRT PILLAR
BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0507-0604 ● ● ●
181 SEAL; FRT PILLAR
BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0605-0606 ● ● ● ●
181 SEAL; FRT PILLAR
BODY COLOR EBONY BLACK(508),BODY COLOR MARINE BLUE(890),BODY COLOR HERTZ PENSKE YELLOW(978) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0607- ● ● ● ●
