6-35 — FRONT DOOR TRIM (#51867) — 93 parça

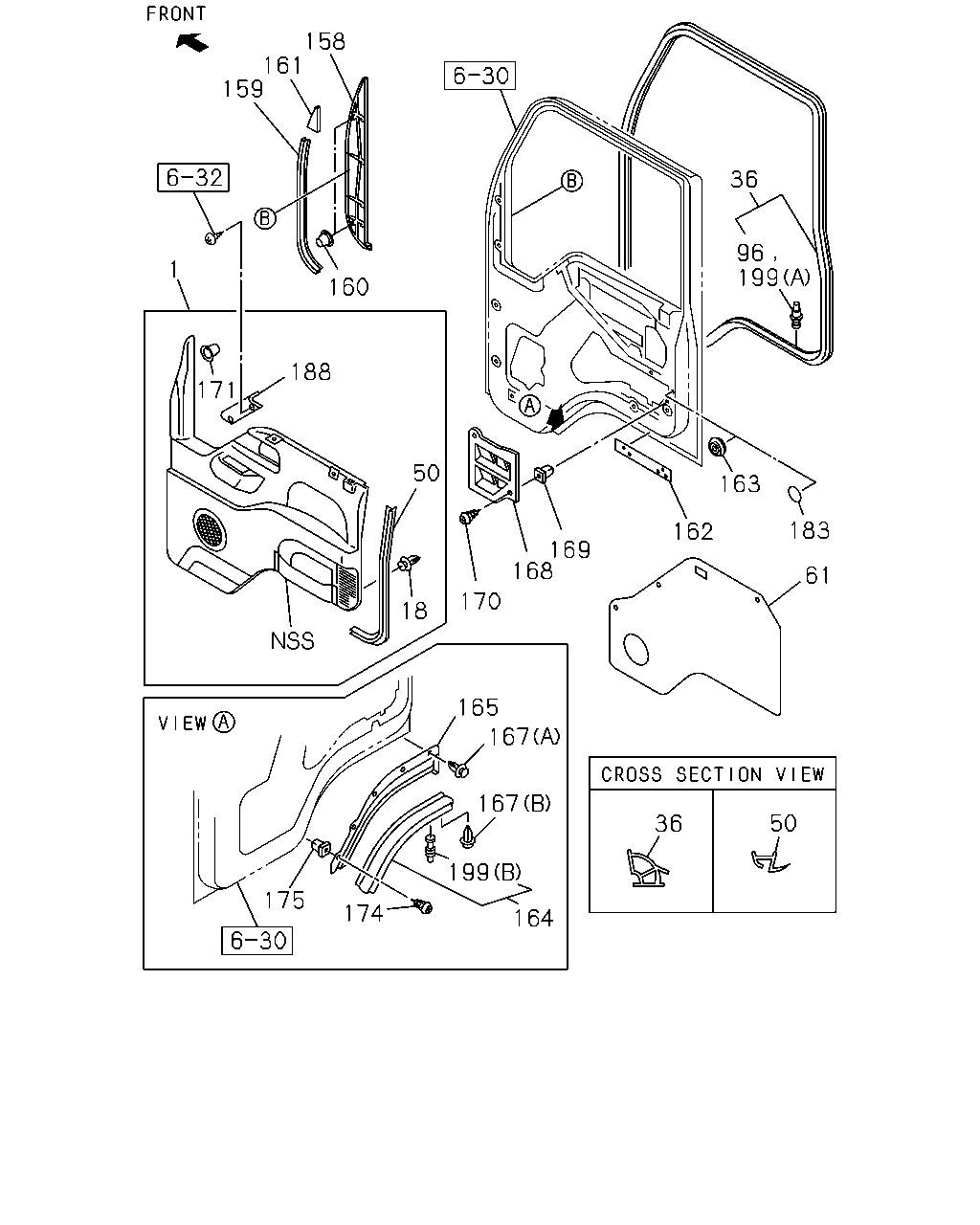

çizim 57648
158 161 159 160 36 96 199 163 183 61 162 169 168 170 18 50 188 171 165 167 167 199 175 174 164 36 50 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-288-6 01 1 0507-0604 ● ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-288-7 01 1 0605- ● ● ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-282-6 01 1 0507-0604 ● ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-282-6 01 1 0605- ● ● ● ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-286-4 01 1 0507-0604 ● ● ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-286-4 01 1 0605- ● ● ● ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-280-4 01 1 0507-0604 ● ● ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-280-4 01 1 0605- ● ● ● ●
18 CLIP; DOOR PAD
OD=7.9 BLACK 		8-94279-974-1 24 1 0507-0604 ● ● ●
18 CLIP; DOOR PAD
OD=7.9 BLACK 		8-94279-974-1 24 1 0605- ● ● ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-97892-903-1 01 1 0507-0604 ● ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-97892-903-3 01 1 0605- ● ● ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-97892-902-1 01 1 0507-0604 ● ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-97892-902-3 01 1 0605- ● ● ● ●
50 FINISHER; DOOR PAD
GRAY 		8-97582-685-0 02 1 0507-0604 ● ● ●
50 FINISHER; DOOR PAD
GRAY 		8-97582-685-0 02 1 0605- ● ● ● ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> SPEAKER OPTION 2 SPEAKER<7FK> 		8-97852-328-3 02 1 0507-0604 ● ● ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> SPEAKER OPTION 2 SPEAKER<7FK> 		8-97852-328-3 02 1 0605- ● ● ● ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> EXC. SPEAKER OPTION 2 SPEAKER<7FK> 		8-97852-329-2 02 1 0507-0604 ● ● ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> EXC. SPEAKER OPTION 2 SPEAKER<7FK> 		8-97852-329-2 02 1 0605- ● ● ● ●
61 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW FRT DOOR<A32>,SPEAKER OPTION 2SPEAKER<7FK> 		8-97852-307-1 02 1 0507-0604 ● ● ●
61 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW FRT DOOR<A32>,SPEAKER OPTION 2SPEAKER<7FK> 		8-97852-307-1 02 1 0605- ● ● ● ●
61 SEAL; WATER,DOOR PAD
SPEAKER OPTION 2 SPEAKER<7FK> EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-308-1 02 1 0507-0604 ● ● ●
61 SEAL; WATER,DOOR PAD
SPEAKER OPTION 2 SPEAKER<7FK> EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-308-1 02 1 0605- ● ● ● ●
96 CLIP; SEAL
FRONT NATURAL 		1-09987-253-1 09 1 0607-1007 ● ● ● ●
96 CLIP; SEAL
FRONT YELLOW 		1-09987-254-1 09 1 0607-1007 ● ● ● ●
96 CLIP; SEAL
LOWER & BACK PINK 		1-09987-256-0 32 1 0607-1007 ● ● ● ●
158 GARNISH; DOOR 8-97852-129-2 01 1 0507-0604 ● ● ●
158 GARNISH; DOOR 8-97852-129-2 01 1 0605- ● ● ● ●
158 GARNISH; DOOR 8-97852-128-2 01 1 0507-0604 ● ● ●
158 GARNISH; DOOR 8-97852-128-2 01 1 0605- ● ● ● ●
159 FINISHER; GARNISH 8-97852-257-4 02 1 0507-0604 ● ● ●
159 FINISHER; GARNISH 8-97852-257-4 02 1 0605- ● ● ● ●
160 CLIP; GARNISH 8-97852-058-0 04 1 0507-0604 ● ● ●
160 CLIP; GARNISH 8-97852-058-0 04 1 0605- ● ● ● ●
161 FASTENER; GARNISH 8-97134-313-0 01 1 0507-0604 ● ● ●
161 FASTENER; GARNISH 8-97134-313-1 01 1 0605- ● ● ● ●
161 FASTENER; GARNISH 8-97134-312-0 01 1 0507-0604 ● ● ●
161 FASTENER; GARNISH 8-97134-312-1 01 1 0605- ● ● ● ●
162 PROTECTOR; DOOR 8-97892-157-0 02 1 0507-0604 ● ● ●
162 PROTECTOR; DOOR 8-97892-157-0 02 1 0605-0609 ● ● ● ●
162 PROTECTOR; DOOR 8-98056-386-0 02 1 0610- ● ● ● ●
163 GROMMET; LOCATION HOLE,DOOR 8-94279-738-0 02 1 0507-0604 ● ● ●
163 GROMMET; LOCATION HOLE,DOOR 8-94279-738-0 02 1 0605-0803 ● ● ● ●
164 SEAL; SUB,SILL SIDE 8-97852-320-4 01 1 0507-0604 ● ● ●
164 SEAL; SUB,SILL SIDE 8-97852-320-4 01 1 0605- ● ● ● ●
164 SEAL; SUB,SILL SIDE 8-97852-319-4 01 1 0507-0604 ● ● ●
164 SEAL; SUB,SILL SIDE 8-97852-319-4 01 1 0605- ● ● ● ●
165 LINER; DOOR LWR 8-97581-079-0 01 1 0507-0604 ● ● ●
165 LINER; DOOR LWR 8-97581-079-0 01 1 0605- ● ● ● ●
165 LINER; DOOR LWR 8-97581-078-0 01 1 0507-0604 ● ● ●
165 LINER; DOOR LWR 8-97581-078-0 01 1 0605- ● ● ● ●
167 CLIP; LINER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0507-0604 ● ● ●
167 CLIP; LINER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0605- ● ● ● ●
167 CLIP; LINER
(B) D6X20 PUSH RIVET 		8-97859-673-0 02 1 0507-0604 ● ● ●
167 CLIP; LINER
(B) D6X20 PUSH RIVET 		8-97859-673-0 02 1 0605- ● ● ● ●
168 VALVE; DOOR OUTLET 8-97855-413-0 01 1 0507-0604 ● ● ●
168 VALVE; DOOR OUTLET 8-97855-413-0 01 1 0605- ● ● ● ●
168 VALVE; DOOR OUTLET 8-97855-412-0 01 1 0507-0604 ● ● ●
168 VALVE; DOOR OUTLET 8-97855-412-0 01 1 0605- ● ● ● ●
169 GROMMET; SCREW,VALVE
D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0507-0604 ● ● ●
169 GROMMET; SCREW,VALVE
D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0605- ● ● ● ●
170 SCREW; VALVE
M5X12 TAPPING W/PL WASHER 		0-74110-512-0 04 1 0507-0604 ● ● ●
170 SCREW; VALVE
M5X12 TAPPING W/PL WASHER 		0-74110-512-0 04 1 0605-0605 ● ● ● ●
170 SCREW; VALVE
M5X12 TAPPING W/PL WASHER 		0-74160-512-0 04 1 0605-0612 ● ● ● ●
170 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0701- ● ● ● ●
171 RETAINER; DOOR PAD 5-09709-049-0 02 1 0507-0604 ● ● ●
171 RETAINER; DOOR PAD 5-09709-049-0 02 1 0605- ● ● ● ●
174 SCREW; LINER
M5X12 W/PL WASHER 		8-94385-565-0 04 1 0507-0604 ● ● ●
174 SCREW; LINER
M5X12 W/PL WASHER 		8-94385-565-0 04 1 0605-0612 ● ● ● ●
174 SCREW; LINER
T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 0701- ● ● ● ●
175 GROMMET; SCREW,LINER
D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0507-0604 ● ● ●
175 GROMMET; SCREW,LINER
D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0605- ● ● ● ●
183 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0804- ● ● ● ●
188 CASE; DOOR
GRAY 		8-97582-693-3 01 1 0507-0604 ● ● ●
188 CASE; DOOR
GRAY 		8-97582-693-3 01 1 0605-0606 ● ● ● ●
188 CASE; DOOR
GRAY 		8-97582-693-3 01 1 0607- ● ● ● ●
188 CASE; DOOR
GRAY 		8-97582-684-3 01 1 0507-0604 ● ● ●
188 CASE; DOOR
GRAY 		8-97582-684-3 01 1 0605-0606 ● ● ● ●
188 CASE; DOOR
GRAY 		8-97582-684-3 01 1 0607- ● ● ● ●
199 CLIP; SEAL
(A) FRONT NATURAL 		1-09987-253-1 09 1 1008- ● ● ● ●
199 CLIP; SEAL
(A) FRONT YELLOW 		1-09987-254-1 09 1 1008- ● ● ● ●
199 CLIP; SEAL
(A) LOWER & BACK PINK 		1-09987-256-0 32 1 1008- ● ● ● ●
199 CLIP; SEAL
(A) LOWER & BACK PINK 		1-09987-256-0 32 1 0507-0604 ● ● ●
199 CLIP; SEAL
(A) LOWER & BACK PINK 		1-09987-256-0 32 1 0605-0606 ● ● ● ●
199 CLIP; SEAL
(A) FRONT YELLOW 		1-09987-254-1 09 1 0507-0604 ● ● ●
199 CLIP; SEAL
(A) FRONT YELLOW 		1-09987-254-1 09 1 0605-0606 ● ● ● ●
199 CLIP; SEAL
(A) FRONT NATURAL 		1-09987-253-1 09 1 0507-0604 ● ● ●
199 CLIP; SEAL
(A) FRONT NATURAL 		1-09987-253-1 09 1 0605-0606 ● ● ● ●
199 CLIP; SEAL
(B) PINK 		8-97852-456-0 07 1 0507-0604 ● ● ●
199 CLIP; SEAL
(B) PINK 		8-97852-456-0 07 1 0605- ● ● ● ●
199 CLIP; SEAL
(B) NATURAL 		8-97852-455-0 07 1 0507-0604 ● ● ●
199 CLIP; SEAL
(B) NATURAL 		8-97852-455-0 07 1 0605- ● ● ● ●
