6-32 — FRONT DOOR LOCK AND HANDLE (#51866) — 79 parça

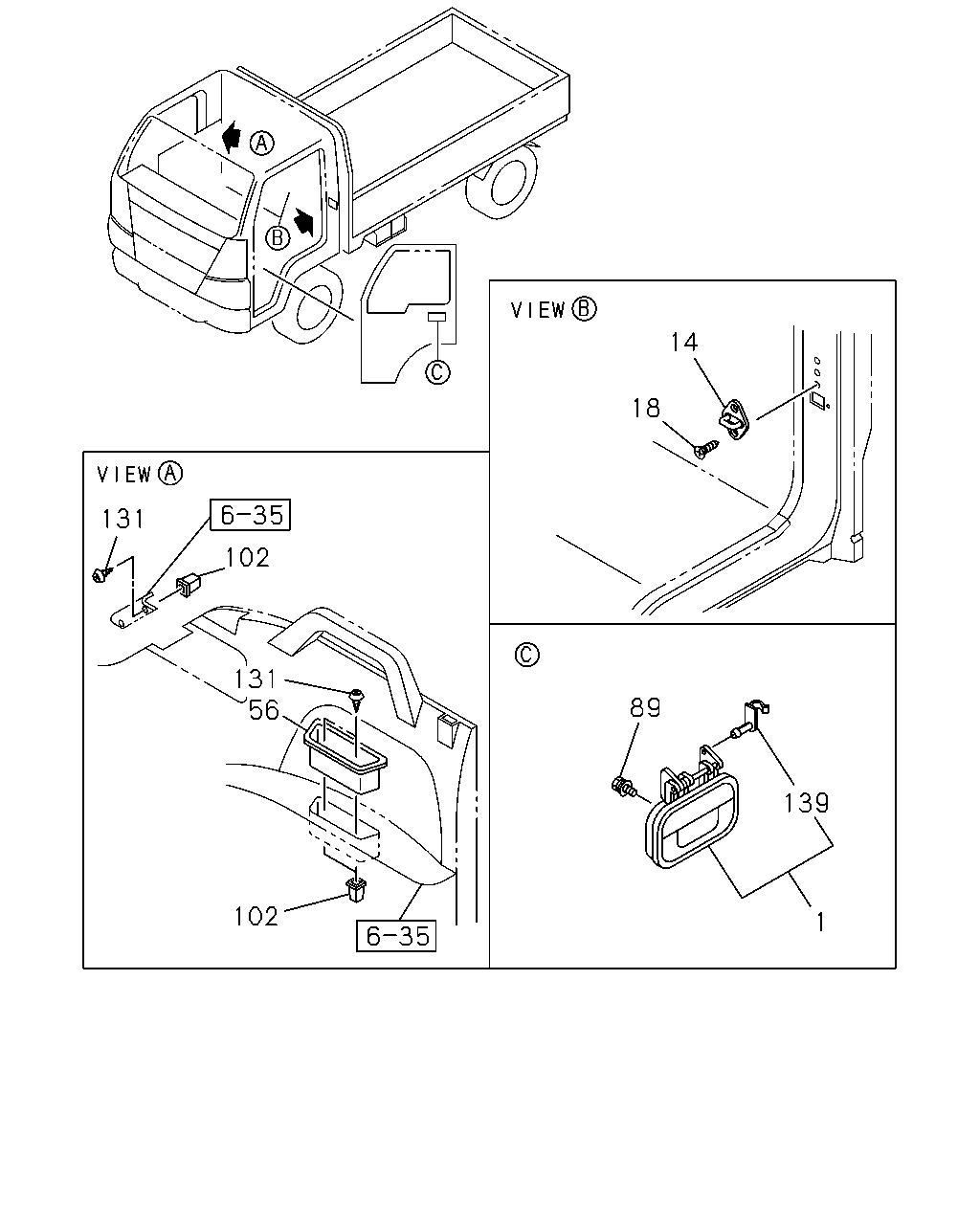

çizim 57221
14 18 131 102 131 56 89 139 102 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HANDLE; OUTSIDE,FRT DOOR 8-97867-722-1 01 1 0507-0604 ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR 8-97867-722-1 01 1 0605- ● ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR 8-97867-721-1 01 1 0507-0604 ● ● ●
1 HANDLE; OUTSIDE,FRT DOOR 8-97867-721-1 01 1 0605- ● ● ● ●
14 STRIKER; FRT DOOR 8-97221-702-1 02 1 0507-0604 ● ● ●
14 STRIKER; FRT DOOR 8-97221-702-1 02 1 0605- ● ● ● ●
18 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 0507-0604 ● ● ●
18 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 0605-0612 ● ● ● ●
18 SCREW; DOOR STRIKER
M8X20 CK-HEAD 		8-98004-343-2 04 1 0701- ● ● ● ●
56 ESCUTCHEON; LOCK KNOB
GRAY 		8-97582-307-3 02 1 0507-0604 ● ● ●
56 ESCUTCHEON; LOCK KNOB
GRAY 		8-97582-307-3 02 1 0605-0610 ● ● ● ●
56 ESCUTCHEON; LOCK KNOB
GRAY 		8-97406-318-3 02 1 0611- ● ● ● ●
89 BOLT; DOOR OUTSIDE HANDLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0507-0604 ● ● ●
89 BOLT; DOOR OUTSIDE HANDLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0605-0606 ● ● ● ●
89 BOLT; DOOR OUTSIDE HANDLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0607-0612 ● ● ● ●
89 BOLT; DOOR OUTSIDE HANDLE
M6X8 W/TORQUES 		8-98064-276-1 04 1 0701- ● ● ● ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0507-0604 ● ● ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0605- ● ● ● ●
131 SCREW; ESCUTCHEON,DOOR PULL
M5X12 TAPPING W/PL WASHER 		0-74110-512-0 06 1 0507-0604 ● ● ●
131 SCREW; ESCUTCHEON,DOOR PULL
M5X12 TAPPING W/PL WASHER 		0-74110-512-0 06 1 0605-0605 ● ● ● ●
131 SCREW; ESCUTCHEON,DOOR PULL
M5X12 TAPPING W/PL WASHER 		0-74160-512-0 06 1 0605-0612 ● ● ● ●
131 SCREW; ESCUTCHEON,DOOR PULL
M5X12 HEX SOCKET 		0-72380-512-0 06 1 0701- ● ● ● ●
139 HOLDER; ROD,DOOR HANDLE 8-97852-652-1 01 1 0507-0604 ● ● ●
139 HOLDER; ROD,DOOR HANDLE 8-97852-652-1 01 1 0605- ● ● ● ●
139 HOLDER; ROD,DOOR HANDLE 8-97852-651-1 01 1 0507-0604 ● ● ●
139 HOLDER; ROD,DOOR HANDLE 8-97852-651-1 01 1 0605- ● ● ● ●

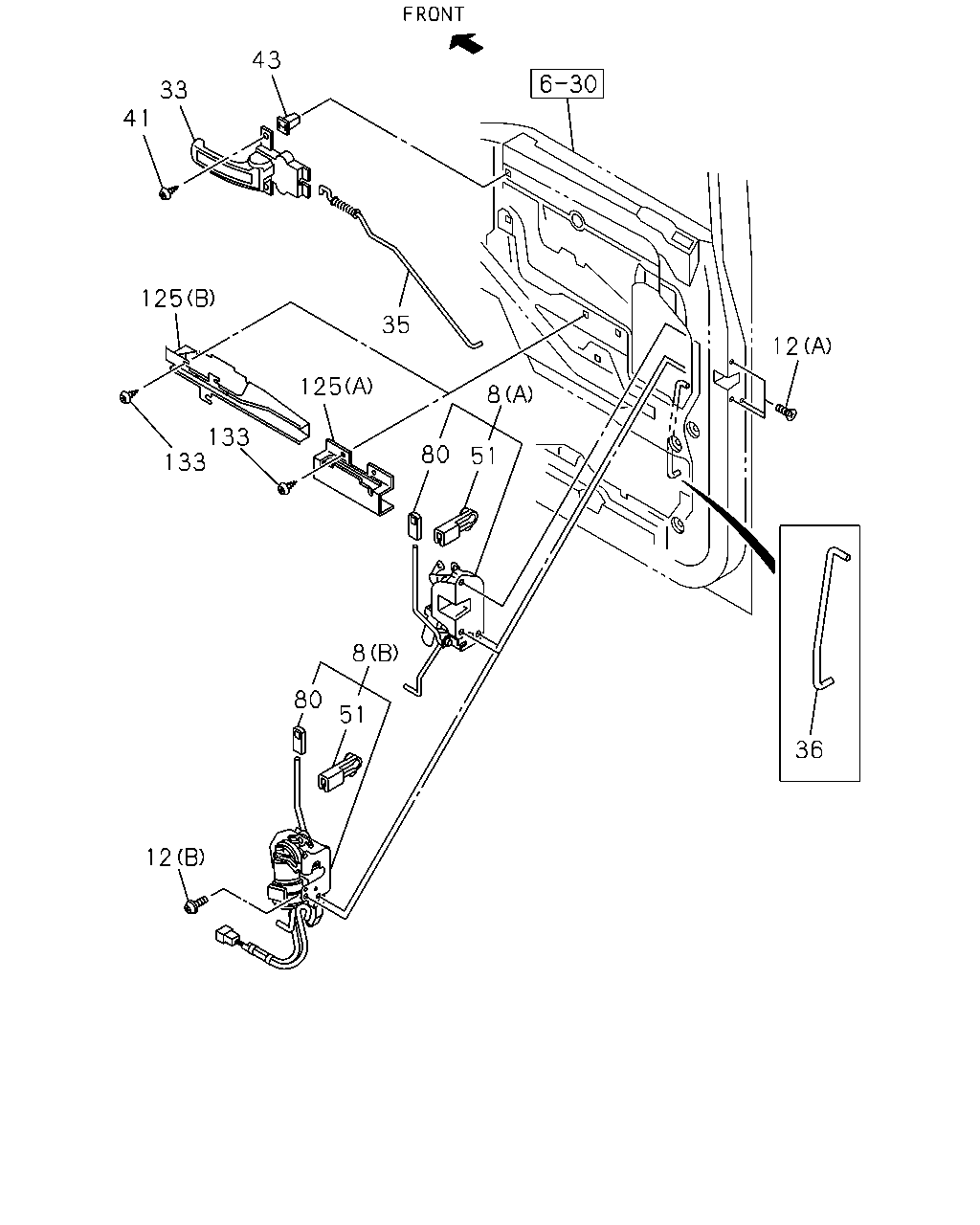

çizim 57295
35 43 33 41 125 125 133 133 12 80 51 8 80 51 8 36 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (B) GRAY 		8-97585-440-0 01 1 0507-0604 ● ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (B) GRAY 		8-97585-440-1 01 1 0605-1405 ● ● ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (B) 		8-97428-949-0 01 1 1406- ● ● ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (B) GRAY 		8-97585-444-1 01 1 0507-0604 ● ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (B) GRAY 		8-97585-444-2 01 1 0605-1009 ● ● ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (B) GRAY 		8-97421-014-0 01 1 1010-1405 ● ● ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (B) GRAY 		8-97428-941-0 01 1 1406- ● ● ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (A) GRAY 		8-97582-298-1 01 1 0507-0604 ● ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (A) GRAY 		8-97582-298-2 01 1 0605-0610 ● ● ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (A) GRAY 		8-97406-310-2 01 1 0611- ● ● ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (A) GRAY 		8-97582-297-1 01 1 0507-0604 ● ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (A) GRAY 		8-97582-297-2 01 1 0605-0610 ● ● ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (A) GRAY 		8-97406-309-2 01 1 0611- ● ● ● ●
12 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> (B) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1406- ● ● ● ●
12 SCREW; DOOR LK
(A) M6X16 		1-09981-447-1 06 1 0507-0604 ● ● ●
12 SCREW; DOOR LK
(A) M6X16 		1-09981-447-1 06 1 0605-0612 ● ● ● ●
12 SCREW; DOOR LK
(A) M6X14.5 		8-98004-342-0 06 1 0701- ● ● ● ●
33 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97582-305-1 01 1 0507-0604 ● ● ●
33 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97582-305-1 01 1 0605-0611 ● ● ● ●
33 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97409-389-0 01 1 0612- ● ● ● ●
33 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97582-304-1 01 1 0507-0604 ● ● ●
33 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97582-304-1 01 1 0605-0611 ● ● ● ●
33 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97409-388-0 01 1 0612- ● ● ● ●
35 LINK; DOOR LOCK,INSIDE 8-97890-887-2 01 1 0507-0604 ● ● ●
35 LINK; DOOR LOCK,INSIDE 8-97890-887-3 01 1 0605- ● ● ● ●
35 LINK; DOOR LOCK,INSIDE 8-97890-886-2 01 1 0507-0604 ● ● ●
35 LINK; DOOR LOCK,INSIDE 8-97890-886-3 01 1 0605- ● ● ● ●
36 LINK; DOOR LOCK,OUTSIDE 8-97890-885-0 01 1 0507-0604 ● ● ●
36 LINK; DOOR LOCK,OUTSIDE 8-97890-885-0 01 1 0605- ● ● ● ●
36 LINK; DOOR LOCK,OUTSIDE 8-97890-884-0 01 1 0507-0604 ● ● ●
36 LINK; DOOR LOCK,OUTSIDE 8-97890-884-0 01 1 0605- ● ● ● ●
41 SCREW; INSIDE HANDLE
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0507-0604 ● ● ●
41 SCREW; INSIDE HANDLE
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0605-0605 ● ● ● ●
41 SCREW; INSIDE HANDLE
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0605-0612 ● ● ● ●
41 SCREW; INSIDE HANDLE
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0701- ● ● ● ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0507-0604 ● ● ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0605- ● ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD 8-97859-069-0 01 1 0507-0604 ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD 8-97859-069-0 01 1 0605- ● ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD 8-97852-643-0 01 1 0507-0604 ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD 8-97852-643-0 01 1 0605- ● ● ● ●
80 KNOB; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> GRAY 		8-97406-876-0 02 1 0611- ● ● ● ●
80 KNOB; DOOR LOCK
GRAY 		8-97582-706-0 02 1 0507-0604 ● ● ●
80 KNOB; DOOR LOCK
GRAY 		8-97582-706-0 02 1 0605-0610 ● ● ● ●
80 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> GRAY 		8-97582-706-0 02 1 0611- ● ● ● ●
125 BRACKET; DOOR PULL
(B) 		8-97869-460-0 01 1 0507-0604 ● ● ●
125 BRACKET; DOOR PULL
(B) 		8-97869-460-1 01 1 0605- ● ● ● ●
125 BRACKET; DOOR PULL
(A) 		8-97869-459-0 01 1 0507-0604 ● ● ●
125 BRACKET; DOOR PULL
(A) 		8-97869-459-1 01 1 0605- ● ● ● ●
133 SCREW; DOOR PULL STAY
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0507-0604 ● ● ●
133 SCREW; DOOR PULL STAY
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0605-0605 ● ● ● ●
133 SCREW; DOOR PULL STAY
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 0605-0612 ● ● ● ●
133 SCREW; DOOR PULL STAY
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 0701- ● ● ● ●
