6-31 — FRONT DOOR GLASS AND REGULATOR (#51865) — 99 parça

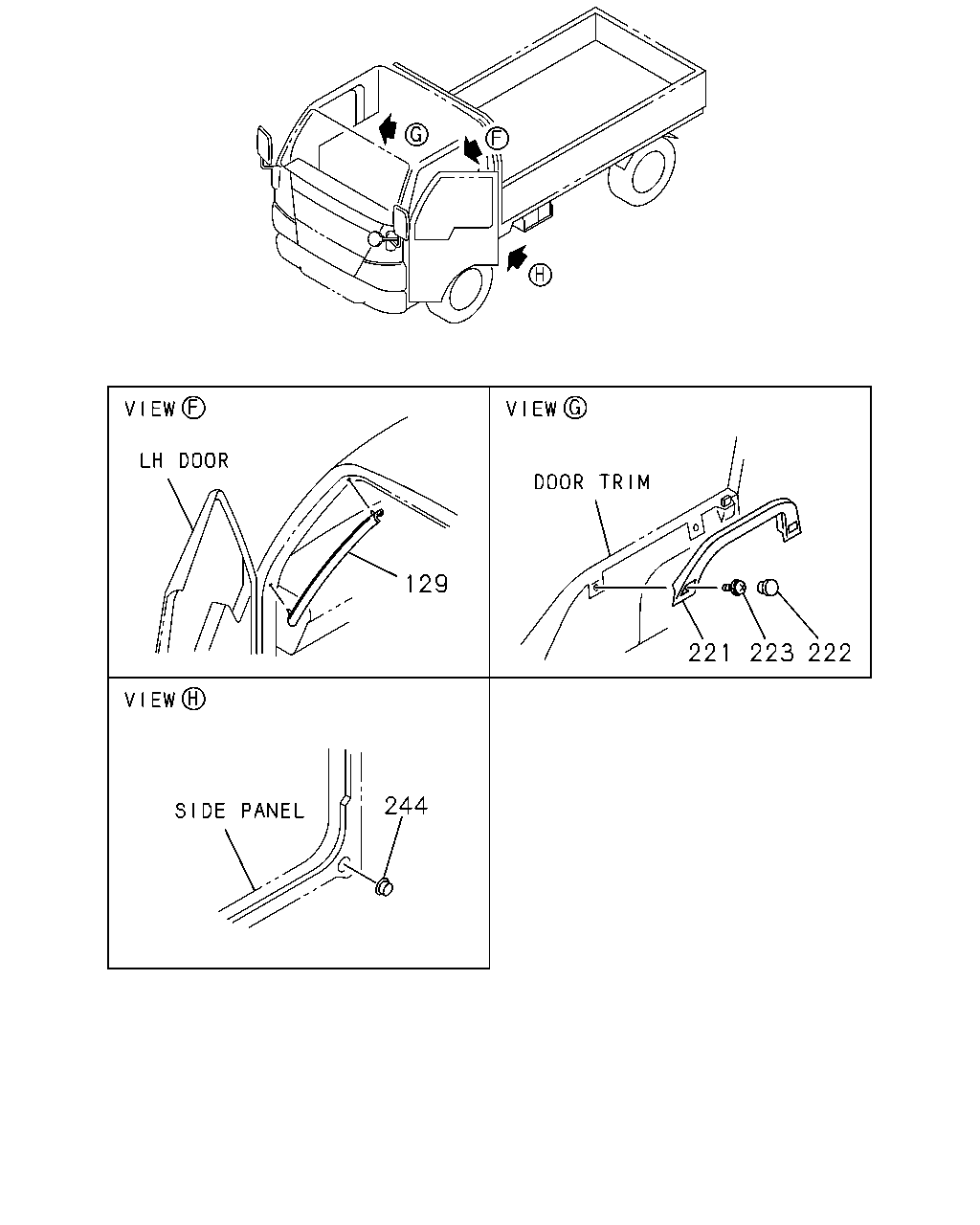

çizim 57384
129 221 223 222 244
BalonParca AdiParca NoAdetTipApplied Date A B C D
129 SEAL; DOOR,SUB UPR 8-97852-147-3 01 1 0507-0604 ● ● ●
129 SEAL; DOOR,SUB UPR 8-97852-147-3 01 1 0605- ● ● ● ●
129 SEAL; DOOR,SUB UPR 8-97852-146-3 01 1 0507-0604 ● ● ●
129 SEAL; DOOR,SUB UPR 8-97852-146-3 01 1 0605- ● ● ● ●
221 BAR ASM; DOOR GLASS GUARD
GRAY 		8-97582-310-0 01 1 0507-0604 ● ● ●
221 BAR ASM; DOOR GLASS GUARD
GRAY 		8-97582-310-1 01 1 0605- ● ● ● ●
221 BAR ASM; DOOR GLASS GUARD
GRAY 		8-97582-309-0 01 1 0507-0604 ● ● ●
221 BAR ASM; DOOR GLASS GUARD
GRAY 		8-97582-309-1 01 1 0605- ● ● ● ●
222 CAP; GUARD BAR
FRONT GRAY 		8-97582-312-0 02 1 0507-0604 ● ● ●
222 CAP; GUARD BAR
FRONT GRAY 		8-97582-312-0 02 1 0605- ● ● ● ●
222 CAP; GUARD BAR
REAR GRAY 		8-97582-313-0 02 1 0507-0604 ● ● ●
222 CAP; GUARD BAR
REAR GRAY 		8-97582-313-0 02 1 0605- ● ● ● ●
223 SCREW; GUARD BAR
M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0507-0604 ● ● ●
223 SCREW; GUARD BAR
M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0605-0612 ● ● ● ●
223 SCREW; GUARD BAR
M6X18 W/TORQUES 		8-98064-277-0 04 1 0701- ● ● ● ●
244 STOPPER; DOOR 8-97890-484-0 02 1 0507-0604 ● ● ●
244 STOPPER; DOOR 8-97890-484-0 02 1 0605- ● ● ● ●

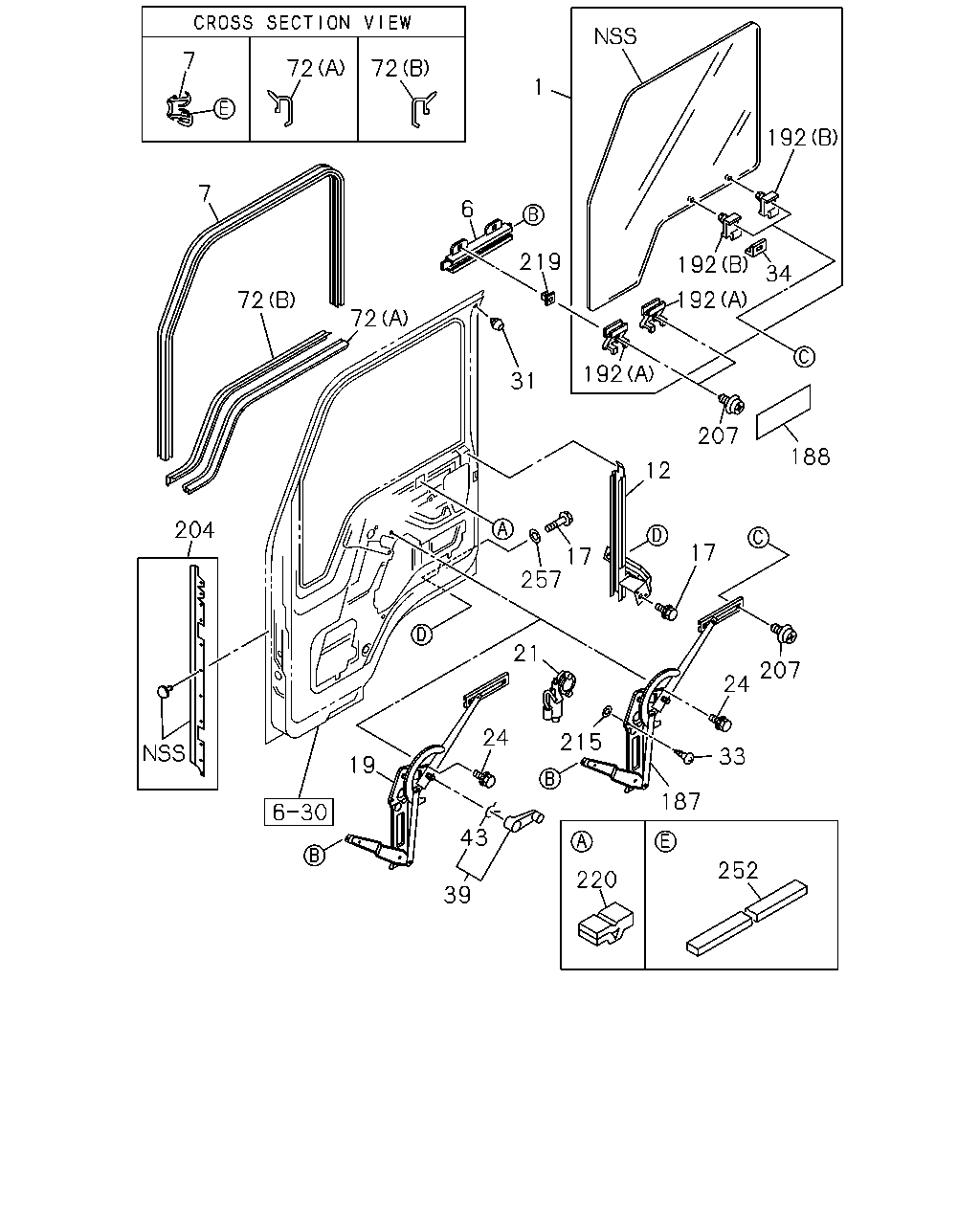

çizim 58111
7 72 72 1 7 72 72 31 204 19 6 219 192 192 192 34 192 207 188 12 17 17 257 21 24 207 33 187 215 220 252 39 43 24
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GLASS; FRT DOOR
ASAHI 		8-97867-418-1 01 1 0507-0604 ● ● ●
1 GLASS; FRT DOOR
ASAHI 		8-97867-418-1 01 1 0605- ● ● ● ●
1 GLASS; FRT DOOR
ASAHI 		8-97867-417-1 01 1 0507-0604 ● ● ●
1 GLASS; FRT DOOR
ASAHI 		8-97867-417-1 01 1 0605- ● ● ● ●
6 CHANNEL; DOOR GLASS
W/ROLLER&PROTECTOR 		8-97898-425-1 02 1 0507-0604 ● ● ●
6 CHANNEL; DOOR GLASS
W/ROLLER&PROTECTOR 		8-97898-425-1 02 1 0605- ● ● ● ●
7 GLASS RUN; FRT DOOR 8-97859-496-1 01 1 0507-0604 ● ● ●
7 GLASS RUN; FRT DOOR 8-97859-496-1 01 1 0605- ● ● ● ●
7 GLASS RUN; FRT DOOR 8-97859-495-1 01 1 0507-0604 ● ● ●
7 GLASS RUN; FRT DOOR 8-97859-495-1 01 1 0605- ● ● ● ●
12 CHANNEL; GLASS RUN,FRT 8-97852-112-5 01 1 0507-0604 ● ● ●
12 CHANNEL; GLASS RUN,FRT 8-97852-112-5 01 1 0605-1212 ● ● ● ●
12 CHANNEL; GLASS RUN,FRT 8-97996-046-0 01 1 1301- ● ● ● ●
12 CHANNEL; GLASS RUN,FRT 8-97852-111-5 01 1 0507-0604 ● ● ●
12 CHANNEL; GLASS RUN,FRT 8-97852-111-5 01 1 0605-1212 ● ● ● ●
12 CHANNEL; GLASS RUN,FRT 8-97867-650-0 01 1 1301- ● ● ● ●
17 SCREW; RR CHANNEL
M6X16 W/LK&PL WASHER 		8-97582-826-0 04 1 0507-0604 ● ● ●
17 SCREW; RR CHANNEL
M6X16 W/LK&PL WASHER 		8-97582-826-0 04 1 0605-0612 ● ● ● ●
17 SCREW; RR CHANNEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 04 1 0701-1101 ● ● ● ●
17 SCREW; RR CHANNEL
T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 04 1 1102-1212 ● ● ● ●
17 SCREW; RR CHANNEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 04 1 1301- ● ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-116-7 01 1 0507-0604 ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-116-8 01 1 0605- ● ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-115-7 01 1 0507-0604 ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-115-8 01 1 0605- ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-478-0 01 1 0507-0604 ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-478-0 01 1 0605- ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-477-0 01 1 0507-0604 ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-477-0 01 1 0605- ● ● ● ●
24 SCREW; WINDOW REG
M6X8 W/LK&PL WASHER 		8-94279-401-0 10 1 0507-0604 ● ● ●
24 SCREW; WINDOW REG
M6X8 W/LK&PL WASHER 		8-94279-401-0 10 1 0605-0606 ● ● ● ●
24 SCREW; WINDOW REG
M6X8 W/LK&PL WASHER 		8-94279-401-0 10 1 0607-0612 ● ● ● ●
24 SCREW; WINDOW REG
M8X6.5 W/TORQUES 		8-98064-275-2 10 1 0701-0710 ● ● ● ●
24 SCREW; WINDOW REG
M6X8 W/LK&PL WASHER 		8-94279-401-0 10 1 0711-0802 ● ● ● ●
24 SCREW; WINDOW REG
M6X9 LK+W/PL WASHER&TORQUES 		8-98108-677-0 10 1 0803- ● ● ● ●
31 STOPPER; RUBBER,DOOR INNER 8-97852-022-1 02 1 0507-0604 ● ● ●
31 STOPPER; RUBBER,DOOR INNER 8-97852-022-1 02 1 0605- ● ● ● ●
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98097-389-0 06 1 0607- ● ● ● ●
34 STOPPER; WINDOW REG 8-97852-012-0 02 1 0507-0604 ● ● ●
34 STOPPER; WINDOW REG 8-97852-012-0 02 1 0605- ● ● ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-306-0 02 1 0507-0604 ● ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-306-0 02 1 0605-0709 ● ● ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-98090-302-0 02 1 0710- ● ● ● ●
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-94220-591-0 02 1 0507-0604 ● ● ●
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-94220-591-0 02 1 0605- ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-118-6 01 1 0507-0604 ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-118-6 01 1 0605- ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97866-698-6 01 1 0507-0604 ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97866-698-6 01 1 0605- ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-117-6 01 1 0507-0604 ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-117-6 01 1 0605- ● ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97866-697-6 01 1 0507-0604 ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97866-697-6 01 1 0605- ● ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-114-2 01 1 0507-0604 ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-114-3 01 1 0605- ● ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-113-2 01 1 0507-0604 ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-113-3 01 1 0605- ● ● ● ●
188 PROTECTOR; DOOR SEAL 8-97994-698-0 02 1 0507-0604 ● ● ●
188 PROTECTOR; DOOR SEAL 8-97994-698-1 02 1 0605- ● ● ● ●
192 HOLDER; DOOR GLASS
(A) 		8-97852-076-1 04 1 0507-0604 ● ● ●
192 HOLDER; DOOR GLASS
(A) 		8-97852-076-1 04 1 0605- ● ● ● ●
192 HOLDER; DOOR GLASS
(B) 		8-97852-077-1 04 1 0507-0604 ● ● ●
192 HOLDER; DOOR GLASS
(B) 		8-97852-077-1 04 1 0605- ● ● ● ●
204 RUBBER; SHIELD,FRT DOOR 8-97852-093-2 01 1 0507-0604 ● ● ●
204 RUBBER; SHIELD,FRT DOOR 8-97852-093-2 01 1 0605- ● ● ● ●
204 RUBBER; SHIELD,FRT DOOR 8-97852-092-2 01 1 0507-0604 ● ● ●
204 RUBBER; SHIELD,FRT DOOR 8-97852-092-2 01 1 0605- ● ● ● ●
207 SCREW; DOOR GLASS
REAR M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 0507-0604 ● ● ●
207 SCREW; DOOR GLASS
REAR M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 0605-0606 ● ● ● ●
207 SCREW; DOOR GLASS
REAR M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 0607-0612 ● ● ● ●
207 SCREW; DOOR GLASS
FRONT & REAR M4X14.5 TAPPING 		8-98020-522-2 08 1 0701- ● ● ● ●
207 SCREW; DOOR GLASS
FRONT M6X14.5 W/PL WASHER TAPPING 		8-94279-014-0 04 1 0507-0604 ● ● ●
207 SCREW; DOOR GLASS
FRONT M6X14.5 W/PL WASHER TAPPING 		8-94279-014-0 04 1 0605-0606 ● ● ● ●
207 SCREW; DOOR GLASS
FRONT M6X14.5 W/PL WASHER TAPPING 		8-94279-014-0 04 1 0607-0612 ● ● ● ●
215 SPACER; WINDOW REG
POWER WINDOW FRT DOOR<A32> 		8-97388-942-0 02 1 0607- ● ● ● ●
219 GROMMET; SCREW,CHANNEL,REG 8-94326-756-0 04 1 0507-0604 ● ● ●
219 GROMMET; SCREW,CHANNEL,REG 8-94326-756-0 04 1 0605- ● ● ● ●
220 SEAL; LINK ROD 8-97852-321-0 02 1 0507-0604 ● ● ●
220 SEAL; LINK ROD 8-97852-321-0 02 1 0605- ● ● ● ●
252 CUSHION 8-97863-735-0 02 1 0507-0604 ● ● ●
252 CUSHION 8-97863-735-0 02 1 0605- ● ● ● ●
257 WASHER; G/RUN CHANNEL
ID=6.5 OD=30 		9-09851-911-0 02 1 1301- ● ● ● ●
