◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51047 - ELF400/450(MEXICO) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#51863) — 111 parça

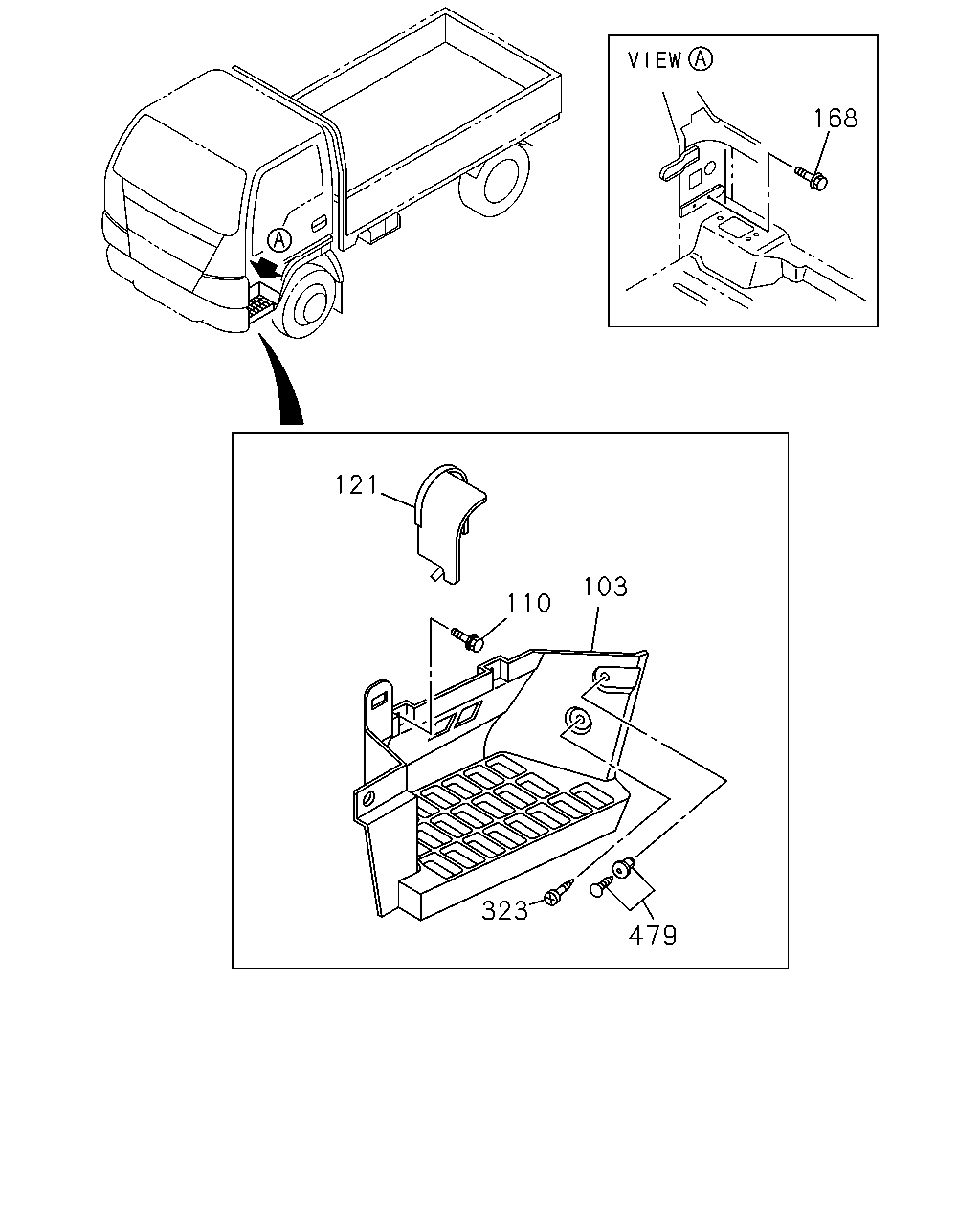

çizim 57348
168 121 103 110 323 479
BalonParca AdiParca NoAdetTipApplied Date A B C D
103 PLATE; STEP 8-97997-854-0 01 1 0507-0604 ● ● ●
103 PLATE; STEP 8-97997-854-0 01 1 0605- ● ● ● ●
103 PLATE; STEP 8-97997-853-0 01 1 0507-0604 ● ● ●
103 PLATE; STEP 8-97997-853-0 01 1 0605- ● ● ● ●
110 BOLT; 1ST STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0507-0604 ● ● ●
110 BOLT; 1ST STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0605-0908 ● ● ● ●
110 BOLT; 1ST STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0909- ● ● ● ●
121 COVER; STEP PLATE 8-97997-856-0 01 1 0507-0604 ● ● ●
121 COVER; STEP PLATE 8-97997-856-0 01 1 0605- ● ● ● ●
121 COVER; STEP PLATE 8-97997-855-0 01 1 0507-0604 ● ● ●
121 COVER; STEP PLATE 8-97997-855-0 01 1 0605- ● ● ● ●
168 BOLT; BODY SIDE PANEL
M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0507-0604 ● ● ●
168 BOLT; BODY SIDE PANEL
M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0605- ● ● ● ●
323 SCREW; SET
M8X14 		8-94279-386-1 04 1 0507-0604 ● ● ●
323 SCREW; SET
M8X14 		8-94279-386-1 04 1 0605- ● ● ● ●
479 RIVET; STEP PLATE
OD=8 		1-09983-125-0 02 1 0507-0604 ● ● ●
479 RIVET; STEP PLATE
OD=8 		1-09983-125-0 02 1 0605- ● ● ● ●

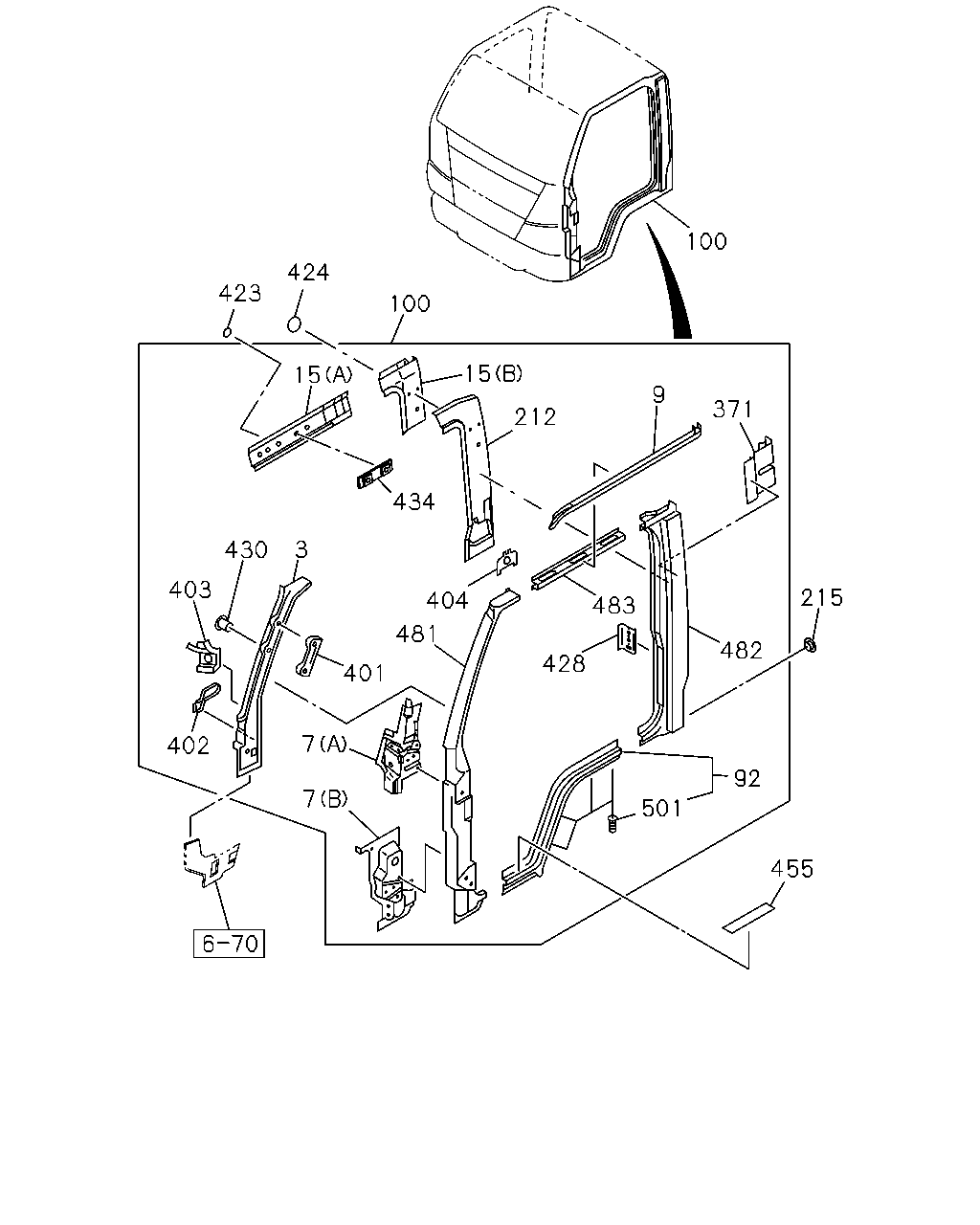

çizim 57387
423 424 15 430 403 402 7 7 401 3 434 404 481 428 483 482 92 501 455 371 212 15 100 100 9 215
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 PANEL; CLOSING,FRT PILLAR 8-97851-358-4 01 1 0507-0604 ● ● ●
3 PANEL; CLOSING,FRT PILLAR 8-97851-358-4 01 1 0605- ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR 8-97851-357-4 01 1 0507-0604 ● ● ●
3 PANEL; CLOSING,FRT PILLAR 8-97851-357-4 01 1 0605- ● ● ● ●
7 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 0507-0604 ● ● ●
7 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 0605- ● ● ● ●
7 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-354-2 01 1 0507-0604 ● ● ●
7 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-354-2 01 1 0605- ● ● ● ●
7 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 0507-0604 ● ● ●
7 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 0605- ● ● ● ●
7 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-353-2 01 1 0507-0604 ● ● ●
7 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-353-2 01 1 0605- ● ● ● ●
9 MOLDING; DRIP,CAB SIDE 8-97851-020-9 01 1 0507-0604 ● ● ●
9 MOLDING; DRIP,CAB SIDE 8-97851-020-9 01 1 0605-1106 ● ● ● ●
9 MOLDING; DRIP,CAB SIDE 8-98177-624-0 01 1 1107- ● ● ● ●
9 MOLDING; DRIP,CAB SIDE 8-97851-019-9 01 1 0507-0604 ● ● ●
9 MOLDING; DRIP,CAB SIDE 8-97851-019-9 01 1 0605-1106 ● ● ● ●
9 MOLDING; DRIP,CAB SIDE 8-98177-623-0 01 1 1107- ● ● ● ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-4 01 1 0507-0604 ● ● ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-5 01 1 0605- ● ● ● ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-5 01 1 0507-0604 ● ● ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-6 01 1 0605- ● ● ● ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-4 01 1 0507-0604 ● ● ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-5 01 1 0605- ● ● ● ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-5 01 1 0507-0604 ● ● ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-6 01 1 0605- ● ● ● ●
92 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 0507-0604 ● ● ●
92 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 0605- ● ● ● ●
92 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 0507-0604 ● ● ●
92 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 0605- ● ● ● ●
100 PANEL ASM; BODY SIDE 8-97890-402-2 01 1 0507-0604 ● ● ●
100 PANEL ASM; BODY SIDE 8-97890-402-2 01 1 0605- ● ● ● ●
100 PANEL ASM; BODY SIDE 8-97890-395-1 01 1 0507-0604 ● ● ●
100 PANEL ASM; BODY SIDE 8-97890-395-1 01 1 0605- ● ● ● ●
212 CLOSING; PILLAR 8-97890-455-4 01 1 0507-0604 ● ● ●
212 CLOSING; PILLAR 8-97890-455-5 01 1 0605- ● ● ● ●
212 CLOSING; PILLAR 8-97890-452-3 01 1 0507-0604 ● ● ●
212 CLOSING; PILLAR 8-97890-452-4 01 1 0605- ● ● ● ●
215 GROMMET; RR PILLAR
OD=35 		8-94122-971-0 01 1 0507-0604 ● ● ●
215 GROMMET; RR PILLAR
OD=35 		8-94122-971-0 01 1 0605- ● ● ● ●
371 PATCH; SEAT BELT 8-97857-361-0 01 1 0507-0604 ● ● ●
371 PATCH; SEAT BELT 8-97857-361-0 01 1 0605- ● ● ● ●
371 PATCH; SEAT BELT 8-97851-048-1 01 1 0507-0604 ● ● ●
371 PATCH; SEAT BELT 8-97851-048-1 01 1 0605- ● ● ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 02 1 0507-0604 ● ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 02 1 0605- ● ● ● ●
402 BRACKET; SUPPORT 8-97851-086-1 01 1 0507-0604 ● ● ●
402 BRACKET; SUPPORT 8-97851-086-1 01 1 0605- ● ● ● ●
402 BRACKET; SUPPORT 8-97851-085-1 01 1 0507-0604 ● ● ●
402 BRACKET; SUPPORT 8-97851-085-1 01 1 0605- ● ● ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 0507-0604 ● ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 0605- ● ● ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 0507-0604 ● ● ●
403 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 0605- ● ● ● ●
404 BRACKET 8-97890-318-1 02 1 0507-0604 ● ● ●
404 BRACKET 8-97890-318-1 02 1 0605- ● ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 08 1 0507-0604 ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 08 1 0605-0610 ● ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 08 1 0611- ● ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 08 1 0507-0604 ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 08 1 0605-0606 ● ● ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR MARINE BLUE(890),BODY COLOR HERTZ PENSKE YELLOW(978) OD=20 T=0.05 BLACK 		5-76777-036-0 08 1 0607- ● ● ● ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0507-0604 ● ● ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0605-0610 ● ● ● ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611- ● ● ● ●
424 SEAL; CLOSING
BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0507-0604 ● ● ●
424 SEAL; CLOSING
BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0605-0606 ● ● ● ●
424 SEAL; CLOSING
BODY COLOR EBONY BLACK(508),BODY COLOR MARINE BLUE(890),BODY COLOR HERTZ PENSKE YELLOW(978) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0607- ● ● ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97851-446-1 01 1 0507-0604 ● ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97851-446-1 01 1 0605- ● ● ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97851-445-1 01 1 0507-0604 ● ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97851-445-1 01 1 0605- ● ● ● ●
430 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 0507-0604 ● ● ●
430 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 0605-0805 ● ● ● ●
430 NUT; PANEL
M6 POP NUT 		8-98013-752-0 01 1 0806- ● ● ● ●
434 PATCH; ASSIST GRIP 8-94267-191-1 01 1 0507-0604 ● ● ●
434 PATCH; ASSIST GRIP 8-94267-191-1 01 1 0605- ● ● ● ●
455 PROTECTOR; STEP 8-97852-863-0 02 1 0507-0511 ● ● ●
455 PROTECTOR; STEP 8-98027-816-0 02 1 0512-0604 ● ● ●
455 PROTECTOR; STEP 8-98027-816-0 02 1 0605- ● ● ● ●
481 PANEL; SIDE FRT PILLAR 8-98268-138-0 01 1 0507-0604 ● ● ●
481 PANEL; SIDE FRT PILLAR 8-98268-138-0 01 1 0605- ● ● ● ●
481 PANEL; SIDE FRT PILLAR 8-98268-139-0 01 1 0507-0604 ● ● ●
481 PANEL; SIDE FRT PILLAR 8-98268-139-0 01 1 0605- ● ● ● ●
482 PANEL; SIDE RR PILLAR 8-97859-052-2 01 1 0507-0604 ● ● ●
482 PANEL; SIDE RR PILLAR 8-97859-052-2 01 1 0605- ● ● ● ●
482 PANEL; SIDE RR PILLAR 8-97851-521-3 01 1 0507-0604 ● ● ●
482 PANEL; SIDE RR PILLAR 8-97851-521-3 01 1 0605- ● ● ● ●
483 PANEL; SIDE CANTRAIL 8-97851-525-0 01 1 0507-0604 ● ● ●
483 PANEL; SIDE CANTRAIL 8-97851-525-0 01 1 0605- ● ● ● ●
483 PANEL; SIDE CANTRAIL 8-97851-524-0 01 1 0507-0604 ● ● ●
483 PANEL; SIDE CANTRAIL 8-97851-524-0 01 1 0605- ● ● ● ●
501 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 08 1 0507-0604 ● ● ●
501 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 08 1 0605- ● ● ● ●
