◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51047 - ELF400/450(MEXICO) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#51861) — 41 parça

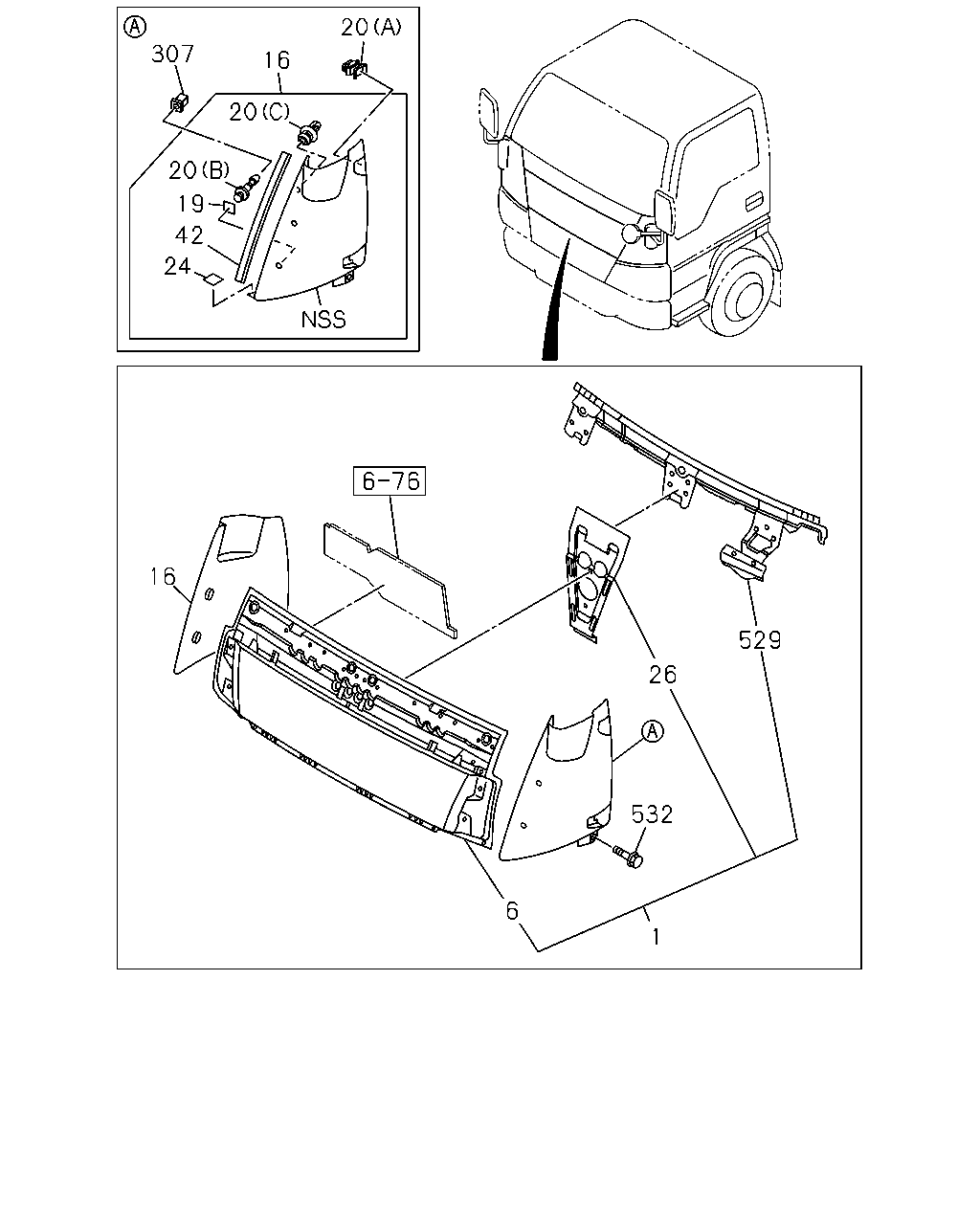

çizim 57320
20 307 16 20 20 19 42 24 16 529 26 532 6 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL ASM; FRT 8-97582-869-0 01 1 0507-0604 ● ● ●
1 PANEL ASM; FRT 8-97582-869-0 01 1 0605- ● ● ● ●
6 PANEL; FRONT 8-97582-872-1 01 1 0507-0604 ● ● ●
6 PANEL; FRONT 8-97582-872-1 01 1 0605- ● ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97585-430-4 01 1 0507-0604 ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97585-430-6 01 1 0605- ● ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97585-428-4 01 1 0507-0604 ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97585-428-6 01 1 0605- ● ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97585-431-4 01 1 0507-0604 ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97585-431-6 01 1 0605- ● ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97585-429-4 01 1 0507-0604 ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97585-429-6 01 1 0605- ● ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97407-790-6 01 1 0607- ● ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97407-788-6 01 1 0607- ● ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HERTZ PENSKE YELLOW(978) YELLOW 		8-97407-791-6 01 1 0607- ● ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HERTZ PENSKE YELLOW(978) YELLOW 		8-97407-789-6 01 1 0607- ● ● ● ●
19 SEAL; FRT SIDE PANEL 8-97581-676-0 04 1 0507-1008 ● ● ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97581-632-1 04 1 0507-0604 ● ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97581-632-1 04 1 0605- ● ● ● ●
20 CLIP; FRT PANEL SIDE
(B) D4.2X13 		1-09983-161-0 04 1 0507-0604 ● ● ●
20 CLIP; FRT PANEL SIDE
(B) D4.2X13 		1-09983-161-0 04 1 0605- ● ● ● ●
20 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0507-0604 ● ● ●
20 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0605- ● ● ● ●
24 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 0507-0604 ● ● ●
24 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 0605- ● ● ● ●
26 PANEL; REINF,FRT PANEL CENTER,INNER 8-97851-275-0 01 1 0507-0604 ● ● ●
26 PANEL; REINF,FRT PANEL CENTER,INNER 8-97851-275-0 01 1 0605- ● ● ● ●
42 FINISHER; FRT PANEL,SIDE 8-97411-043-0 01 1 0607- ● ● ● ●
42 FINISHER; FRT PANEL,SIDE 8-97411-044-0 01 1 0607- ● ● ● ●
307 GROMMET; FRT PANEL 8-97583-397-0 04 1 0507-0604 ● ● ●
307 GROMMET; FRT PANEL 8-97583-397-0 04 1 0605- ● ● ● ●
529 REINFORCEMENT; PANEL 8-97851-407-2 01 1 0507-0604 ● ● ●
529 REINFORCEMENT; PANEL 8-97851-407-2 01 1 0605- ● ● ● ●
532 BOLT; FRT PANEL
M6X16 W/PL WASHER 		8-97803-781-0 02 1 0507-0604 ● ● ●
532 BOLT; FRT PANEL
M6X16 W/PL WASHER 		8-97803-781-0 02 1 0605- ● ● ● ●
çizim 100813
522 525 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 GROMMET; SCREW,FRT SIDE PANEL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0507-0604 ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0605- ● ● ● ●
522 PROTECTOR; SILL SIDE
GRAY 		8-97585-425-1 01 1 0507-0604 ● ● ●
522 PROTECTOR; SILL SIDE
GRAY 		8-97585-425-1 01 1 0605- ● ● ● ●
525 SEAL; FENDER
OD=25 BLACK 		1-76798-019-0 03 1 0507-0604 ● ● ●
525 SEAL; FENDER
OD=25 BLACK 		1-76798-019-0 03 1 0605- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
