◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51047 - ELF400/450(MEXICO) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-04 - CAB ASM ▶
6-04 — CAB ASM (#51860) — 12 parça

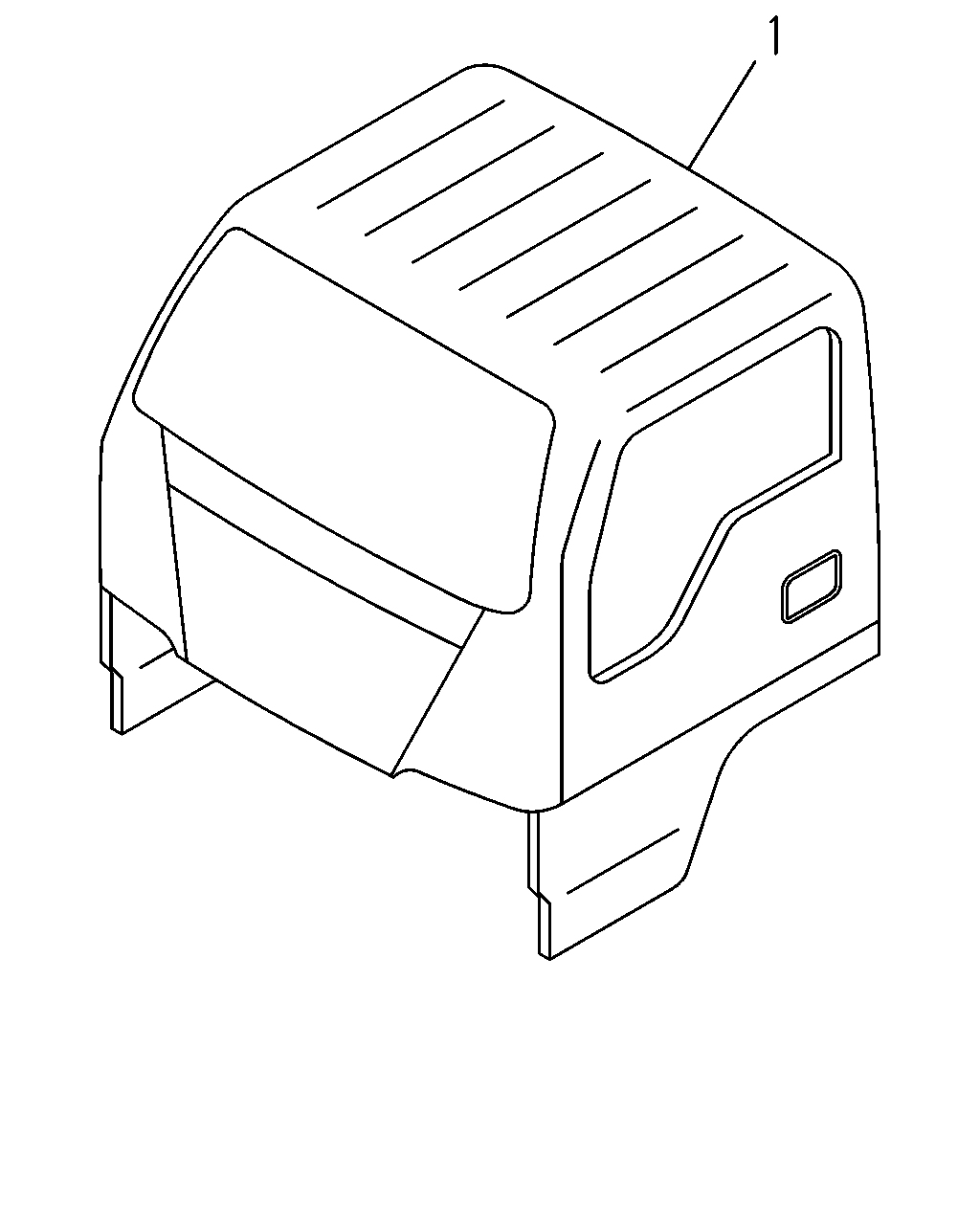

çizim 57294
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LAMPS-FIVE,ROOF MARKER<U01> EXC. POWER WINDOW FRT DOOR<A32> 		8-98025-226-0 01 1 0507-0604 ● ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) POWER WINDOW FRT DOOR<A32> LAMPS-FIVE,ROOF MARKER<U01> 		8-98025-227-0 01 1 0507-0604 ● ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR MARINE BLUE(890) LAMPS-FIVE,ROOF MARKER<U01> EXC. POWER WINDOW FRT DOOR<A32> 		8-98025-228-0 01 1 0507-0604 ● ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR MARINE BLUE(890) POWER WINDOW FRT DOOR<A32> LAMPS-FIVE,ROOF MARKER<U01> 		8-98025-229-0 01 1 0507-0604 ● ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LAMPS-FIVE,ROOF MARKER<U01> POWER WINDOW FRT DOOR<A32> 		8-98052-970-0 01 1 0607- ● ● ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LAMPS-FIVE,ROOF MARKER<U01> EXC. POWER WINDOW FRT DOOR<A32> 		8-98025-226-0 01 1 0604-0606 ● ● ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LAMPS-FIVE,ROOF MARKER<U01> EXC. POWER WINDOW FRT DOOR<A32> 		8-98052-968-0 01 1 0607- ● ● ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) POWER WINDOW FRT DOOR<A32> LAMPS-FIVE,ROOF MARKER<U01> 		8-98025-227-0 01 1 0605-0606 ● ● ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR MARINE BLUE(890) LAMPS-FIVE,ROOF MARKER<U01> POWER WINDOW FRT DOOR<A32> 		8-98052-971-0 01 1 0607- ● ● ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR MARINE BLUE(890) LAMPS-FIVE,ROOF MARKER<U01> EXC. POWER WINDOW FRT DOOR<A32> 		8-98025-228-0 01 1 0604-0606 ● ● ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR MARINE BLUE(890) LAMPS-FIVE,ROOF MARKER<U01> EXC. POWER WINDOW FRT DOOR<A32> 		8-98052-969-0 01 1 0607- ● ● ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR MARINE BLUE(890) POWER WINDOW FRT DOOR<A32> LAMPS-FIVE,ROOF MARKER<U01> 		8-98025-229-0 01 1 0605-0606 ● ● ● ●
