◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10722 - CXH RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#5186) — 518 parça

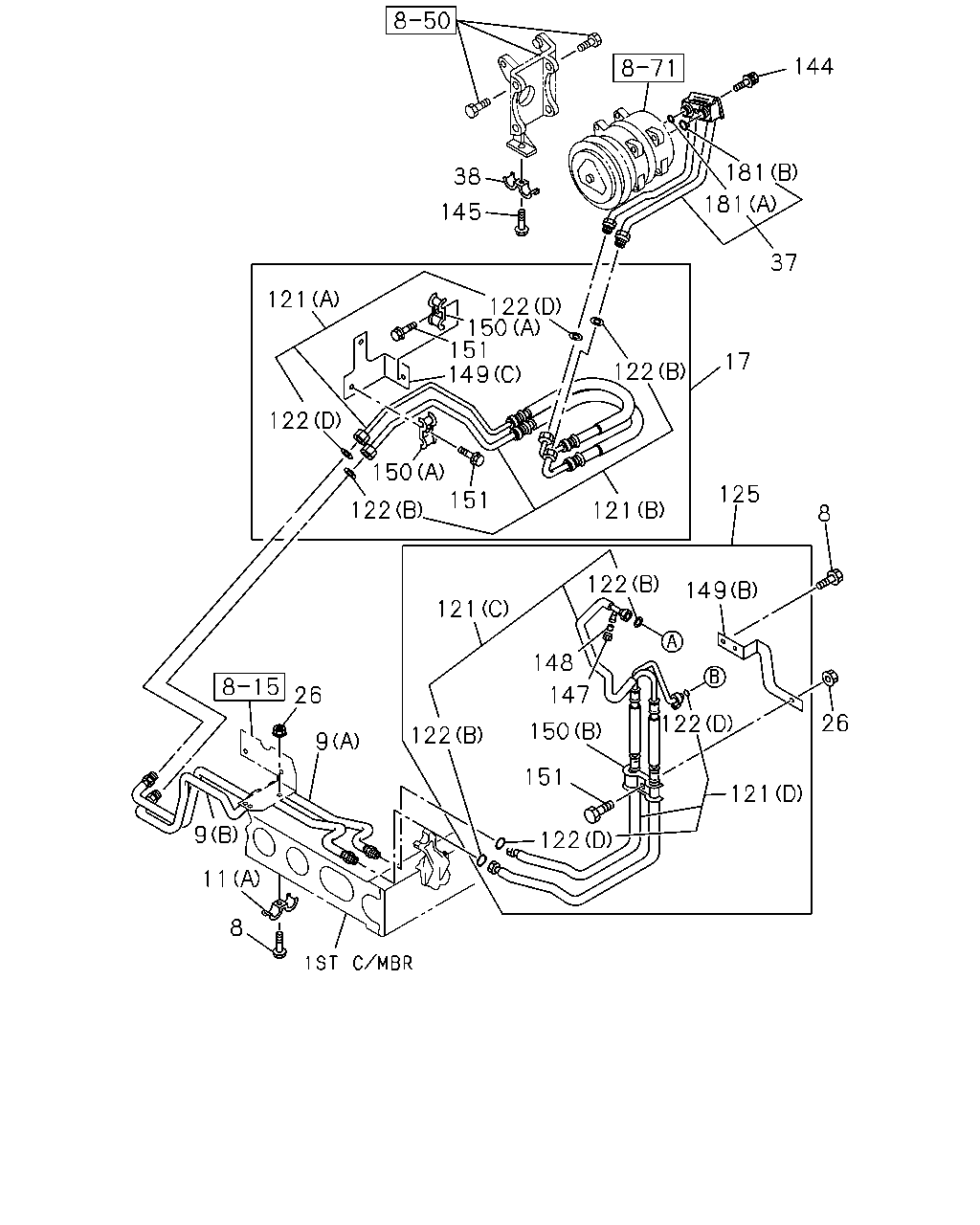

çizim 4520
144 181 38 181 145 37 121 122 150 151 149 17 122 122 150 151 125 122 121 8 122 149 121 148 147 26 122 26 150 122 9 151 121 9 122 11 8
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9802-9905
8 BOLT; CLIP
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9802-9905
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9906-0007
8 BOLT; CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8X20 FLANGE 		0-28680-820-0 01 1 9906-0007
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 0008-0103
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> M8X20 FLANGE 		0-28680-820-0 01 1 0008-0103
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE 		0-28080-818-0 01 1 0104-
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> M8X18 FLANGE 		0-28080-818-0 01 1 0104-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-589-0 01 1 9610-9701
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-455-1 01 1 9702-9706
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-455-1 01 1 9707-9711
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-486-0 01 1 9712-9905
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) V TYPE ENG<91L> (B) 		1-83572-557-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-590-0 01 1 9610-9701
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-456-1 01 1 9702-9706
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-456-1 01 1 9707-9711
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-487-0 01 1 9712-9905
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83567-670-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) 		1-83572-552-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83572-556-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-493-0 01 1 9802-9905
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-553-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-494-0 01 1 9802-9905
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83567-669-0 01 1 9906-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 9610-9706
11 CLIP; COOLER PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 9707-9801
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 9802-9905
11 CLIP; COOLER PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 9802-9905
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 9906-
11 CLIP; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) ID=12.2 & 16.2 		1-83574-190-0 01 1 9906-0007
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> (B) ID=12.2 & 16.2 		1-83574-190-0 01 1 0008-
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-280-0 01 1 9610-9611
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-198-1 01 1 9612-9706
17 HOSE; FLEX,CMPR TO PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-198-1 01 1 9707-9905
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83572-547-0 01 1 9906-0007
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> 		1-83572-547-1 01 1 0008-
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> 		1-83572-546-0 01 1 9906-0007
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> 		1-83572-546-1 01 1 0008-
17 HOSE; FLEX,CMPR TO PIPE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-249-0 01 1 9802-9905
17 HOSE; FLEX,CMPR TO PIPE
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-549-0 01 1 9906-9907
17 HOSE; FLEX,CMPR TO PIPE
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-646-1 01 1 9908-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9610-9706
26 NUT; PIPE CLIP
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9610-9706
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9707-9801
26 NUT; PIPE CLIP
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9707-9801
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 9802-0007
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0008-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0008-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 01 1 0008-
26 NUT; PIPE CLIP
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9802-9905
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9906-0007
37 CONNECTOR; CMPR TO FLEX HOSE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83575-077-0 01 1 9802-9905
37 CONNECTOR; CMPR TO FLEX HOSE
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-173-0 01 1 9906-
38 CLIP; CONNECTOR
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-177-0 01 1 9802-9905
38 CLIP; CONNECTOR
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-177-0 01 1 9906-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-384-0 01 1 9610-9611
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-122-0 01 1 9612-9706
121 HOSE; COOLER
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-122-0 01 1 9707-9905
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-385-0 01 1 9610-9611
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-199-0 01 1 9612-9706
121 HOSE; COOLER
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-199-0 01 1 9707-9905
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-414-0 01 1 9610-9611
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-010-2 01 1 9612-9706
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (C) 		1-83572-010-2 01 1 9707-9905
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-415-0 01 1 9610-9611
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-011-2 01 1 9612-9706
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (D) 		1-83572-011-2 01 1 9707-9905
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> (D) 		1-83572-183-0 01 1 9707-9905
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> (C) 		1-83572-201-1 01 1 9707-9905
121 HOSE; COOLER
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-120-0 01 1 9802-9905
121 HOSE; COOLER
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-302-0 01 1 9802-9905
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-09623-514-0 01 1 9610-9611
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09623-515-0 01 1 9610-9611
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9 		8-94113-330-0 02 1 9610-9706
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (B) ID=13.9 		8-94113-330-0 02 1 9707-9905
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 9906-0007
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 9906-0007
122 GASKET
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (D) ID=15.5 		8-97161-777-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9 		8-94113-330-0 01 1 9610-9706
122 GASKET
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9 		8-94113-330-0 01 1 9707-9801
122 GASKET
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9 		8-94113-330-0 01 1 9802-9905
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-94481-717-0 02 1 9610-9706
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (D) 		8-94481-717-0 02 1 9707-9905
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 02 1 9906-0007
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 02 1 9906-0007
122 GASKET
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (B) ID=18.3 		8-97161-778-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-94481-717-0 01 1 9610-9706
122 GASKET
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-94481-717-0 01 1 9707-9905
122 GASKET
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=10.8 		8-94113-331-0 01 1 9802-9905
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-240-0 01 1 9610-9611
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-163-1 01 1 9612-9706
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> 		1-83572-163-1 01 1 9707-9905
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83572-465-1 01 1 9906-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> 		1-83572-200-1 01 1 9707-9905
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> 		1-83572-543-1 01 1 9906-
144 BOLT; CONN TO CMPR
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M10X45 		9-01961-045-0 01 1 9802-9905
144 BOLT; CONN TO CMPR
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) M10X45 		9-01961-045-0 01 1 9906-
145 BOLT; CLIP,CONNECTOR
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M8X16 W/LK WASHER 		9-01900-816-0 01 1 9802-9905
145 BOLT; CLIP,CONNECTOR
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) M8X16 W/LK WASHER 		9-01900-816-0 01 1 9906-
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97083-102-0 01 1 9610-9706
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> CAP MARK L 		8-97083-102-0 01 1 9707-9905
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97083-102-0 01 1 9906-
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9610-9706
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> 		8-97083-100-0 01 1 9707-9905
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9906-
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-030-0 01 1 9610-9611
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-902-0 01 1 9612-9706
149 BRACKET; COOLER HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-902-0 01 1 9707-9905
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-043-0 01 1 9610-9611
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82699-593-1 01 1 9612-9706
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (B) 		1-82699-593-1 01 1 9707-9905
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> (B) 		1-82699-825-0 01 1 9707-9905
149 BRACKET; COOLER HOSE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-901-1 01 1 9802-9905
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-251-0 01 1 9610-9611
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2 		1-83574-190-0 01 1 9612-9905
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-251-0 02 1 9610-9611
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-157-0 02 1 9612-9706
150 CLIP; HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-157-0 02 1 9707-9801
150 CLIP; HOSE
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-157-0 02 1 9802-9905
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-01900-616-0 01 1 9610-9611
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9612-9706
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> M8X20 FLANGE 		0-28680-820-0 01 1 9707-9905
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-01900-616-0 02 1 9610-9706
151 BOLT; CLIP FIX,COOLER HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-01900-616-0 02 1 9707-9801
151 BOLT; CLIP FIX,COOLER HOSE
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-01900-616-0 02 1 9802-9905
181 GASKET; CONNECTOR
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09623-514-0 01 1 9802-9905
181 GASKET; CONNECTOR
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5 		8-97161-777-0 01 1 9906-
181 GASKET; CONNECTOR
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-09623-515-0 01 1 9802-9905
181 GASKET; CONNECTOR
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 01 1 9906-

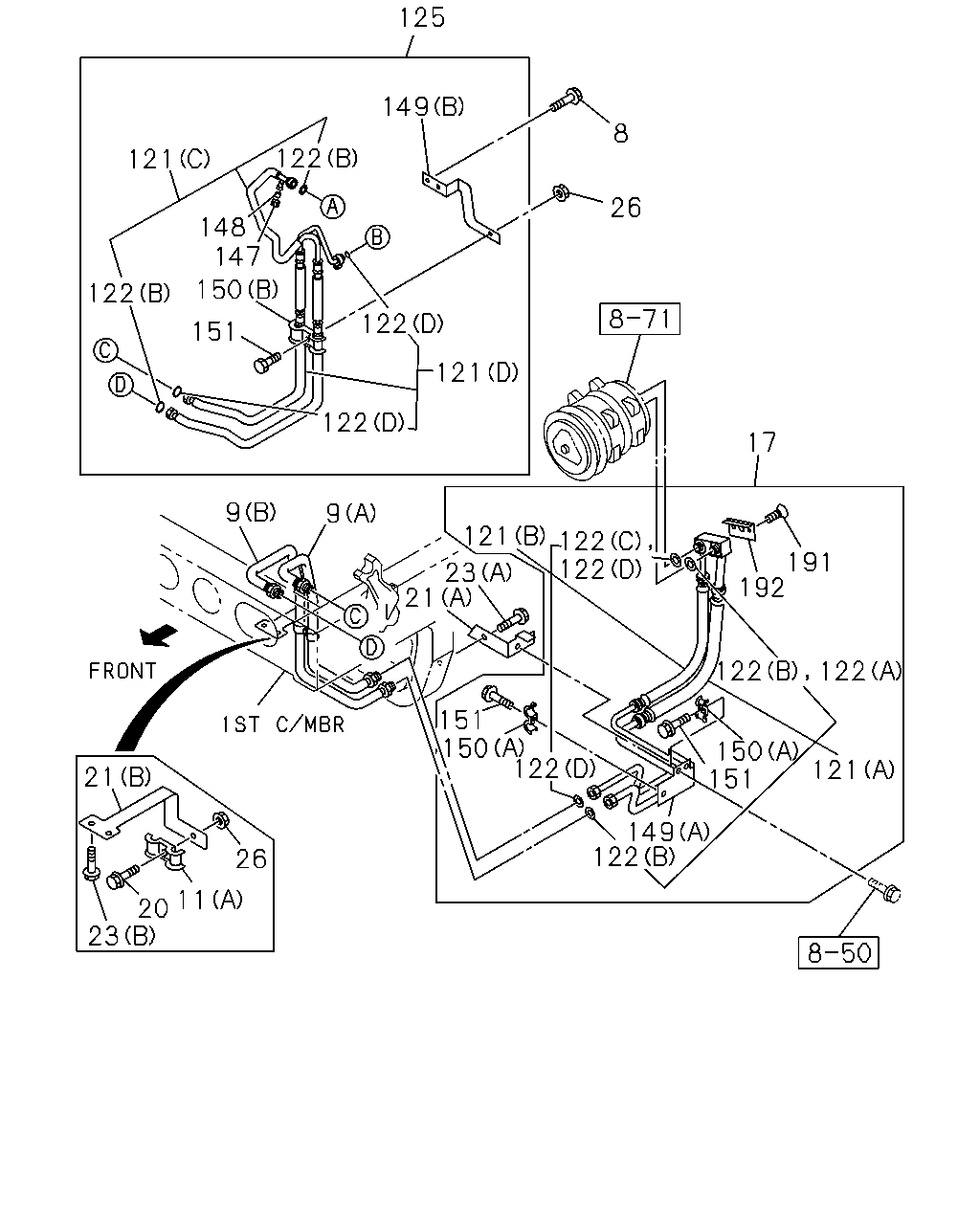

çizim 5672
125 149 8 122 121 26 148 147 150 122 122 151 121 122 17 9 9 121 23 21 122 122 191 192 122 122 122 151 150 150 151 121 21 149 122 26 11 20 23
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9802-9905
8 BOLT; CLIP
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9802-9905
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9906-0007
8 BOLT; CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8X20 FLANGE 		0-28680-820-0 01 1 9906-0007
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 0008-0103
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> M8X20 FLANGE 		0-28680-820-0 01 1 0008-0103
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE 		0-28080-818-0 01 1 0104-
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> M8X18 FLANGE 		0-28080-818-0 01 1 0104-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-589-0 01 1 9610-9701
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-455-1 01 1 9702-9706
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-455-1 01 1 9707-9711
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-486-0 01 1 9712-9905
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) V TYPE ENG<91L> (B) 		1-83572-557-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-590-0 01 1 9610-9701
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-456-1 01 1 9702-9706
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-456-1 01 1 9707-9711
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-487-0 01 1 9712-9905
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83567-670-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) 		1-83572-552-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83572-556-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-493-0 01 1 9802-9905
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-553-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-494-0 01 1 9802-9905
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83567-669-0 01 1 9906-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 9610-9706
11 CLIP; COOLER PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 9707-9801
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 9802-9905
11 CLIP; COOLER PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 9802-9905
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 9906-
11 CLIP; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) ID=12.2 & 16.2 		1-83574-190-0 01 1 9906-0007
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> (B) ID=12.2 & 16.2 		1-83574-190-0 01 1 0008-
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-280-0 01 1 9610-9611
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-198-1 01 1 9612-9706
17 HOSE; FLEX,CMPR TO PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-198-1 01 1 9707-9905
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83572-547-0 01 1 9906-0007
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> 		1-83572-547-1 01 1 0008-
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> 		1-83572-546-0 01 1 9906-0007
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> 		1-83572-546-1 01 1 0008-
17 HOSE; FLEX,CMPR TO PIPE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-249-0 01 1 9802-9905
17 HOSE; FLEX,CMPR TO PIPE
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-549-0 01 1 9906-9907
17 HOSE; FLEX,CMPR TO PIPE
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-646-1 01 1 9908-
20 BOLT; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE 		0-28081-045-0 01 1 9610-9706
20 BOLT; COOLER PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE 		0-28081-045-0 01 1 9707-9905
20 BOLT; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE 		0-28081-045-0 01 1 9906-0007
20 BOLT; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> M10X45 FLANGE 		0-28081-045-0 01 1 0008-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-777-1 01 1 9610-9706
21 BRACKET; COOLER HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-777-1 01 1 9707-9905
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-777-1 01 1 9906-0007
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (B) 		1-83571-777-1 01 1 0008-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-018-0 01 1 9610-9706
21 BRACKET; COOLER HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-018-0 01 1 9707-9905
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) 		1-83573-018-0 01 1 9906-0001
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (A) 		1-83573-018-0 01 1 0002-
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83571-998-0 01 1 9906-0007
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> (C) 		1-83571-998-0 01 1 0008-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9610-9705
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 01 1 9706-9706
23 BOLT; BRKT
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 01 1 9707-9905
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) M8X20 FLANGE 		0-28080-820-0 01 1 9906-0001
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (A) M8X20 FLANGE 		0-28080-820-0 01 1 0002-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28680-825-0 02 1 9610-9706
23 BOLT; BRKT
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28680-825-0 02 1 9707-9905
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28680-825-0 02 1 9906-0007
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (B) M8X25 FLANGE 		0-28680-825-0 02 1 0008-
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) M8X30 FLANGE 		0-28680-830-0 02 1 9906-0007
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> (C) M8X30 FLANGE 		0-28680-830-0 02 1 0008-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9610-9706
26 NUT; PIPE CLIP
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9610-9706
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9707-9801
26 NUT; PIPE CLIP
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9707-9801
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 9802-0007
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0008-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0008-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 01 1 0008-
26 NUT; PIPE CLIP
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9802-9905
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9906-0007
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-384-0 01 1 9610-9611
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-122-0 01 1 9612-9706
121 HOSE; COOLER
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-122-0 01 1 9707-9905
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-385-0 01 1 9610-9611
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-199-0 01 1 9612-9706
121 HOSE; COOLER
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-199-0 01 1 9707-9905
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-414-0 01 1 9610-9611
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-010-2 01 1 9612-9706
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (C) 		1-83572-010-2 01 1 9707-9905
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-415-0 01 1 9610-9611
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-011-2 01 1 9612-9706
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (D) 		1-83572-011-2 01 1 9707-9905
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> (D) 		1-83572-183-0 01 1 9707-9905
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> (C) 		1-83572-201-1 01 1 9707-9905
121 HOSE; COOLER
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-120-0 01 1 9802-9905
121 HOSE; COOLER
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-302-0 01 1 9802-9905
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-09623-514-0 01 1 9610-9611
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09623-515-0 01 1 9610-9611
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9 		8-94113-330-0 02 1 9610-9706
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (B) ID=13.9 		8-94113-330-0 02 1 9707-9905
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 9906-0007
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 9906-0007
122 GASKET
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (D) ID=15.5 		8-97161-777-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9 		8-94113-330-0 01 1 9610-9706
122 GASKET
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9 		8-94113-330-0 01 1 9707-9801
122 GASKET
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9 		8-94113-330-0 01 1 9802-9905
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-94481-717-0 02 1 9610-9706
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (D) 		8-94481-717-0 02 1 9707-9905
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 02 1 9906-0007
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 02 1 9906-0007
122 GASKET
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (B) ID=18.3 		8-97161-778-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-94481-717-0 01 1 9610-9706
122 GASKET
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-94481-717-0 01 1 9707-9905
122 GASKET
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=10.8 		8-94113-331-0 01 1 9802-9905
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-240-0 01 1 9610-9611
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-163-1 01 1 9612-9706
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> 		1-83572-163-1 01 1 9707-9905
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83572-465-1 01 1 9906-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> 		1-83572-200-1 01 1 9707-9905
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> 		1-83572-543-1 01 1 9906-
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97083-102-0 01 1 9610-9706
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> CAP MARK L 		8-97083-102-0 01 1 9707-9905
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97083-102-0 01 1 9906-
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9610-9706
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> 		8-97083-100-0 01 1 9707-9905
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9906-
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-030-0 01 1 9610-9611
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-902-0 01 1 9612-9706
149 BRACKET; COOLER HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-902-0 01 1 9707-9905
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-043-0 01 1 9610-9611
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82699-593-1 01 1 9612-9706
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (B) 		1-82699-593-1 01 1 9707-9905
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> (B) 		1-82699-825-0 01 1 9707-9905
149 BRACKET; COOLER HOSE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-901-1 01 1 9802-9905
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-251-0 01 1 9610-9611
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2 		1-83574-190-0 01 1 9612-9905
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-251-0 02 1 9610-9611
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-157-0 02 1 9612-9706
150 CLIP; HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-157-0 02 1 9707-9801
150 CLIP; HOSE
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-157-0 02 1 9802-9905
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-01900-616-0 01 1 9610-9611
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9612-9706
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> M8X20 FLANGE 		0-28680-820-0 01 1 9707-9905
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-01900-616-0 02 1 9610-9706
151 BOLT; CLIP FIX,COOLER HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-01900-616-0 02 1 9707-9801
151 BOLT; CLIP FIX,COOLER HOSE
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER 		9-01900-616-0 02 1 9802-9905
191 SCREW; CONNECTOR,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M4X10 TAPPING 		9-07076-410-0 02 1 9610-9706
191 SCREW; CONNECTOR,COOLER HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M4X10 TAPPING 		9-07076-410-0 02 1 9707-9905
192 PLATE; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-027-0 01 1 9610-9706
192 PLATE; COOLER HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-027-0 01 1 9707-9905

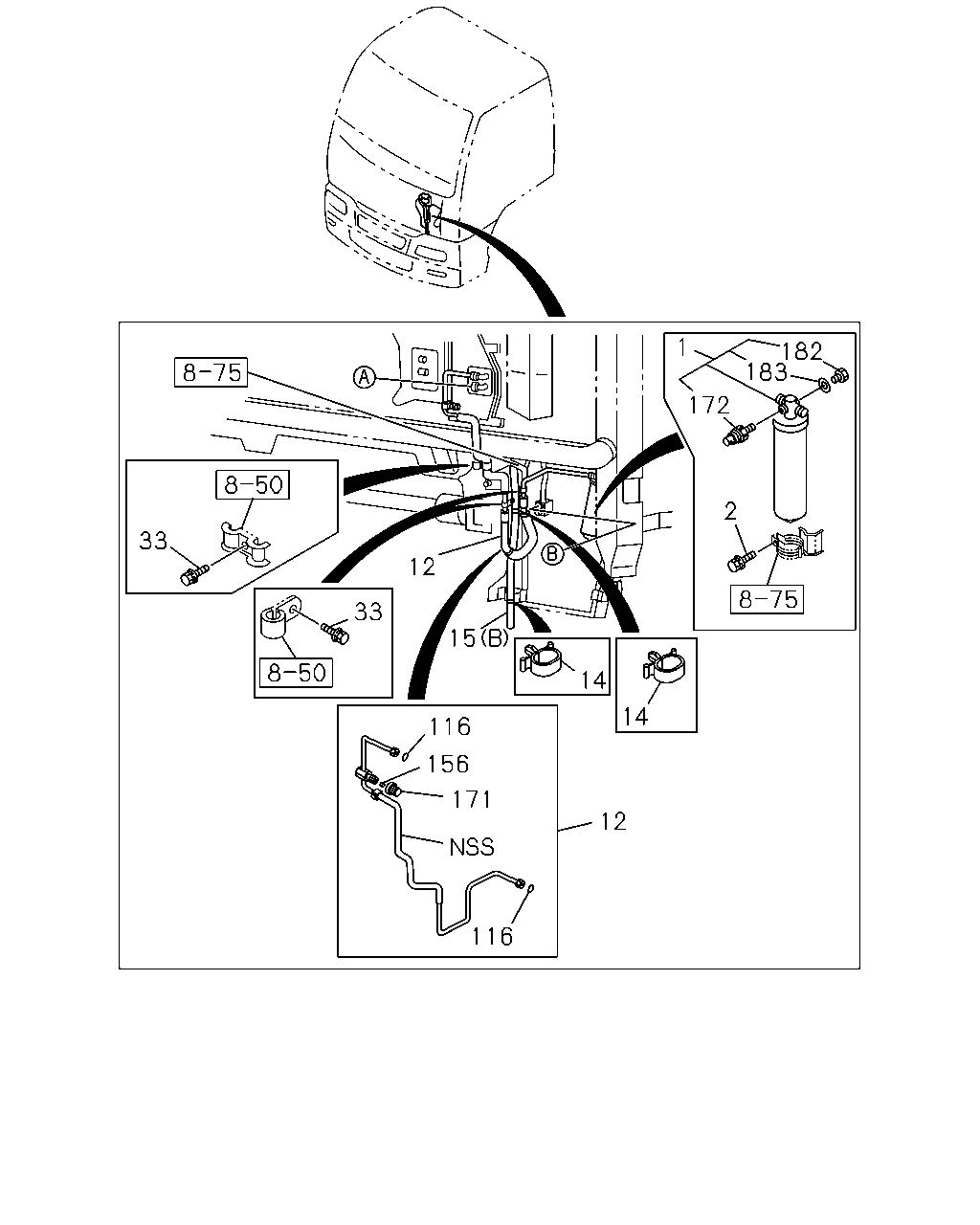

çizim 39693
1 182 183 172 2 33 12 33 15 14 14 116 156 171 12 116
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-073-0 01 1 9610-9905
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-085-0 01 1 9906-
2 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9610-
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-579-0 01 1 9610-9905
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-668-0 01 1 9906-
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 02 1 9610-9904
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 01 1 9905-
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83566-903-3 01 1 9610-9702
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-411-0 01 1 9703-9904
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-635-0 01 1 9905-
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83566-904-2 01 1 9606-9702
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83572-412-0 01 1 9703-
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9610-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=6 		8-94481-700-0 02 1 9610-9905
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97161-776-0 02 1 9906-
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9610-
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97083-101-0 01 1 9610-
172 SWITCH; PRESS,RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-044-0 01 1 9906-
172 SWITCH; PRESS,RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-218-0 01 1 9610-9905
182 PLUG; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-226-0 01 1 9610-9905
183 GASKET; PLUG
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94154-048-0 01 1 9610-9905

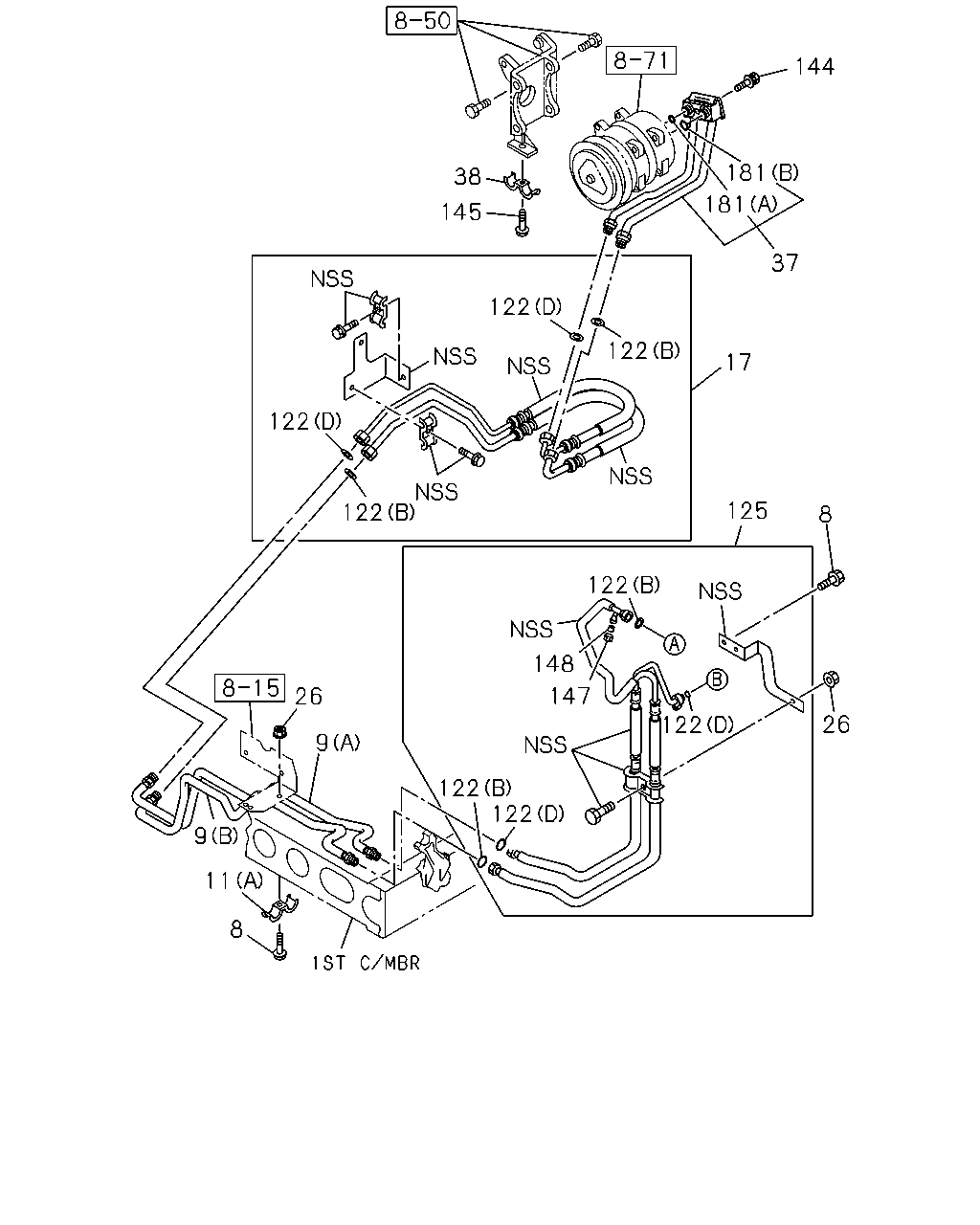

çizim 40585
144 181 38 181 145 37 122 122 17 122 122 125 8 122 148 147 26 122 26 9 122 122 9 11 8
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9802-9905
8 BOLT; CLIP
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9802-9905
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9906-0007
8 BOLT; CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8X20 FLANGE 		0-28680-820-0 01 1 9906-0007
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 0008-0103
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> M8X20 FLANGE 		0-28680-820-0 01 1 0008-0103
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE 		0-28080-818-0 01 1 0104-
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> M8X18 FLANGE 		0-28080-818-0 01 1 0104-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-589-0 01 1 9610-9701
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-455-1 01 1 9702-9706
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-455-1 01 1 9707-9711
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-486-0 01 1 9712-9905
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) V TYPE ENG<91L> (B) 		1-83572-557-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-590-0 01 1 9610-9701
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-456-1 01 1 9702-9706
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-456-1 01 1 9707-9711
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-487-0 01 1 9712-9905
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83567-670-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) 		1-83572-552-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83572-556-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-493-0 01 1 9802-9905
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-553-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-494-0 01 1 9802-9905
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83567-669-0 01 1 9906-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 9610-9706
11 CLIP; COOLER PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 9707-9801
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 9802-9905
11 CLIP; COOLER PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 9802-9905
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 9906-
11 CLIP; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) ID=12.2 & 16.2 		1-83574-190-0 01 1 9906-0007
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> (B) ID=12.2 & 16.2 		1-83574-190-0 01 1 0008-
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-280-0 01 1 9610-9611
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-198-1 01 1 9612-9706
17 HOSE; FLEX,CMPR TO PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-198-1 01 1 9707-9905
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83572-547-0 01 1 9906-0007
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> 		1-83572-547-1 01 1 0008-
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> 		1-83572-546-0 01 1 9906-0007
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> 		1-83572-546-1 01 1 0008-
17 HOSE; FLEX,CMPR TO PIPE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-249-0 01 1 9802-9905
17 HOSE; FLEX,CMPR TO PIPE
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-549-0 01 1 9906-9907
17 HOSE; FLEX,CMPR TO PIPE
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-646-1 01 1 9908-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9610-9706
26 NUT; PIPE CLIP
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9610-9706
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9707-9801
26 NUT; PIPE CLIP
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9707-9801
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 9802-0007
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0008-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0008-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 01 1 0008-
26 NUT; PIPE CLIP
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9802-9905
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9906-0007
37 CONNECTOR; CMPR TO FLEX HOSE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83575-077-0 01 1 9802-9905
37 CONNECTOR; CMPR TO FLEX HOSE
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-173-0 01 1 9906-
38 CLIP; CONNECTOR
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-177-0 01 1 9802-9905
38 CLIP; CONNECTOR
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-177-0 01 1 9906-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-09623-514-0 01 1 9610-9611
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09623-515-0 01 1 9610-9611
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9 		8-94113-330-0 02 1 9610-9706
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (B) ID=13.9 		8-94113-330-0 02 1 9707-9905
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 9906-0007
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 9906-0007
122 GASKET
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (D) ID=15.5 		8-97161-777-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9 		8-94113-330-0 01 1 9610-9706
122 GASKET
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9 		8-94113-330-0 01 1 9707-9801
122 GASKET
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9 		8-94113-330-0 01 1 9802-9905
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-94481-717-0 02 1 9610-9706
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (D) 		8-94481-717-0 02 1 9707-9905
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 02 1 9906-0007
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 02 1 9906-0007
122 GASKET
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (B) ID=18.3 		8-97161-778-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-94481-717-0 01 1 9610-9706
122 GASKET
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-94481-717-0 01 1 9707-9905
122 GASKET
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=10.8 		8-94113-331-0 01 1 9802-9905
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-240-0 01 1 9610-9611
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-163-1 01 1 9612-9706
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> 		1-83572-163-1 01 1 9707-9905
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83572-465-1 01 1 9906-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> 		1-83572-200-1 01 1 9707-9905
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> 		1-83572-543-1 01 1 9906-
144 BOLT; CONN TO CMPR
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M10X45 		9-01961-045-0 01 1 9802-9905
144 BOLT; CONN TO CMPR
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) M10X45 		9-01961-045-0 01 1 9906-
145 BOLT; CLIP,CONNECTOR
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) M8X16 W/LK WASHER 		9-01900-816-0 01 1 9802-9905
145 BOLT; CLIP,CONNECTOR
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) M8X16 W/LK WASHER 		9-01900-816-0 01 1 9906-
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97083-102-0 01 1 9610-9706
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> CAP MARK L 		8-97083-102-0 01 1 9707-9905
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97083-102-0 01 1 9906-
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9610-9706
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> 		8-97083-100-0 01 1 9707-9905
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9906-
181 GASKET; CONNECTOR
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09623-514-0 01 1 9802-9905
181 GASKET; CONNECTOR
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5 		8-97161-777-0 01 1 9906-
181 GASKET; CONNECTOR
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-09623-515-0 01 1 9802-9905
181 GASKET; CONNECTOR
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 01 1 9906-
çizim 41368
189 15
BalonParca AdiParca NoAdetTipApplied Date
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83566-903-3 01 1 9610-9702
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-411-0 01 1 9703-9904
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-635-0 01 1 9905-
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83566-904-2 01 1 9606-9702
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83572-412-0 01 1 9703-
189 GROMMET
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		9-09575-397-0 01 1 9606-9905
189 GROMMET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		9-09575-397-0 01 1 9906-

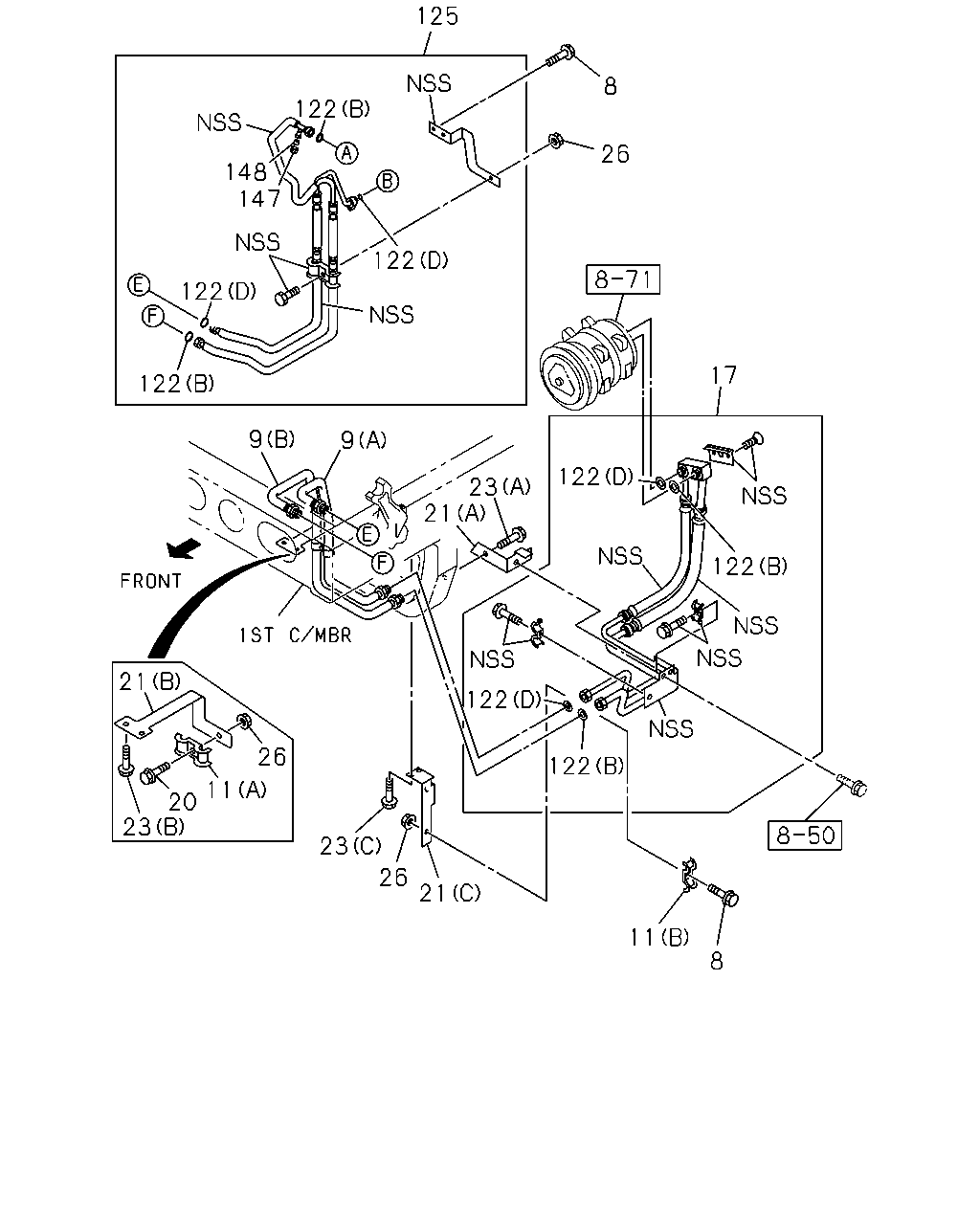

çizim 42069
125 8 122 26 148 147 122 122 17 122 9 9 122 23 21 122 21 122 26 122 11 20 23 23 26 21 11 8
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9802-9905
8 BOLT; CLIP
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9802-9905
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9906-0007
8 BOLT; CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8X20 FLANGE 		0-28680-820-0 01 1 9906-0007
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 0008-0103
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> M8X20 FLANGE 		0-28680-820-0 01 1 0008-0103
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE 		0-28080-818-0 01 1 0104-
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> M8X18 FLANGE 		0-28080-818-0 01 1 0104-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-589-0 01 1 9610-9701
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-455-1 01 1 9702-9706
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-455-1 01 1 9707-9711
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-486-0 01 1 9712-9905
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) V TYPE ENG<91L> (B) 		1-83572-557-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-590-0 01 1 9610-9701
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-456-1 01 1 9702-9706
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-456-1 01 1 9707-9711
9 PIPE; COOLER,HOSE TO HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-487-0 01 1 9712-9905
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83567-670-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) 		1-83572-552-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83572-556-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-493-0 01 1 9802-9905
9 PIPE; COOLER,HOSE TO HOSE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-553-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-494-0 01 1 9802-9905
9 PIPE; COOLER,HOSE TO HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83567-669-0 01 1 9906-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 9610-9706
11 CLIP; COOLER PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 9707-9801
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 9802-9905
11 CLIP; COOLER PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 9802-9905
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 01 1 9906-
11 CLIP; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) ID=12.2 & 16.2 		1-83574-190-0 01 1 9906-0007
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> (B) ID=12.2 & 16.2 		1-83574-190-0 01 1 0008-
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-280-0 01 1 9610-9611
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-198-1 01 1 9612-9706
17 HOSE; FLEX,CMPR TO PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-198-1 01 1 9707-9905
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83572-547-0 01 1 9906-0007
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> 		1-83572-547-1 01 1 0008-
17 HOSE; FLEX,CMPR TO PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> 		1-83572-546-0 01 1 9906-0007
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> 		1-83572-546-1 01 1 0008-
17 HOSE; FLEX,CMPR TO PIPE
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-249-0 01 1 9802-9905
17 HOSE; FLEX,CMPR TO PIPE
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-549-0 01 1 9906-9907
17 HOSE; FLEX,CMPR TO PIPE
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-646-1 01 1 9908-
20 BOLT; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE 		0-28081-045-0 01 1 9610-9706
20 BOLT; COOLER PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE 		0-28081-045-0 01 1 9707-9905
20 BOLT; COOLER PIPE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE 		0-28081-045-0 01 1 9906-0007
20 BOLT; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> M10X45 FLANGE 		0-28081-045-0 01 1 0008-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-777-1 01 1 9610-9706
21 BRACKET; COOLER HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-777-1 01 1 9707-9905
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-777-1 01 1 9906-0007
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (B) 		1-83571-777-1 01 1 0008-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-018-0 01 1 9610-9706
21 BRACKET; COOLER HOSE
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-018-0 01 1 9707-9905
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) 		1-83573-018-0 01 1 9906-0001
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (A) 		1-83573-018-0 01 1 0002-
21 BRACKET; COOLER HOSE
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) 		1-83571-998-0 01 1 9906-0007
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> (C) 		1-83571-998-0 01 1 0008-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9610-9705
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 01 1 9706-9706
23 BOLT; BRKT
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 01 1 9707-9905
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) M8X20 FLANGE 		0-28080-820-0 01 1 9906-0001
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (A) M8X20 FLANGE 		0-28080-820-0 01 1 0002-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28680-825-0 02 1 9610-9706
23 BOLT; BRKT
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28680-825-0 02 1 9707-9905
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28680-825-0 02 1 9906-0007
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (B) M8X25 FLANGE 		0-28680-825-0 02 1 0008-
23 BOLT; BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (C) M8X30 FLANGE 		0-28680-830-0 02 1 9906-0007
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> (C) M8X30 FLANGE 		0-28680-830-0 02 1 0008-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9610-9706
26 NUT; PIPE CLIP
6WA1 TC-S(56L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9610-9706
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9707-9801
26 NUT; PIPE CLIP
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9707-9801
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 9802-0007
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0008-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0008-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 01 1 0008-
26 NUT; PIPE CLIP
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9802-9905
26 NUT; PIPE CLIP
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9906-0007
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-09623-514-0 01 1 9610-9611
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09623-515-0 01 1 9610-9611
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9 		8-94113-330-0 02 1 9610-9706
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (B) ID=13.9 		8-94113-330-0 02 1 9707-9905
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 9906-0007
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 9906-0007
122 GASKET
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=15.5 		8-97161-777-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (D) ID=15.5 		8-97161-777-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9 		8-94113-330-0 01 1 9610-9706
122 GASKET
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9 		8-94113-330-0 01 1 9707-9801
122 GASKET
6WA1 TC-S(56L),10PE1S(60L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9 		8-94113-330-0 01 1 9802-9905
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-94481-717-0 02 1 9610-9706
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> (D) 		8-94481-717-0 02 1 9707-9905
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 02 1 9906-0007
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 02 1 9906-0007
122 GASKET
10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) L TYPE ENG<90L> (B) ID=18.3 		8-97161-778-0 02 1 0008-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-94481-717-0 01 1 9610-9706
122 GASKET
6WA1 TC-S(56L),6WG1 TC-N(71L) AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-94481-717-0 01 1 9707-9905
122 GASKET
10PE1S(60L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=10.8 		8-94113-331-0 01 1 9802-9905
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-240-0 01 1 9610-9611
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-163-1 01 1 9612-9706
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> 		1-83572-163-1 01 1 9707-9905
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83572-465-1 01 1 9906-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +50MM<W60> 		1-83572-200-1 01 1 9707-9905
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> 		1-83572-543-1 01 1 9906-
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97083-102-0 01 1 9610-9706
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> CAP MARK L 		8-97083-102-0 01 1 9707-9905
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97083-102-0 01 1 9906-
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9610-9706
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +50MM<W60> 		8-97083-100-0 01 1 9707-9905
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
