6-03 — RADIATOR GRILLE (#51859) — 36 parça

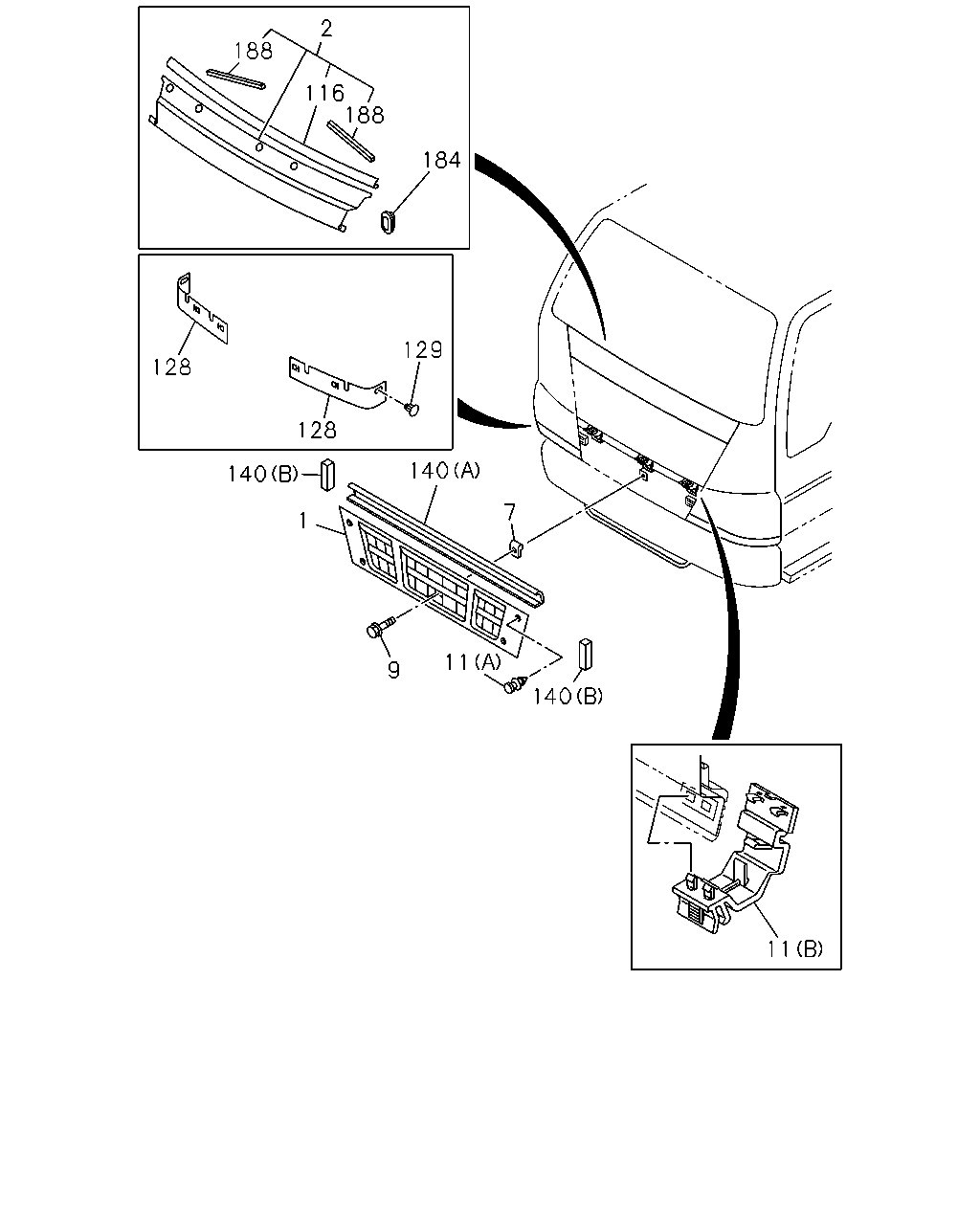

çizim 57349
2 188 116 188 184 129 128 128 140 140 7 1 11 9 140 11
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) WHITE 		8-97583-047-4 01 1 0507-0604 ● ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) WHITE 		8-97583-047-4 01 1 0605-0605 ● ● ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) WHITE 		8-97583-047-4 02 1 0606-0607 ● ● ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) WHITE 		8-97583-047-4 01 1 0608- ● ● ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) BLUE 		8-97583-048-4 01 1 0507-0604 ● ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) BLUE 		8-97583-048-4 01 1 0605-0605 ● ● ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) BLUE 		8-97583-048-4 02 1 0606-0607 ● ● ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) BLUE 		8-97583-048-4 01 1 0608- ● ● ● ●
1 GRILLE; RAD
BODY COLOR EBONY BLACK(508) BLACK 		8-97407-799-4 01 1 0607- ● ● ● ●
1 GRILLE; RAD
BODY COLOR HERTZ PENSKE YELLOW(978) YELLOW 		8-97407-800-4 01 1 0607- ● ● ● ●
2 GRILLE; ORNAMENT 8-97582-874-3 01 1 0507-0604 ● ● ●
2 GRILLE; ORNAMENT 8-97582-874-4 01 1 0605- ● ● ● ●
7 NUT; SPIRE,RAD GRILLE 8-98014-760-0 01 1 0507-0604 ● ● ●
7 NUT; SPIRE,RAD GRILLE 8-98014-760-0 01 1 0605- ● ● ● ●
9 SCREW; RAD GRILLE
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0507-0604 ● ● ●
9 SCREW; RAD GRILLE
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0605-0805 ● ● ● ●
9 SCREW; RAD GRILLE
M6X20 W/PL WASHER 		8-98059-504-0 01 1 0806- ● ● ● ●
11 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 04 1 0507-0604 ● ● ●
11 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 04 1 0605- ● ● ● ●
11 CLIP; RAD GRILLE
(A) 		8-97581-651-2 04 1 0507-0604 ● ● ●
11 CLIP; RAD GRILLE
(A) 		8-97581-651-2 04 1 0605- ● ● ● ●
116 MOLDING; ORNAMENT GRILLE 8-97581-656-1 01 1 0507-0604 ● ● ●
116 MOLDING; ORNAMENT GRILLE 8-97581-656-1 01 1 0605- ● ● ● ●
128 COVER; HEADLAMP GRILLE 8-97410-420-1 02 1 0507-0604 ● ● ●
128 COVER; HEADLAMP GRILLE 8-97410-420-1 02 1 0605- ● ● ● ●
129 CLIP; COVER HEADLAMP GRILLE
D=6.5 		8-97855-279-0 02 1 0507-0604 ● ● ●
129 CLIP; COVER HEADLAMP GRILLE
D=6.5 		8-97855-279-0 02 1 0605- ● ● ● ●
140 SEAL; RAD GRILLE
(A) 		8-97581-665-0 01 1 0507-0604 ● ● ●
140 SEAL; RAD GRILLE
(A) 		8-97581-665-0 01 1 0605- ● ● ● ●
140 SEAL; RAD GRILLE
(B) 		8-97583-411-1 02 1 0507-0604 ● ● ●
140 SEAL; RAD GRILLE
(B) 		8-97583-411-1 02 1 0605- ● ● ● ●
184 GROMMET; ORNAMENT 8-97581-668-0 03 1 0507-0602 ● ● ●
184 GROMMET; ORNAMENT 8-97581-668-0 02 1 0603-0604 ● ● ●
184 GROMMET; ORNAMENT 8-97581-668-0 02 1 0605- ● ● ● ●
188 SEAL; ORNAMENT 8-97584-800-0 02 1 0507-0604 ● ● ●
188 SEAL; ORNAMENT 8-97584-800-0 02 1 0605- ● ● ● ●
