◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51047 - ELF400/450(MEXICO) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#51858) — 36 parça

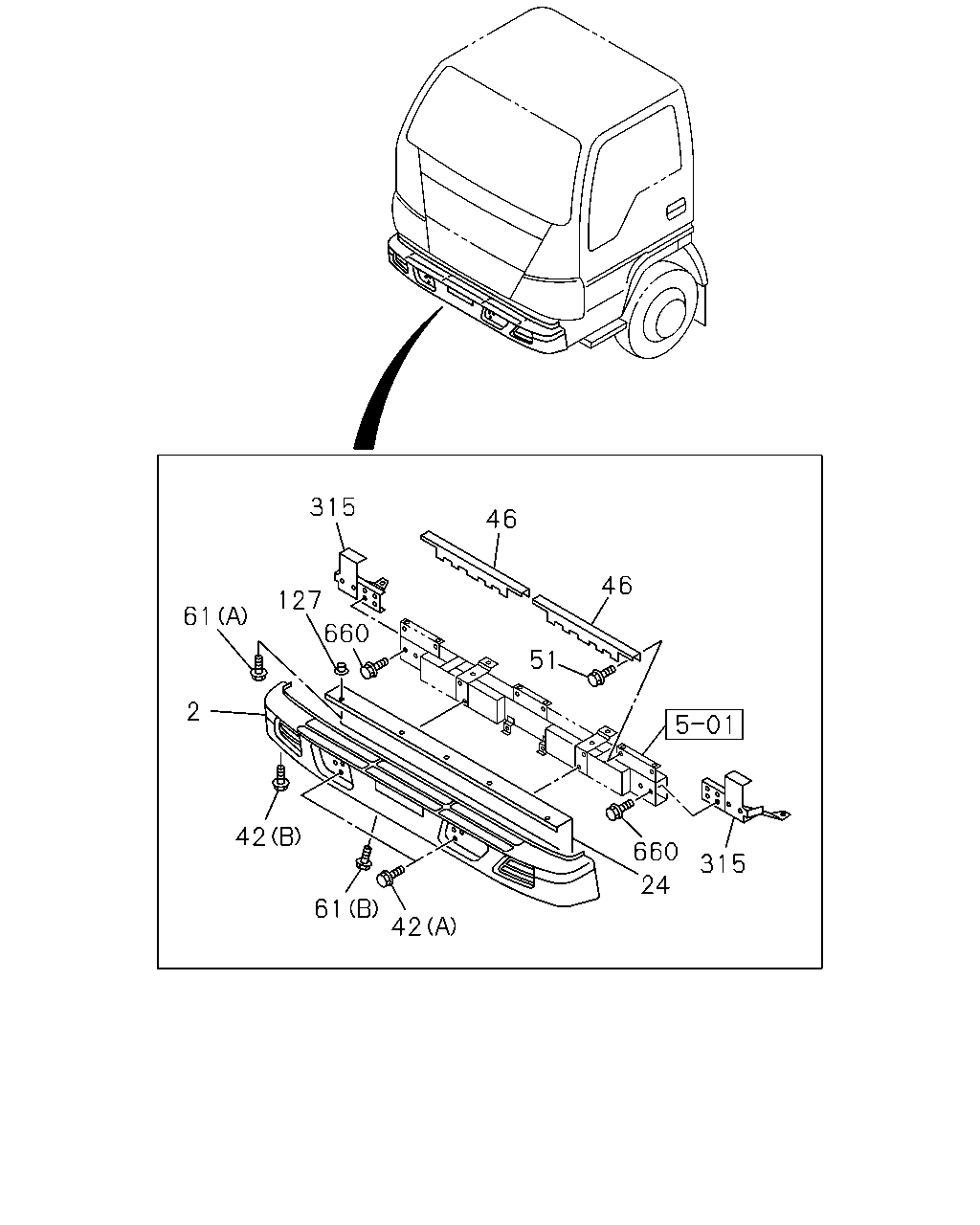

çizim 57322
315 46 46 660 127 61 51 2 42 660 315 24 61 42
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) WHITE 		8-97585-453-3 01 1 0507-0604 ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) WHITE 		8-97585-453-3 01 1 0605-0606 ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRONT BUMPER PAINTED<VB5> WHITE 		8-97585-453-3 01 1 0607- ● ● ● ●
2 BUMPER; FRT,CENTER
BODY COLOR EBONY BLACK(508),BODY COLOR HERTZ PENSKE YELLOW(978) FRONT BUMPER PAINTED<VB5> 		8-98046-930-0 01 1 0607- ● ● ● ●
24 BAR; FRT BUMPER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) 		8-97583-085-4 01 1 0507-0604 ● ● ●
24 BAR; FRT BUMPER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) 		8-97583-085-4 01 1 0605-0606 ● ● ● ●
24 BAR; FRT BUMPER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) EXC. FRONT BUMPER PAINTED<VB5> 		8-97583-085-4 01 1 0607-0701 ● ● ● ●
24 BAR; FRT BUMPER
BODY COLOR EBONY BLACK(508),BODY COLOR HERTZ PENSKE YELLOW(978) FRONT BUMPER PAINTED<VB5> 		8-97583-085-4 01 1 0607-0701 ● ● ● ●
24 BAR; FRT BUMPER 8-98056-684-0 01 1 0702- ● ● ● ●
42 BOLT; BUMPER
(A) M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 0507-0604 ● ● ●
42 BOLT; BUMPER
(A) M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 0605- ● ● ● ●
42 BOLT; BUMPER
(B) M8X25 		8-97103-451-0 02 1 0507-0604 ● ● ●
42 BOLT; BUMPER
(B) M8X25 		8-97103-451-0 02 1 0605- ● ● ● ●
46 REINFORCEMENT; BUMPER 8-97585-365-3 02 1 0507-0604 ● ● ●
46 REINFORCEMENT; BUMPER 8-97585-365-3 02 1 0605- ● ● ● ●
51 BOLT; REINF,BUMPER
M8X20 FLANGE 		0-28680-820-0 04 1 0507-0512 ● ● ●
51 BOLT; REINF,BUMPER
M8X20 FLANGE 		0-28650-820-0 04 1 0601-0604 ● ● ●
51 BOLT; REINF,BUMPER
M8X20 FLANGE 		0-28650-820-0 04 1 0605- ● ● ● ●
61 BOLT; BACK BAR
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) (A) M8X20 FLANGE 		0-28680-820-0 05 1 0507-0512 ● ● ●
61 BOLT; BACK BAR
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) (A) M8X20 FLANGE 		0-28650-820-0 05 1 0601-0604 ● ● ●
61 BOLT; BACK BAR
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) (A) M8X20 FLANGE 		0-28650-820-0 05 1 0605-0606 ● ● ● ●
61 BOLT; BACK BAR
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0607- ● ● ● ●
61 BOLT; BACK BAR
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) (B) M6X12 FLANGE 		8-97351-109-0 03 1 0507-0604 ● ● ●
61 BOLT; BACK BAR
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) (B) M6X12 FLANGE 		8-97351-109-0 03 1 0605-0606 ● ● ● ●
61 BOLT; BACK BAR
(B) M6X12 FLANGE 		8-97351-109-0 03 1 0607-0610 ● ● ● ●
61 BOLT; BACK BAR
(B) M6X16 FLANGE 		8-98016-982-0 03 1 0611- ● ● ● ●
127 NUT; FRT BUMPER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) 		8-94155-628-0 05 1 0507-0604 ● ● ●
127 NUT; FRT BUMPER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) 		8-94155-628-0 05 1 0605-0606 ● ● ● ●
127 NUT; FRT BUMPER 8-94155-628-0 05 1 0607- ● ● ● ●
315 STAY; BUMPER 8-97585-197-4 01 1 0507-0604 ● ● ●
315 STAY; BUMPER 8-97585-197-4 01 1 0605- ● ● ● ●
315 STAY; BUMPER 8-97585-196-4 01 1 0507-0604 ● ● ●
315 STAY; BUMPER 8-97585-196-4 01 1 0605- ● ● ● ●
660 BOLT; STAY
M8X20 FLANGE 		0-28680-820-0 04 1 0507-0512 ● ● ●
660 BOLT; STAY
M8X20 FLANGE 		0-28650-820-0 04 1 0601-0604 ● ● ●
660 BOLT; STAY
M8X20 FLANGE 		0-28650-820-0 04 1 0605- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
