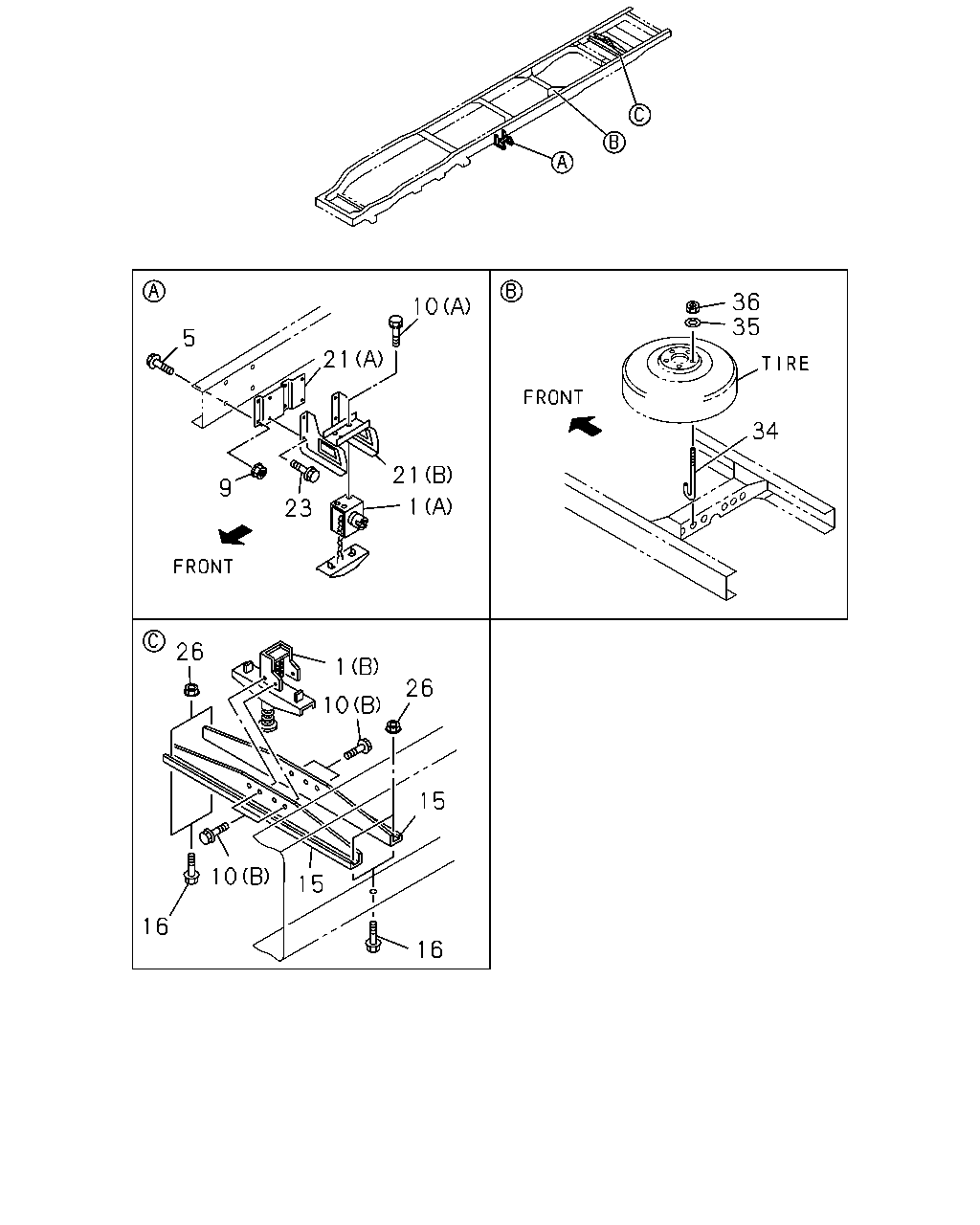

5-30 — SPARE TIRE CARRIER AND COVER (#51857) — 38 parça

36 35 10 5 21 34 21 9 1 23 26 1 26 10 15 10 15 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER<P10> (B) REAR	1-53630-188-3	01	1	0511-	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER<P10> (A) FRONT	8-97010-955-1	01	1	0507-0604		●	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER<P10> (A) FRONT	8-97010-955-1	01	1	0605-		●	●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER<P10> M10X25 FLANGE	0-28081-025-0	04	1	0507-0512		●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER<P10> M10X25 FLANGE	0-28051-025-0	04	1	0601-0604		●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER<P10> M10X25 FLANGE	0-28051-025-0	04	1	0605-		●	●	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER<P10> M10 FLANGE	0-91150-110-0	04	1	0507-0602		●	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER<P10> M10 FLANGE	0-91180-110-0	04	1	0603-0604		●	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER<P10> M10 FLANGE	0-91180-110-0	04	1	0605-		●	●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER<P10> (B) M10X25 FLANGE	0-28681-025-0	04	1	0511-0512	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER<P10> (B) M10X25 FLANGE	0-28651-025-0	04	1	0601-	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER<P10> (A) M8X20 FLANGE	0-28680-820-0	03	1	0507-0512		●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER<P10> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-0604		●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER<P10> (A) M8X20 FLANGE	0-28650-820-0	03	1	0605-		●	●	●
15	MEMBER; CROSS,SPARE TIRE SPARE WHEEL CARRIER<P10>	8-97167-802-0	02	1	0511-	●
16	BOLT; MEMBER SPARE WHEEL CARRIER<P10> M10X30 FLANGE	0-28681-030-0	04	1	0511-0512	●
16	BOLT; MEMBER SPARE WHEEL CARRIER<P10> M10X30 FLANGE	0-28651-030-0	04	1	0601-	●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER<P10> (A)	8-97209-718-0	01	1	0507-0604		●	●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER<P10> (A)	8-97209-718-0	01	1	0605-		●	●	●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER<P10> (B)	8-97209-737-0	01	1	0507-0604		●	●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER<P10> (B)	8-97209-737-0	01	1	0605-		●	●	●
23	BOLT; BRKT,SPARE TIRE M10X35 FLANGE	0-28651-035-0	02	1	0601-0604	●
23	BOLT; BRKT,SPARE TIRE GVWR CLASS-5 16001-19500LBS(RQH) M10X35 FLANGE	0-28651-035-0	02	1	0601-0604		●	●
23	BOLT; BRKT,SPARE TIRE M10X35 FLANGE	0-28651-035-0	02	1	0605-	●			●
23	BOLT; BRKT,SPARE TIRE GVWR CLASS-5 16001-19500LBS(RQH) M10X35 FLANGE	0-28651-035-0	02	1	0605-		●	●
23	BOLT; BRKT,SPARE TIRE SPARE WHEEL CARRIER<P10> M10X25 FLANGE	0-28681-025-0	04	1	0507-0512		●	●
23	BOLT; BRKT,SPARE TIRE SPARE WHEEL CARRIER<P10> M10X25 FLANGE	0-28651-025-0	04	1	0601-0604		●	●
23	BOLT; BRKT,SPARE TIRE SPARE WHEEL CARRIER<P10> M10X25 FLANGE	0-28651-025-0	04	1	0605-		●	●	●
26	NUT; BRKT FIX SPARE WHEEL CARRIER<P10> M10 FLANGE	0-91150-210-0	04	1	0511-0602	●
26	NUT; BRKT FIX SPARE WHEEL CARRIER<P10> M10 FLANGE	0-91180-210-0	04	1	0603-	●
34	BOLT; SPARE TIRE M12X305	8-94441-189-0	02	1	0507-0604	●	●	●
34	BOLT; SPARE TIRE M12X305	8-94441-189-0	02	1	0605-1209	●	●	●	●
34	BOLT; SPARE TIRE M12X330	8-98226-501-0	02	1	1210-	●	●	●	●
35	WASHER; PL,SPARE TIRE ID=12.5 OD=54	8-94466-483-0	02	1	0507-0604	●	●	●
35	WASHER; PL,SPARE TIRE ID=12.5 OD=54	8-94466-483-0	02	1	0605-	●	●	●	●
36	NUT; SPARE TIRE M12	9-99110-412-0	02	1	0507-0512	●	●	●
36	NUT; SPARE TIRE M12	0-91110-512-0	02	1	0601-0604	●	●	●
36	NUT; SPARE TIRE M12	0-91110-512-0	02	1	0605-	●	●	●	●
