Isuzu WW
▶
TRUCKS
▶
ELF
▶
51047 - ELF400/450(MEXICO)
▶
5 - Frame, Cab Mounting
▶

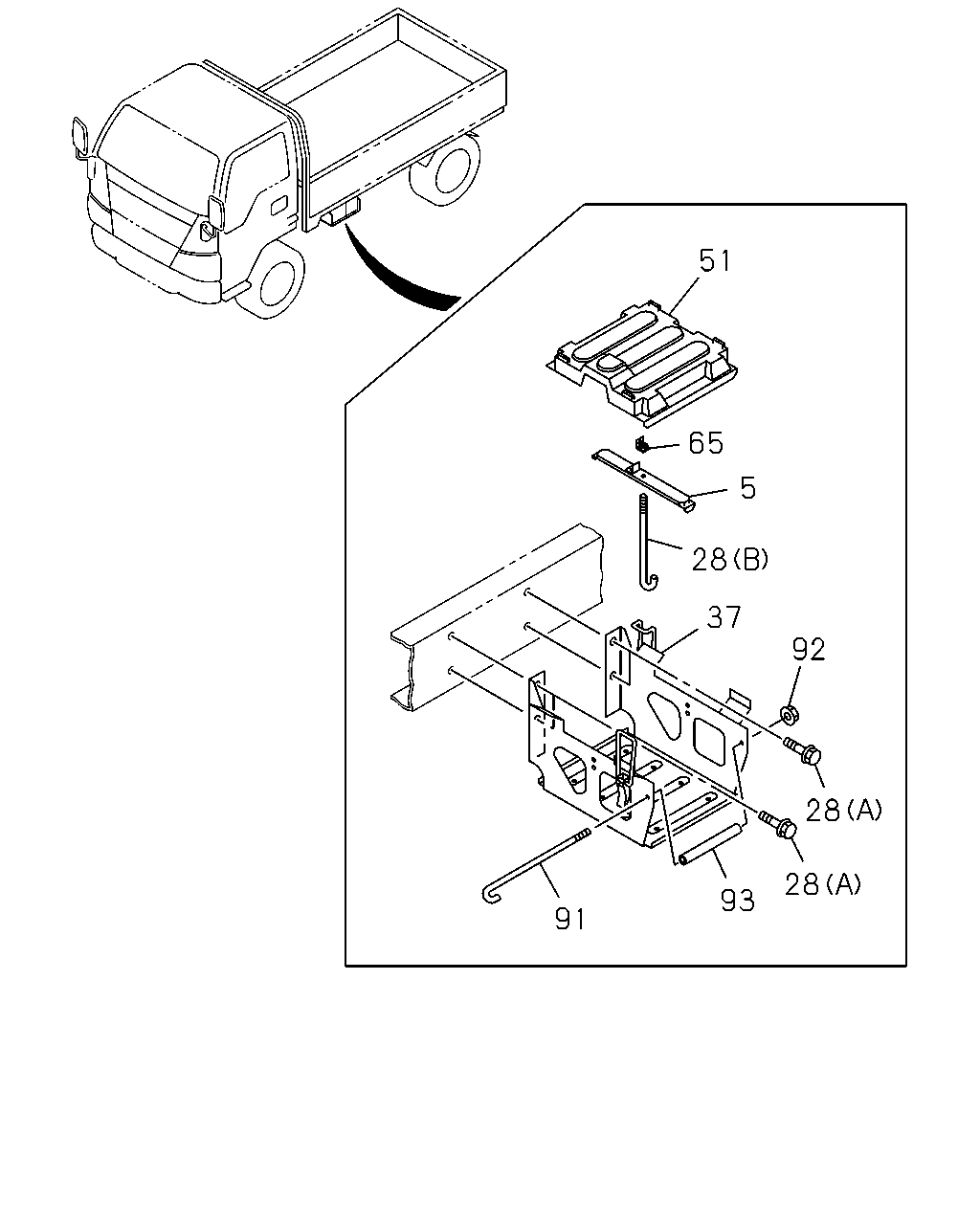

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#51856) — 21 parça
Tümü
A - NPC7SC
B - NPC7SF
C - NPC7SK
D - NPC7SS
51
65
5
28
37
92
28
28
93
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
5
BRACKET; BATTERY RELAY
8-94370-299-1
01
1
0507-0604
●
●
●
5
BRACKET; BATTERY RELAY
8-94370-299-1
01
1
0605-
●
●
●
●
28
BOLT; BRKT,BATTERY CARRIER
(A) M10X35 FLANGE
0-28681-035-0
04
1
0507-0512
●
●
●
28
BOLT; BRKT,BATTERY CARRIER
(A) M10X35 FLANGE
0-28651-035-0
04
1
0601-0604
●
●
●
28
BOLT; BRKT,BATTERY CARRIER
(A) M10X35 FLANGE
0-28651-035-0
04
1
0605-
●
●
●
●
28
BOLT; BRKT,BATTERY CARRIER
(B) L=250
1-53616-081-0
01
1
0507-0604
●
●
●
28
BOLT; BRKT,BATTERY CARRIER
(B) L=250
1-53616-081-0
01
1
0605-1003
●
●
●
●
28
BOLT; BRKT,BATTERY CARRIER
(B) L=250
1-53616-108-0
01
1
1004-
●
●
●
●
37
BRACKET; BATTERY
8-97254-597-1
01
1
0507-0604
●
●
●
37
BRACKET; BATTERY
8-97254-597-1
01
1
0605-
●
●
●
●
51
COVER; BATTERY
9-53612-072-0
01
1
0507-0604
●
●
●
51
COVER; BATTERY
9-53612-072-1
01
1
0605-
●
●
●
●
65
PLATE; LOCK,BATTERY BRKT
1-53618-040-0
01
1
0507-0604
●
●
●
65
PLATE; LOCK,BATTERY BRKT
1-53618-040-0
01
1
0605-
●
●
●
●
91
BOLT; BRKT TO BRKT,BATTERY
8-97122-608-0
01
1
0507-0604
●
●
●
91
BOLT; BRKT TO BRKT,BATTERY
8-97122-608-0
01
1
0605-
●
●
●
●
92
NUT; BRKT,BATTERY
M8 FLANGE
0-91150-108-0
01
1
0507-0602
●
●
●
92
NUT; BRKT,BATTERY
M8 FLANGE
0-91180-108-0
01
1
0603-0604
●
●
●
92
NUT; BRKT,BATTERY
M8 FLANGE
0-91180-108-0
01
1
0605-
●
●
●
●
93
SPACER; BOLT,BRKT,BATTERY
8-97124-125-0
01
1
0507-0604
●
●
●
93
SPACER; BOLT,BRKT,BATTERY
8-97124-125-0
01
1
0605-
●
●
●
●
