5-15 — CAB MOUNTING; CAB SIDE (#51855) — 92 parça

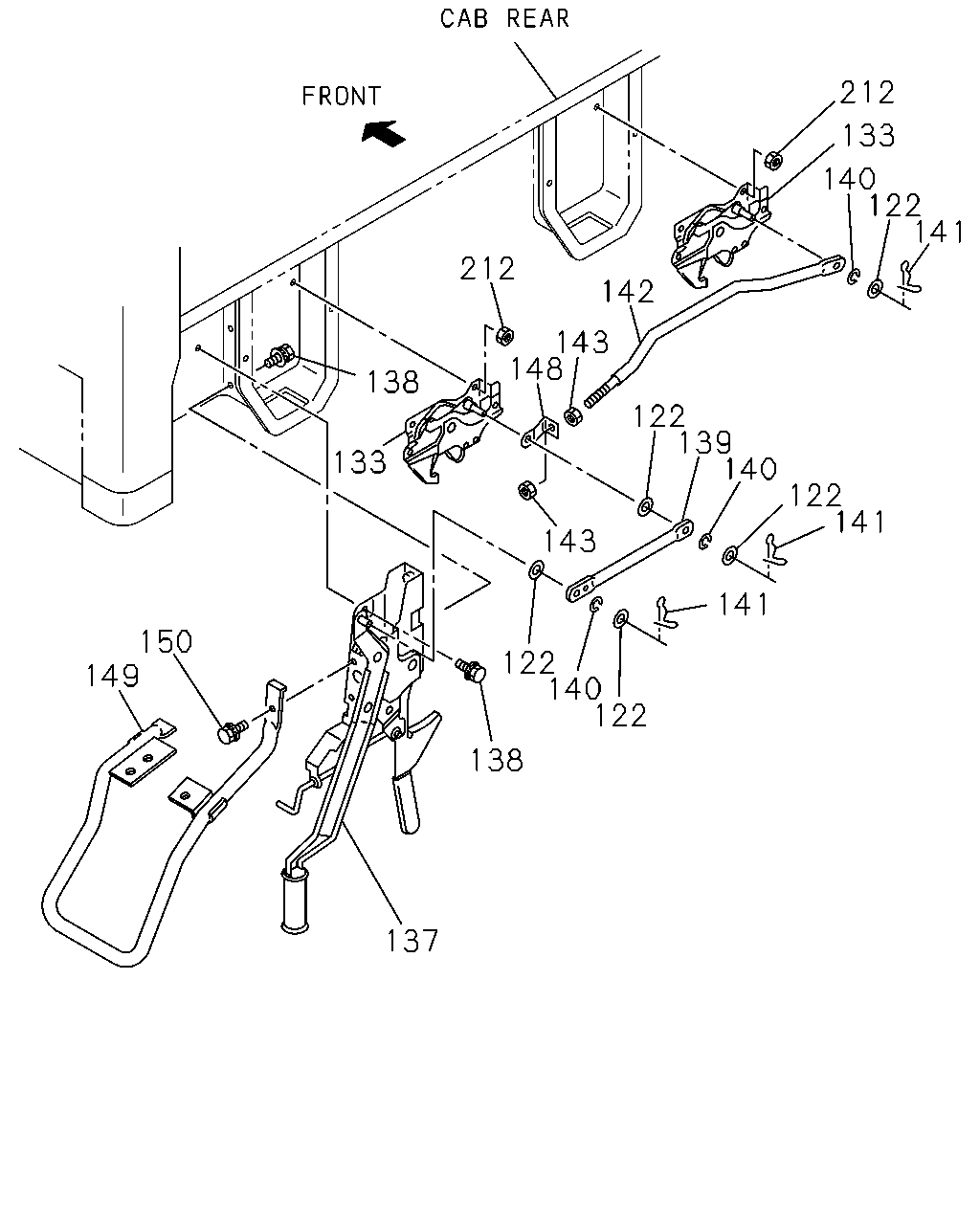

çizim 57155
212 133 140 122 141 212 142 143 148 138 122 139 140 133 122 141 143 141 150 149 122 140 122 138 137
BalonParca AdiParca NoAdetTipApplied Date A B C D
122 WASHER; PL,CAB LOCK ROD
ID=12.5 OD=22 		8-94279-627-0 05 1 0507-0604 ● ● ●
122 WASHER; PL,CAB LOCK ROD
ID=12.5 OD=22 		8-94279-627-0 05 1 0605-0707 ● ● ● ●
122 WASHER; PL,CAB LOCK ROD
ID=12.5 OD=22 		0-91610-512-0 05 1 0708- ● ● ● ●
133 LOCK ASM; CAB 8-97853-056-6 01 1 0507-0604 ● ● ●
133 LOCK ASM; CAB 8-97853-056-8 01 1 0605- ● ● ● ●
133 LOCK ASM; CAB 8-97853-055-7 01 1 0507-0604 ● ● ●
133 LOCK ASM; CAB 8-97853-055-9 01 1 0605- ● ● ● ●
137 CONTROL UNIT; CAB LOCK 8-97856-674-6 01 1 0507-0604 ● ● ●
137 CONTROL UNIT; CAB LOCK 8-97856-674-7 01 1 0605- ● ● ● ●
138 BOLT; CAB LOCK CONT UNIT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0507-0604 ● ● ●
138 BOLT; CAB LOCK CONT UNIT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0605- ● ● ● ●
139 ROD; CAB LOCK,LEVER TO HOOK 8-97997-597-0 01 1 0507-0604 ● ● ●
139 ROD; CAB LOCK,LEVER TO HOOK 8-97997-597-0 01 1 0605- ● ● ● ●
140 WASHER; LK,CAB LOCK ROD
ID=13 OD=22 		8-94279-629-0 03 1 0507-0604 ● ● ●
140 WASHER; LK,CAB LOCK ROD
ID=13 OD=22 		8-94279-629-0 03 1 0605-0611 ● ● ● ●
140 WASHER; LK,CAB LOCK ROD
ID=13 OD=22 		8-98060-839-0 03 1 0612- ● ● ● ●
141 PIN; SNAP,CAB LOCK ROD 1-09987-158-1 03 1 0507-0604 ● ● ●
141 PIN; SNAP,CAB LOCK ROD 1-09987-158-1 03 1 0605- ● ● ● ●
142 ROD; HOOK TO HOOK 1-79718-581-0 01 1 0507-0604 ● ● ●
142 ROD; HOOK TO HOOK 1-79718-581-0 01 1 0605- ● ● ● ●
143 NUT; JAW JOINT,HOOK TO HOOK
M10 		1-09984-142-0 02 1 0507-0604 ● ● ●
143 NUT; JAW JOINT,HOOK TO HOOK
M10 		1-09984-142-0 02 1 0605-0909 ● ● ● ●
143 NUT; JAW JOINT,HOOK TO HOOK
M10 		0-91110-510-0 02 1 0910- ● ● ● ●
148 JOINT; JAW,HOOK TO HOOK 8-97856-106-0 01 1 0507-0604 ● ● ●
148 JOINT; JAW,HOOK TO HOOK 8-97856-106-0 01 1 0605- ● ● ● ●
149 HANDLE; TILT 8-97853-054-4 01 1 0507-0604 ● ● ●
149 HANDLE; TILT 8-97853-054-4 01 1 0605- ● ● ● ●
150 BOLT; TILT HANDLE
M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512 ● ● ●
150 BOLT; TILT HANDLE
M8X25 FLANGE 		0-28650-825-0 03 1 0601-0604 ● ● ●
150 BOLT; TILT HANDLE
M8X25 FLANGE 		0-28650-825-0 03 1 0605-0610 ● ● ● ●
150 BOLT; TILT HANDLE
M8X20 FLANGE 		0-28650-820-0 03 1 0611-1103 ● ● ● ●
150 BOLT; TILT HANDLE
M8X25 FLANGE 		0-28650-825-0 03 1 1104- ● ● ● ●
212 NUT; BRKT,CAB LOCK
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 08 1 0507-0604 ● ● ●
212 NUT; BRKT,CAB LOCK
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 08 1 0605-0711 ● ● ● ●
212 NUT; BRKT,CAB LOCK
M8 FLANGE 		0-91180-108-0 08 1 0712-0712 ● ● ● ●
212 NUT; BRKT,CAB LOCK
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 08 1 0801- ● ● ● ●
çizim 57316
15 12 38 324 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LEVER; TORSION BAR 8-97328-486-1 01 1 0507-0604 ● ● ●
1 LEVER; TORSION BAR 8-97328-486-1 01 1 0605- ● ● ● ●
3 BOLT; LEVER
M12X37 W/LK&PL WASHER 		8-97326-378-0 06 1 0507-0604 ● ● ●
3 BOLT; LEVER
M12X37 W/LK&PL WASHER 		8-97326-378-0 06 1 0605-0611 ● ● ● ●
3 BOLT; LEVER
M12X37 W/LK&PL WASHER 		8-97359-033-0 06 1 0612- ● ● ● ●
12 BAR; TORSION,UPR 8-97261-872-0 01 1 0507-0604 ● ● ●
12 BAR; TORSION,UPR 8-97261-872-0 01 1 0605- ● ● ● ●
15 RING; SNAP,TORSION BAR 8-94258-173-0 01 1 0507-0604 ● ● ●
15 RING; SNAP,TORSION BAR 8-94258-173-0 01 1 0605-0610 ● ● ● ●
15 RING; SNAP,TORSION BAR 8-97359-034-0 01 1 0611- ● ● ● ●
38 NUT; LK
M14 		9-99110-514-0 01 1 0507-0512 ● ● ●
38 NUT; LK
M14 		0-91110-514-0 01 1 0601-0604 ● ● ●
38 NUT; LK
M14 		0-91110-514-0 01 1 0605-0611 ● ● ● ●
324 BOLT; ADJUST
M14X55 		8-97190-103-1 01 1 0507-0604 ● ● ●
324 BOLT; ADJUST
M14X55 		8-97190-103-1 01 1 0605-0610 ● ● ● ●
324 BOLT; ADJUST
M14X55 		8-98004-319-1 01 1 0611- ● ● ● ●

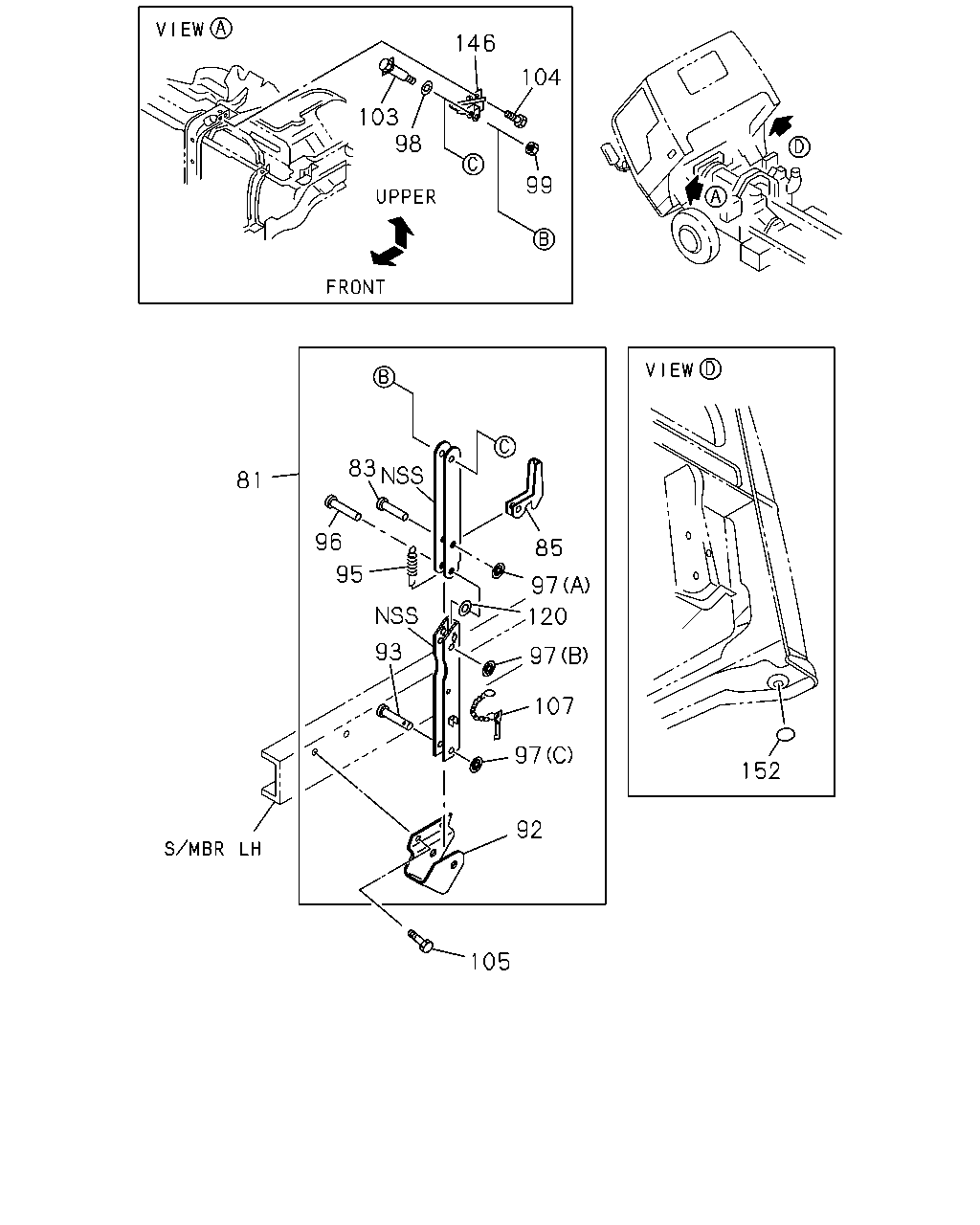

çizim 57422
146 104 103 98 99 83 81 96 85 95 97 120 93 97 107 97 152 92 105
BalonParca AdiParca NoAdetTipApplied Date A B C D
81 STAY ASM; CAB TILT 8-97073-880-1 01 1 0507-0604 ● ● ●
81 STAY ASM; CAB TILT 8-97073-880-1 01 1 0605- ● ● ● ●
83 PIN; JOINT,CAB STAY
OD=8 L=32 		8-97039-548-0 01 1 0507-0604 ● ● ●
83 PIN; JOINT,CAB STAY
OD=8 L=32 		8-97039-548-0 01 1 0605- ● ● ● ●
85 LEVER; LOCK,CAB STAY 8-94331-481-0 01 1 0507-0604 ● ● ●
85 LEVER; LOCK,CAB STAY 8-94331-481-0 01 1 0605- ● ● ● ●
92 BRACKET; CAB STAY TO FRAME 8-97108-760-1 01 1 0507-0604 ● ● ●
92 BRACKET; CAB STAY TO FRAME 8-97108-760-1 01 1 0605- ● ● ● ●
93 PIN; CAB STAY
OD=12 L=53 		8-97218-926-0 01 1 0507-0604 ● ● ●
93 PIN; CAB STAY
OD=12 L=53 		8-97218-926-0 01 1 0605- ● ● ● ●
95 SPRING; RETURN,CAB STAY 8-94160-167-2 01 1 0507-0604 ● ● ●
95 SPRING; RETURN,CAB STAY 8-94160-167-2 01 1 0605- ● ● ● ●
96 PIN; JOINT
OD=10 L=36 		8-97096-661-0 01 1 0507-0604 ● ● ●
96 PIN; JOINT
OD=10 L=36 		8-97096-661-0 01 1 0605- ● ● ● ●
97 NUT; CAB STAY PIN
(A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0507-0604 ● ● ●
97 NUT; CAB STAY PIN
(A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0605- ● ● ● ●
97 NUT; CAB STAY PIN
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0507-0604 ● ● ●
97 NUT; CAB STAY PIN
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0605- ● ● ● ●
97 NUT; CAB STAY PIN
(C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 0507-0604 ● ● ●
97 NUT; CAB STAY PIN
(C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 0605- ● ● ● ●
98 WASHER; CAB STAY
ID=10.5 OD=28.0 		8-97184-701-0 01 1 0507-0604 ● ● ●
98 WASHER; CAB STAY
ID=10.5 OD=28.0 		8-97184-701-0 01 1 0605- ● ● ● ●
99 NUT; CAB STAY
M10 		8-97185-205-1 01 1 0507-0604 ● ● ●
99 NUT; CAB STAY
M10 		8-97185-205-1 01 1 0605- ● ● ● ●
103 PIN; JOINT,CAB STAY
M10X40 		8-97184-683-0 01 1 0507-0604 ● ● ●
103 PIN; JOINT,CAB STAY
M10X40 		8-97184-683-0 01 1 0605-0805 ● ● ● ●
103 PIN; JOINT,CAB STAY
M10X40 		8-97359-151-0 01 1 0806- ● ● ● ●
104 BOLT; CAB STAY BRKT
M8X20 FLANGE 		0-28690-820-0 03 1 0507-0512 ● ● ●
104 BOLT; CAB STAY BRKT
M8X20 FLANGE 		0-28660-820-0 03 1 0601-0604 ● ● ●
104 BOLT; CAB STAY BRKT
M8X20 FLANGE 		0-28660-820-0 03 1 0605- ● ● ● ●
105 BOLT; CAB STAY
M10X40 W/WASHER 		8-94411-010-0 02 1 0507-0604 ● ● ●
105 BOLT; CAB STAY
M10X40 W/WASHER 		8-94411-010-0 02 1 0605- ● ● ● ●
107 PIN; LK LEVER 8-94331-482-0 01 1 0507-0604 ● ● ●
107 PIN; LK LEVER 8-94331-482-0 01 1 0605- ● ● ● ●
120 WASHER; NYLON
ID=10 OD=20 		8-97103-223-0 01 1 0507-0604 ● ● ●
120 WASHER; NYLON
ID=10 OD=20 		8-97103-223-0 01 1 0605- ● ● ● ●
146 BRACKET ASM; CAB STAY UPR 8-97076-588-2 01 1 0507-0604 ● ● ●
146 BRACKET ASM; CAB STAY UPR 8-97076-588-2 01 1 0605- ● ● ● ●
152 GROMMET; DUMMY HOLE,CAB TILT LOCK
OD=25 BLACK 		1-76798-019-0 02 1 0507-0604 ● ● ●
152 GROMMET; DUMMY HOLE,CAB TILT LOCK
OD=25 BLACK 		1-76798-019-0 02 1 0605- ● ● ● ●
